COMPONENT PARTS
MWI-7

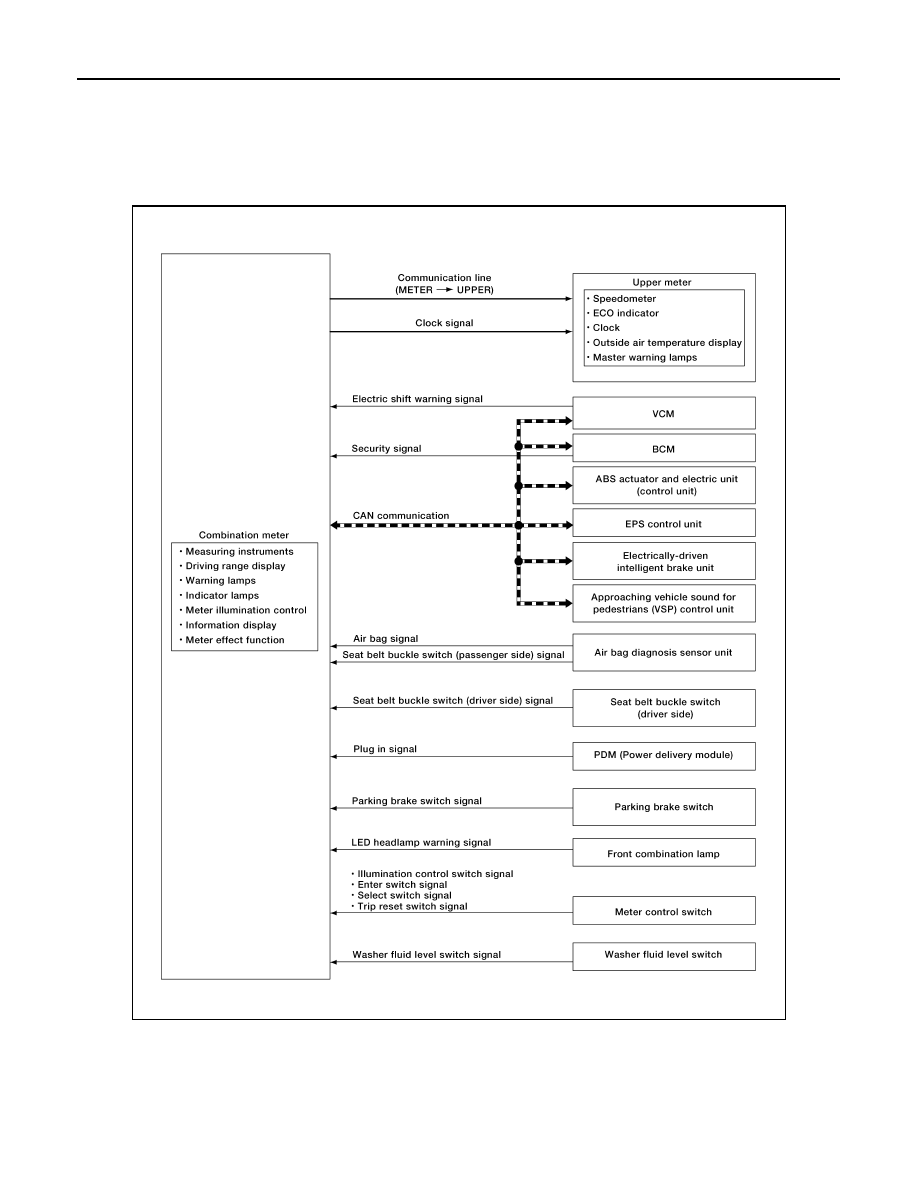

< SYSTEM DESCRIPTION >
C
D
E
F
G
H
I
J
K
L
M
B
A
O
P
• Power meter
• Li-ion battery temperature gauge
• Li-ion battery capacity level gauge
• Li-ion battery available charge gauge
• Driving range display
• Indicator lamps
• Warning lamps
• Time charge and A/C-heater timer (climate control timer) (without navigation)
• Meter illumination control
• Meter effect function
• Information display
METER SYSTEM : Meter Control Switch
INFOID:0000000010122387
• The meter control switch is located on the side ventilator grille LH.
• The meter control switch can be used to control the combination
meter functions listed below and to change the display of vehicle
information.
• Transmits the following signals to the combination meter:
- Enter switch signal
- Select switch signal
- Trip reset switch signal
- Illumination control switch signal

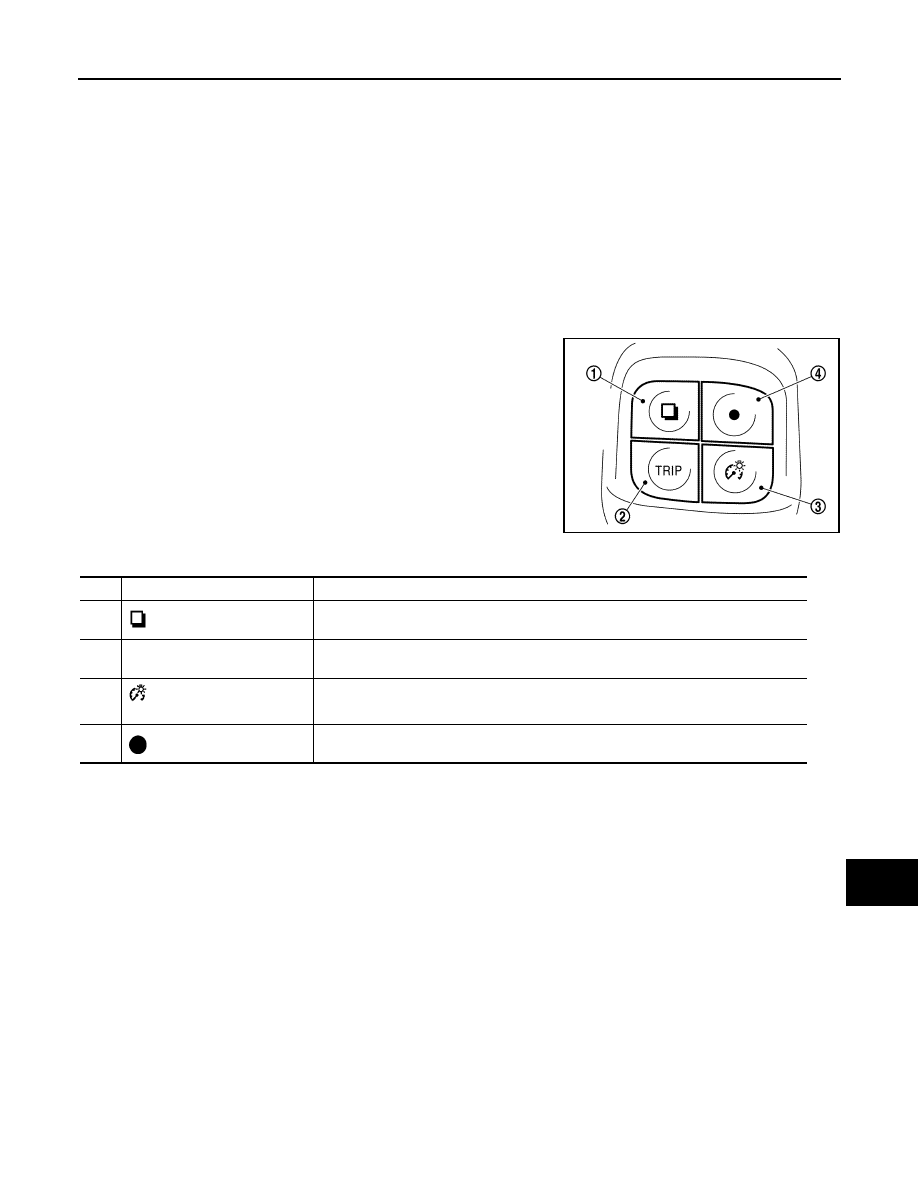

JSNIA3679ZZ
No.
Switch name
Description
1.
switch (Enter switch)
• The information display screen can be switched.
• The item indicated on the information display can be confirmed.
2.
Trip reset switch
• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the trip reset switch.
3.
switch (Illumination control
switch)
An illuminance level of the back light of the combination meter and upper meter can be
adjusted.
4.
switch (Select switch)
When plural items are shown on the information display, a selected item can be
changed to the other item.
