DOOR MIRROR REMOTE CONTROL SWITCH

MIR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000010122884

REMOVAL

1. Remove power window main switch finisher. Refer to

INT-19, "Removal and Installation"

.

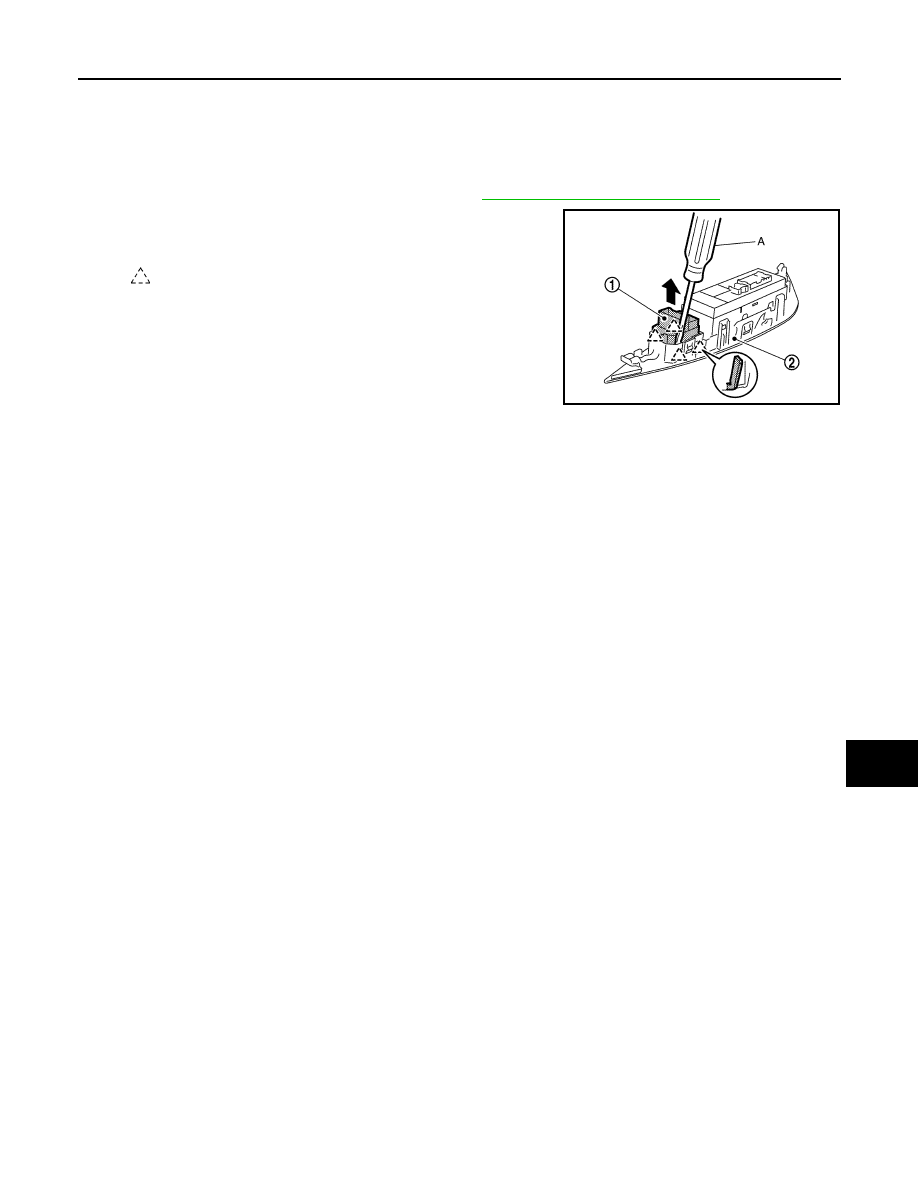

2. Remove door mirror remote control switch (1) from power win-

dow main switch finisher (2) using remover tool (A).

CAUTION:

Never fold the pawl of power window main switch finisher.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMLIA1594ZZ

MIR-24

< REMOVAL AND INSTALLATION >

DOOR MIRROR ACTUATOR

DOOR MIRROR ACTUATOR

Removal and Installation

INFOID:0000000010122885

REMOVAL

1. Remove the door mirror glass. Refer to

MIR-21, "GLASS MIRROR : Removal and Installation"

.

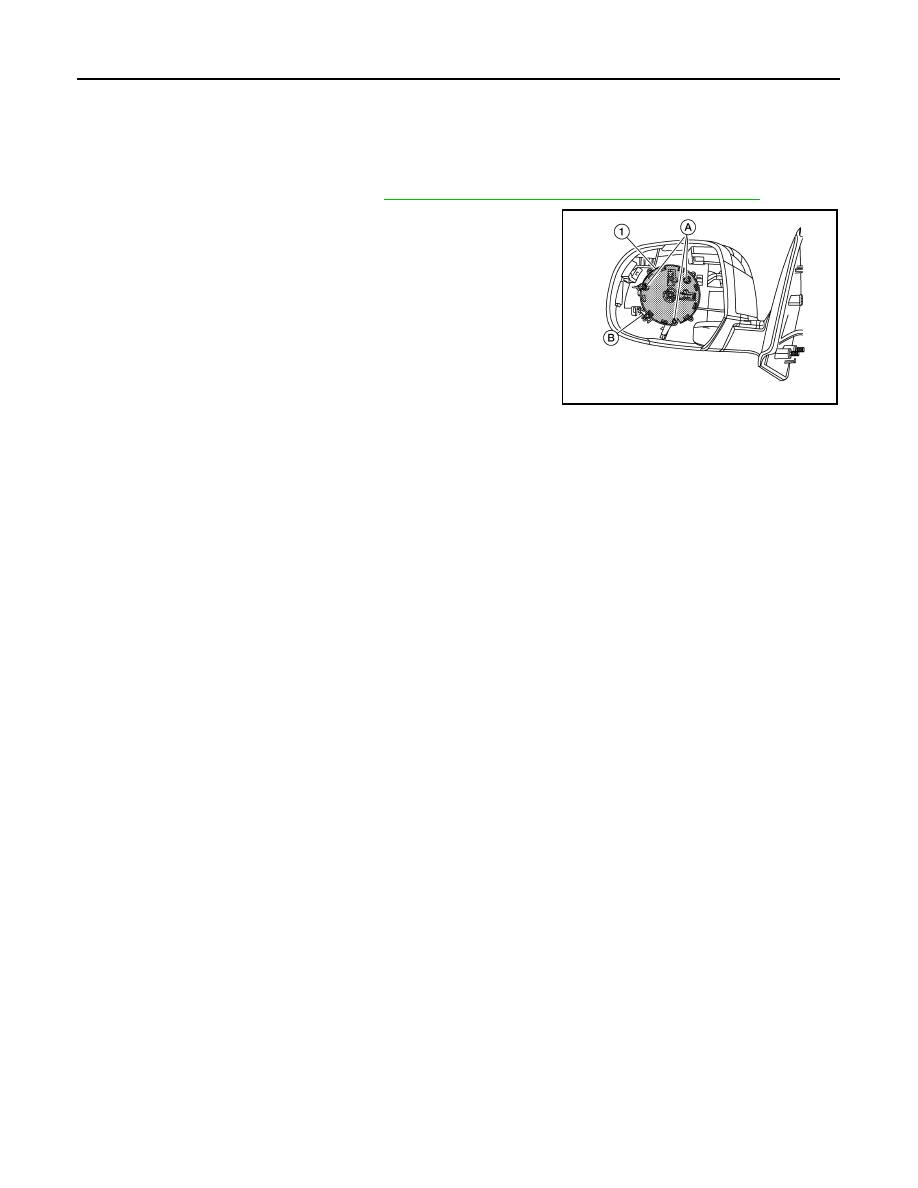

2. Remove the screws (A), disconnect the harness connector (B)

and remove the door mirror actuator (1).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1275ZZ
