INSIDE MIRROR

MIR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

REMOVAL AND INSTALLATION

INSIDE MIRROR

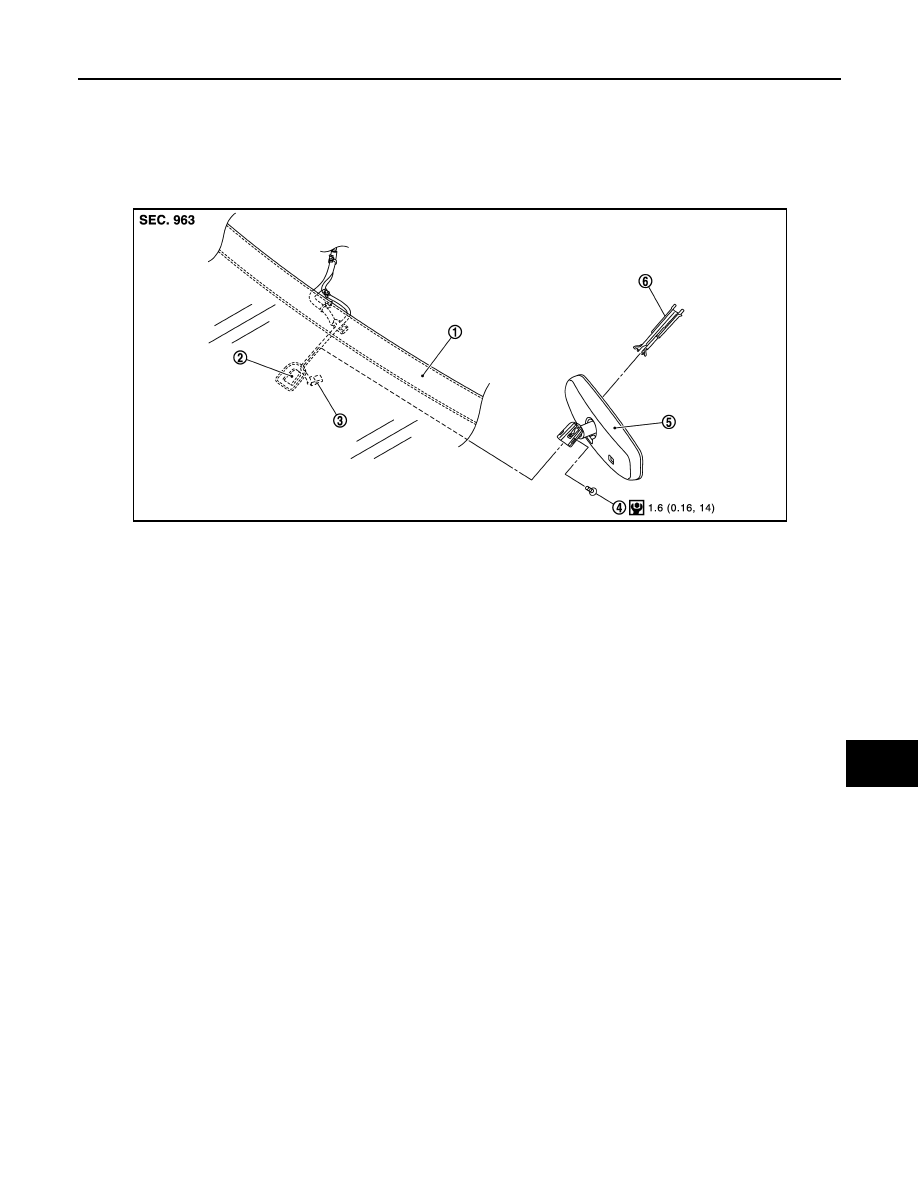

Exploded View

INFOID:0000000010122878

Removal and Installation

INFOID:0000000010122879

Removal

1. Remove inside mirror cover.
2. Disconnect harness connector from inside mirror.
3. Loosen bolt and slide inside mirror upward to remove.

Installation

Install in the reverse order of removal.

1.

Windshield glass

2.

Mirror base

3.

Harness connector

4.

Bolt

5.

Inside mirror

6.

Inside mirror cover

JMLIA0906GB

MIR-20

< REMOVAL AND INSTALLATION >

DOOR MIRROR

DOOR MIRROR

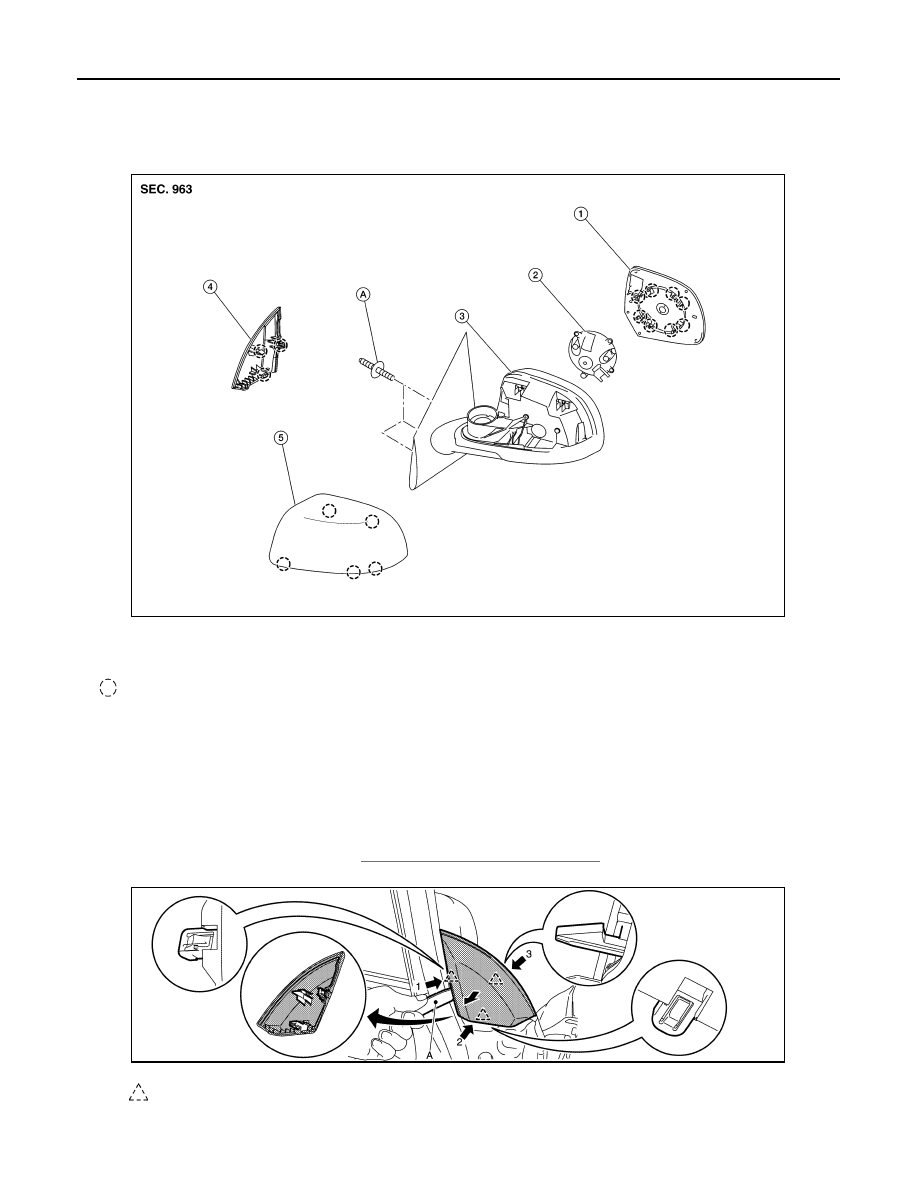

Exploded View

INFOID:0000000010122880

DOOR MIRROR ASSEMBLY
DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000010122881

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

REMOVAL

1. Remove front door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove door mirror corner cover.

a. Insert a remover tool A into the hole as shown in the figure to disengage the fixing pawls.

1.

Glass mirror

2.

Door mirror actuator

3.

Door mirror assembly

4.

Door mirror corner cover

5.

Door mirror cover

A.

Door mirror stud

: Pawl

ALLIA1274ZZ

: Pawl

JMLIA1669ZZ

DOOR MIRROR

MIR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

b. Remove door mirror corner cover from door panel.
3. Remove partially front door sealing screen.

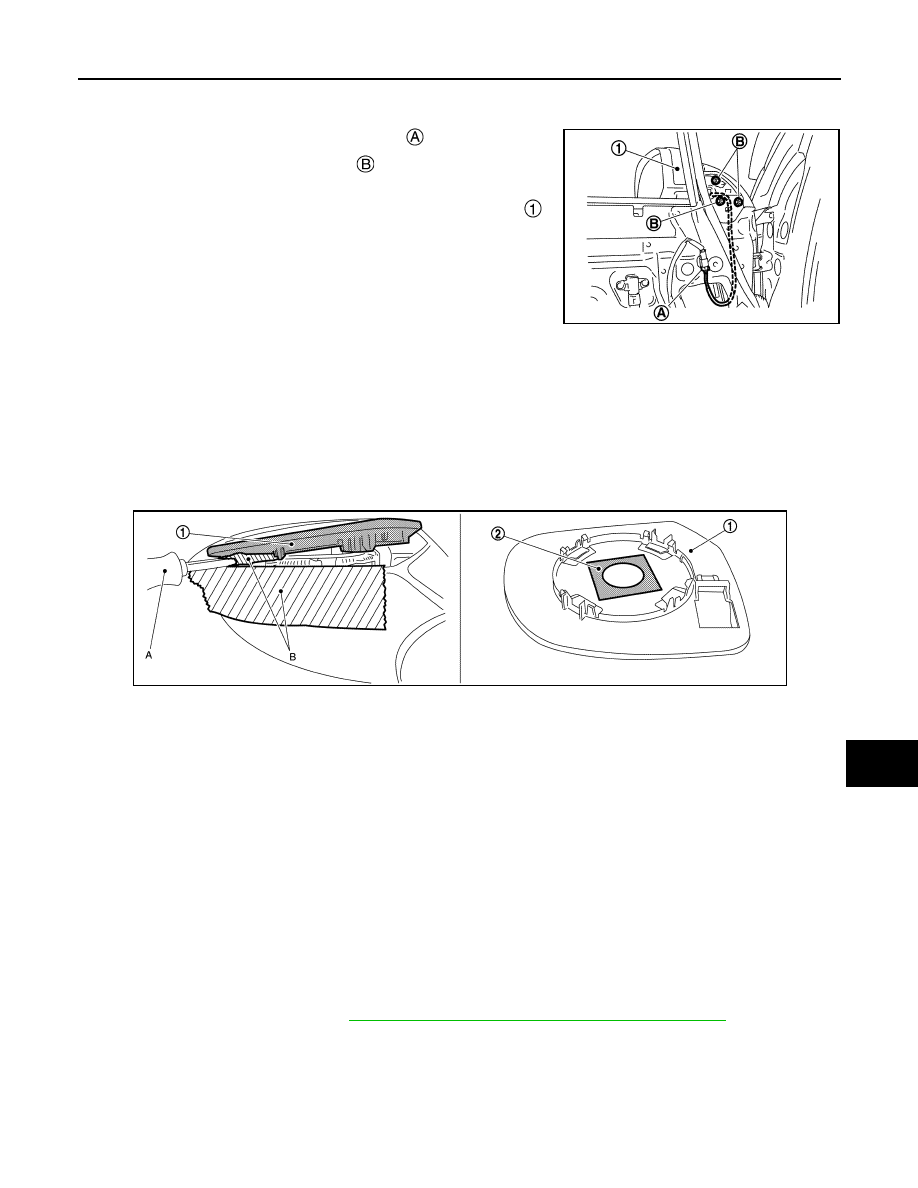

4. Disconnect door mirror harness connector

.

5. Remove door mirror mounting nuts  .
6. Remove door mirror harness connector from door panel as

shown in the figure, and then remove door mirror assembly

.

INSTALLATION

Install in the reverse order of removal.

GLASS MIRROR
GLASS MIRROR : Removal and Installation

INFOID:0000000010122882

REMOVAL

1. Place the glass mirror upward.
2. Remove glass mirror.

a. Put a strip of protective tape (B) on mirror body.
b. Insert a remover tool (A) into the recess at lower side between glass mirror (1) and actuator, and push up

pawls to remove glass mirror lower side.

NOTE:

Insert a remover tool into recesses, and push up while rotating (twisting) to make work easier.

c. Remove the glass mirror fixing butyl-tape (2) with a cutting tool and remove glass mirror from mirror body.
d. Disconnect the heater harness connectors (if equipped).

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER
DOOR MIRROR COVER : Removal and Installation

INFOID:0000000010122883

REMOVAL

1. Remove the glass mirror. Refer to

MIR-21, "GLASS MIRROR : Removal and Installation"

.

2. Remove door mirror actuator.

JMLIA1670ZZ

JMLIA1671ZZ

MIR-22

< REMOVAL AND INSTALLATION >

DOOR MIRROR

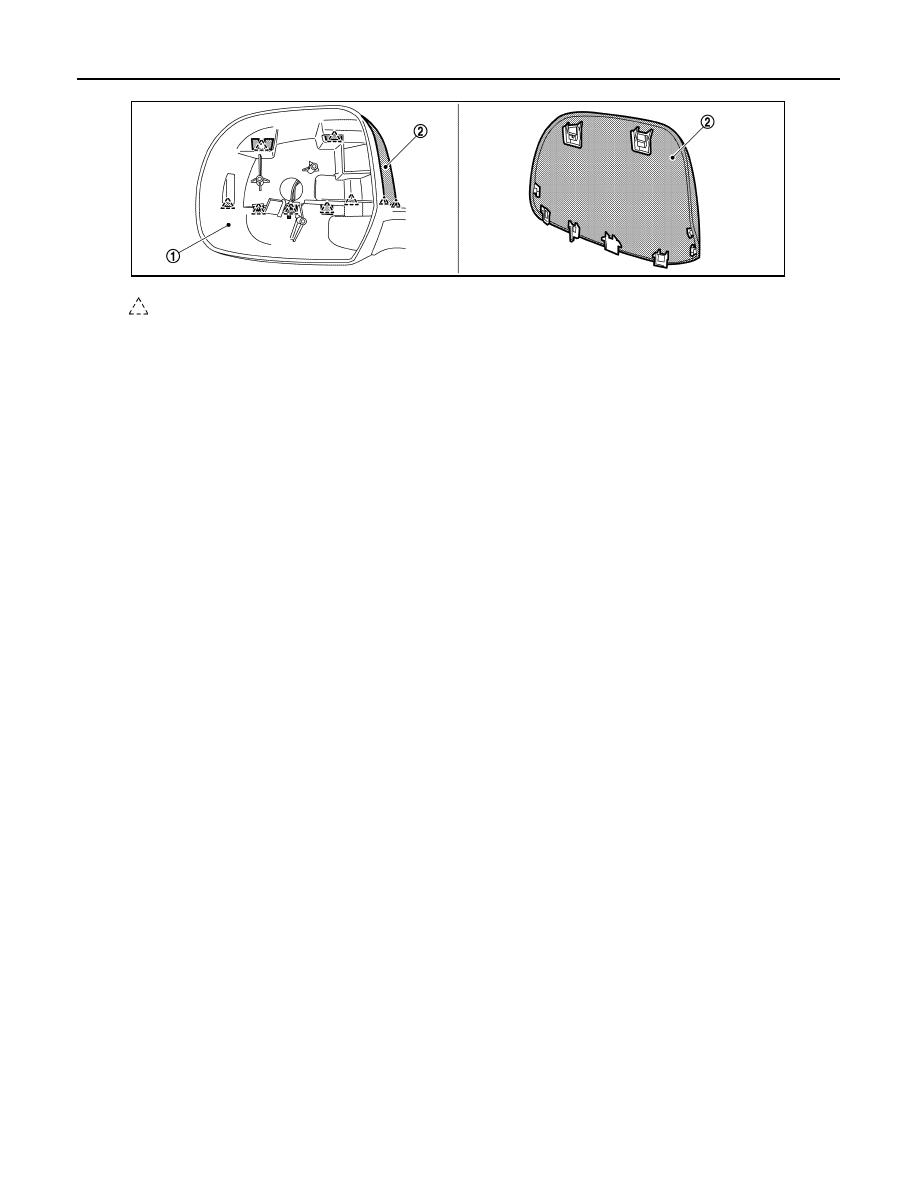

3. Disengage door mirror cover (2) fixing pawls with a remover tool.

4. Remove door mirror cover from door mirror body (1).

INSTALLATION

Note the following item and then install in the reverse order of removal.

CAUTION:

After installation, visually check that pawls are securely engaged.

: Pawl
