INSTRUMENT PANEL ASSEMBLY

IP-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

• Do not use the steering wheel nut after removal, replace with a new nut.

• Do not use the driver air bag module bolts after removal, replace with new bolts.

• Do not use the passenger air bag module bolt after removal, replace with a new bolt.

IP-28

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

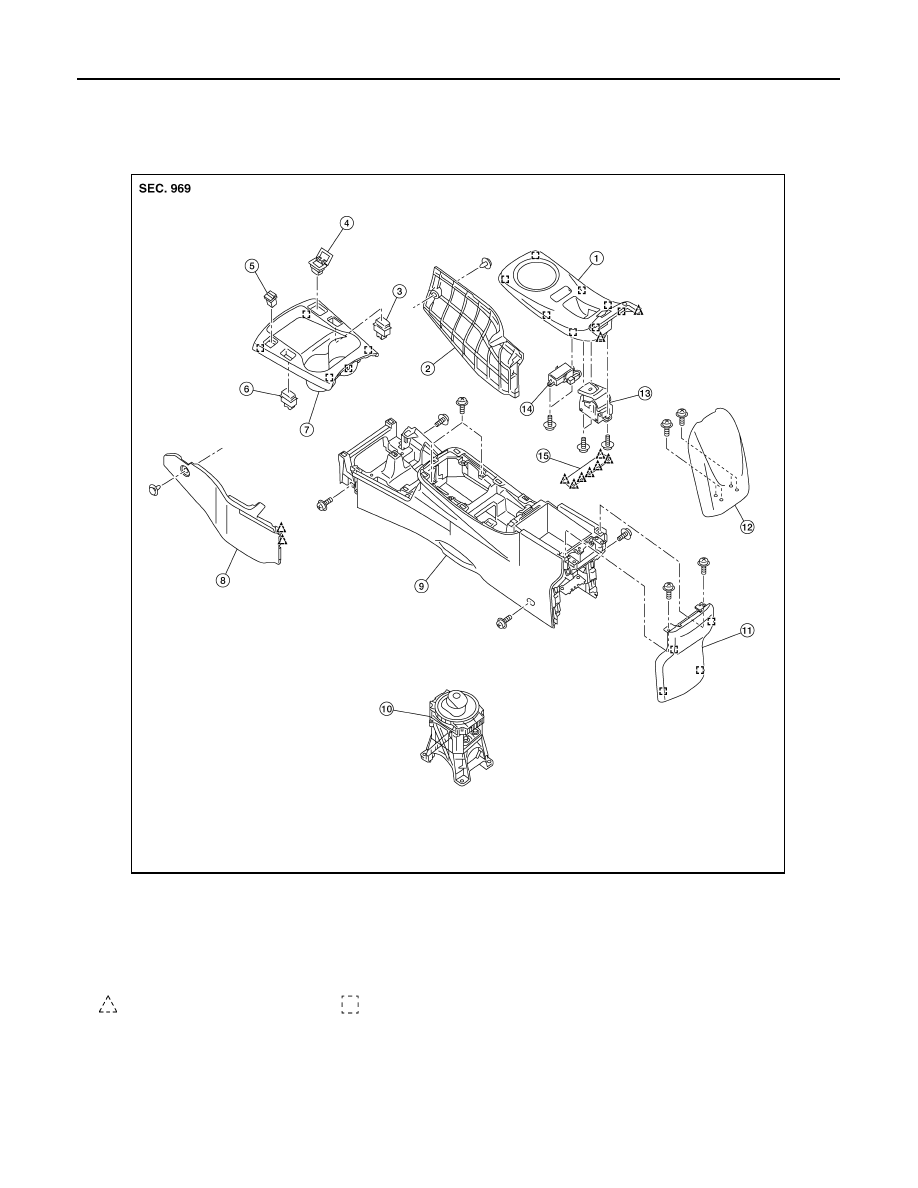

Exploded View

INFOID:0000000010120162

Removal and Installation

INFOID:0000000010120163

CAUTION:

To prevent damage to the parts, when removing, always use a suitable tool that is made of plastic.

REMOVAL

1.

Console finisher assembly

2.

Instrument lower cover RH

3.

Heated seat switch RH

4.

Auxiliary input jack (if equipped)

5.

USB connector

6.

Heated seat switch LH

7.

Instrument lower center cover

8.

Instrument lower cover LH

9.

Center console assembly

10. Shift selector

11. Console rear finisher

12. Console lid assembly

13. Parking brake switch

14. Selector indicator

15. Console mask

Pawl

Metal clip

AWJIA1334ZZ

CENTER CONSOLE ASSEMBLY

IP-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

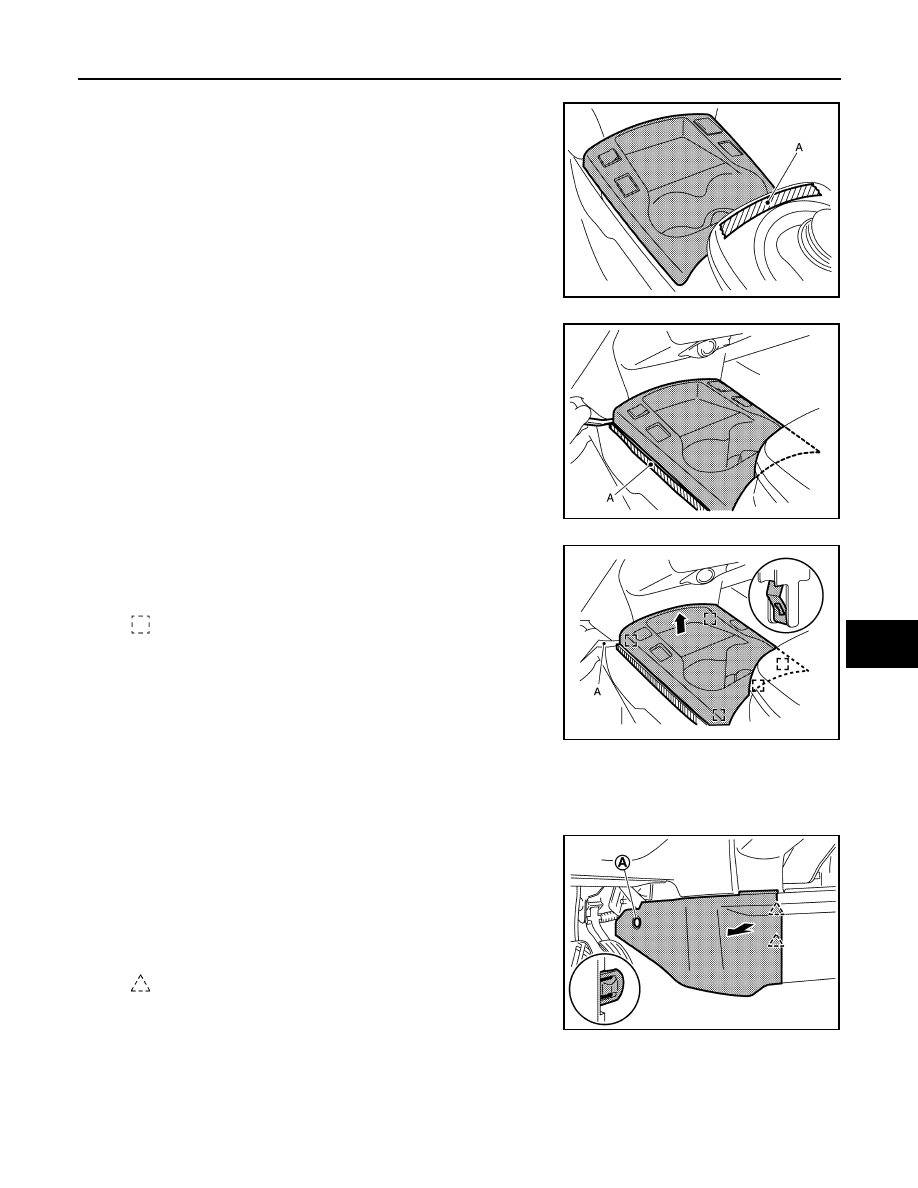

1. Remove instrument lower center cover.

1. Apply protective tape (A) to console finisher assembly to

protect from damage.

2. Apply protective tape (A) around the part to protect from

damage.

3. Insert suitable tool (A) between instrument lower center

cover and center console assembly to disengage the metal

clips as shown.

4. Lift up instrument lower center cover, then disconnect harness connectors.

CAUTION:

Be careful not to scratch console finisher assembly with pawl or metal clip of instrument lower

center cover.

2. Remove instrument lower cover LH.

1. Remove clip (A).

2. Pull the instrument lower cover LH crosswise, and disen-

gage the pawls.

CAUTION:

Release pawls slowly so that they are not damaged.

JMJIA6095ZZ

JMJIA6989ZZ

: Metal clip

AWJIA1333ZZ

: Pawl

JMJIA5003ZZ

IP-30

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

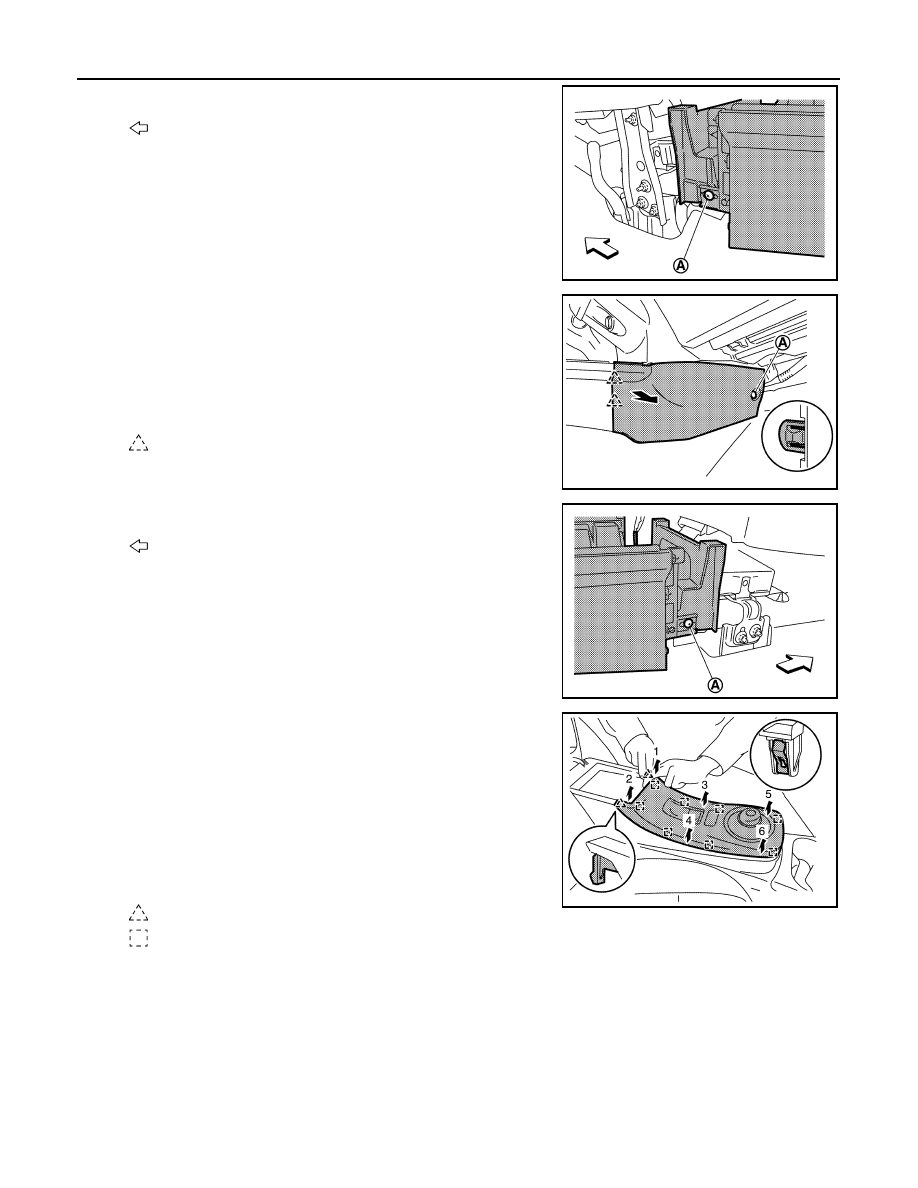

3. Remove center console assembly screw (A).

4. Remove instrument lower cover RH.

1. Remove clip (A).

2. Pull the instrument lower cover RH crosswise, and disen-

gage the pawls.

CAUTION:

Release pawls slowly so that they are not damaged.

5. Remove center console assembly screw (A).

6. Remove console finisher assembly.

1. Lift up console finisher assembly back side, then disengage

the pawls and metal clips according to the numerical order 1

→ 6 as shown.

2. Disconnect harness connectors.

CAUTION:

• Apply protective tape (B) around the part to protect from

damage.

• Disengage slowly so that pawls in rear end of console fin-

isher assembly are not damaged.

: Vehicle front

JMJIA5027ZZ

: Pawl

JMJIA5004ZZ

: Vehicle front

JMJIA5026ZZ

: Pawl

: Metal clip

JMJIA6100ZZ
