INSTRUMENT PANEL ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

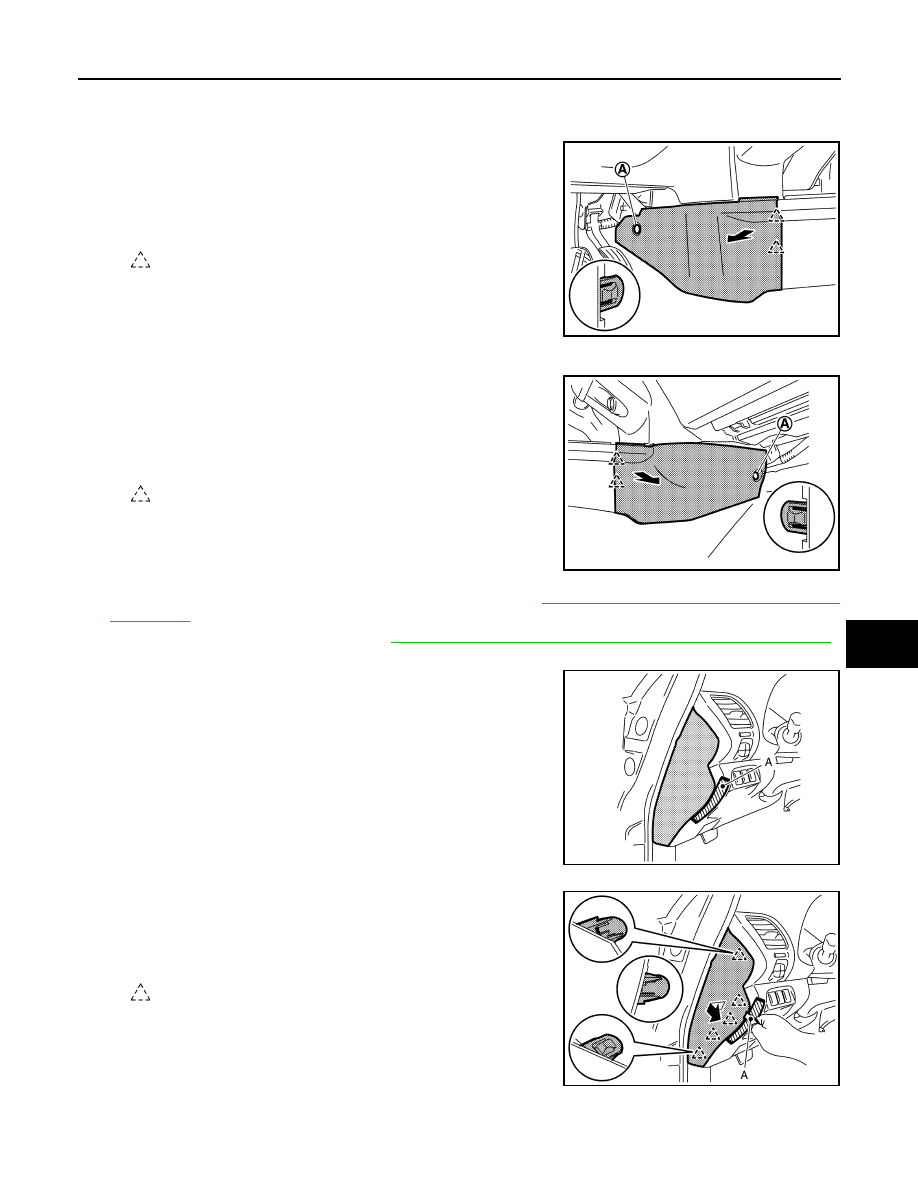

Be careful not to scratch console finisher assembly with pawl or metal clip of instrument lower

center cover.

2. Remove instrument lower cover LH.

1. Remove clip (A).

2. Pull the instrument lower cover LH crosswise, and disen-

gage the pawls.

CAUTION:

Release pawls slowly so that they are not damaged.

3. Remove instrument lower cover RH.

1. Remove clip (A).

2. Pull the instrument lower cover RH crosswise, and disen-

gage the pawls.

CAUTION:

Release pawls slowly so that they are not damaged.

4. Release front pillar portion of front body side welt LH. Refer to

INT-29, "BODY SIDE WELT : Removal and

Installation"

.

5. Remove front pillar garnish LH. Refer to

INT-26, "FRONT PILLAR GARNISH : Removal and Installation"

.

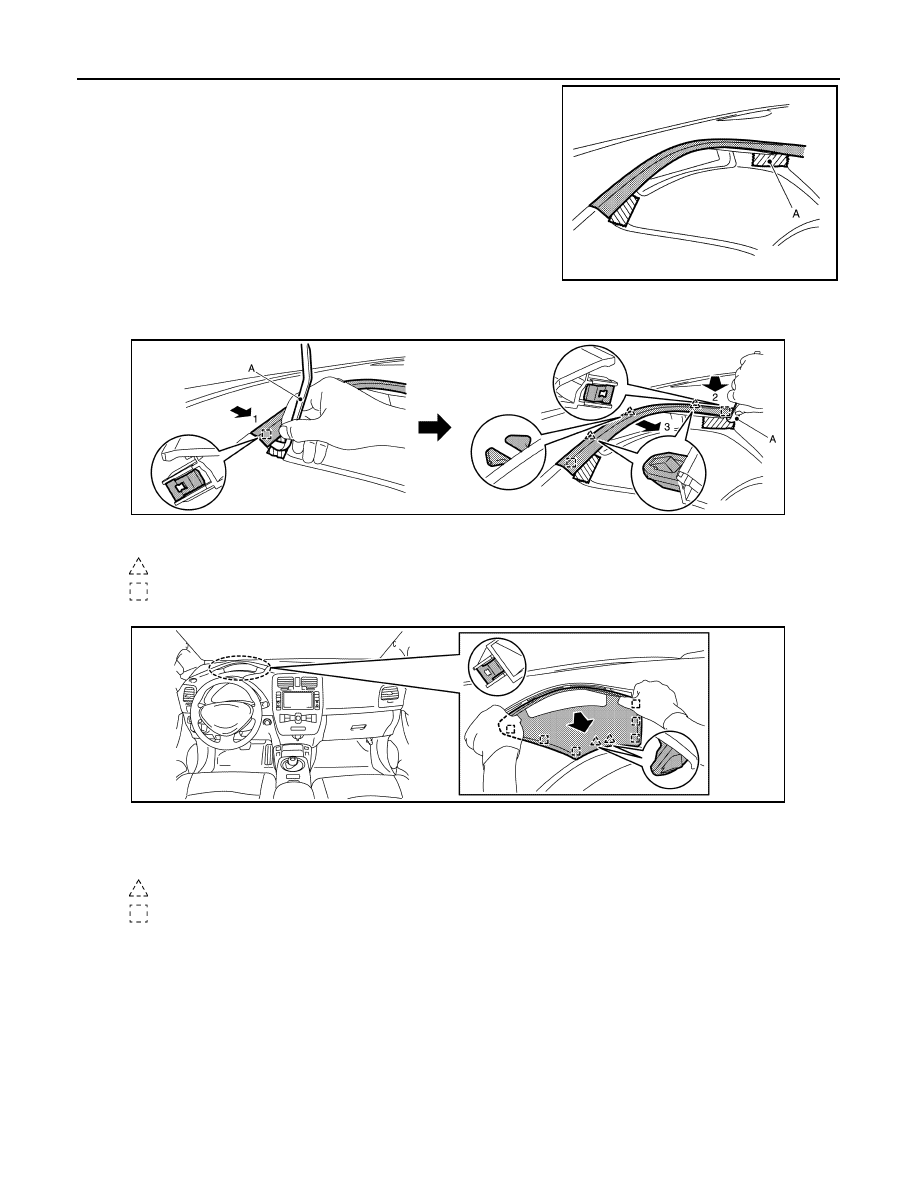

6. Remove instrument mask LH.

1. Apply protective tape (A) around the part to protect from

damage.

2. Insert suitable tool (A) between instrument mask LH and

instrument panel assembly to disengage the pawls as

shown.

3. Pull back instrument mask LH.

7. Remove meter cover.

: Pawl

JMJIA5003ZZ

: Pawl

JMJIA5004ZZ

JMJIA6991ZZ

: Pawl

JMJIA6992ZZ

IP-20

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

1. Apply protective tape (A) around the part to protect from

damage.

2. Insert suitable tool (A) between meter cover and cluster lid finisher to disengage the metal clips of

meter cover both side according to the numerical order 1

→ 2 as shown.

3. Pull back meter cover to disengage the pawls according to the numerical order 3 as shown.

8. Remove cluster lid finisher.

Pull back cluster lid finisher to disengage the pawls and metal clips.

CAUTION:

Wear a gloves to prevent an injury.

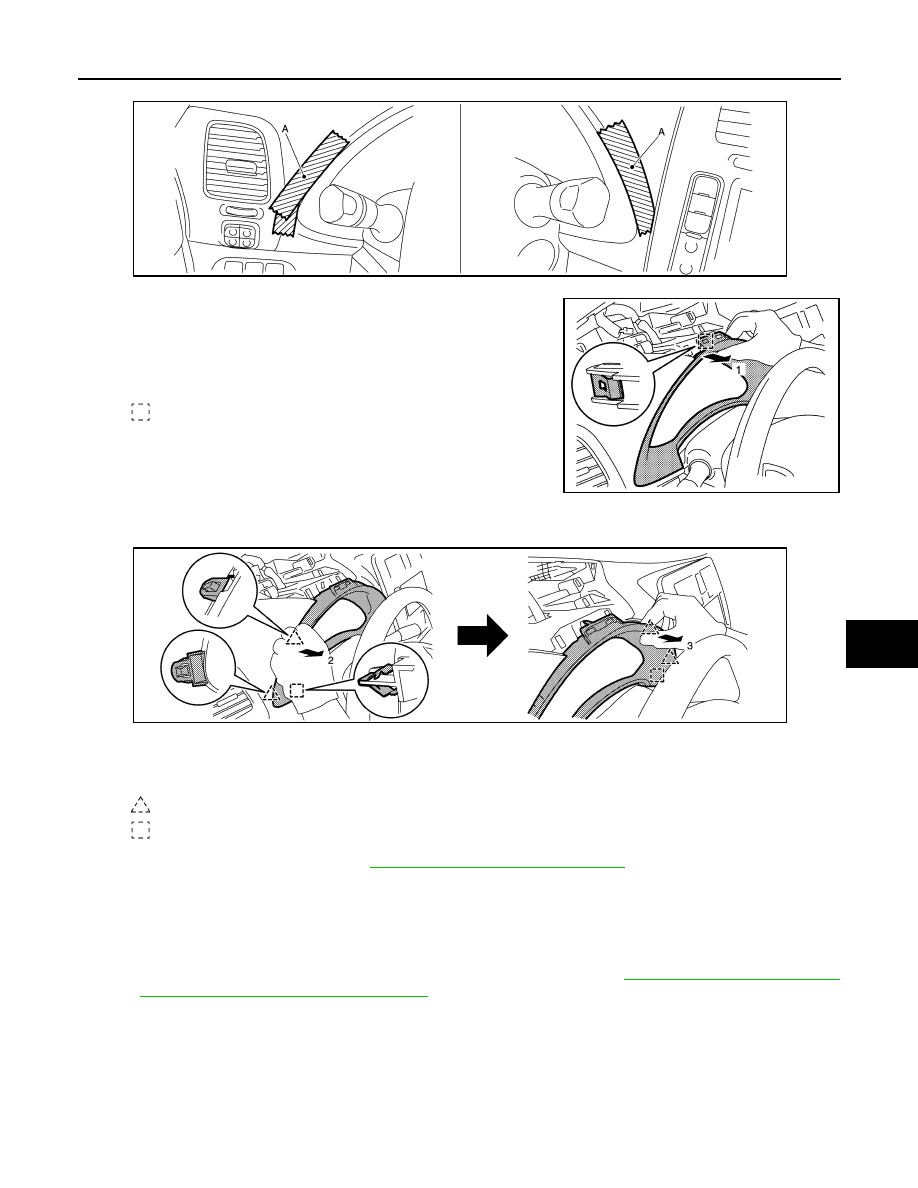

9. Remove cluster lid A.

1. Place the tilt to the lowest level.

JMJIA6993ZZ

: Pawl

: Metal clip

: Pawl

: Metal clip

JMJIA6994ZZ

JMJIA7001ZZ

INSTRUMENT PANEL ASSEMBLY

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

2. Apply protective tape (A) to the instrument panel assembly meeting to protect from damage.

3. Pull rearward on cluster lid A while holding the upper side

(center) to disengage the metal clip at the top according to

numerical order 1 the as shown.

CAUTION:

Wear a gloves to prevent an injury.

4. Hold sides of cluster lid A and pull it out towards vehicle rear to disengage pawls and metal clips

underside according to numerical order 2

→ 3 the as shown.

CAUTION:

• Wear a gloves to prevent an injury.

• Be careful not to scratch instrument panel assembly with pawls of cluster lid A.

10. Remove combination meter. Refer to

MWI-102, "Removal and Installation"

.

11. Remove instrument under cover LH.

1. Remove clips.

2. Pull downward and disengage pawl and metal clips.

3. Pull back instrument under cover LH.

12. Remove instrument lower panel LH.

1. Remove hood opener and charge port lid opener lever bolts. Refer to

DLK-188, "HOOD LOCK CON-

TROL CABLE : Removal and Installation"

.

JMJIA6096ZZ

: Metal clip

JMJIA5008ZZ

: Pawl

: Metal clip

JMJIA5009ZZ

IP-22

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

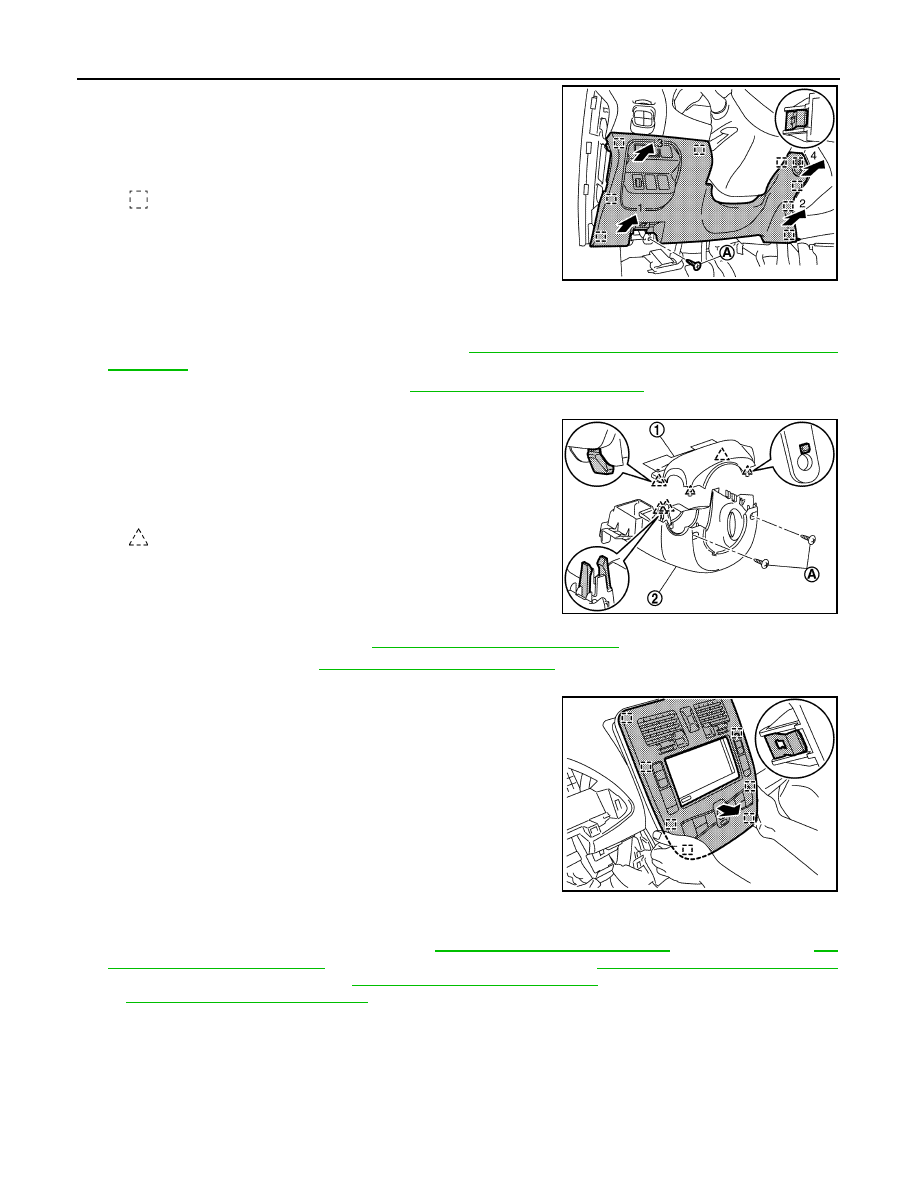

2. Remove instrument lower panel LH screw (A).

3. Disengage metal clips according to the numerical order 1

4 as shown.

4. Pull instrument lower panel LH rearward to remove from

instrument panel assembly.

5. Release data link connector (pawl) to remove from instrument lower panel LH.

6. Disconnect harness connectors and aspirator duct.

13. Remove side ventilator grille assembly LH. Refer to

VTL-13, "SIDE VENTILATOR GRILLE : Removal and

Installation"

.

14. Remove steering wheel assembly. Refer to

ST-34, "Removal and Installation"

.

15. Remove steering column covers.

1. Remove steering column cover screws (A).

2. Pull up steering column upper cover (1), then remove steer-

ing column upper cover.

3. Pull down steering column lower cover (2), then remove

steering column lower cover.

16. Remove combination switch. Refer to

BCS-73, "Removal and Installation"

.

17. Remove spiral cable. Refer to

SR-23, "Removal and Installation"

.

18. Remove cluster lid C.

1. Grasp both lower sides of cluster lid C and pull towards

vehicle rear to disengage the lower metal clips.

2. Grasp both two sides of cluster lid C and pull towards vehi-

cle rear to disengage the metal clips.

3. Disconnect harness connectors from cluster lid C and remove.

19. Remove audio unit or AV control unit. Refer to

AV-69, "Removal and Installation"

 (DISPLAY AUDIO),

AV-

192, "Removal and Installation"

 (PREMIUM WITHOUT NAVIGATION),

AV-318, "Removal and Installation"

(NAVIGATION WITHOUT BOSE),

AV-488, "Removal and Installation"

 (NAVIGATION WITHOUT BOSE)

or

AV-593, "Removal and Installation"

 (TELEMATICS SYSTEM).

20. Remove charging status indicator.

: Metal clip

JMJIA5011ZZ

: Pawl

JMJIA5012ZZ

JMJIA5014ZZ
