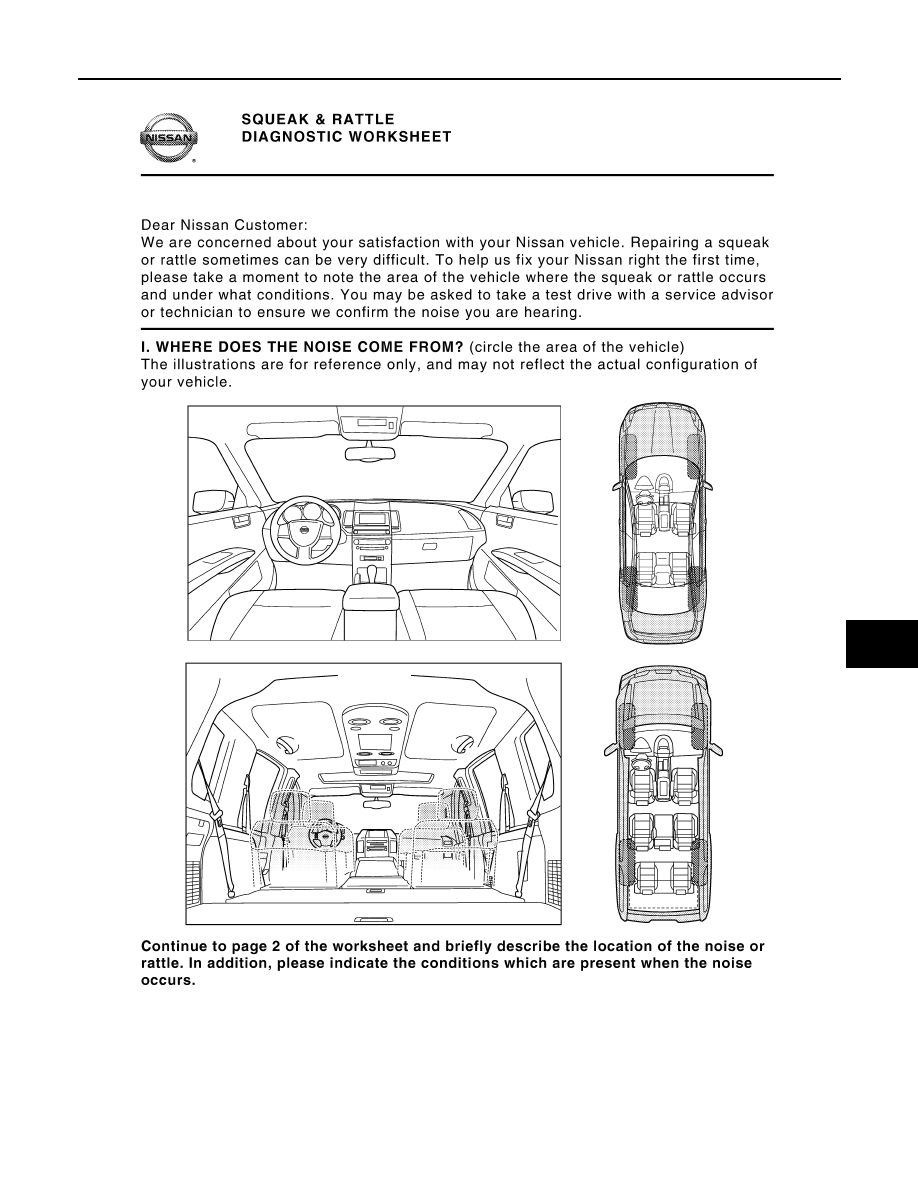

Diagnostic Worksheet

INFOID:0000000010119662

PIIB8740E

INT-18

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

FRONT DOOR FINISHER

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REMOVAL AND INSTALLATION

FRONT DOOR FINISHER

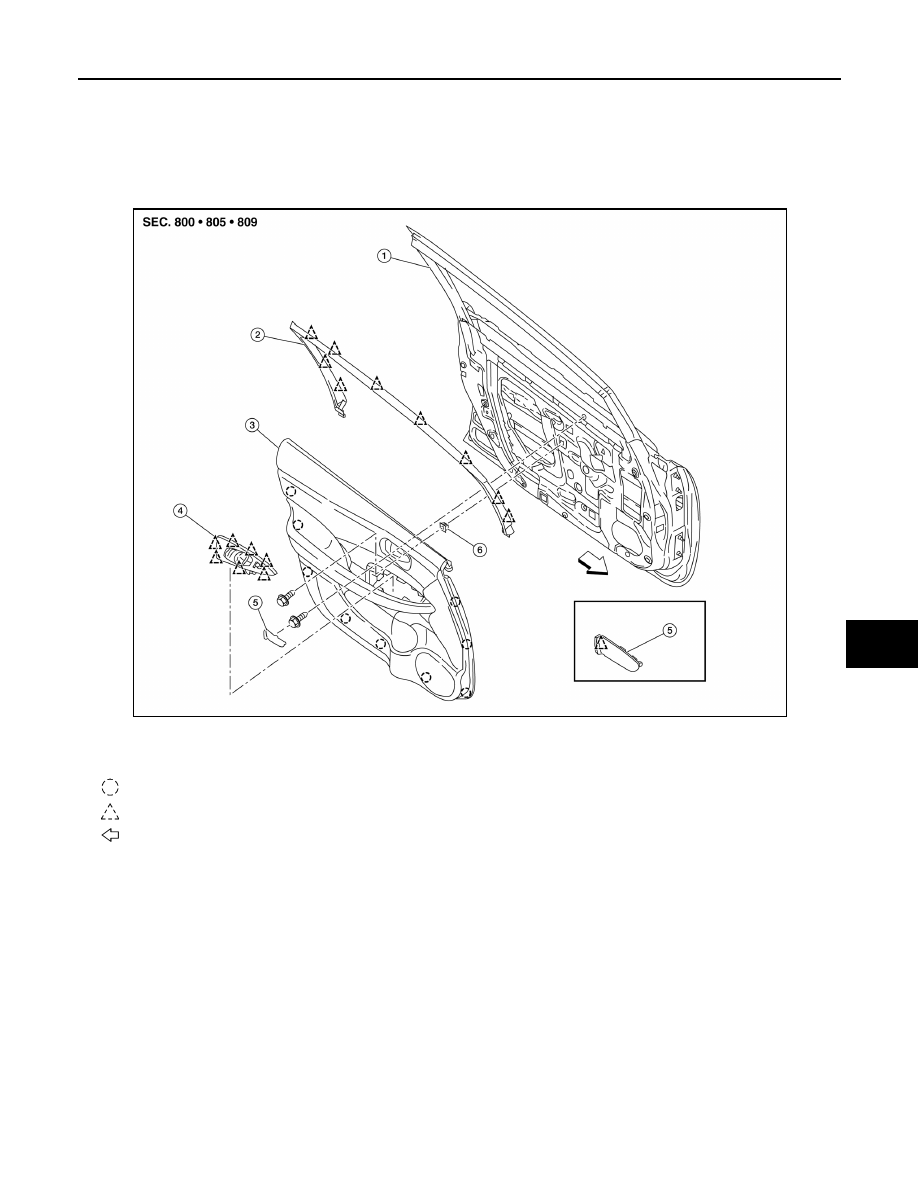

Exploded View

INFOID:0000000010119663

Removal and Installation

INFOID:0000000010119664

CAUTION:

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

• Never damage the door panel.

REMOVAL

1. Fully open door window.
2. Remove front power window main switch finisher (driver) or front power window switch finisher (passen-

ger).

1.

Front door panel

2.

Front door sash inner cover

3.

Front door finisher

4.

Power window switch finisher

5.

Inside handle escutcheon

6.

Grommet

: Clip

: Pawl

: Vehicle front

AWJIA1048ZZ

INT-20

< REMOVAL AND INSTALLATION >

FRONT DOOR FINISHER

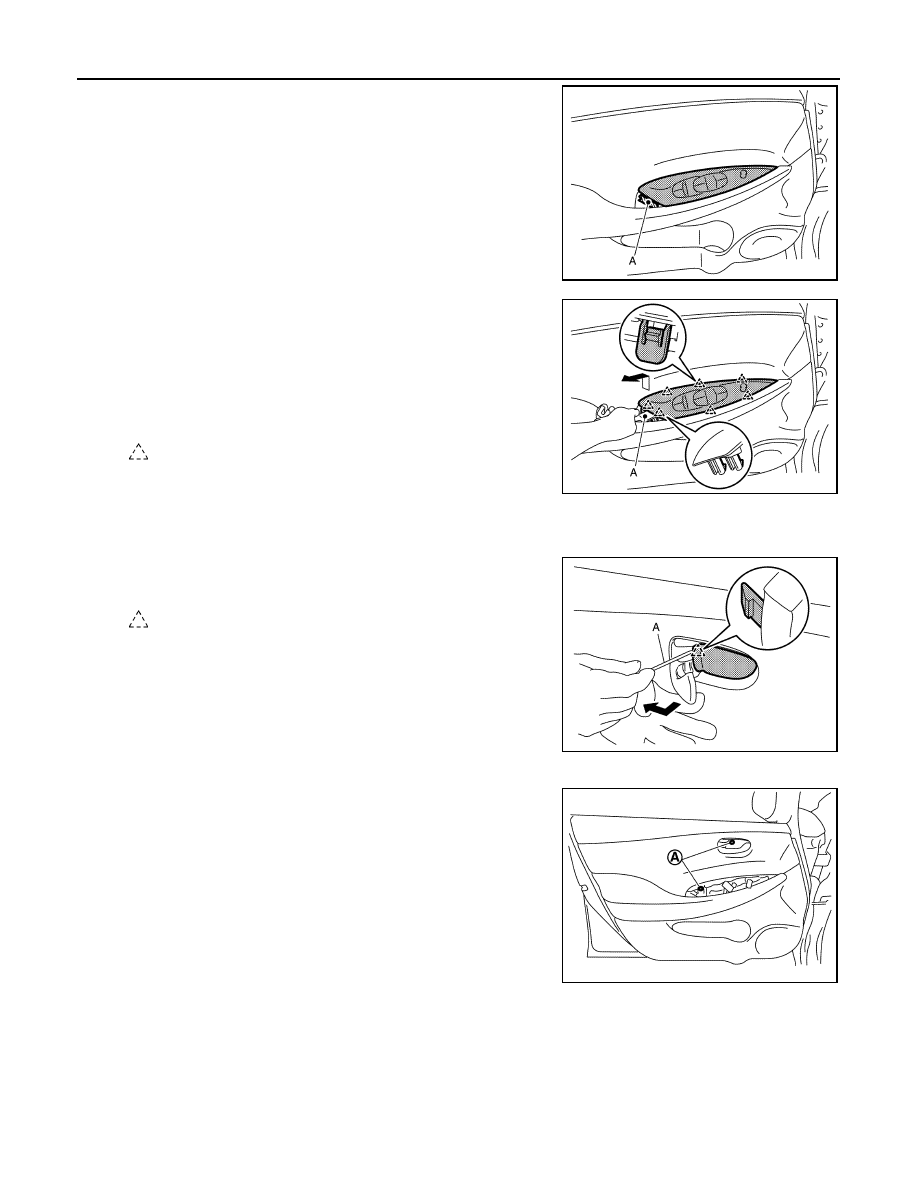

a. Apply protective tape (A) on the part to protect it from damage.

b. Disengage power window switch finisher fixing pawls with a suit-

able tool (A).

CAUTION:

Always insert a suitable tool from the rear of power window

switch finisher.

The parts may be damaged when inserting a suitable tool to

the front.

c.

Pull up power window switch finisher and power window switch

as a unit and disconnect harness connector, and then remove

power window switch finisher.

3. Remove inside handle escutcheon.

Disengage inside handle escutcheon fixing pawls with a suitable

tool (A), and then remove inside handle escutcheon.

4. Remove front door finisher.
a. Remove front door finisher mounting bolts (A).

JMJIA6952ZZ

: Pawl

JMJIA6967ZZ

: Pawl

JMJIA5117ZZ

JMJIA5118ZZ
