SYSTEM

INL-9

< SYSTEM DESCRIPTION >

INL

• The interior room lamp turns ON and OFF (gradual brightening and dimming) by the interior room lamp

timer.

• BCM judges the vehicle condition with the following items. It activates the interior room timer:

- Power switch status

- Door switch signal (except back door)

- Door lock/unlock signal (Remote keyless entry receiver, each door request switch, door lock/unlock switch,

door key cylinder switch)

NOTE:

Each function of interior room lamp timer can be set by CONSULT. Refer to

BCS-16, "INT LAMP : CONSULT

Function (BCM - INT LAMP)"

Interior Room Lamp ON Operation

• BCM always turns the interior room lamp ON when any door opens except back door.

• BCM activates the interior room lamp timer to turn the interior room lamp ON for a period of time in any of

the following conditions:

- Status of all doors except back door changes from open to close

- Power switch is turned ON

→ OFF

- Door unlock signal is detected when all doors close except back door with power switch OFF

NOTE:

The timer restarts if new condition is input during the timer operating time.

Interior Room Lamp OFF Operation

BCM stops the timer to turn the interior room lamp OFF in any of the following conditions:

• The timer operating time is expired

• Power switch is turned OFF

→ ACC/ON

• Door lock signal is detected with all doors closed except back door.

LUGGAGE ROOM LAMP CONTROL

BCM turns luggage room lamp ON when the back door switch is ON.

BCM turns luggage room lamp OFF when the back door switch is OFF.

POWER SWITCH ILLUMINATION CONTROL

Power Switch Illumination Basic Operation

BCM provides the power supply to turn the power switch illumination ON.

Power Switch Illumination ON Operation

BCM turns the power switch illumination ON in the following conditions:

• Power switch ON

• Any of the following conditions with power switch OFF/ACC

- Traction motor start permission is entered

- Driver side door is LOCK

→ UNLOCK

- Driver side door is open

Power Switch Illumination OFF Operation

BCM turns the power switch illumination OFF in any of the following conditions:

• The push-button power switch illumination ON conditions are not satisfied.

• Any of the following conditions with power switch OFF.

- The power switch illumination ON conditions do not change (15 seconds after the power switch is OFF)

- Driver side door is UNLOCK

→ LOCK

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INL-10

< SYSTEM DESCRIPTION >

SYSTEM

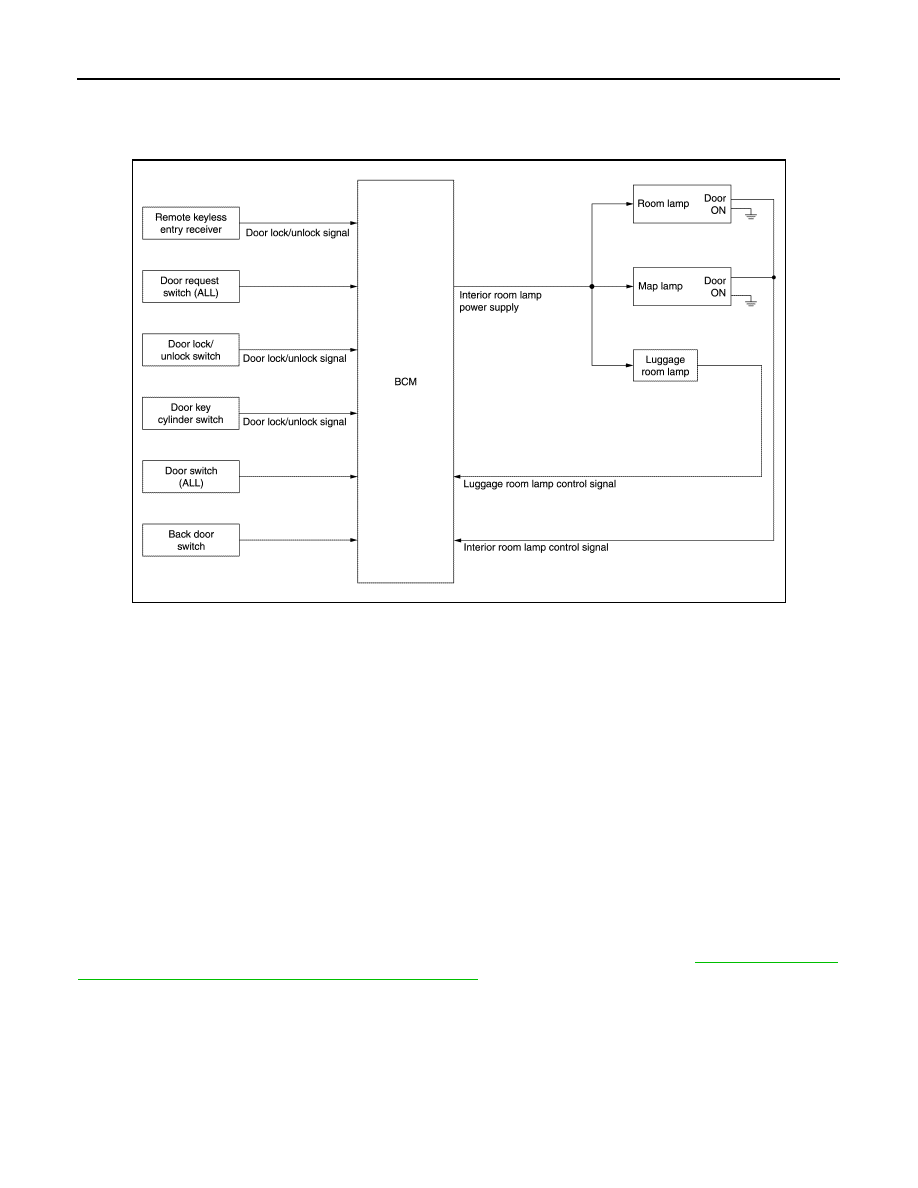

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM : System Description

INFOID:0000000010122262

SYSTEM DIAGRAM

OUTLINE

• Interior room lamp battery saver is controlled by BCM.

• BCM turns applicable lamps OFF depending on the vehicle condition. This function prevents the 12V battery

from over-discharging if the driver neglects turning OFF the lamps.

Applicable lamps:

• Map lamp

• Room lamp

• Luggage room lamp

INTERIOR ROOM LAMP BATTERY SAVER FUNCTION

• When the power switch is turned to other position than ON, BCM operates the timer for a period of time to

cut the interior room lamp power supply.

• BCM restarts the timer when any of the following signals changes while operating the timer:

- Power switch status

- Door switch signal (ALL)

- Door lock/unlock signal (remote keyless entry receiver, each door request switch, door lock and unlock

switch, door key cylinder switch)

• BCM provides the interior room lamp power supply continuously when the power switch position is ON.

NOTE:

Each function of interior room lamp battery saver can be set by CONSULT. Refer to

BCS-24, "BATTERY

SAVER : CONSULT Function (BCM - BATTERY SAVER)"

ILLUMINATION CONTROL SYSTEM

JMLIA1922GB

SYSTEM

INL-11

< SYSTEM DESCRIPTION >

INL

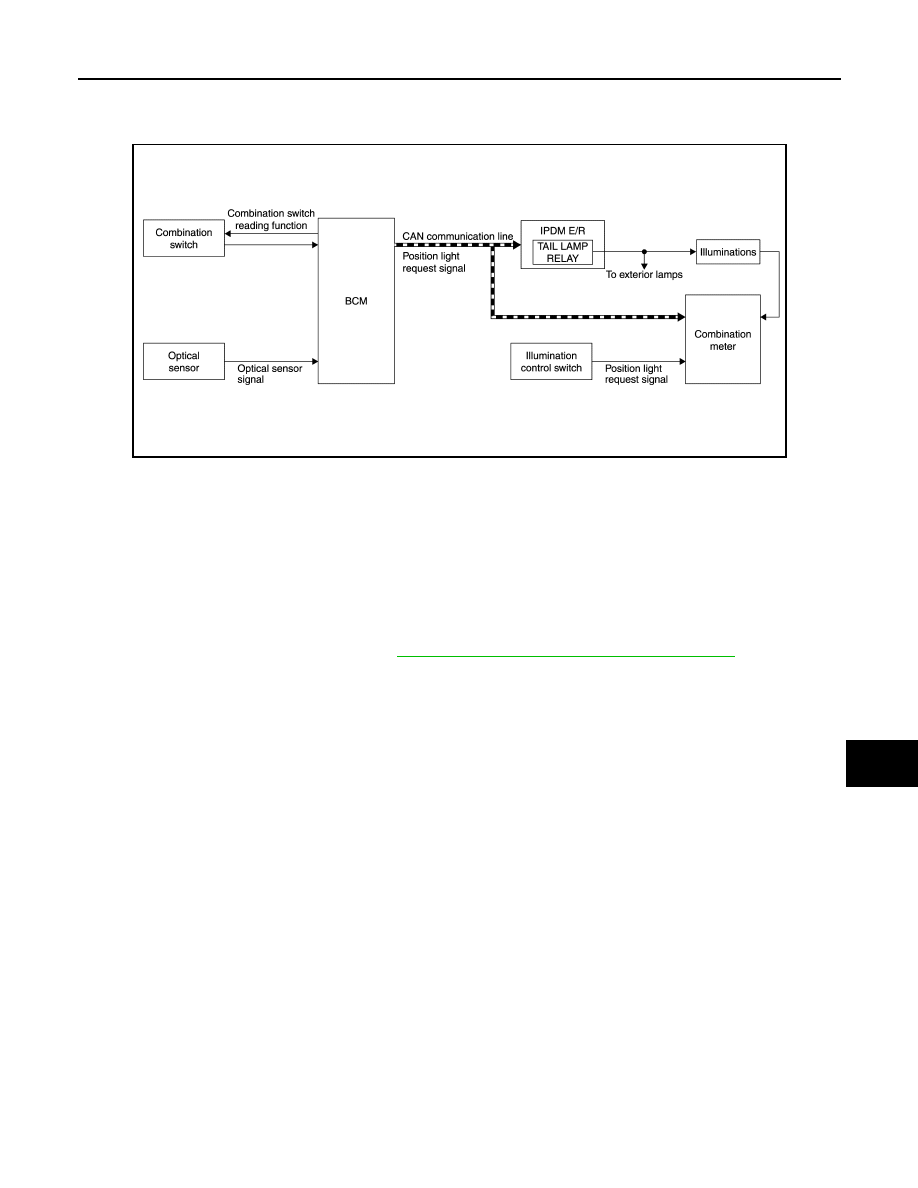

ILLUMINATION CONTROL SYSTEM : System Description

INFOID:0000000010122263

SYSTEM DIAGRAM

OUTLINE

Each illumination lamp is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function

• Headlamp control function

Control by IPDM E/R

• Relay control function

Control by combination meter

• Meter illumination control function (Refer to

MWI-8, "METER SYSTEM : System Description"

ILLUMINATION CONTROL

• BCM detects the combination switch condition by the combination switch reading function.

• BCM transmits position light request signal to IPDM E/R and combination meter according to tail lamp ON

condition.

Tail lamp ON condition:

- Lighting switch 1ST

- Lighting switch 2ND

- Lighting switch AUTO, and the auto light function ON judgment

- Lighting switch AUTO, with the front fog lamp switch ON and the power switch ON

• IPDM E/R turns the integrated tail lamp relay ON according to position light request signal. It provides the

power supply to each illumination lamp.

• Combination meter enters in the nighttime mode according to position light request signal. Under the night-

time mode the combination meter controls the illuminance by controlling each illumination lamp (ground

side).

AUTO LIGHT ADJUSTMENT SYSTEM

JMLIA1923GB

INL-12

< SYSTEM DESCRIPTION >

SYSTEM

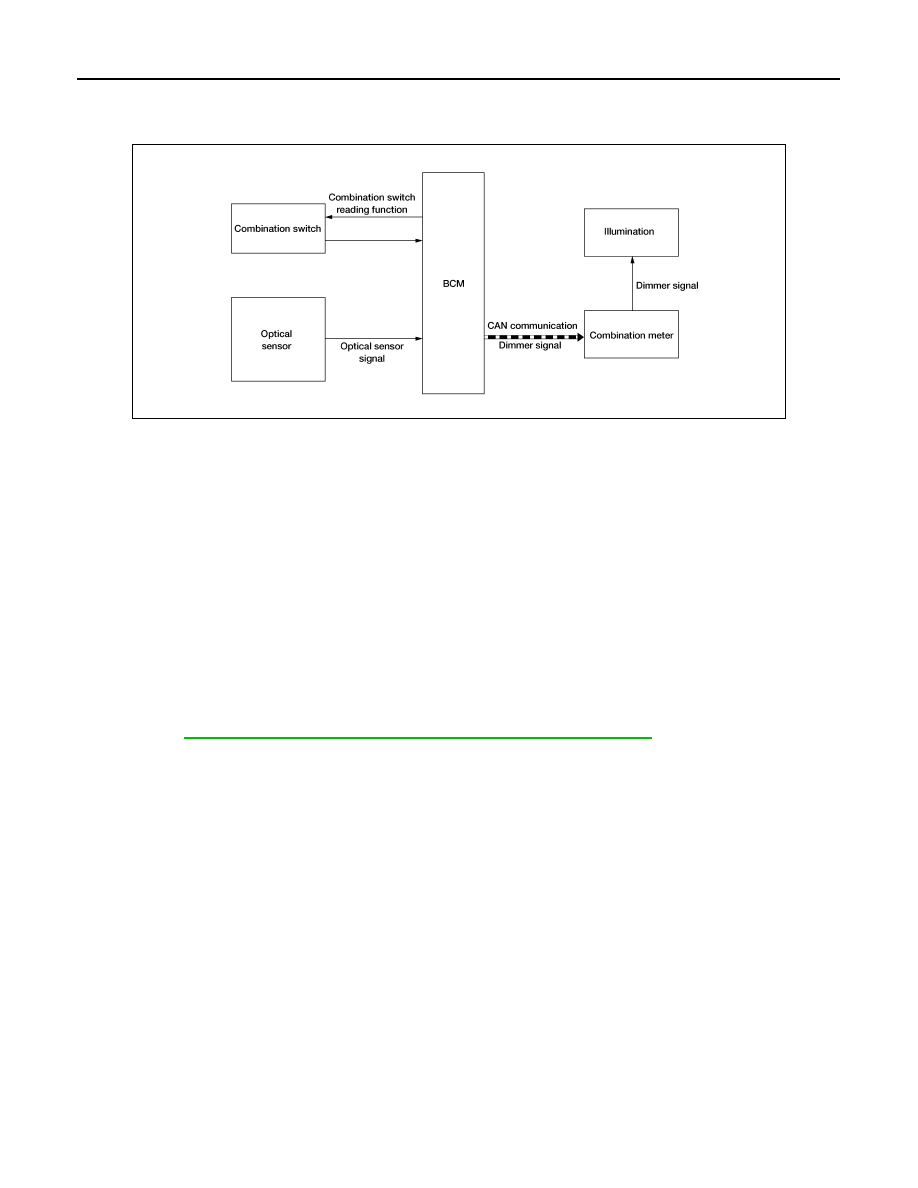

AUTO LIGHT ADJUSTMENT SYSTEM : System Description

INFOID:0000000010122264

SYSTEM DIAGRAM

OUTLINE

Auto light adjustment system is controlled by each function of BCM and combination meter.

Control by BCM

• Auto light system

• Auto light adjustment system

AUTO LIGHT ADJUSTMENT SYSTEM

Description

• BCM supplies voltage to the optical sensor when the power switch is turned ON or ACC.

• Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.

• BCM judges dimming/brightening of combination meter and display according to brightness outside the vehi-

cle, when power switch is ON.

• BCM transmits dimmer signal to combination meter via CAN communication, according to auto light adjust-

ment conditions.

NOTE:

As to dimming/brightening timing, the sensitivity depends on settings. The settings can be changed with CON-

SULT. Refer to

BCS-17, "HEADLAMP : CONSULT Function (BCM - HEAD LAMP)"

ALLIA1455GB
