PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000010122259

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

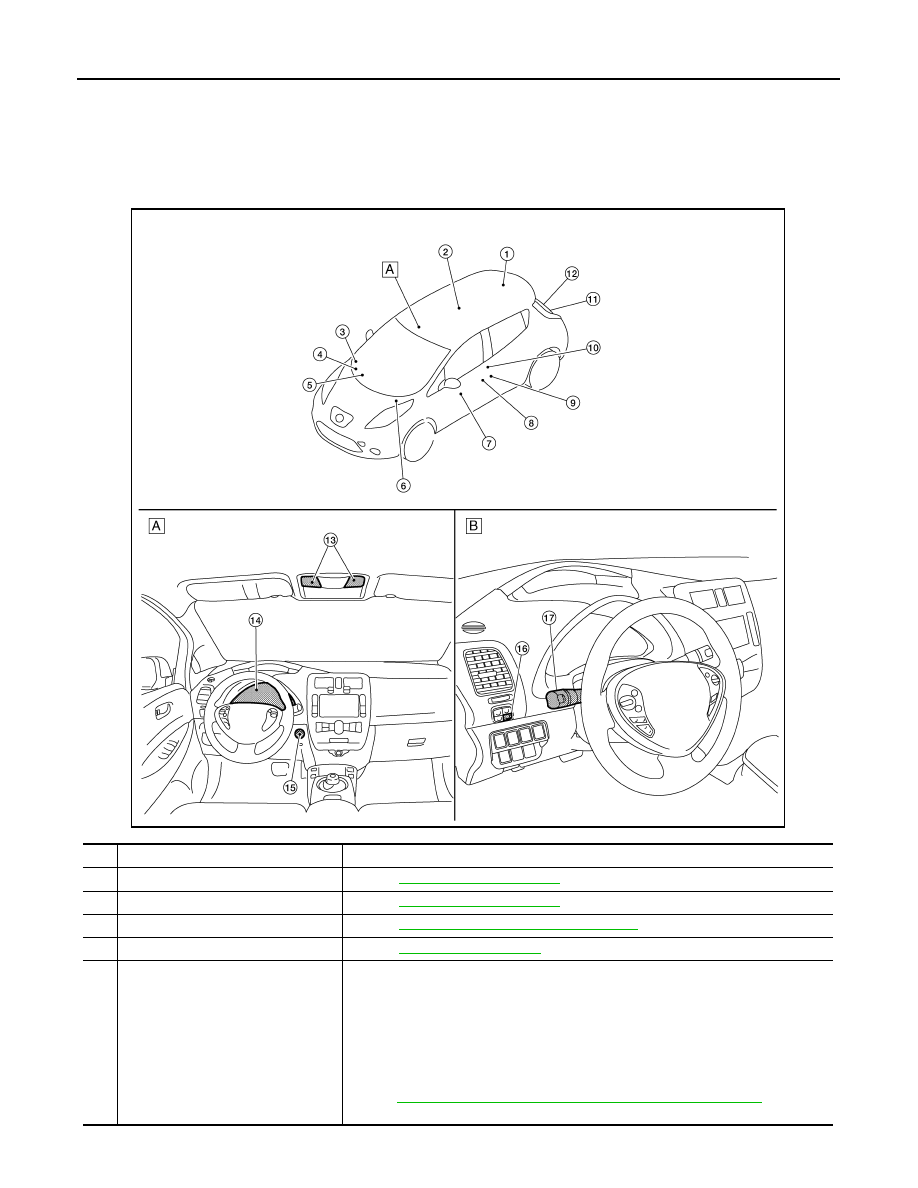

Component Parts Location

INFOID:0000000010122260

No.

Part

Description

1.

Luggage room lamp

Refer to

INL-60, "Bulb Specifications"

.

2.

Room lamp

Refer to

INL-60, "Bulb Specifications"

.

3.

Remote keyless entry receiver

Refer to

DLK-18, "Remote Keyless Entry Receiver"

.

4.

Optical sensor

Refer to

EXL-12, "Optical Sensor"

.

5.

BCM

• Activates the interior room lamp timer depending on the vehicle condition to turn the

interior room lamps ON/OFF.

• Operates the interior room lamp battery saver depending on the vehicle condition to

cut the interior room lamp power supply.

• Detects each switch condition by the combination switch reading function.
• Judges the illumination lamp ON/OFF status depending on the vehicle condition.

And then it transmits position light request signal to IPDM E/R and combination
meter (with CAN communication).

Refer to

BCS-5, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location.

ALLIA1454ZZ

COMPONENT PARTS

INL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

6.

IPDM E/R

Controls the integrated relay according to the request signal from BCM (via CAN com-
munication). Refer to

PCS-6, "Component Parts Location"

 for detailed installation lo-

cation.

7.

Door lock and unlock switch

Refer to

DLK-19, "Door Lock and Unlock Switch"

.

8.

Front outside handle LH (request
switch) (RH similar)

Refer to

DLK-19, "Front Door Request Switch (LH)"

.

9.

Front door lock assembly (LH) (door
key cylinder switch)

Refer to

DLK-18, "Front Door Lock Assembly (LH)"

.

10.

Front door switch LH (others similar)

Refer to

DLK-20, "Door Switch"

.

11.

Back door lock assembly (back door
switch)

Refer to

DLK-19, "Back Door Lock Assembly"

.

12.

Back door opener switch (request
switch)

Provides back door open/ close condition to BCM.

13.

Map lamp

Refer to

INL-60, "Bulb Specifications"

14.

Combination meter

Receives the dimmer signal from BCM (via CAN communication).

15.

Power switch

Refer to

PCS-34, "Power Switch"

.

16.

Meter control switch
(illumination control switch)

Adjusts the illumination system and combination meter illumination brightness.

17.

Combination switch

The combination switch provides input to the BCM about the combination switch posi-
tion.

No.

Part

Description

INL-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM
INTERIOR ROOM LAMP CONTROL SYSTEM : System Description

INFOID:0000000010122261

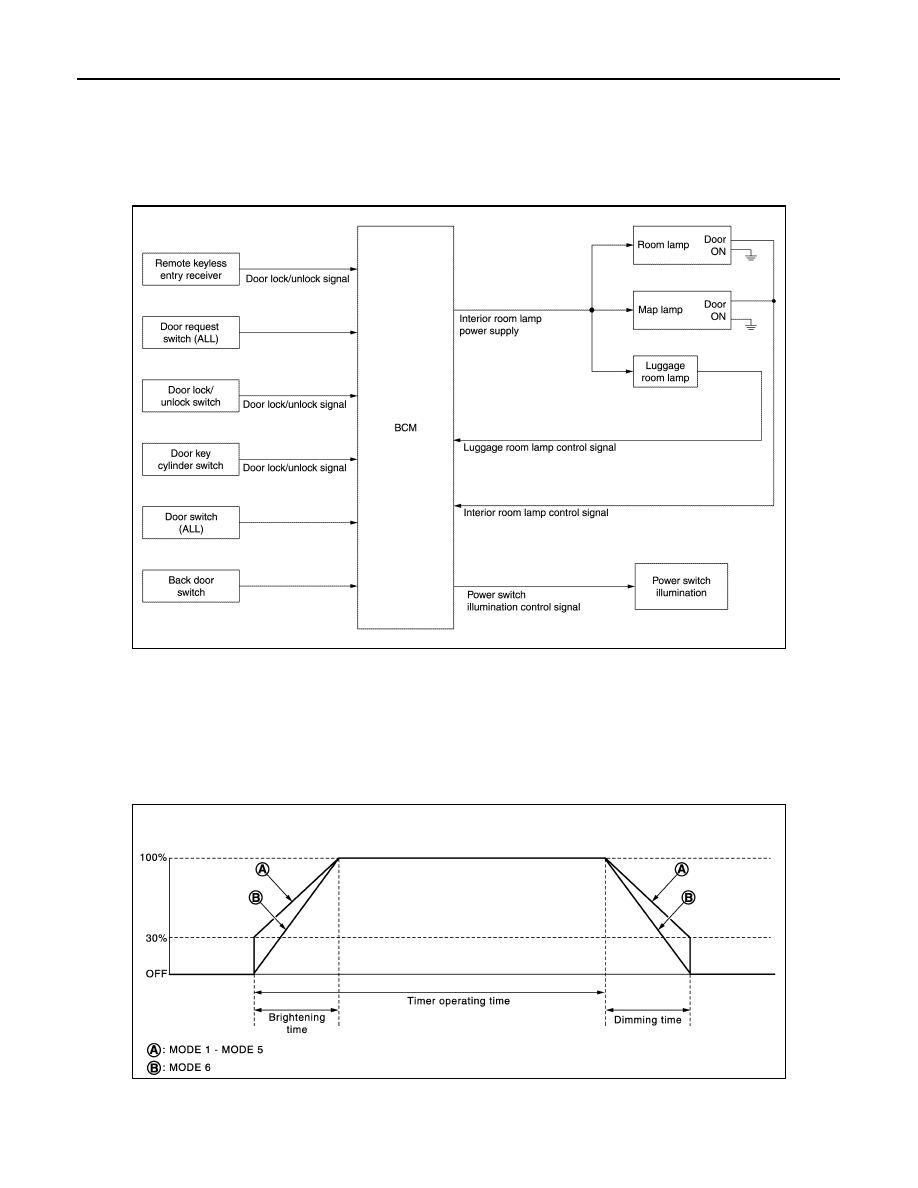

SYSTEM DIAGRAM

OUTLINE

• Interior room lamps* are controlled by interior room lamp timer control function of BCM.

*: Map lamp and room lamp (when map lamp switch and room lamp switch are in DOOR position).

• Luggage room lamp is controlled by luggage room lamp control function of BCM.

• Power switch illumination is controlled by the power switch illumination control function of BCM.

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

NOTE:

A: Sets the interior room lamp gradual brightening and dimming time.

B: Gradually dims from 100% to 0% and gradually brightens 0% to 100% in 1 second.

JMLIA1921GB

JMLIA0961GB
