INTAKE SENSOR

HAC-351

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITHOUT HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE SENSOR

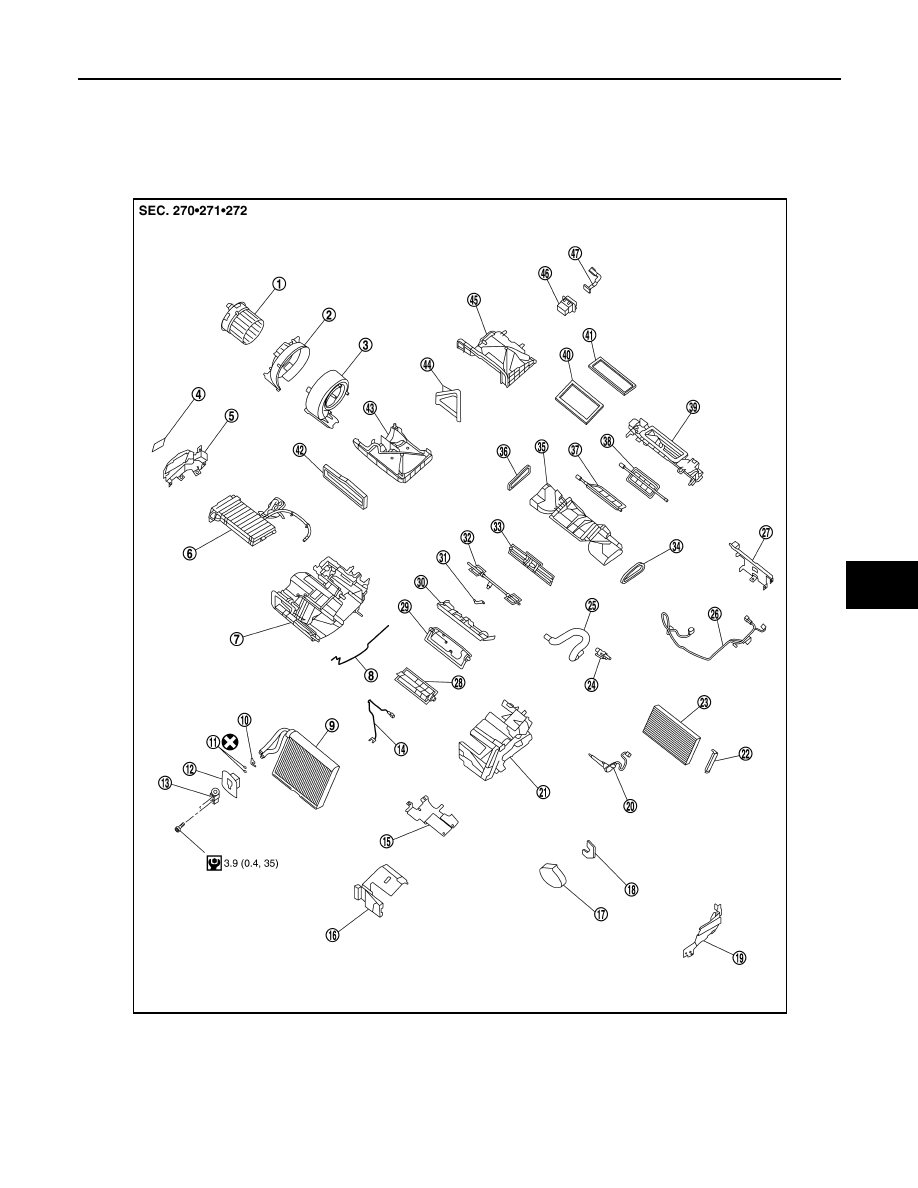

Exploded View

INFOID:0000000010122062

1.

Blower motor

2.

Blower case RH

3.

Blower case LH

4.

High voltage warning label

5.

PTC heater shield RH

6.

PTC heater

7.

Heating and cooling unit assembly
case RH

8.

Case packing

9.

Evaporator

10. Plate

11. O-rings

12. Grommet

13. Expansion valve

14. Intake sensor

15. PTC heater shield lower

JMIIA2631GB

HAC-352

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITHOUT HEAT PUMP)]

INTAKE SENSOR

Removal and Installation

INFOID:0000000010122063

REMOVAL

1. Remove evaporator assembly. Refer to

HA-117, "EVAPORATOR : Removal and Installation"

.

2. Remove intake sensor from evaporator.

INSTALLATION

Note the following items, and then install in the order of removal.

CAUTION:

• Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sensor

can be located in the same position.

• When removing or installing the intake sensor, be sure not to rotate the bracket insertion part. Fail-

ure to do this may cause damage to the evaporator.

16. Evaporator cover

17. Gasket

18. Seal

19. PTC heater shield LH

20. PTC heater outlet and A/C unit

case air temperature sensor as-
sembly

21. Heating and cooling unit

assembly case LH

22. Filter cover

23. Filter

24. Aspirator

25. Aspirator tube

26. Harness

27. PTC heater shield

28. Lower air mix door

29. Upper air mix door

30. Air mix door guide

31. Foot door rod

32. Side ventilator door

33. Foot door

34. Side ventilator door seal LH

35. Lower attachment case

36. Side ventilator seal RH

37. Center ventilator and defroster door 38. Sub defroster door

39. Upper attachment case

40. Defroster seal

41. Ventilator seal

42. Intake seal

43. Lower intake case

44. Intake door

45. Upper intake case

46. Power transistor

47. Sub harness

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)

PTC HEATER OUTLET AND A/C UNIT CASE AIR TEMPERATURE SENSOR AS-

SEMBLY

HAC-353

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITHOUT HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PTC HEATER OUTLET AND A/C UNIT CASE  AIR TEMPERATURE SEN-
SOR ASSEMBLY

Exploded View

INFOID:0000000010122064

1.

Blower motor

2.

Blower case RH

3.

Blower case LH

4.

High voltage warning label

5.

PTC heater shield RH

6.

PTC heater

7.

Heating and cooling unit assembly
case RH

8.

Case packing

9.

Evaporator

JMIIA2631GB

HAC-354

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITHOUT HEAT PUMP)]

PTC HEATER OUTLET AND A/C UNIT CASE AIR TEMPERATURE SENSOR AS-

SEMBLY

Removal and Installation

INFOID:0000000010122065

REMOVAL

1. Remove the heating and cooling unit assembly. Refer to

HA-114, "HEATING AND COOLING UNIT

ASSEMBLY : Removal and Installation"

.

2. Remove PTC heater outlet and A/C unit case air temperature sensor from the heating and cooling unit

assembly.

INSTALLATION

Install in the reverse order of removal.

10. Plate

11. O-rings

12. Grommet

13. Expansion valve

14. Intake sensor

15. PTC heater shield lower

16. Evaporator cover

17. Gasket

18. Seal

19. PTC heater shield LH

20. PTC heater outlet and A/C unit

case air temperature sensor as-
sembly

21. Heating and cooling unit

assembly case LH

22. Filter cover

23. Filter

24. Aspirator

25. Aspirator tube

26. Harness

27. PTC heater shield

28. Lower air mix door

29. Upper air mix door

30. Air mix door guide

31. Foot door rod

32. Side ventilator door

33. Foot door

34. Side ventilator door seal LH

35. Lower attachment case

36. Side ventilator seal RH

37. Center ventilator and defroster door 38. Sub defroster door

39. Upper attachment case

40. Defroster seal

41. Ventilator seal

42. Intake seal

43. Lower intake case

44. Intake door

45. Upper intake case

46. Power transistor

47. Sub harness

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)
