REMOVAL AND INSTALLATION

A/C CONTROL (A/C AUTO AMP.)

Removal and Installation

INFOID:0000000010122058

REMOVAL

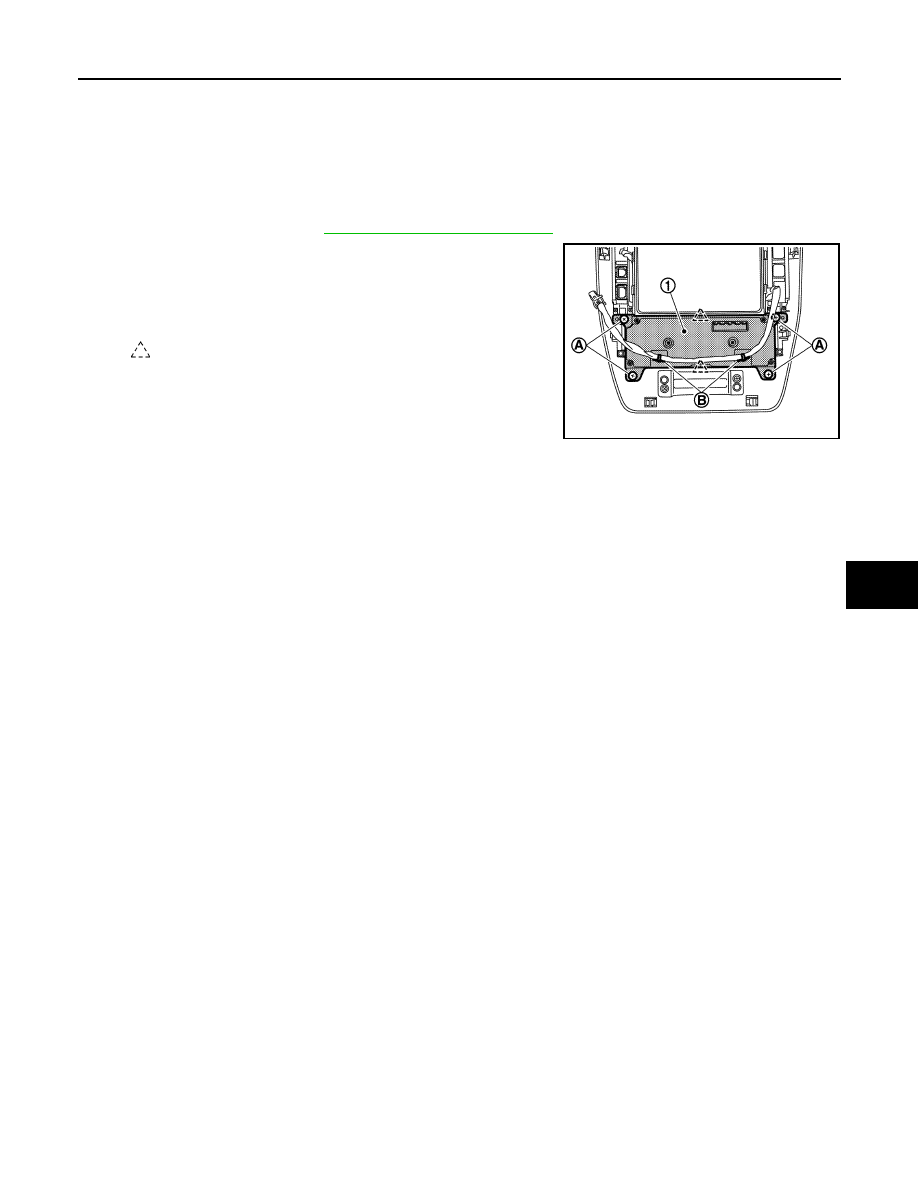

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

2. Release harness clips (B) (if equipped).
3. Remove screws (A).
4. Disengage pawls, and then remove A/C auto amp. (1) from clus-

ter lid C.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JPIIA1819ZZ

HAC-348

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITHOUT HEAT PUMP)]

AMBIENT SENSOR

AMBIENT SENSOR

Removal and Installation

INFOID:0000000010122059

REMOVAL

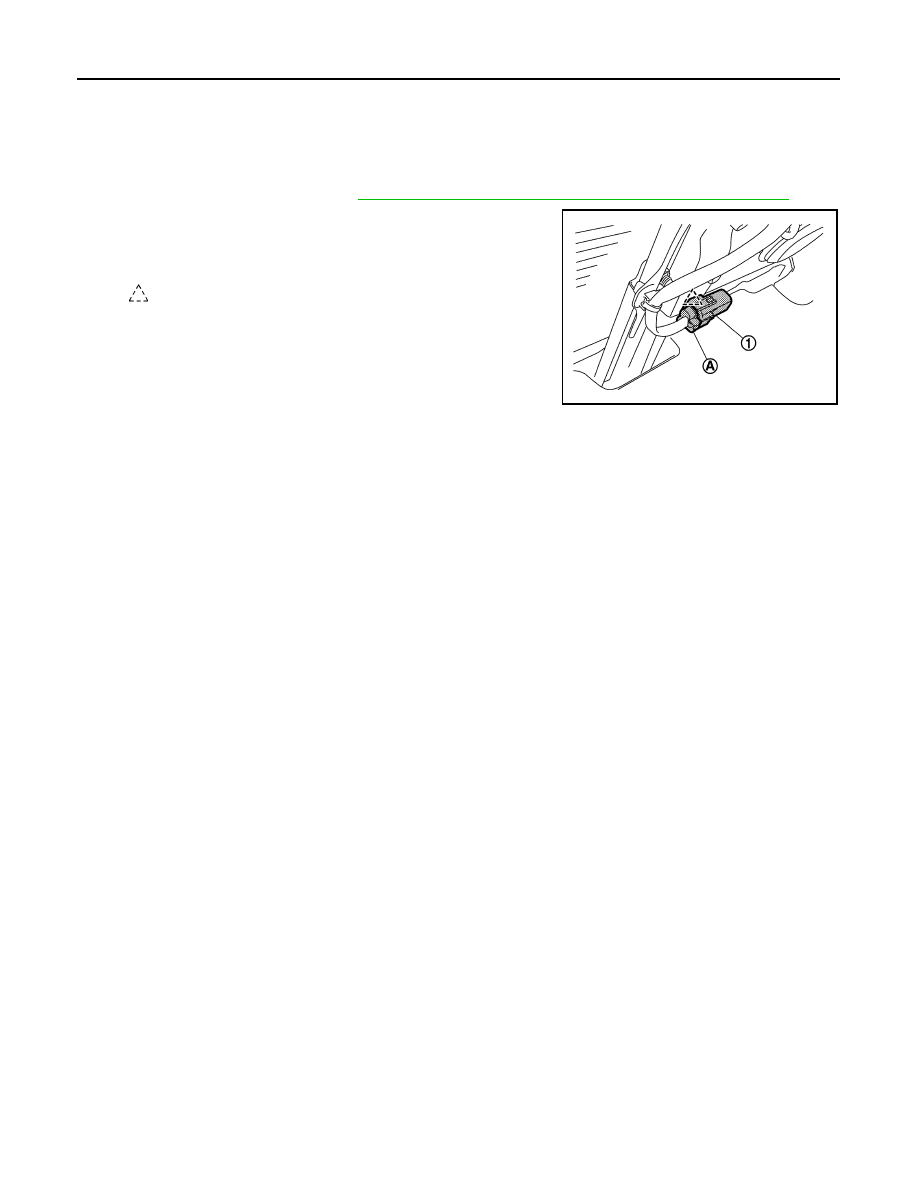

1. Remove front under cover. Refer to

EXT-23, "FRONT UNDER COVER : Removal and Installation"

.

2. Disconnect ambient sensor connector (A).
3. Disengage pawl, and then remove ambient sensor (1) from the

vehicle.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JPIIA1820ZZ

IN-VEHICLE SENSOR

HAC-349

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITHOUT HEAT PUMP)]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000010122060

REMOVAL

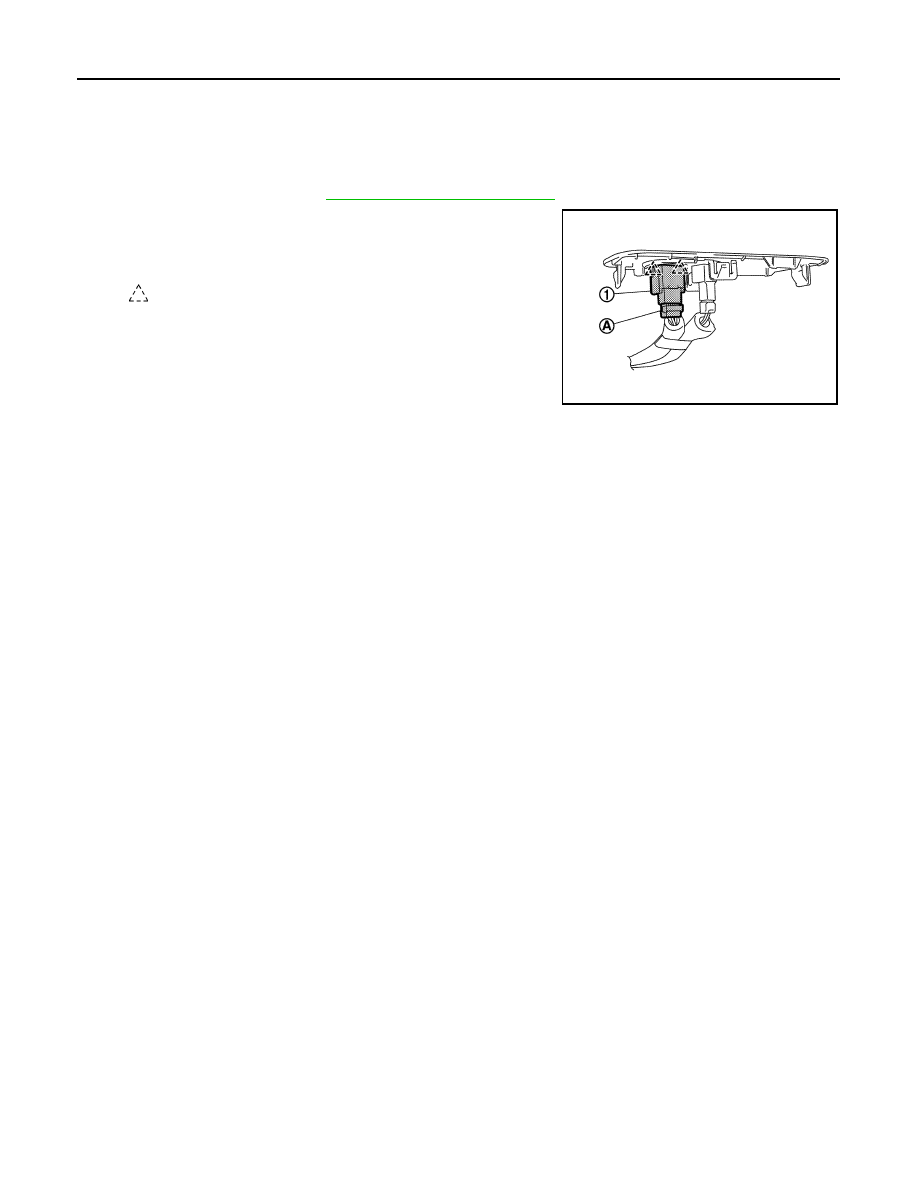

1. Remove instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove screw (A), and then remove in-vehicle sensor (1) from

instrument lower panel LH.

INSTALLATION

Install in the reverse order of removal.

JPIIA1838ZZ

HAC-350

< REMOVAL AND INSTALLATION >

[AUTO A/C (WITHOUT HEAT PUMP)]

SUNLOAD SENSOR

SUNLOAD SENSOR

Removal and Installation

INFOID:0000000010122061

REMOVAL

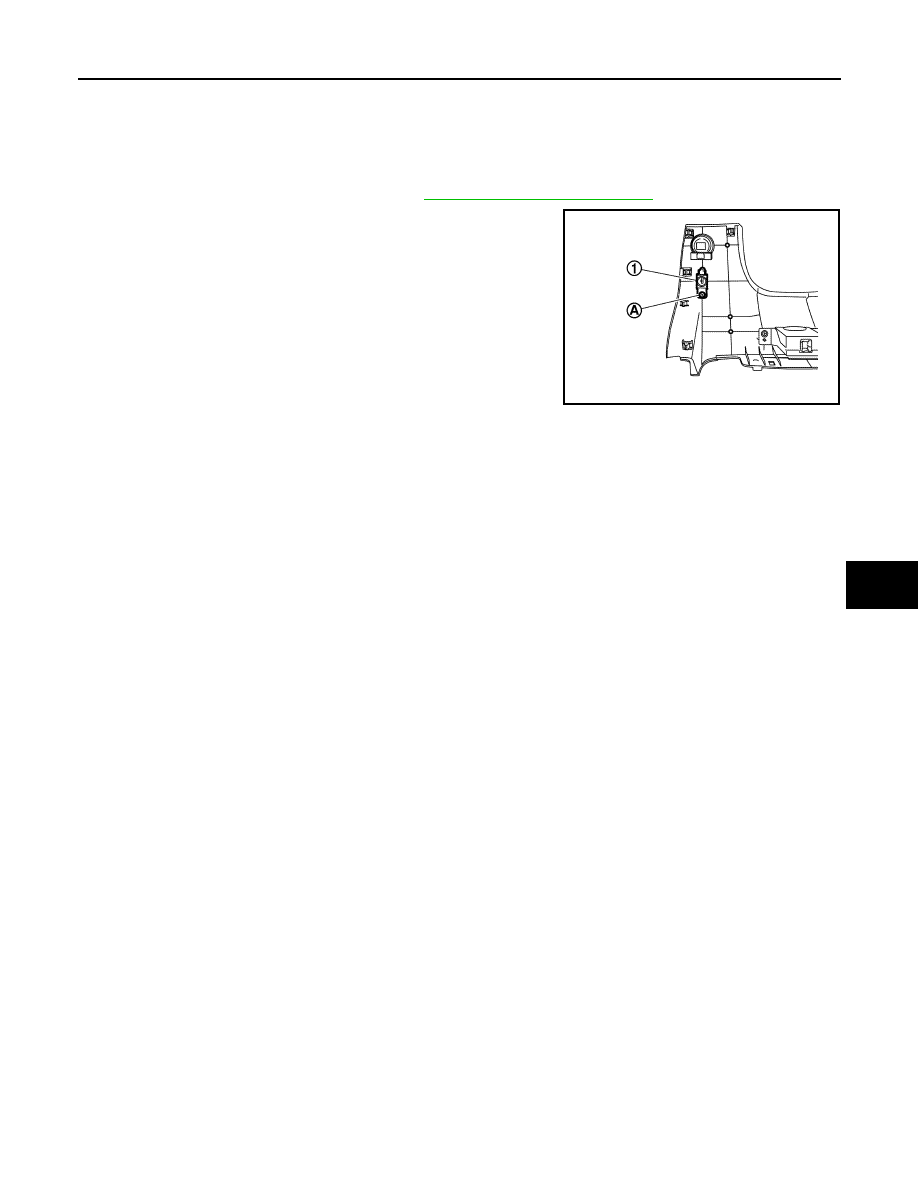

1. Remove switch panel. Refer to

IP-17, "Removal and Installation"

.

2. Disconnect sunload sensor connector (A).
3. Disengage pawls, and then remove sunload sensor (1) from

switch panel.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JPIIA1831ZZ
