HA-106

< REMOVAL AND INSTALLATION >

[WITHOUT HEAT PUMP SYSTEM]

COOLER PIPE AND HOSE

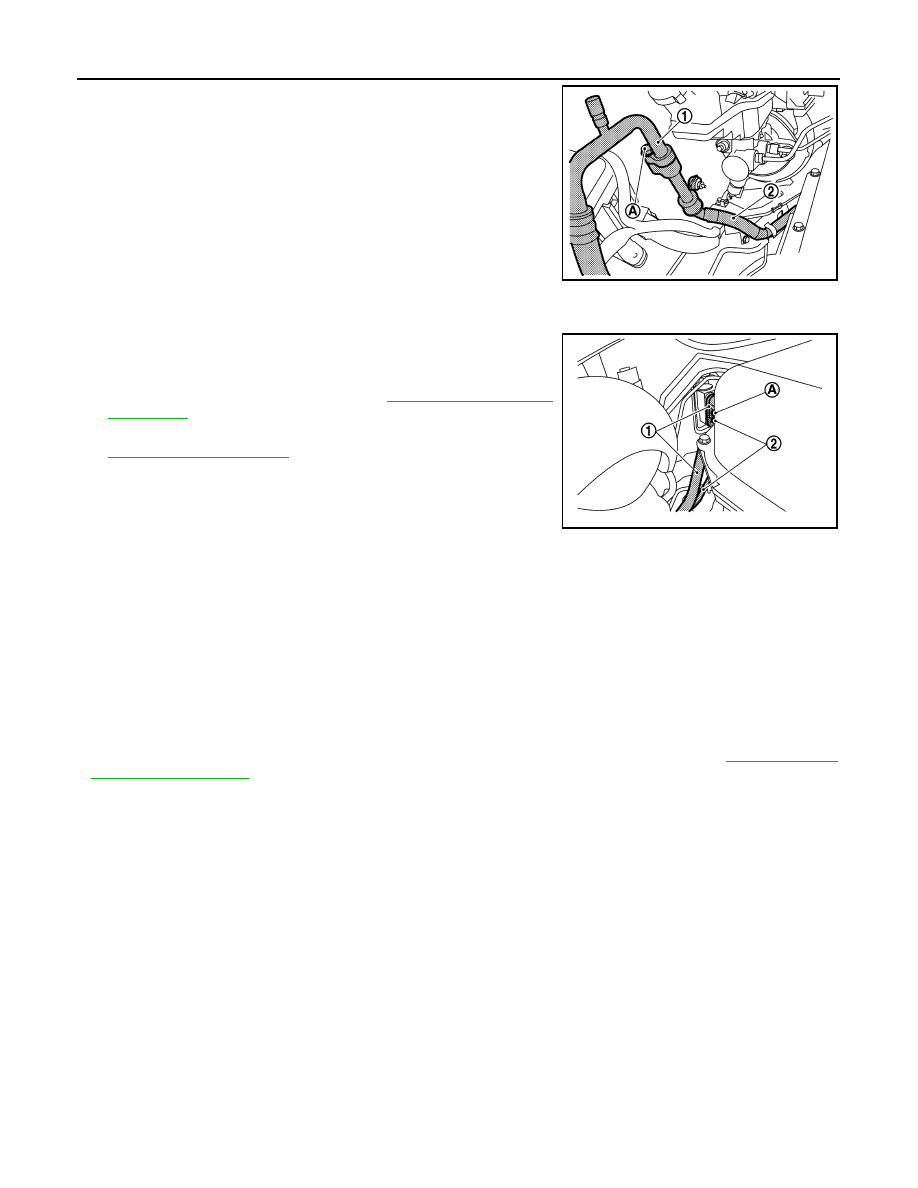

2. Remove bolt (A), and then disconnect low-pressure flexible

hose (1) from low-pressure pipe (2).

CAUTION:

To prevent the inclusion of foreign matter, use a cap or vinyl

tape to seal off the connection ports of the hose and pipe

from the atmosphere.

3. Remove bolt (A) and then disconnect low-pressure pipe (1) from expansion valve.

CAUTION:

To prevent the inclusion of foreign matter, use a cap or vinyl

tape to seal off the connection ports of the pipe and expan-

sion valve from the atmosphere.

4. Remove cowl top extension. Refer to

EXT-19, "Removal and

Installation"

.

5. Move electric water pump 1 to secure work space. Refer to

HCO-25, "Exploded View"

.

6. Disconnect low-pressure pipe from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• To prevent degradation in insulation performance, use special electric compressor oil as the com-

pressor oil.

• In order to prevent conventional PAG oil from becoming mixed in, never reuse recovered compres-

sor oil and instead always use new oil. The use of oil including the conventional PAG oil may

degrade the performance of insulation.

• To prevent performance degradation, never use a fluorescent agent in order to detect refrigerant

leakage. Also be careful that a fluorescent agent never enter the oil.

• To prevent leakage of refrigerant, replace the O-ring with a new one. Apply a coat of compressor oil

to the O-ring prior to installation.

• Perform a check for refrigerant leakage when charging with refrigerant. Refer to

HA-84, "Check

Refrigerant Leakage"

.

JMIIA2671ZZ

JMIIA2673ZZ

CONDENSER

HA-107

< REMOVAL AND INSTALLATION >

[WITHOUT HEAT PUMP SYSTEM]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

CONDENSER

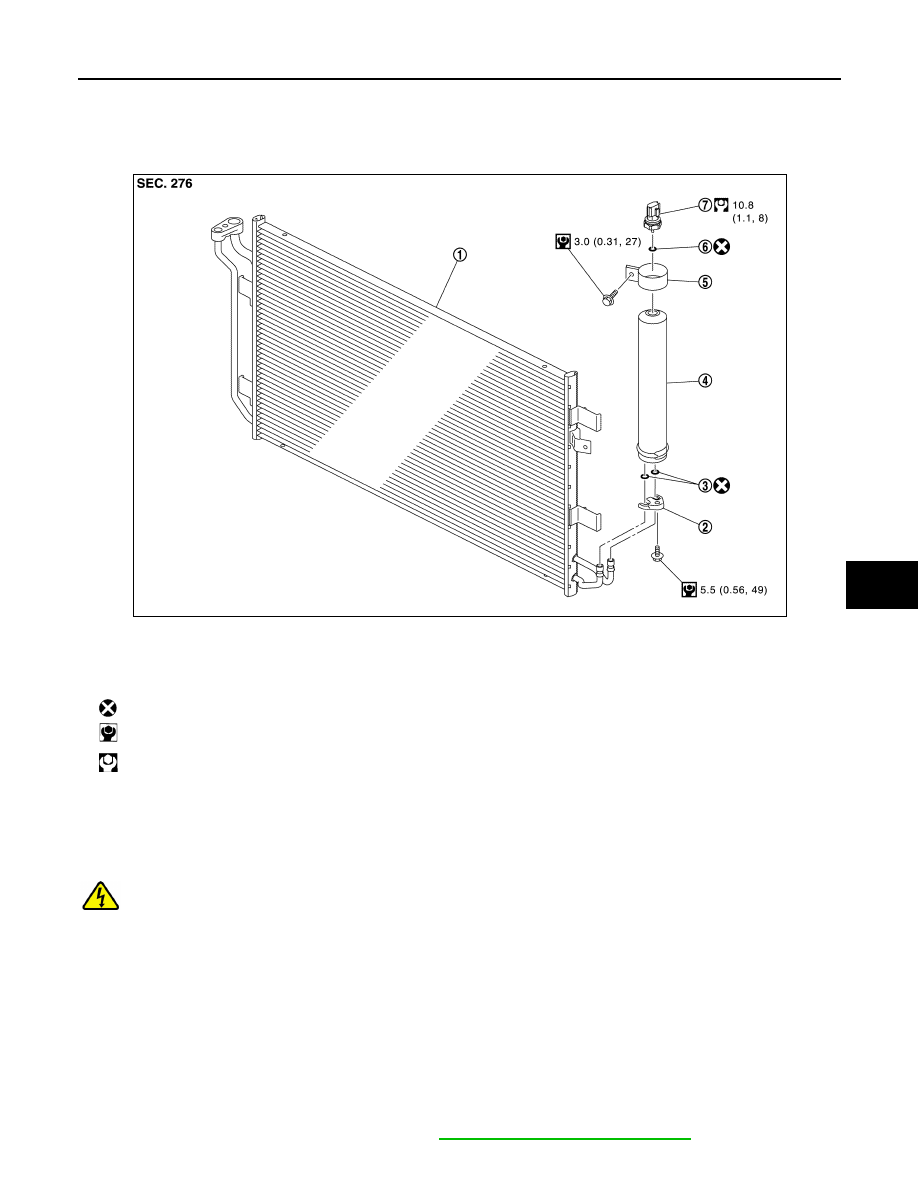

Exploded View

INFOID:0000000010122177

CONDENSER
CONDENSER : Removal and Installation

INFOID:0000000010122178

DANGER:

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of

electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are

handled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-

ing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in

the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses

before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the vehicle containing high voltage

parts. To keep others from touching the high voltage parts, these parts must be covered with an insu-

lating sheet except when using them. Refer to

GI-34, "High Voltage Precautions"

.

1.

Condenser

2.

Bracket

3.

O-ring

4.

Liquid tank

5.

Liquid tank bracket

6.

O-ring

7.

Refrigerant pressure sensor

 : Always replace after every disassembly.

 : N·m (kg-m, in-lb)

 : N·m (kg-m, ft-lb)

JPIIA1776GB

HA-108

< REMOVAL AND INSTALLATION >

[WITHOUT HEAT PUMP SYSTEM]

CONDENSER

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise

instructed in the Service Manual. A malfunction may occur if this is not observed.

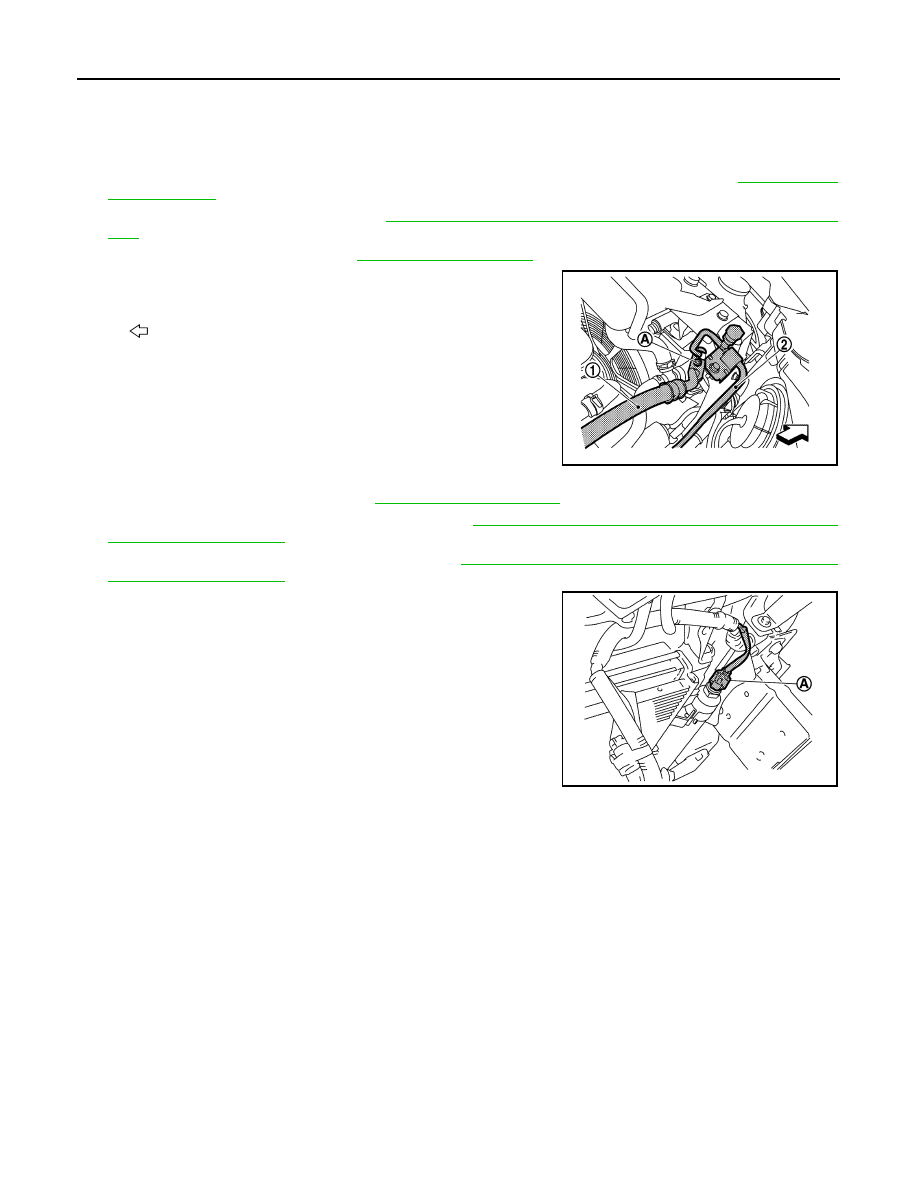

REMOVAL

1. Use the refrigerant recovery equipment (for HFC134a) and recover the refrigerant. Refer to

HA-85, "Recy-

cle Refrigerant"

.

2. Remove radiator upper grille. Refer to

DLK-165, "RADIATOR UPPER GRILLE : Removal and Installa-

tion"

.

3. Remove washer tank inlet. Refer to

WW-43, "Exploded View"

.

4. Remove bolt (A), and then disconnect high-pressure flexible

hose (1) and high-pressure pipe (2) from condenser.

CAUTION:

To prevent the inclusion of foreign matter, use a cap or vinyl

tape to seal off the connection ports of the pipe and con-

denser from the atmosphere.

5. Remove charge port bracket. Refer to

DLK-158, "Exploded View"

.

6. Remove radiator core support lower stay. Refer to

DLK-163, "RADIATOR CORE SUPPORT LOWER :

Removal and Installation"

.

7. Remove radiator core support upper. Refer to

DLK-161, "RADIATOR CORE SUPPORT UPPER :

Removal and Installation"

.

8. Disconnect refrigerant pressure sensor connector (A).

: Vehicle front

JMIIA2672ZZ

JPIIA1775ZZ

CONDENSER

HA-109

< REMOVAL AND INSTALLATION >

[WITHOUT HEAT PUMP SYSTEM]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

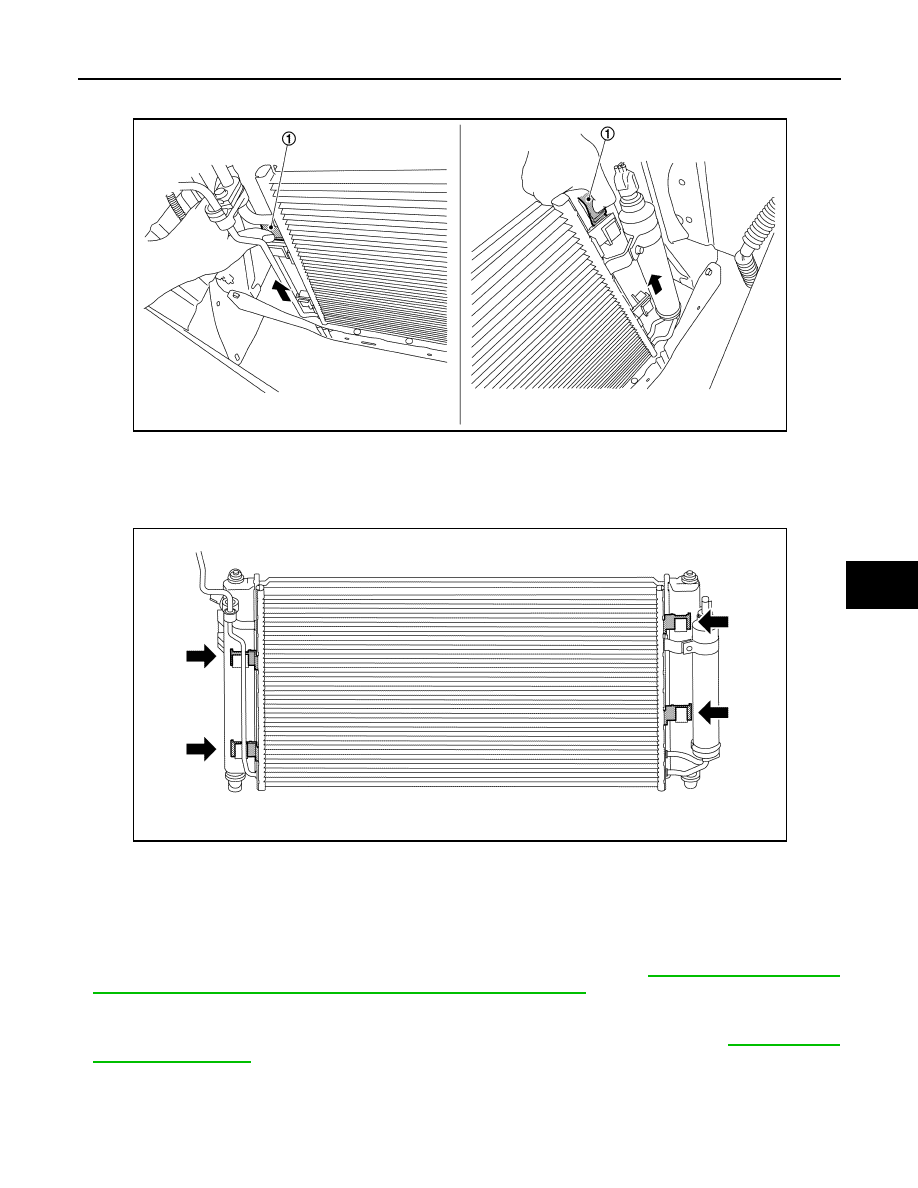

9. Lift the condenser upwards while pressing the tabs (1) on the right and left of the radiator to remove con-

denser.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing the condenser, securely insert the mating part indicated by the arrow in the diagram.

• To prevent degradation in insulation performance, use special electric compressor oil as the com-

pressor oil.

• In order to prevent conventional PAG oil from becoming mixed in, never reuse recovered compres-

sor oil and instead always use new oil. The use of oil including the conventional PAG oil may

degrade the performance of insulation.

• To prevent performance degradation, never use a fluorescent agent in order to detect refrigerant

leakage. Also be careful that a fluorescent agent never enter the oil.

• After installing a new condenser, adjust the compressor oil level. Refer to

HA-87, "Lubricant Adjust-

ing Procedure for Components Replacement Except Compressor"

.

• To prevent leakage of refrigerant, replace the O-ring with a new one. Apply a coat of compressor oil

to the O-ring prior to installation.

• Perform a check for refrigerant leakage when charging with refrigerant. Refer to

HA-84, "Check

Refrigerant Leakage"

.

LIQUID TANK
