HA-90

< BASIC INSPECTION >

[WITHOUT HEAT PUMP SYSTEM]

PERFORMANCE TEST

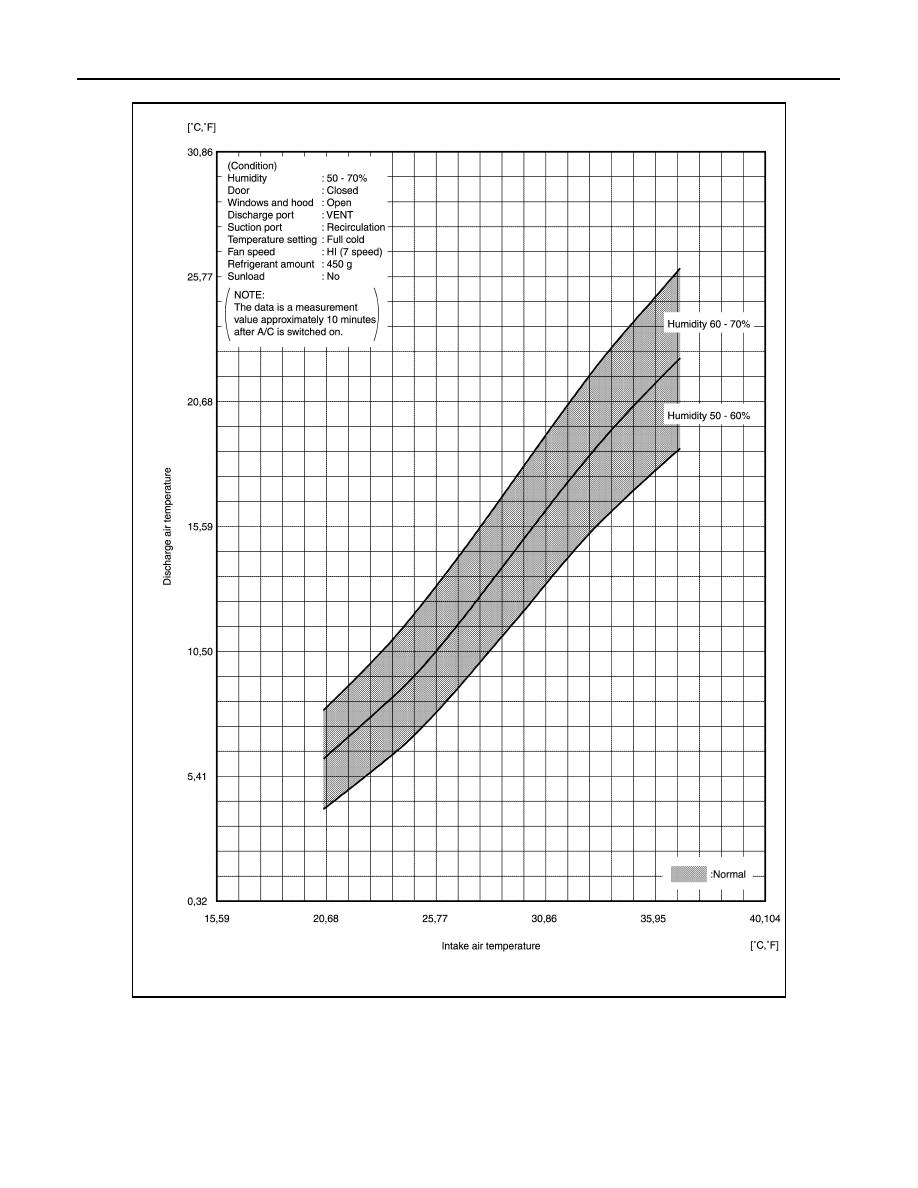

INTAKE –DISCHARGE

JSIIA1640GB

PERFORMANCE TEST

HA-91

< BASIC INSPECTION >

[WITHOUT HEAT PUMP SYSTEM]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

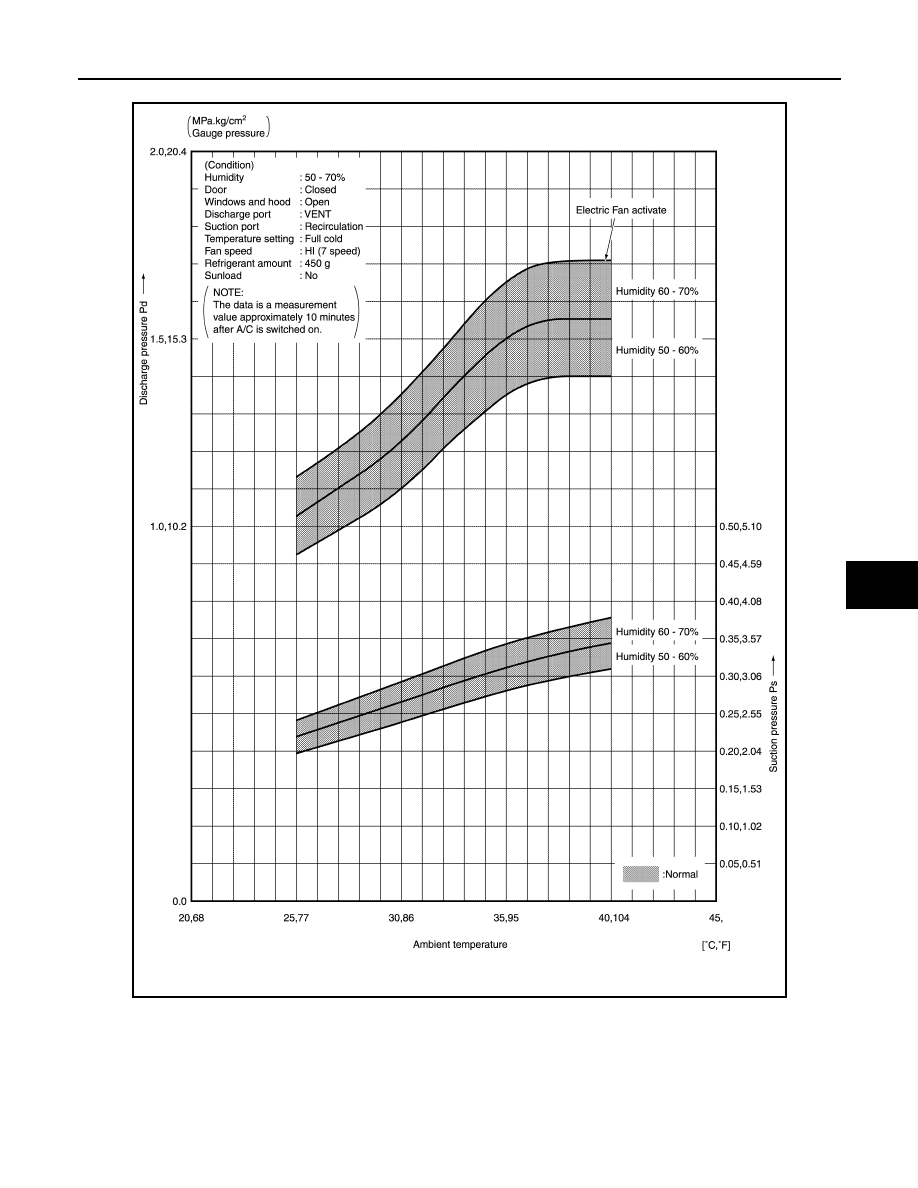

AMBIENT TEMPERATURE–PRESSURE CHARACTERISTICS

JSIIA1641GB

HA-92

< SYMPTOM DIAGNOSIS >

[WITHOUT HEAT PUMP SYSTEM]

REFRIGERATION SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

REFRIGERATION SYSTEM SYMPTOMS

Trouble Diagnosis For Unusual Pressure

INFOID:0000000010122166

Diagnose using a manifold gauge whenever system’s high and/or low side pressure(s) is/are unusual. The

marker above the gauge scale in the following tables indicates the standard (usual) pressure range. Refer to

above table (Ambient air temperature-to-operating pressure table) since the standard (usual) pressure, how-

ever, differs from vehicle to vehicle.

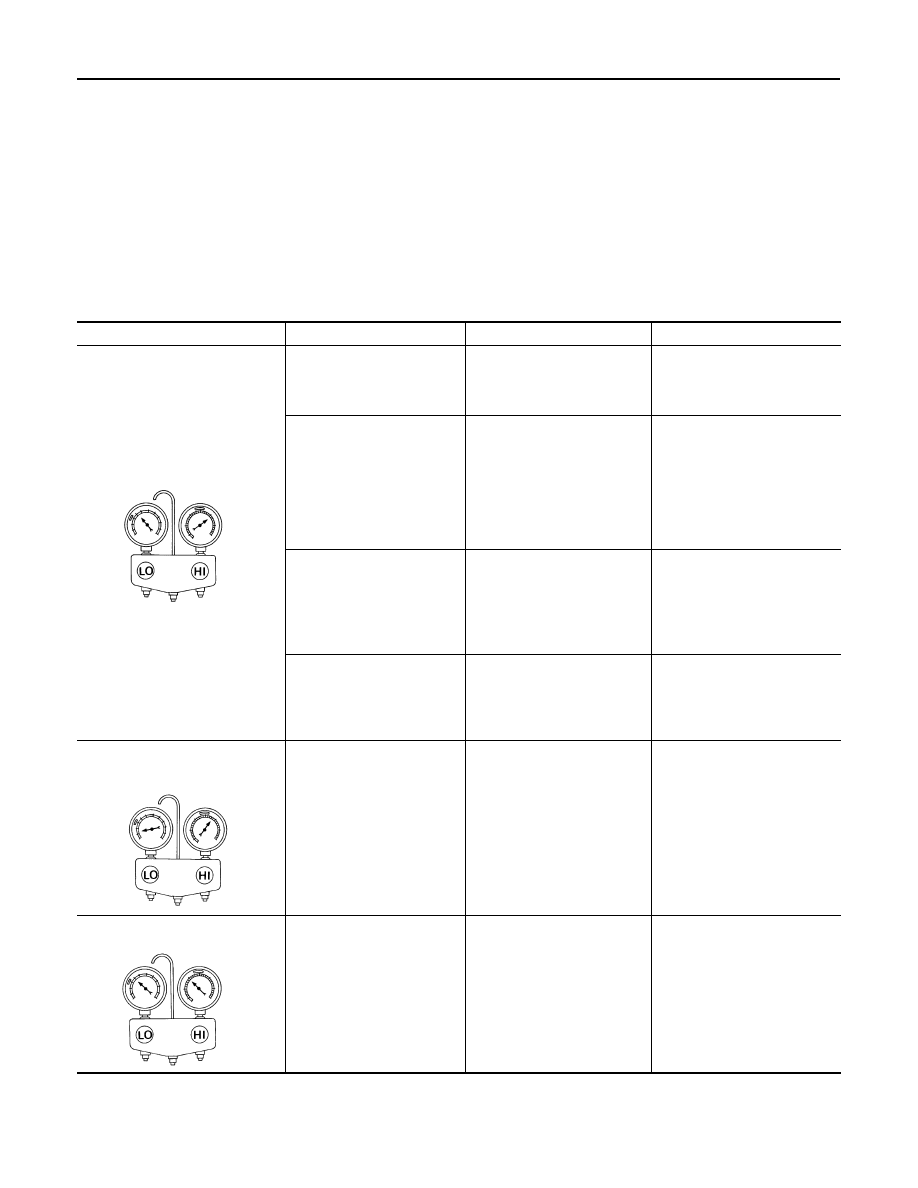

Symptom Table

INFOID:0000000010122167

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

Both high- and low-pressure sides
are too high.

The pressure returns to nor-
mal soon after sprinkling wa-
ter on condenser.

Overfilled refrigerant.

Collect all refrigerant, evacuate
refrigerant cycle again, and
then refill it with the specified
amount of refrigerant.

Air flow to condenser is insuf-
ficient.

Insufficient condenser cooling
performance.
• Poor fan rotation of radiator

and condenser.

• Improper installation of air

guide.

• Clogged or dirty condenser

fins.

• Repair or replace malfunc-

tioning parts.

• Clean and repair condenser

fins.

When compressor is stopped,
a high-pressure reading
quickly drops by approximate-
ly 196 kPa (2 kg/cm

2

, 28.4

psi). It then gradually de-
creases.

Air mixed in refrigerant cycle.

Collect all refrigerant, evacuate
refrigerant cycle again, and
then refill it with the specified
amount of refrigerant.

• Low-pressure pipe is cooler

than the outlet of evapora-
tor.

• Low-pressure pipe is frost-

ed.

Expansion valve opened too
much (excessive flow of refrig-
erant).

Replace expansion valve.

High-pressure side is excessively
high and low-pressure side is too
low.

High-pressure pipe and upper
side of condenser become
hot, however, liquid tank does
not become so hot.

Clogged or crushed high-pres-
sure pipe located between
compressor and condenser.

Repair or replace the malfunc-
tioning parts.

High-pressure side is too low and
low-pressure side is too high.

• The readings of both sides

become equal soon after
compressor operation
stops.

• There is no temperature dif-

ference between high- and
low-pressure sides.

Malfunction in compressor sys-
tem (insufficient compressor
pressure operation).
• Damage or breakage of

valve.

• Malfunctioning gaskets.

Replace compressor.

AC359A

AC360A

AC356A

REFRIGERATION SYSTEM SYMPTOMS

HA-93

< SYMPTOM DIAGNOSIS >

[WITHOUT HEAT PUMP SYSTEM]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

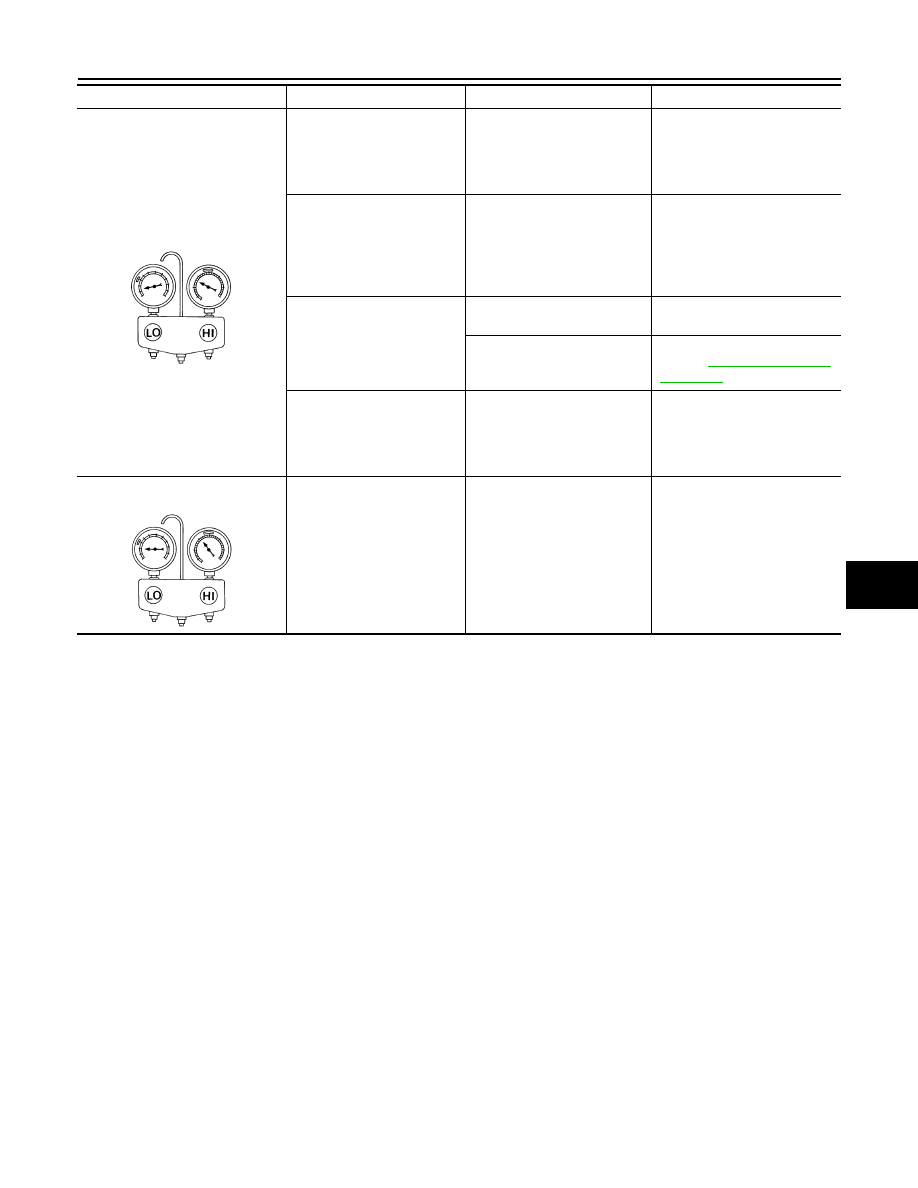

Both high- and low-pressure sides
are too low.

• The area around evapora-

tor outlet does not become
cold.

• The area around evapora-

tor inlet becomes frosted.

Clogged expansion valve.
• Breakage of temperature

sensor.

• Clogging by foreign material.

Eliminate foreign material from
expansion valve, or replace it.

• There is a temperature dif-

ference between the areas
around outlet and inlet
pipes of liquid tank.

• Liquid tank becomes frost-

ed.

Malfunction inside liquid tank
(clogged strainer).

Replace liquid tank.

Evaporator becomes frosted.

Clogged or crushed low-pres-
sure pipe.

Repair or replace malfunction-
ing parts.

Malfunction in intake sensor.

Check intake sensor system.
Refer to

HAC-286, "Diagnosis

Procedure"

.

There is a small temperature
difference between the high
and low pressure pipes for re-
frigerant cycle.

• Shortage of refrigerant.
• Leakage of refrigerant.

• Check for leakage.
• Collect all refrigerant, evacu-

ate refrigerant cycle again,
and then refill it with the spec-
ified amount of refrigerant.

Low-pressure side sometimes be-
comes negative.

• Sometimes the area

around evaporator outlet
does not become cold.

• Sometimes the area

around evaporator inlet is
frosted.

• Icing caused by the mixing of

water in cooler cycle.

• Deteriorated dryer in liquid

tank.

• Collect all refrigerant.
• Evacuate refrigerant cycle

completely, and then refill it
with the specified amount of
refrigerant. At this time, al-
ways replace liquid tank.

Gauge indication

Refrigerant cycle

Probable cause

Corrective action

AC353A

AC354A
