GI-20

< HOW TO USE THIS MANUAL >

TIGHTENING TORQUE OF STANDARD BOLTS

Fasteners with aluminum or cast iron washer surface/thread surface are excluded.

NEW STANDARD BASED ON ISO

CAUTION:

1. Use tightening torque with lubricant for the new standard bolts/nuts in principle. Friction coeffi-

cient stabilizer is applied to the new standard bolts/nuts.

2. However, use tightening torque without lubricant for the following cases. Friction coefficient stabi-

lizer is not applied to the following bolts/nuts.

-

Grade 4.8, M6 size bolt, Conical spring washer installed

-

Paint removing nut (Size M6 and M8) for fixing with weld bolt

Grade

(Strength

grade)

Bolt
size

Bolt di-
ameter

mm

Hexagonal

width

across flats

mm

Pitch

mm

Tightening torque

Hexagon head bolt

Hexagon flange bolt

N·m

kg-m

ft-lb

in-lb

N·m

kg-m

ft-lb

in-lb

4.8
(Without
lubricant)

M6

6.0

10

1.0

5.5

0.56

4

49

7

0.71

5

62

M8

8.0

13

1.25

13.5

1.4

10

—

17

1.7

13

—

1.0

13.5

1.4

10

—

17

1.7

13

—

M10

10.0

16

1.5

28

2.9

21

—

35

3.6

26

—

1.25

28

2.9

21

—

35

3.6

26

—

M12

12.0

18

1.75

45

4.6

33

—

55

5.6

41

—

1.25

45

4.6

33

—

65

6.6

48

—

M14

14.0

21

1.5

80

8.2

59

—

100

10

74

—

4.8
(With lu-
bricant)

M6

6.0

10

1.0

4

0.41

3

35

5.5

0.56

4

49

M8

8.0

13

1.25

11

1.1

8

—

13.5

1.4

10

—

1.0

11

1.1

8

—

13.5

1.4

10

—

M10

10.0

16

1.5

22

2.2

16

—

28

2.9

21

—

1.25

22

2.2

16

—

28

2.9

21

—

M12

12.0

18

1.75

35

3.6

26

—

45

4.6

33

—

1.25

35

3.6

26

—

45

4.6

33

—

M14

14.0

21

1.5

65

6.6

48

—

80

8.2

59

—

8.8
(With lu-
bricant)

M6

6.0

10

1.0

8

0.82

6

71

10

1.0

7

89

M8

8.0

13

1.25

21

2.1

15

—

25

2.6

18

—

1.0

21

2.1

15

—

25

2.6

18

—

M10

10.0

16

1.5

40

4.1

30

—

50

5.1

37

—

1.25

40

4.1

30

—

50

5.1

37

—

M12

12.0

18

1.75

70

7.1

52

—

85

8.7

63

—

1.25

70

7.1

52

—

85

8.7

63

—

M14

14.0

21

1.5

120

12

89

—

140

14

103

—

10.9
(With lu-
bricant)

M6

6.0

10

1.0

10

1.0

7

89

12

1.2

9

106

M8

8.0

13

1.25

27

2.8

20

—

32

3.3

24

—

1.0

27

2.8

20

—

32

3.3

24

—

M10

10.0

16

1.5

55

5.6

41

—

65

6.6

48

—

1.25

55

5.6

41

—

65

6.6

48

—

M12

12.0

18

1.75

95

9.7

70

—

110

11

81

—

1.25

95

9.7

70

—

110

11

81

—

M14

14.0

21

1.5

160

16

118

—

180

18

133

—

TIGHTENING TORQUE OF STANDARD BOLTS

GI-21

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

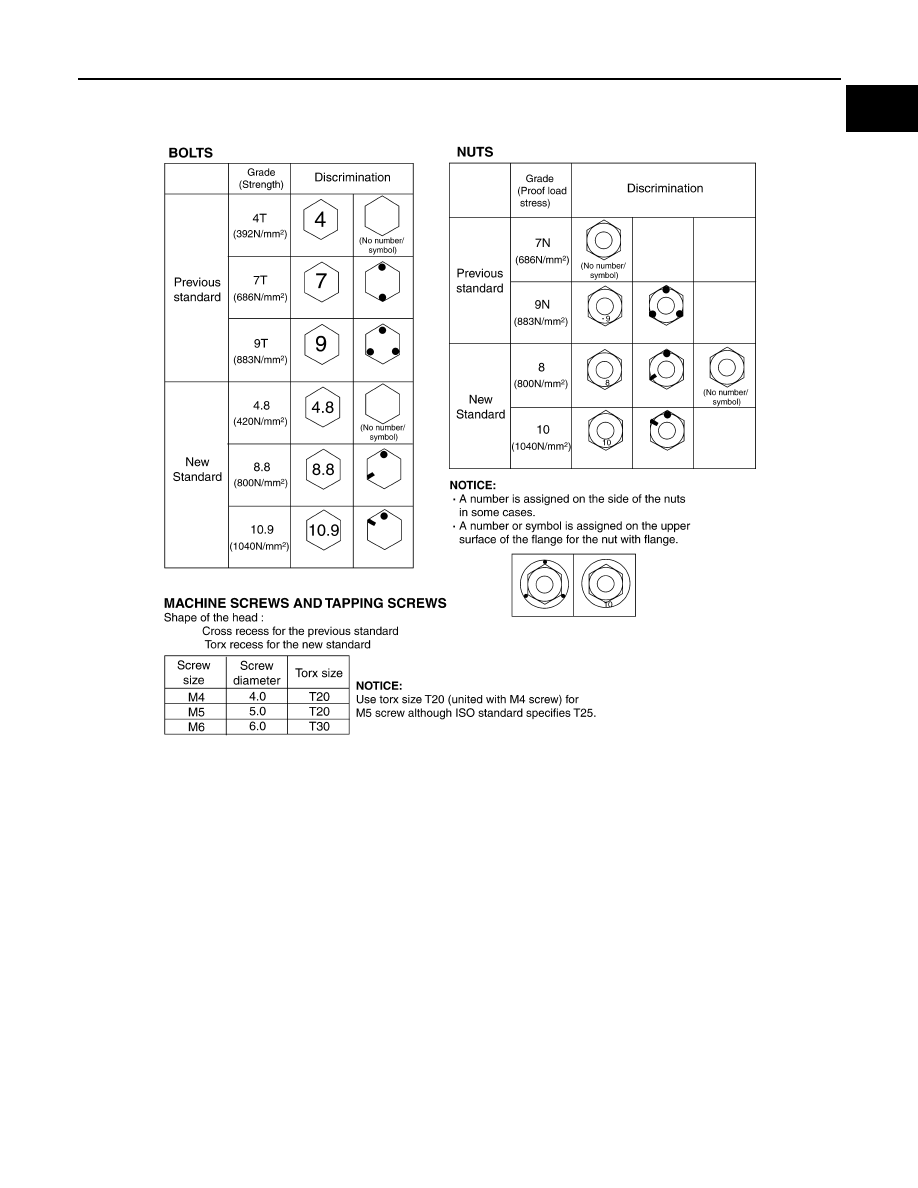

IDENTIFICATION OF BOLTS AND NUTS

SAIA0453E

GI-22

< HOW TO USE THIS MANUAL >

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

Recommended Chemical Products and Sealants

INFOID:0000000010122901

Refer to the following chart for help in selecting the appropriate chemical product or sealant.

Product Description

Purpose

Nissan North America

Part No. (USA)

Nissan Canada Part

No. (Canada)

Aftermarket Cross-

reference Part Nos.

1

Rear View Mirror Adhe-
sive

Used to permanently re-
mount rear view mirrors to
windows.

999MP-AM000P

99998-50505

Permatex 81844

2

Anaerobic Liquid Gas-
ket

For metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide in-
stant sealing for most pow-
ertrain applications.

999MP-AM001P

99998-50503

Permatex 51813 and
51817

3

High Performance
Thread Sealant

Provides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)
• Do not use on plastic.

999MP-AM002P

999MP-AM002P

Permatex 56521

4

Silicone RTV

Gasket Maker

999MP-AM003P
(Ultra Grey)

99998-50506
(Ultra Grey)

Permatex Ultra Grey
82194;
Three Bond
1207,1215, 1216,
1217F, 1217G and
1217H
Nissan RTV Part No.
999MP-A7007

5

High Temperature,
High Strength Thread
Locking Sealant (Red)

Threadlocker

999MP-AM004P

999MP-AM004P

Permatex 27200;
Three Bond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
Loctite 648

6

Medium Strength
Thread Locking Seal-
ant (Blue)

Threadlocker (service tool
removable)

999MP-AM005P

999MP-AM005P

Permatex 24200,
24206, 24240,
24283 and 09178;
Three Bond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374

IDENTIFICATION INFORMATION

GI-23

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

VEHICLE INFORMATION

IDENTIFICATION INFORMATION

Model Variation

INFOID:0000000010122902

Model variation code (Prefix and suffix designations)

Information About Identification or Model Code

INFOID:0000000010122903

IDENTIFICATION NUMBER

Destination

Body

Transmission

Axle

Motor

Grade

Model

USA

4-door Hatchback

Reduction gear

FWD

EM57

S

FSDALB9-BUA

SV

FSDALD9-BUA

SL

FSDALG9-BUA

CANADA

S

FSDALB9-BNA

SV

FSDALD9-BNA

SL

FSDALG9-BNA

MEXICO

SL

FSDALG9-BJA

Position

Character

Qualifier

Definition

1

F

Body type

F: Hatchback

2

SD

Engine

SD: EM57 electric motor

3

4

A

Axle

A: FWD

5

L

Drive

L:  LH

6

D

Grade

B: S

D: SV

G: SL

7

9

Gear

9: Reduction gear

8

ZE0

Model

ZE0: LEAF

9

10

11

B

Power Source

B: Li-ion battery

12

U

Zone

U: 50-State

N: Canada

J: Mexico

13

A

Equipment

A: Standard

14

XXXXX

Option Codes

Option Codes

15

16

17

18
