FRONT DRIVE SHAFT

FAX-17

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

FRONT DRIVE SHAFT

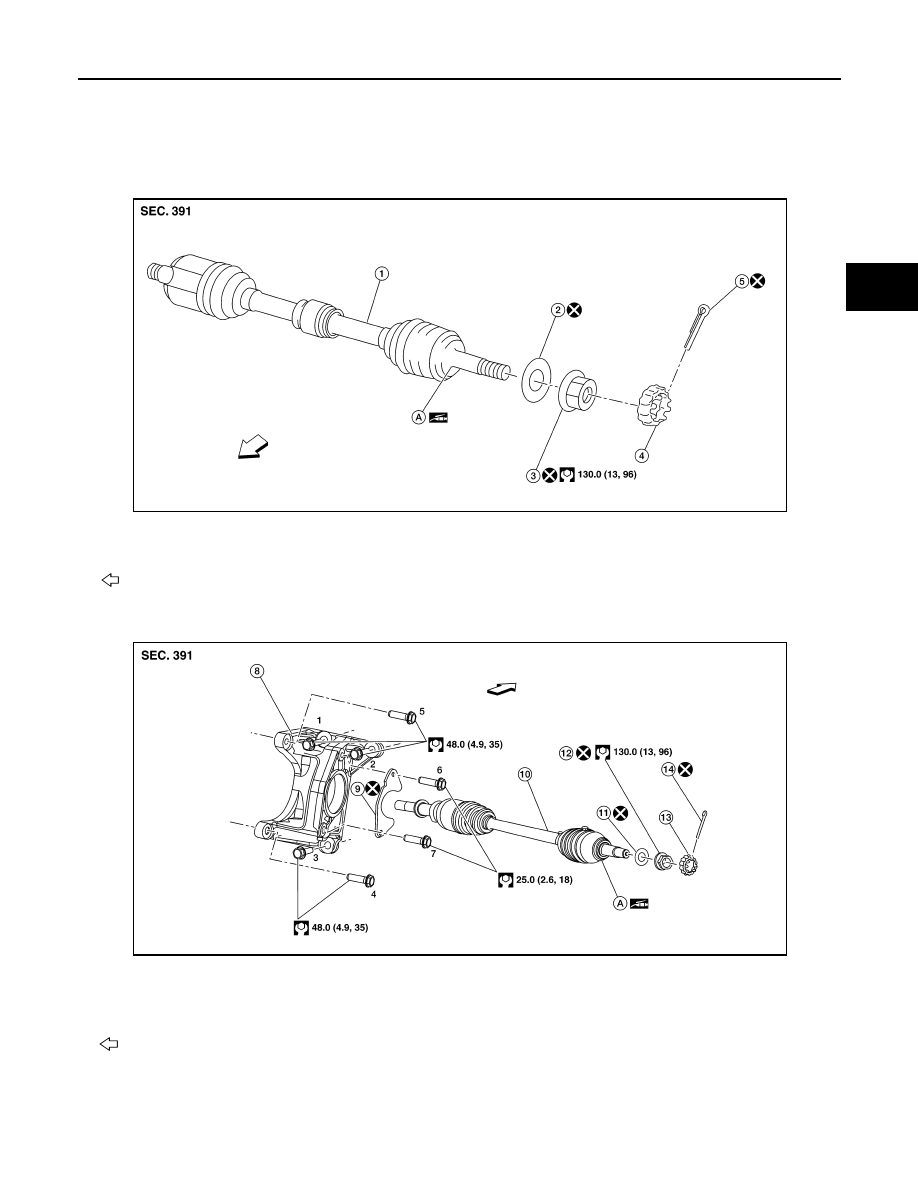

Exploded View

INFOID:0000000010121666

LEFT SIDE

RIGHT SIDE

LEFT SIDE

1.

Front drive shaft

2.

Washer

3.

Wheel hub lock nut

4.

Nut retainer

5.

Cotter pin

A.

Paste 440037S000

Front

AWDIA1172ZZ

1-7. Tightening order

8.

Support bearing bracket

9.

Retainer

10.

Front drive shaft

11. Washer

12. Wheel hub lock nut

13.

Nut retainer

14. Cotter pin

A.

Paste 440037S000

Front

AWDIA1173ZZ

FAX-18

< REMOVAL AND INSTALLATION >

FRONT DRIVE SHAFT

LEFT SIDE : Removal and Installation

INFOID:0000000010121667

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-45, "Exploded View"

.

2. Remove cotter pin and nut retainer, and then loosen wheel hub lock nut. Refer to

FAX-9, "Removal and

Installation"

.

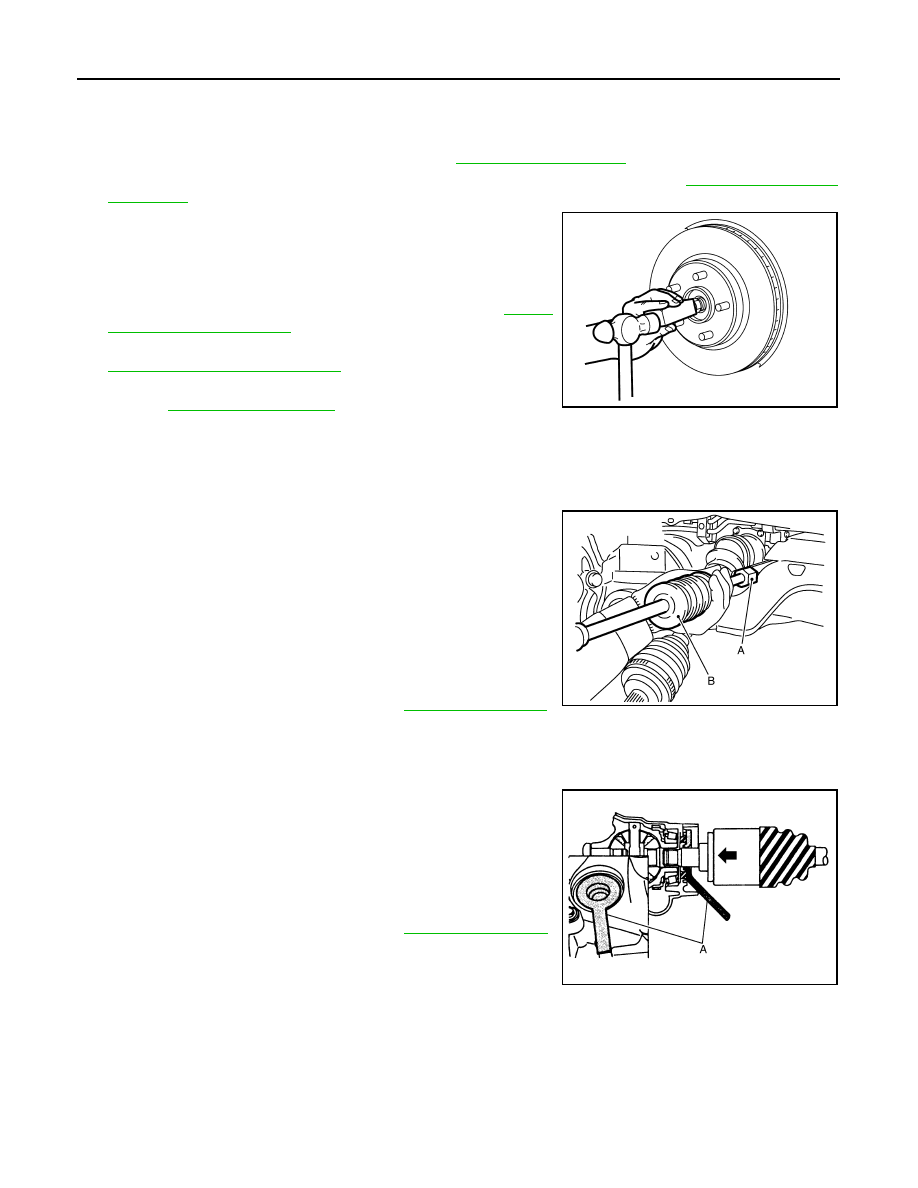

3. Patch wheel hub lock nut with a piece of wood. Hammer the

wood to disengage wheel hub assembly from drive shaft.

NOTE:

Use suitable puller, if wheel hub assembly and drive shaft can-

not be separated even after performing the above procedure.

4. Remove wheel hub lock nut and washer. Refer to

FAX-9,

"Removal and Installation"

.

5. Remove steering outer socket from steering knuckle. Refer to

ST-41, "Removal and Installation"

.

6. Remove transverse link from steering knuckle using power tool.

Refer to

FAX-9, "Exploded View"

.

7. Remove shaft assembly from wheel hub assembly.

CAUTION:

• Do not place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint.

• Do not allow drive shaft to hang down without support for joint sub-assembly, shaft and the

other parts.

8. Use the Tool (A) and suitable tool (B) while inserting tip of the

drive shaft attachment between shaft and reduction gear assem-

bly, and then remove drive shaft from reduction gear assembly.

CAUTION:

• Do not place drive shaft joint at an extreme angle when

removing drive shaft. Also be careful not to overextend

slide joint.

• Confirm that the circular clip is attached to the drive shaft.

9. Perform inspection after removal. Refer to

FAX-31, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

Reduction Gear Side

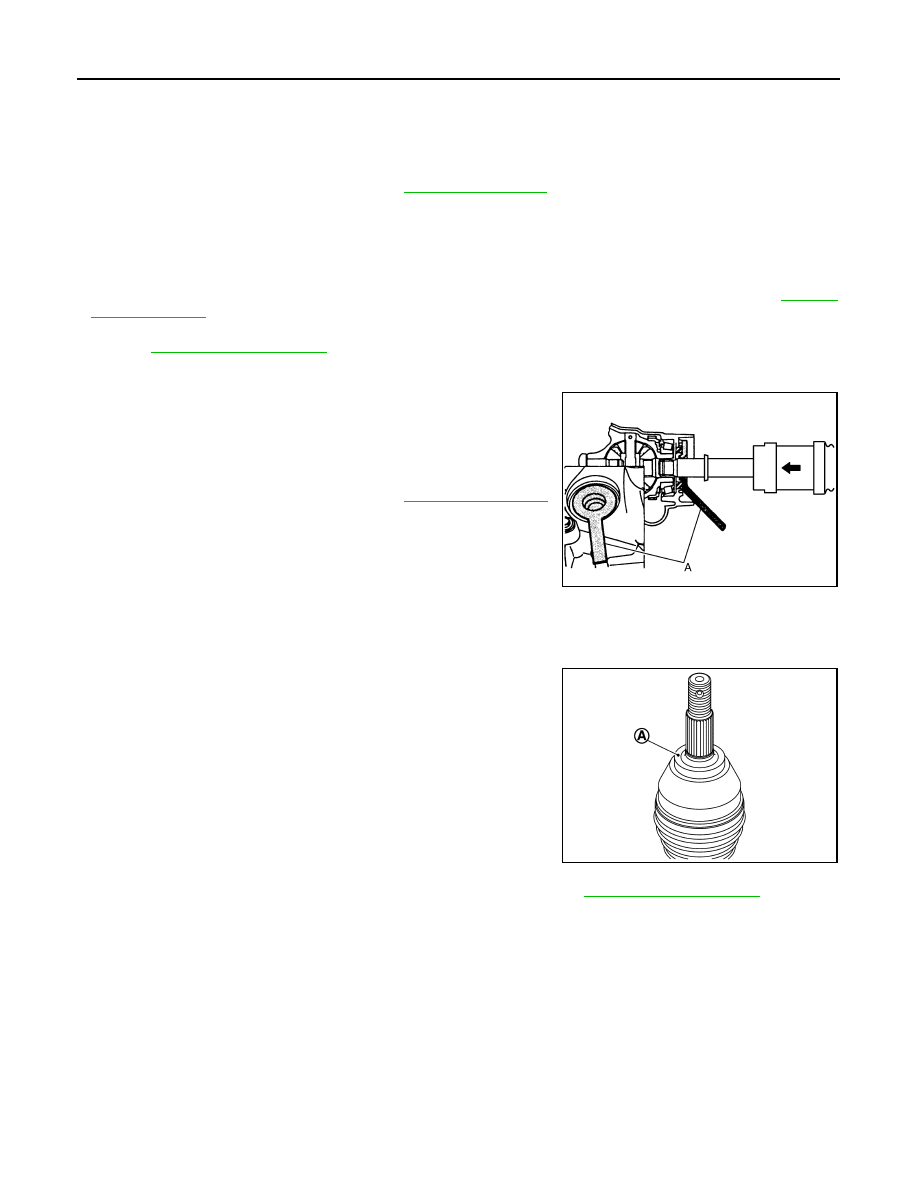

• Place the Tool (A) onto reduction gear assembly to prevent dam-

age to the oil seal while inserting drive shaft. Slide drive shaft slid-

ing joint and tap with a hammer to install securely.

CAUTION:

Check that circular clip is completely engaged.

• Perform inspection after installation. Refer to

FAX-31, "Inspection"

.

Wheel Hub Side

• Clean the matching surface of wheel hub lock nut and wheel hub assembly.

CAUTION:

Do not apply lubricating oil to these matching surface.

Tool number (A)

: KV40107500 ( — )

JPDIF0320ZZ

JPDIF0004ZZ

Tool number (A)

: KV38107900 ( — )

JPDIF0023ZZ

FRONT DRIVE SHAFT

FAX-19

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

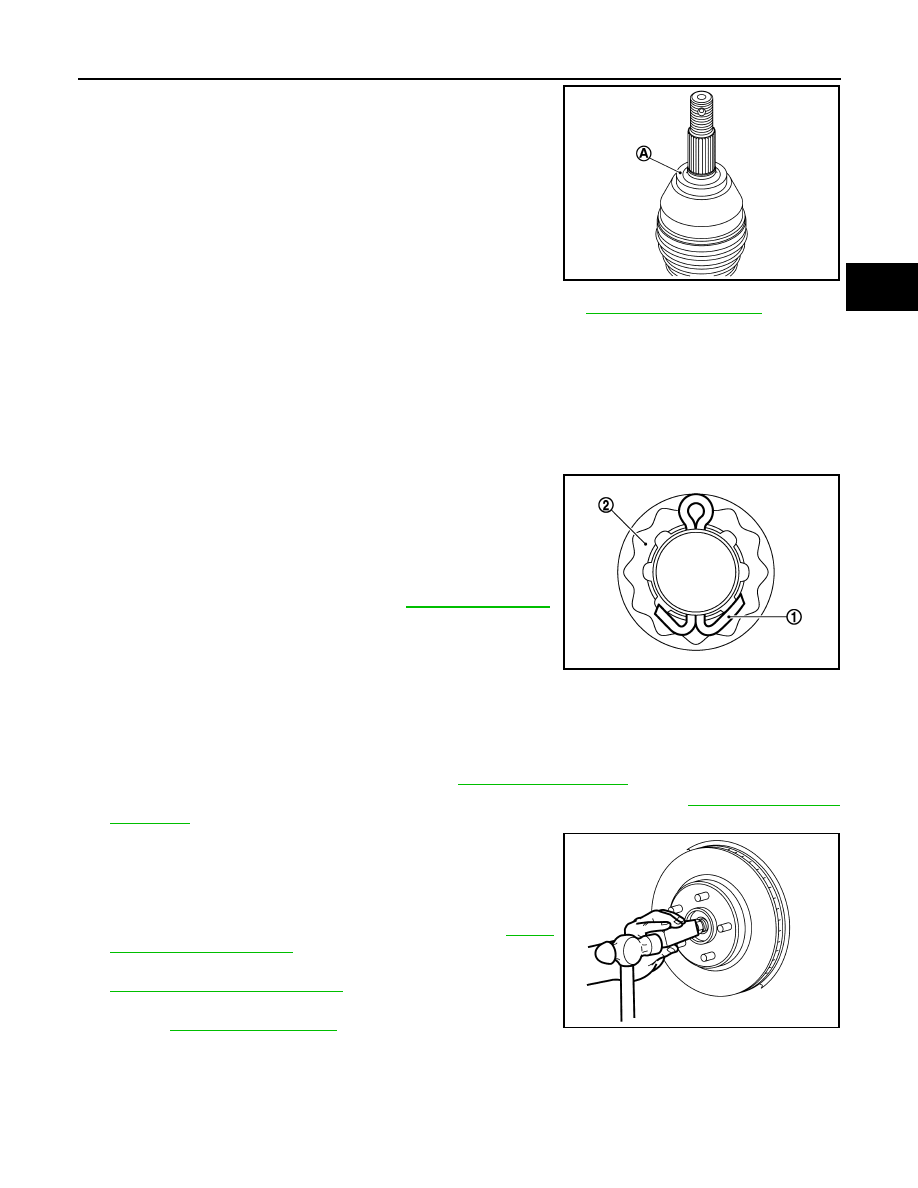

• Clean the matching surface of drive shaft and wheel hub assembly.

And then apply paste [service parts (440037S000)] to surface (A)

of joint sub-assembly of drive shaft.

CAUTION:

Apply paste to cover entire flat surface of joint sub-assembly

of drive shaft.

• Use the following torque for tightening the wheel hub lock nut. Refer to

FAX-17, "Exploded View"

.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use the tightening torque for the wheel hub

lock nut.

• Be sure to use torque wrench to tighten the wheel hub lock nut. Do not use a power tool.

• Do not reuse wheel hub lock nut and washer.

NOTE:

Wheel hub lock nut tightening torque does not over torque for avoiding axle noise, and does not less than

torque for avoiding looseness.

• Align the matching marks that have been made during removal when reusing the disc rotor.

• When installing a cotter pin (1) and nut retainer (2), securely bend

the basal portion to prevent rattles.

CAUTION:

Do not reuse cotter pin.

• Perform the final tightening of each of parts under unladen condi-

tions, which were removed when removing wheel hub assembly

and steering knuckle.

• Perform inspection after installation. Refer to

FAX-31, "Inspection"

.

RIGHT SIDE
RIGHT SIDE : Removal and Installation

INFOID:0000000010121668

REMOVAL

1. Remove wheel and tire using power tool. Refer to

WT-45, "Exploded View"

.

2. Remove cotter pin and nut retainer, and then loosen wheel hub lock nut. Refer to

FAX-9, "Removal and

Installation"

.

3. Patch wheel hub lock nut with a piece of wood. Hammer the

wood to disengage wheel hub assembly from drive shaft.

NOTE:

Use suitable puller, if wheel hub assembly and drive shaft can-

not be separated even after performing the above procedure.

4. Remove wheel hub lock nut and washer. Refer to

FAX-9,

"Removal and Installation"

.

5. Remove steering outer socket from steering knuckle. Refer to

ST-41, "Removal and Installation"

.

6. Remove transverse link from steering knuckle using power tool.

Refer to

FAX-9, "Exploded View"

.

7. Remove drive shaft from wheel hub assembly.

CAUTION:

• Do not place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint.

• Do not allow drive shaft to hang down without support for joint sub-assembly, shaft and the

other parts.

8. Remove retainer.

Amount paste

: 1.0 – 3.0 g (0.04 – 0.10 oz)

JSDIA2844ZZ

JPDIF0295ZZ

JPDIF0320ZZ

FAX-20

< REMOVAL AND INSTALLATION >

FRONT DRIVE SHAFT

9. Remove drive shaft assembly from reduction gear assembly.

CAUTION:

Do not place drive shaft joint at an extreme angle when removing drive shaft. Also be careful not

to overextend slide joint.

10. Remove support bearing bracket.
11. Perform inspection after removal. Refer to

FAX-31, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

Reduction Gear Side

• Install support bearing bracket.

- Temporarily tighten support bearing bracket bolts, then tighten them to specified torque. Refer to

FAX-17,

"Exploded View"

.

- Set retainer so that notch is on upper side. Temporarily tighten bolts, then tighten them to specified torque.

Refer to

FAX-17, "Exploded View"

.

CAUTION:

Do not reuse retainer.

• Place the Tool (A) onto reduction gear assembly to prevent dam-

age to the oil seal while inserting drive shaft. Slide drive shaft slid-

ing joint and tap with a hammer to install securely.

• Perform inspection after installation. Refer to

FAX-31, "Inspection"

.

Wheel Hub Side

• Clean the matching surface of wheel hub lock nut and wheel hub assembly.

CAUTION:

Do not apply lubricating oil to these matching surface.

• Clean the matching surface of drive shaft and wheel hub assembly.

And then apply paste [service parts (440037S000)] to surface (A)

of joint sub-assembly of drive shaft.

CAUTION:

Apply paste to cover entire flat surface of joint sub-assembly

of drive shaft.

• Use the following torque for tightening the wheel hub lock nut. Refer to

FAX-17, "Exploded View"

.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use the tightening torque for the wheel hub

lock nut.

• Be sure to use torque wrench to tighten the wheel hub lock nut. Do not use a power tool.

• Do not reuse wheel hub lock nut and washer.

NOTE:

Wheel hub lock nut tightening torque does not over torque for avoiding axle noise, and does not less than

torque for avoiding looseness.

• Align the matching marks that have been made during removal when reusing the disc rotor.

Tool number (A)

: KV38107900 ( — )

JPDIF0049ZZ

Amount paste

: 1.0 – 3.0 g (0.04 – 0.10 oz)

JSDIA2844ZZ
