Nissan Leaf. Manual - part 668

HAZARD SWITCH

EXL-273

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

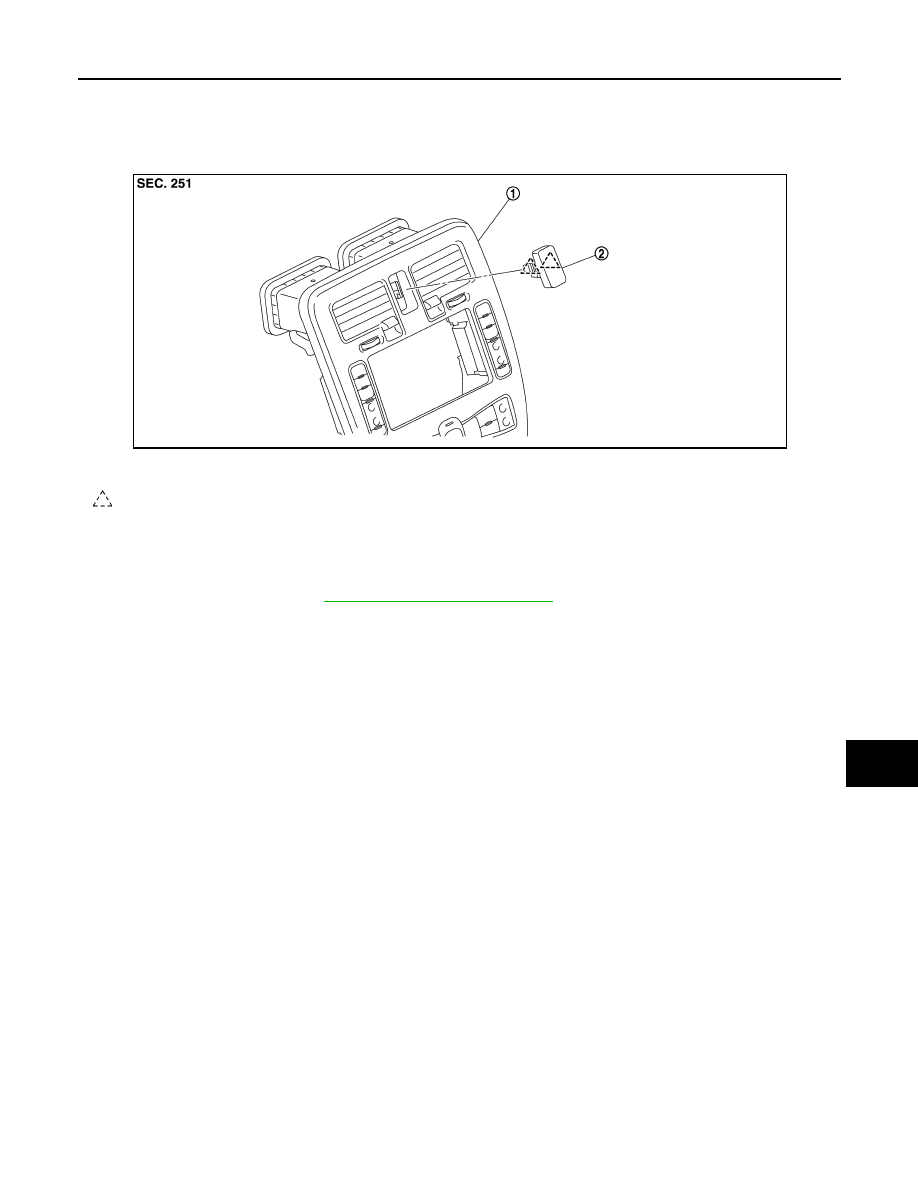

HAZARD SWITCH

Exploded View

INFOID:0000000010121501

Removal and Installation

INFOID:0000000010121502

REMOVAL

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

2. Disengage hazard switch fixing pawls, and then remove hazard switch.

INSTALLATION

Install in the reverse order of removal.

1.

Cluster lid C

2.

Hazard switch

: Pawl

JMLIA1658ZZ

EXL-274

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

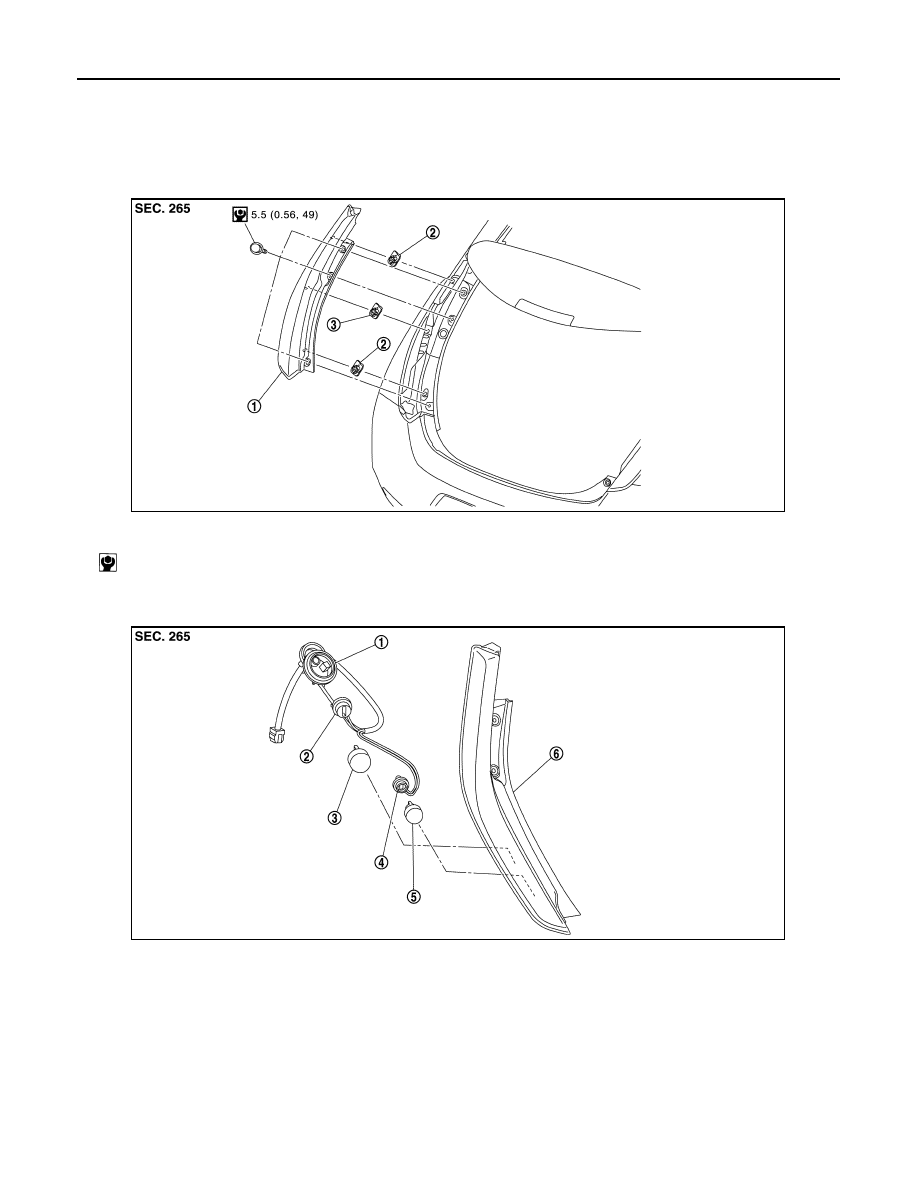

Exploded View

INFOID:0000000010121503

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000010121504

CAUTION:

• Fogging of rear combination lamp inside is not a malfunction. Never replace parts. Fogging is a

symptom in which inner surface of lens becomes whitely clouded, without there being visible water

drops or water spots, as if lens is made of frosted-glass.

1.

Rear combination lamp

2.

Grommet A

3.

Grommet B

: N·m (kg-m, in-lb)

JMLIA2083GB

1.

Rear combination lamp harness

2.

Rear turn signal bulb socket

3.

Rear turn signal bulb

4.

Buck-up lamp bulb socket

5.

Buck-up lamp bulb

6.

Rear combination lamp housing as-
sembly

JMLIA1778ZZ

REAR COMBINATION LAMP

EXL-275

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

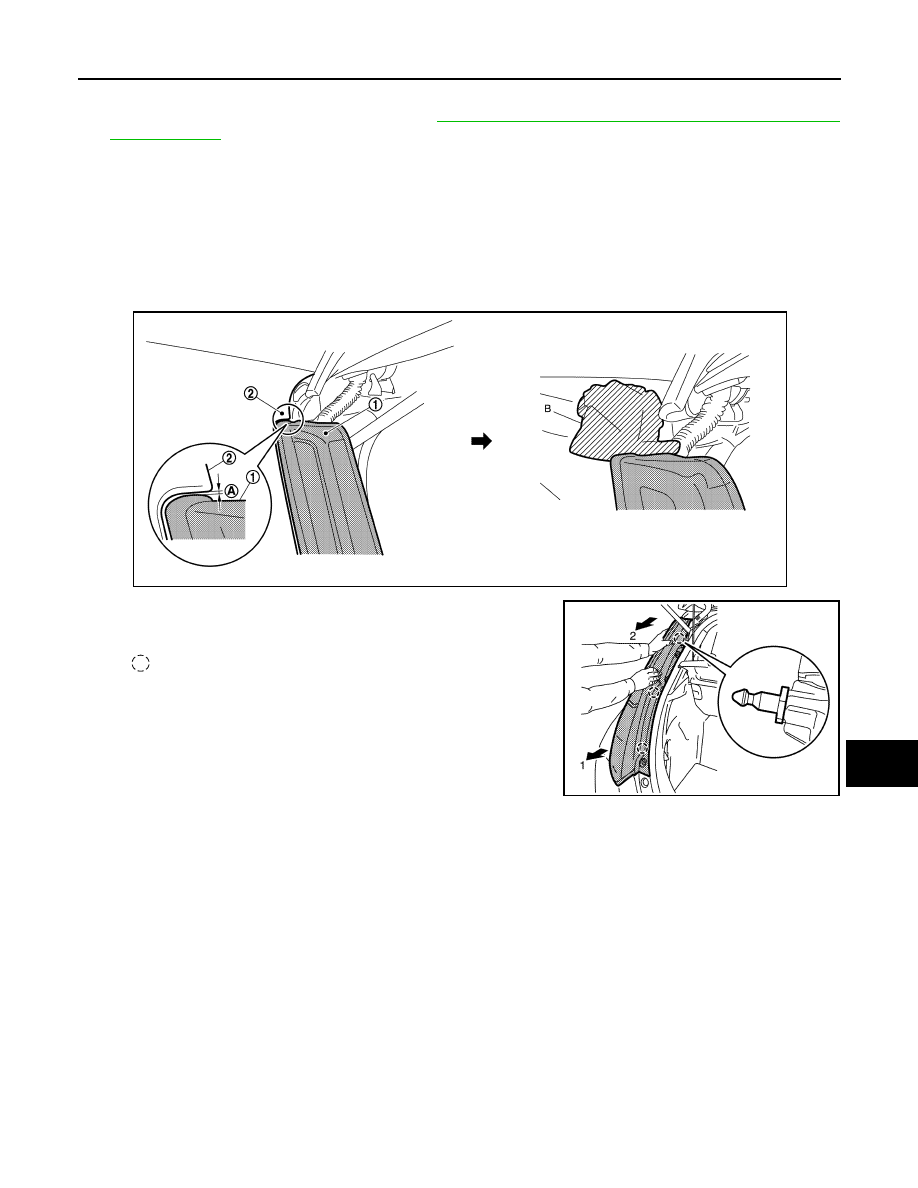

REMOVAL

1. Remove luggage side lower finisher. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal

and Installation"

.

2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting bolts.
4. Insert a shop cloth (B) into clearance (A) between rear combination lamp (1) and rear fender panel (2), or

apply protective tape.

CAUTION:

• To prevent rear fender panel paint surface from being damaged, always apply protection using a

shop cloth or protective tape.

• When using protective tape, apply protective tape to both rear fender panel and rear combination

lamp.

5. Pull rear combination lamp toward vehicle rear side, as shown

by the arrow in the figure.

6. Remove rear combination lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

JMLIA2386ZZ

: Clip

JMLIA2385ZZ

EXL-276

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

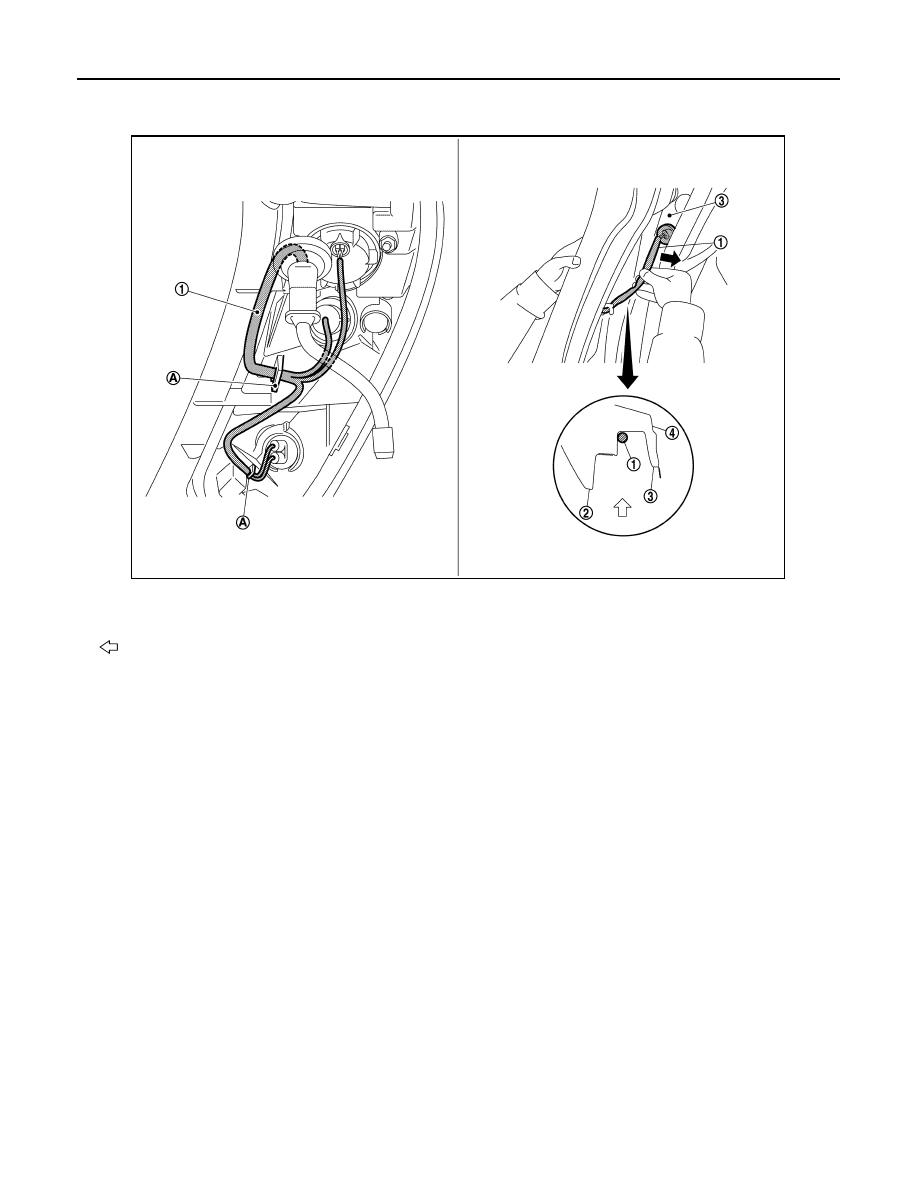

When installing rear combination lamp, fix harness using harness fixing hook (A) on backside of rear

combination lamp housing and place harness toward vehicle inside so that harness is not pinched by

rear fender panel.

Replacement

INFOID:0000000010121505

CAUTION:

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP BULB

LED is used for stop/tail lamp bulb. Always replace rear combination lamp assembly as a unit, when bulb is to

be replaced because of malfunction.

REAR TURN SIGNAL LAMP BULB

1. Remove rear combination lamp mounting bolts.
2. Insert a shop cloth (B) into clearance (A) between rear combination lamp (1) and rear fender panel (2), or

apply protective tape.

CAUTION:

• To prevent rear fender panel paint surface from being damaged, always apply protection using a

shop cloth or protective tape.

1.

Harness

2.

Rear fender panel

3.

Rear fender extension

4.

Rear inner panel

: Vehicle front

JMLIA2387ZZ
