FRONT COMBINATION LAMP

EXL-265

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

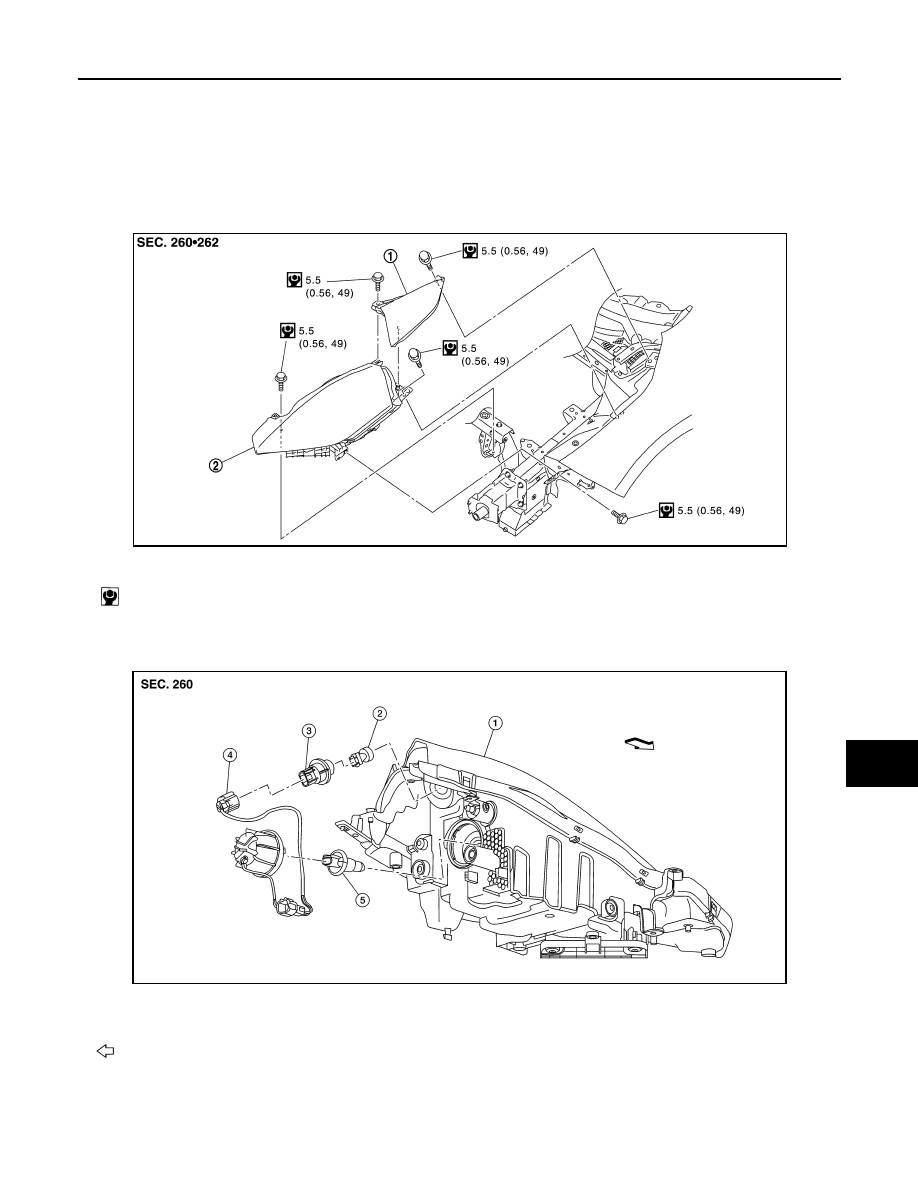

Exploded View

INFOID:0000000010121487

REMOVAL

DISASSEMBLY

Front combination lamp

Removal and Installation

INFOID:0000000010121488

CAUTION:

1.

Front side marker lamp

2.

Front combination lamp

: N·m (kg-m, in-lb)

JMLIA2081GB

ALLIA1271ZZ

1.

Housing assembly

2.

Front turn signal lamp bulb

3.

Front turn signal lamp bulb socket

4.

Harness

5.

Halogen bulb

: Vehicle front

EXL-266

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

FRONT COMBINATION LAMP

Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to

EXL-8,

"Precaution for Removing 12V Battery"

.

REMOVAL

1. Remove front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

2. Remove front side marker lamp mounting bolts.
3. Pull up front side marker lamp, disconnect the front side marker lamp harness connector and remove the

front side marker lamp.

4. Remove front combination lamp mounting bolts.
5. Pull out front combination lamp forward the vehicle, and then disconnect the connector before removing

front combination lamp.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

NOTE:

After installation, perform aiming adjustment. Refer to

EXL-261, "Description"

.

Bulb Replacement

INFOID:0000000010121489

CAUTION:

• Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to

EXL-

151, "Precaution for Removing 12V Battery"

.

• After installing the bulb, install the resin cap and the bulb socket securely for watertightness.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it to

prevent damage to the bulb.

• Never touch bulb by hand while it is lit or right after being turned off to prevent a burns.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

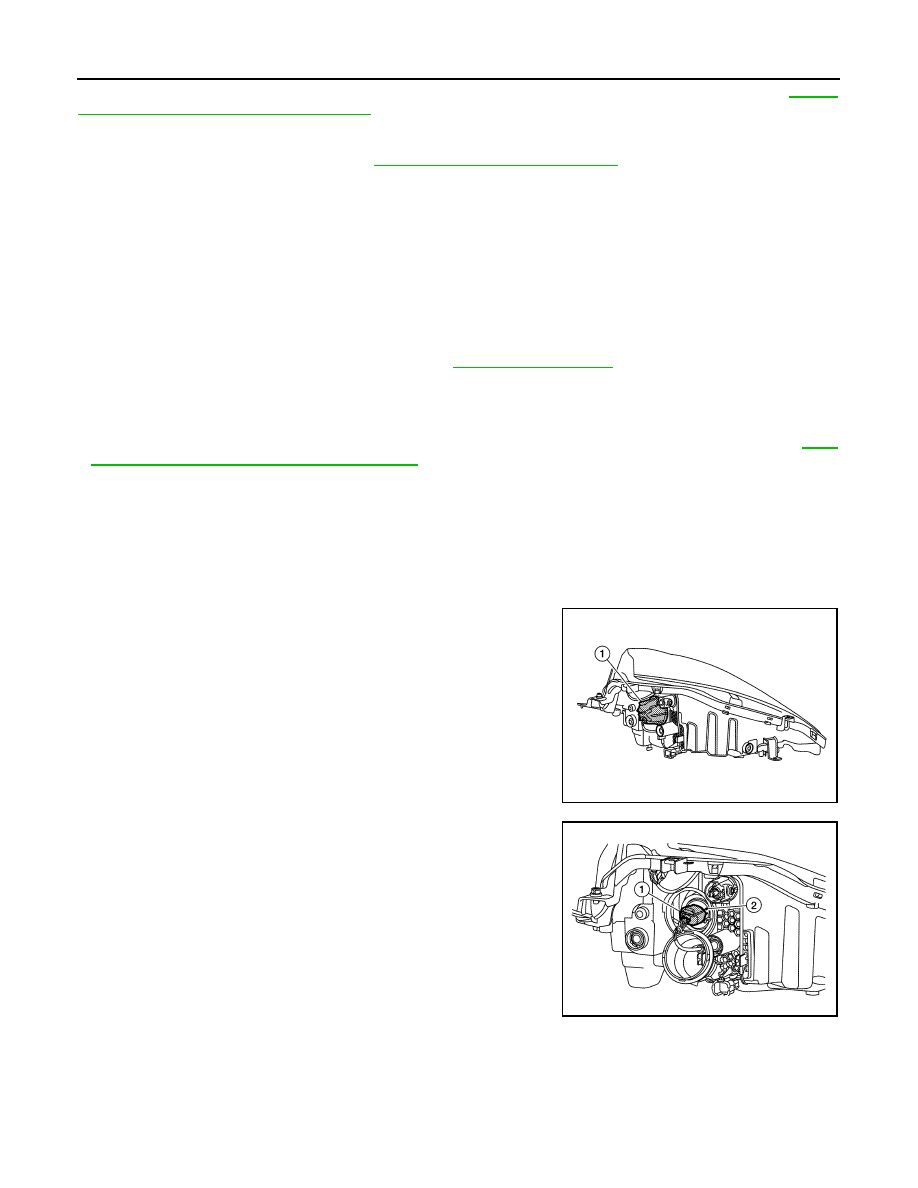

HEADLAMP BULB

1. Rotate resin cap (1) counterclockwise and unlock it.

2. Rotate headlamp bulb (2) counterclockwise and unlock it.
3. Disconnect headlamp bulb from the harness connector (1) and

remove.

FRONT TURN SIGNAL LAMP BULB

1. Rotate bulb socket counterclockwise and unlock it.
2. Remove bulb from the bulb socket.

ALLIA1272ZZ

ALLIA1273ZZ

FRONT COMBINATION LAMP

EXL-267

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Disassembly and Assembly

INFOID:0000000010121490

DISASSEMBLY

1. Rotate resin cap counterclockwise and unlock it.
2. Rotate headlamp bulb counterclockwise and unlock it.
3. Disconnect headlamp bulb harness connector.
4. Rotate front turn signal lamp bulb socket counterclockwise and unlock it.
5. Remove front turn signal lamp bulb from bulb socket.
6. Remove combination lamp harness connector.

ASSEMBLY

Assembly is in the reverse order of disassembly.

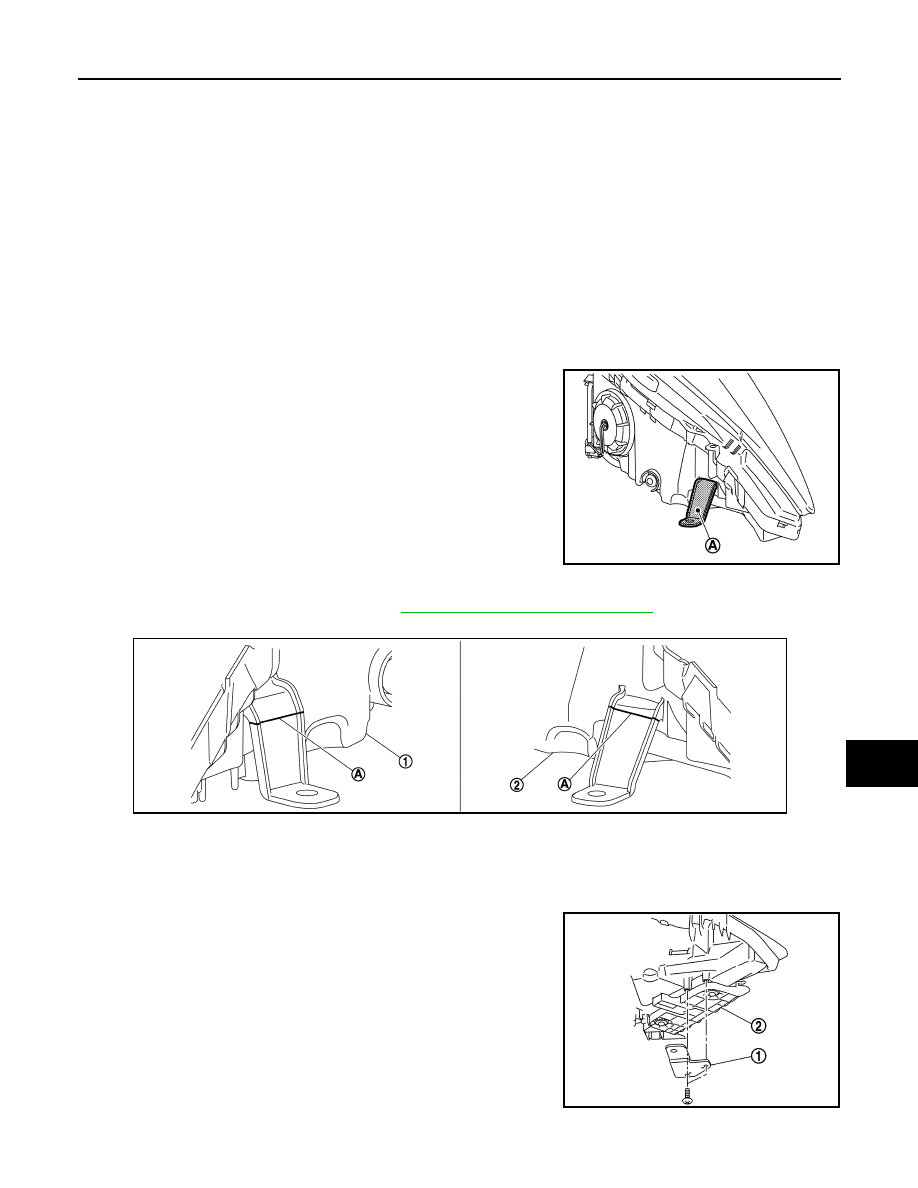

Installing service bracket

INFOID:0000000010121491

If only installation part (A) as shown in the figure is damaged, and

front combination lamp housing itself is not damaged, repair can be

completed easily by installing service brackets.

Removal

1. Remove front combination lamp. Refer to

EXL-265, "Removal and Installation"

.

2. Cut damaged section of installation part, then shape with sandpaper.

Installation

1. Install service bracket (1) to headlamp housing (2) with screws.

2. Install front combination lamp to the vehicle.

JMLIA1779ZZ

1.

Front combination lamp RH

2.

Front combination lamp LH

A.

Cut line (R end)

JMLIA1780ZZ

JMLIA1781ZZ

EXL-268

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

FRONT COMBINATION LAMP

NOTE:

After installation, perform aiming adjustment. Refer to

EXL-261, "Description"

.
