Nissan Leaf. Manual - part 636





HIGH-MOUNTED STOP LAMP

EXL-145

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

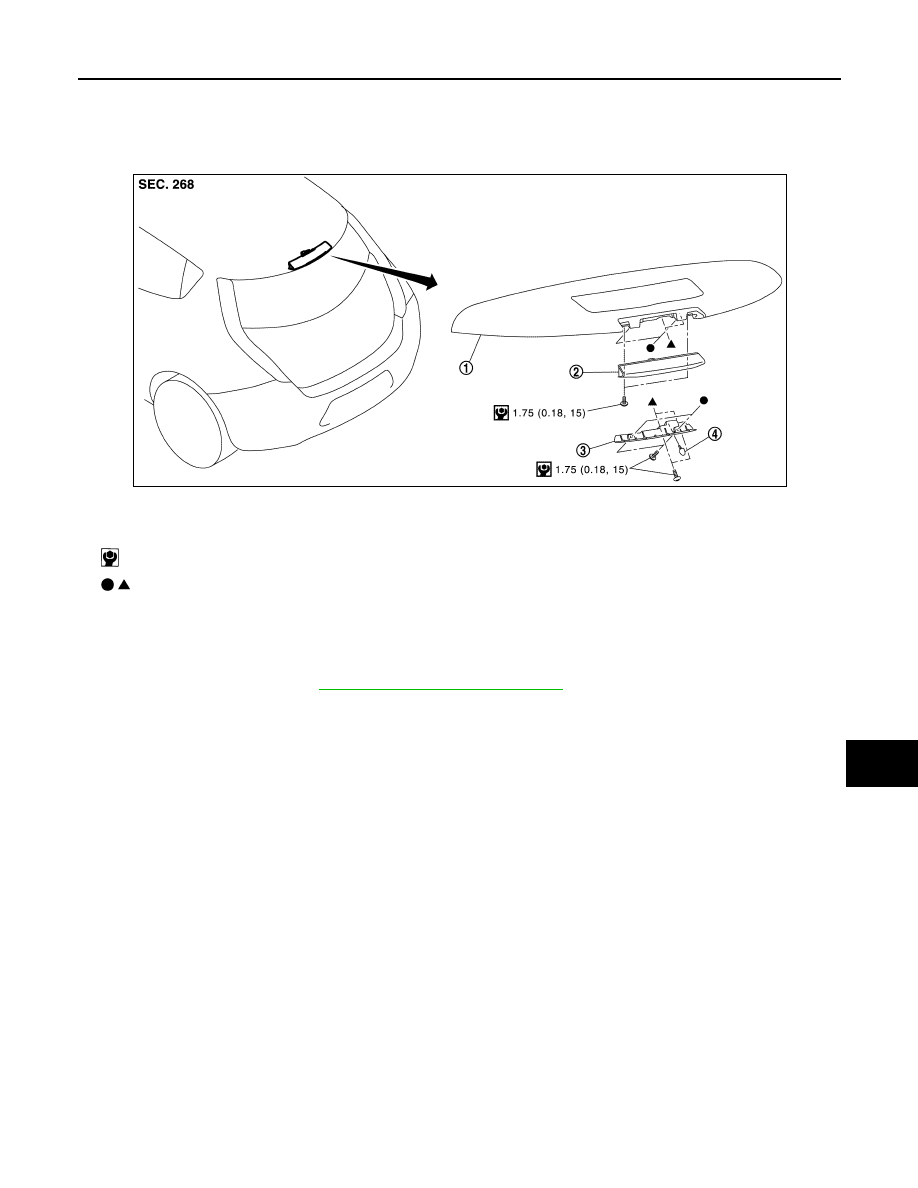

HIGH-MOUNTED STOP LAMP

Exploded View

INFOID:0000000010121405

Removal and Installation

INFOID:0000000010121406

REMOVAL

1. Remove rear spoiler. Refer to

EXT-36, "Removal and Installation"

.

2. Remove high-mounted stop lamp cover mounting screws, and then remove high-mounted stop lamp

cover.

3. Remove high-mounted stop lamp mounting screws.
4. Disconnect high-mounted stop lamp harness connector.
5. Remove high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

1.

Rear spoiler

2.

High-mounted stop lamp

3.

High-mounted stop lamp cover

4.

Rear washer nozzle

: N·m (kg-m, in-lb)

, : Indicates that the part is connected at points with same symbol in actual vehicle.

JMLIA2084GB

EXL-146

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

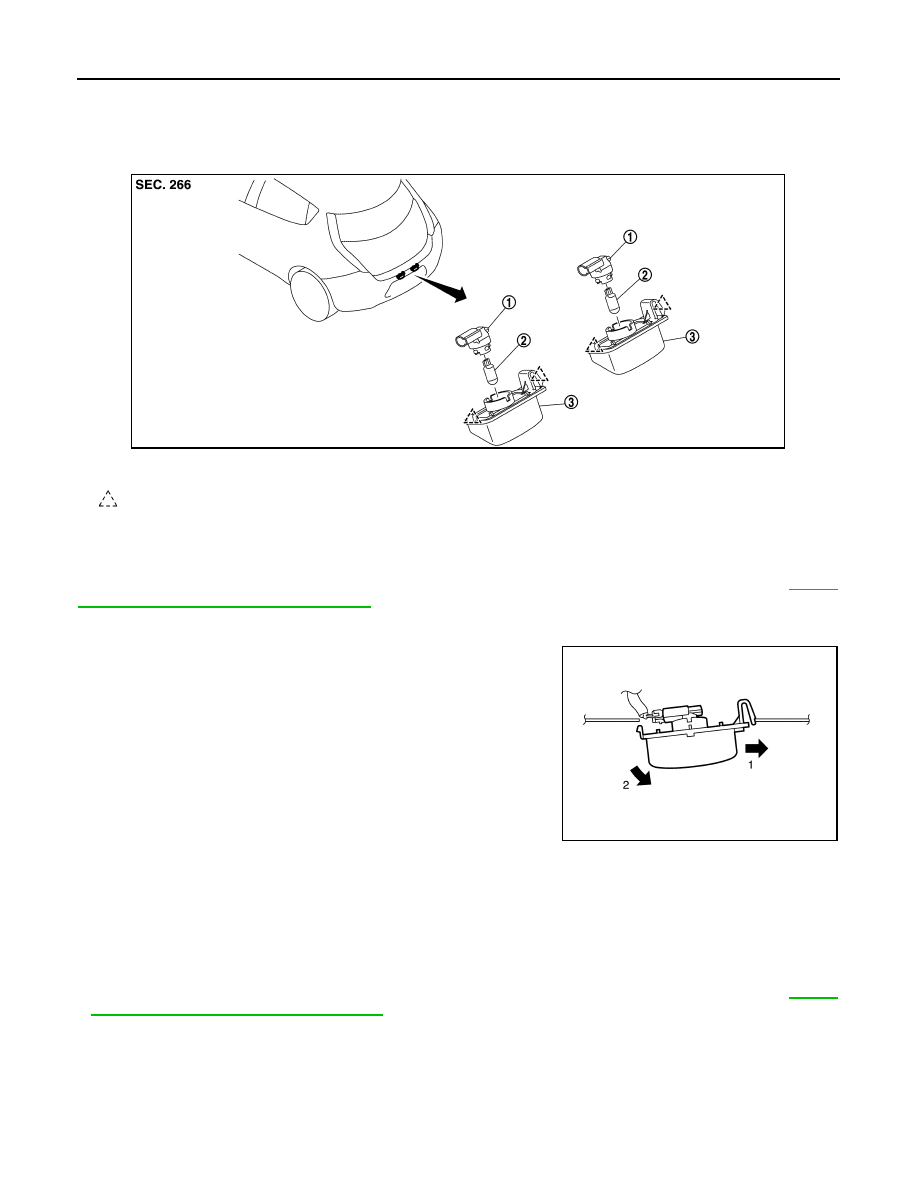

LICENSE PLATE LAMP

LICENSE PLATE LAMP

Exploded View

INFOID:0000000010121407

Removal and Installation

INFOID:0000000010121408

CAUTION:

Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to

EXL-8,

"Precaution for Removing 12V Battery"

.

REMOVAL

1. Remove license plate lamp in numerical order shown in the fig-

ure.

2. Disconnect license plate lamp connector, and then remove license plate lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010121409

CAUTION:

• Disconnect the 12V battery negative terminal or remove the fuse to electric leakage. Refer to

EXL-8,

"Precaution for Removing 12V Battery"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it to

prevent damage to the bulb.

• Never touch bulb by hand while it is lit or right after being turned off to prevent a burns.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

License plate lamp bulb socket

2.

License plate lamp bulb

3.

License plate lamp housing

: Pawl

JMLIA1663ZZ

JPLIA0056ZZ

LICENSE PLATE LAMP

EXL-147

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

1. Remove license plate lamp.
2. Turn the bulb socket counterclockwise and unlock it.
3. Remove the bulb from the socket.

EXL-148

< REMOVAL AND INSTALLATION >

[LED HEADLAMP]

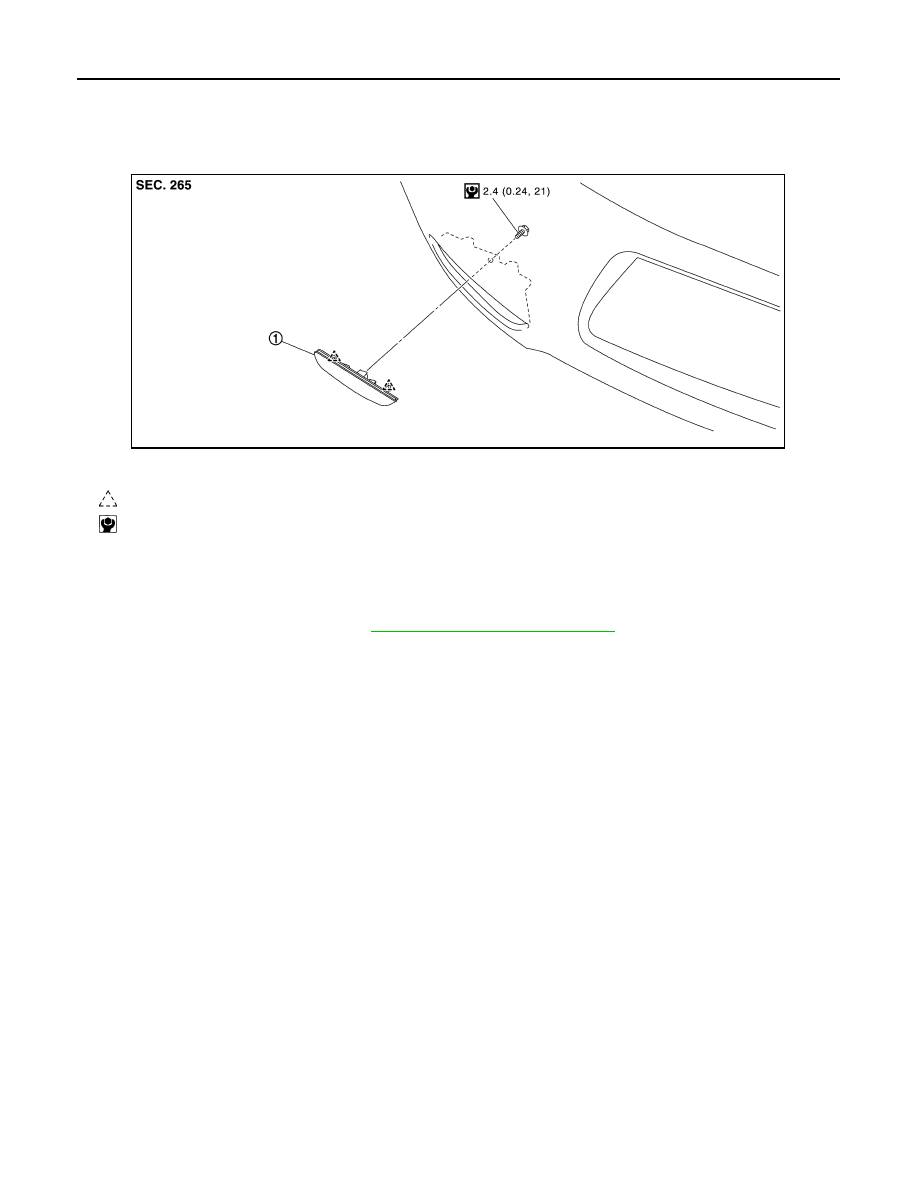

REAR REFLEX REFLECTOR

REAR REFLEX REFLECTOR

Exploded View

INFOID:0000000010121410

Removal and Installation

INFOID:0000000010121411

REMOVAL

1. Remove rear bumper fascia. Refer to

EXT-17, "Removal and Installation"

.

2. Remove rear reflex reflector fixing screws and disengage fixing pawls, and then remove rear reflex reflec-

tor.

INSTALLATION

Install in the reverse order of removal.

1.

Reflex refractor

: Pawl

: N·m (kg-m, in-lb)

JMLIA1664GB
