EVC-192

< DTC/CIRCUIT DIAGNOSIS >

P1554 BATTERY CURRENT SENSOR

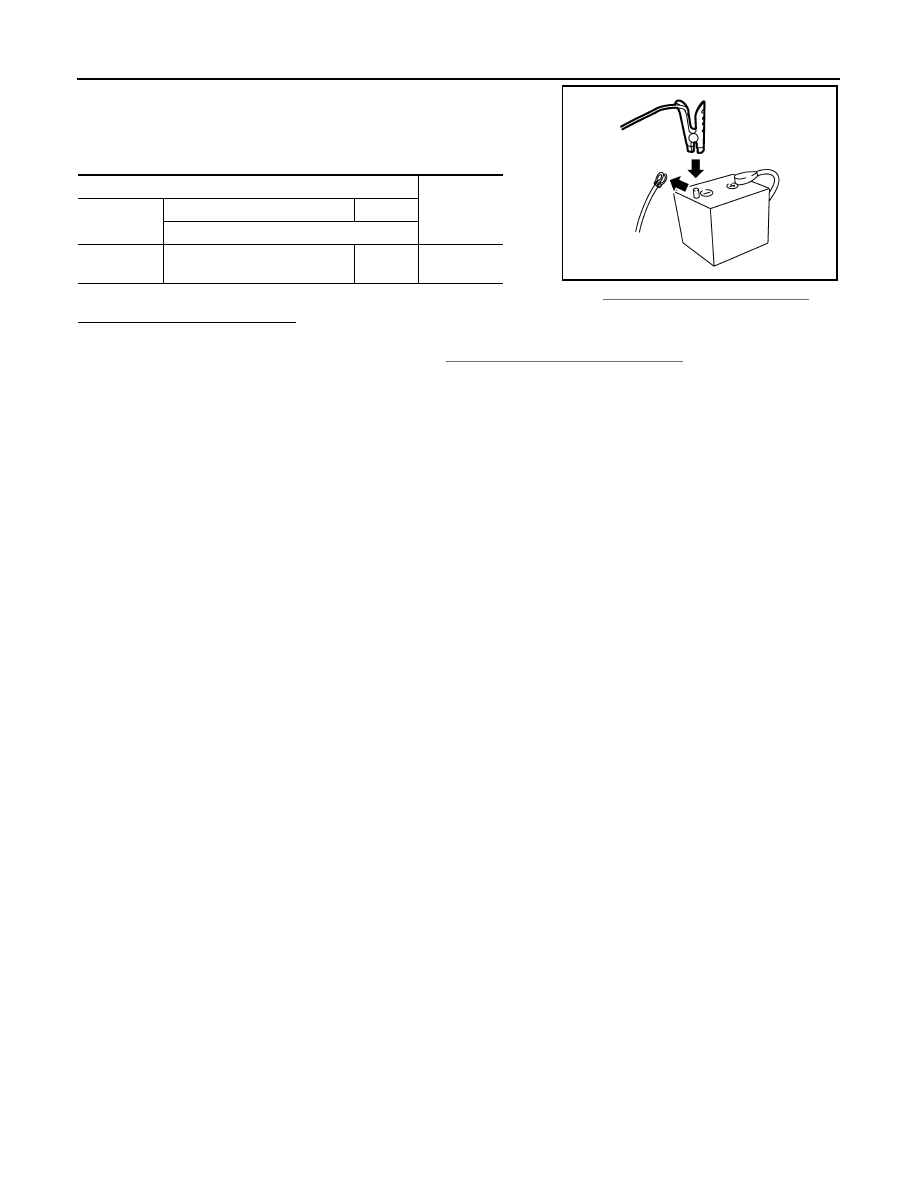

4. Install jumper cable between battery negative terminal and body

ground.

5. Turn power switch ON.

6. Check the voltage between VCM harness connector terminals.

Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-83, "How to Handle 12V Battery"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace battery current sensor. Refer to

PG-93, "Removal and Installation"

.

VCM

Voltage

(Approx.)

Connector

+

-

Terminal

E62

95

(Battery current sensor signal)

120

2.5 V

JPBIA3286ZZ

P1556, P1557 BATTERY TEMPERATURE SENSOR

EVC-193

< DTC/CIRCUIT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

P1556, P1557 BATTERY TEMPERATURE SENSOR

DTC Logic

INFOID:0000000010120643

DTC DETECTION LOGIC

NOTE:

If DTC P1556 or P1557 is displayed with DTC P31E5, first perform the trouble diagnosis for DTC P31E5.

Refer to

EVC-351, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

• Turn power switch OFF and wait at least 90 seconds.

CAUTION:

During this period, never perform vehicle handling such as opening and closing of doors. If some

kind of vehicle handling is performed, then wait another 90 seconds or more from the time of the

vehicle handling.

• Make sure that 12V battery voltage is 11 V or more.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Turn power switch ON at least 10 seconds.

2. Check self-diagnostic result.
Is DTC detected?

YES

>> Proceed to

EVC-193, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010120644

1.

CHECK BATTERY TEMPERATURE SENSOR POWER SUPPLY

1. Turn power switch OFF.

2. Disconnect battery current sensor harness connector.

3. Turn power switch ON.

4. Check the voltage between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK BATTERY TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1. Turn power switch OFF.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P1556

BATTERY TEMPERATURE
SENSOR
(Battery temperature sensor)

Signal voltage from Battery temperature
sensor remains 0.1 V or less for 5 sec-
onds or more.

• Harness or connectors

[Battery current sensor (Battery tem-
perature sensor) circuit is shorted.]

• Battery current sensor (Battery tem-

perature sensor)

P1557

BATTERY TEMPERATURE
SENSOR
(Battery temperature sensor)

Signal voltage from Battery temperature
sensor remains 4.84 V or more for 5 sec-
onds or more.

+

Voltage

(Approx.)

Battery current sensor

Connector

Terminal

E125

3

Ground

5 V

EVC-194

< DTC/CIRCUIT DIAGNOSIS >

P1556, P1557 BATTERY TEMPERATURE SENSOR

2. Disconnect VCM harness connector.

3. Check the continuity between battery current sensor harness connector and VCM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit. Refer to

EVC-138, "VCM : Diagnosis Pro-

cedure"

.

NO

>> Repair or replace error-detected parts.

3.

CHECK BATTERY TEMPERATURE SENSOR GROUND CIRCUIT

1. Turn power switch OFF.

2. Disconnect VCM harness connector.

3. Check the continuity between battery current sensor harness connector and VCM harness connector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK BATTERY TEMPERATURE SENSOR

Check the battery temperature sensor. Refer to

EVC-194, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-53, "Intermittent Incident"

.

NO

>> Replace battery current sensor. Refer to

PG-93, "Removal and Installation"

.

Component Inspection

INFOID:0000000010120645

1.

CHECK BATTERY TEMPERATURE SENSOR

1. Turn power switch OFF.

2. Disconnect battery current sensor harness connector.

3. Check the resistance between battery current sensor connector terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace battery current sensor (with battery temperature sensor). Refer to

PG-93, "Removal and

Installation"

.

+

Continuity

Battery current sensor

VCM

Connector

Terminal

Connector

Terminal

E125

3

E62

107

Existed

+

Continuity

Battery current sensor

VCM

Connector

Terminal

Connector

Terminal

E125

2

E62

120

Existed

Battery current sensor

Condition

Resistance

+

Terminal

3

2

Temperature: 25

°C (77°F)

1.9 – 2.1 k

P155A BATTERY TEMPERATURE SENSOR

EVC-195

< DTC/CIRCUIT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

P155A BATTERY TEMPERATURE SENSOR

DTC Logic

INFOID:0000000010120646

DTC DETECTION LOGIC

NOTE:

If DTC P155A is displayed with DTC P31E5, first perform the trouble diagnosis for DTC P31E5. Refer to

EVC-351, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

• Turn power switch OFF and wait at least 90 seconds.

CAUTION:

During this period, never perform vehicle handling such as opening and closing of doors. If some

kind of vehicle handling is performed, then wait another 90 seconds or more from the time of the

vehicle handling.

• Make sure that 12V battery voltage is 11 V or more.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Drive the vehicle under the following conditions.

2. Check self-diagnostic result.
Is DTC detected?

YES

>> Proceed to

EVC-195, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010120647

1.

CHECK BATTERY TEMPERATURE SENSOR POWER SUPPLY

1. Turn power switch OFF.

2. Disconnect battery current sensor harness connector.

3. Turn power switch ON.

4. Check the voltage between battery current sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P155A

BATTERY TEMPERATURE
SENSOR
(Battery temperature sensor)

A ambient temperature of 12V battery re-
mains 50

°C (122°F) or more for 10 sec-

onds or more.

• Harness or connectors

[Battery current sensor (Battery tem-
perature sensor) circuit is shorted.]

• Battery current sensor (Battery tem-

perature sensor)

Coolant temperature

Less than 20

°C (68°F)

Vehicle speed

20 km/h (13 MPH) or more

+

Voltage

(Approx.)

Battery current sensor

Connector

Terminal

E125

3

Ground

5 V
