Nissan Leaf. Manual - part 511





EVC-68

< SYSTEM DESCRIPTION >

SYSTEM

Display condition

Timer setting status is displayed for ten seconds when the power switch is turned OFF and the indication
switches every time when the  switch is pressed. The indication can be shown for approximately 10 seconds

by operating the switch.

Display cancel condition

When any of the following conditions is satisfied.

• power switch ON

• A lapse of 10 seconds or more with no switch operation.

CAN COMMUNICATION
CAN COMMUNICATION : System Description

INFOID:0000000010120575

DESCRIPTION

• CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle

multiplex communication line with high data communication speed and excellent error detection ability. Many

electronic control units are equipped onto a vehicle, and each control unit shares information and links with

other control units during operation (not independent). In CAN communication, control units are connected

with 2 communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with

less wiring. Each control unit transmits/receives data but selectively reads required data only.

• VCM includes a gateway function and communicates signals between the CAN communication circuit and

EV system CAN circuit.

For CAN communication details, Refer to

LAN-31, "CAN COMMUNICATION SYSTEM : System Description"

.

Charging time

Displays the estimated time to charge the battery to the customer selected charge
level.

Climate Ctrl. Timer setting confirma-
tion

The set time for ending hours and days (where fitted) of the Climate Ctrl. Timer is
displayed.

No.

Name

Function

OPERATION

EVC-69

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

OPERATION

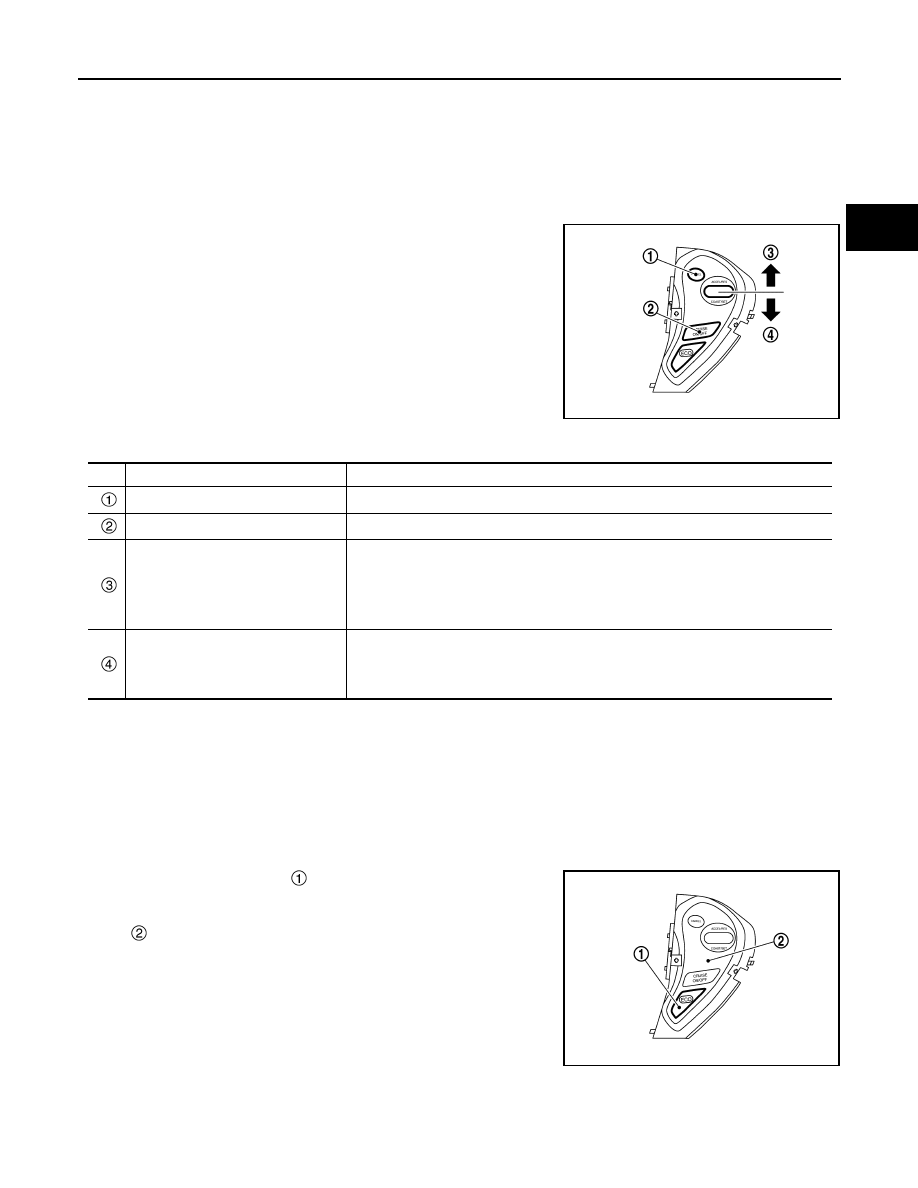

AUTOMATIC SPEED CONTROL DEVICE (ASCD)
AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Switch Name and Function

INFOID:0000000010120576

Function

Functions of each switch are listed in the following table.

Switch Function

*: To reset vehicle speed, the vehicle condition must be as follows:

• Brake pedal is released

• Selector lever is in a position other than P, R, and N.

• Vehicle speed is greater than 40 km/h (25 MPH) and 144 km/h (89 MPH)

ECO MODE SWITCH
ECO MODE SWITCH : Switch Name and Function

INFOID:0000000010120577

Function

When the ECO mode switch   is operated with the power switch

ON, the mode switches between ON and OFF.

JSCIA0504ZZ

No.

Name

Function

CANCEL switch

When the switch is pressed, the ASCD control is cancelled.

ASCD MAIN switch

Turns the ASCD ON/OFF.

RESUME/ACCEL switch

• When the switch is pressed after the cruise control is cancelled in any method other

than main switch operation, the vehicle speed is reset to the previous speed setting
before the cancellation

*

• When the switch is pressed during cruise control, the setting speed is increased

and the vehicle speed increases.

SET/COAST switch

• When the switch is pressed at the preferred vehicle speed, the cruise control starts

to operate.

• When the switch is pressed during cruise control, the set speed is reduced and the

vehicle speed reduces.

: ASCD steering switch

JSCIA0503ZZ

EVC-70

< SYSTEM DESCRIPTION >

ON BOARD DIAGNOSTIC (OBD) SYSTEM

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Diagnosis Description

INFOID:0000000010120578

This system is an on-board diagnostic system that detects a malfunction automatically. A malfunction is stored

in ECU memory as a DTC. The diagnostic information can be obtained with CONSULT.

Counter System

INFOID:0000000010120579

In this system, “Power switch is turned OFF

⇒ON” is defined as 1 trip. VCM detects malfunctions while saving

the DTC and freeze frame data and continues saving this data for a maximum of 40 trips. In addition, if a DTC

that is the same as the saved DTC is detected again, the counter is reset and the count up starts from “0”

again.

DTC and Freeze Frame Data

INFOID:0000000010120580

VCM can store multiple DTCs and up to five Freeze Frame data.

After the detection of a malfunction and storing of DTC and Freeze Frame data by VCM, if a different malfunc-

tion is detected, multiple DTCs can be identified. In contrast, only up to five FFDs are stored according to the

preset priority. For priority, refer to

EVC-100, "DTC Inspection Priority Chart"

.

The DTC and freeze frame data are deleted when the self-diagnostic is deleted.

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EVC-71

< SYSTEM DESCRIPTION >

D

E

F

G

H

I

J

K

L

M

A

B

EVC

N

O

P

FREEZE FRAME DATA MEMORY IMAGE

JSCIA0585GB
