LI-ION BATTERY

EVB-187

< UNIT REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

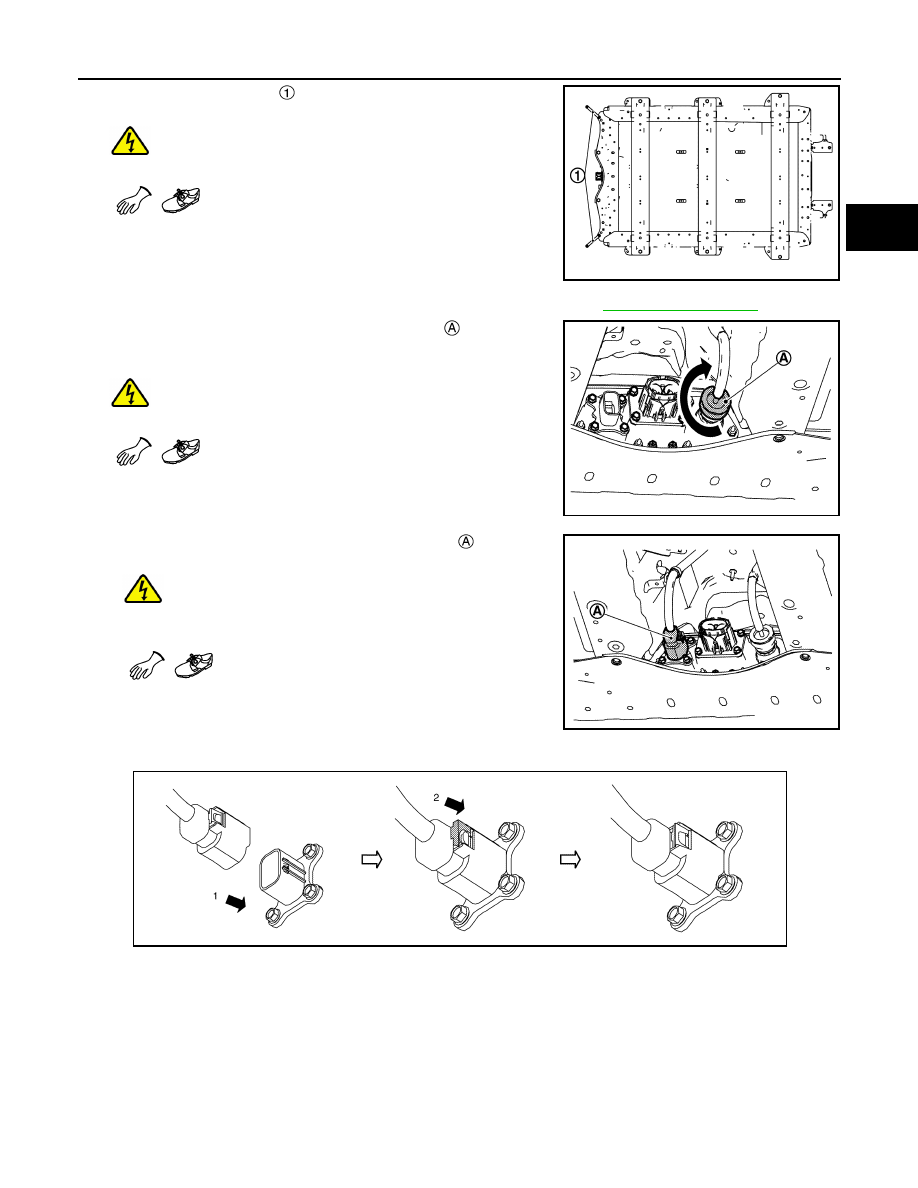

7. Install the bonding plate  .

WARNING:

To prevent electric shock, wear insulated protective

gear.

8. After installing the bonding plate, perform an electric equipotential test.

EVB-188, "Inspection"

.

9. Rotate the vehicle communications connector   clockwise to

connect it.

WARNING:

To prevent electric shock, wear insulated protective

gear.

10. Install the Li-ion battery heater harness connector  .

DANGER:

•

 There is the danger of electric shock caused by

contact with the terminals. Be sure to wear insulated pro-

tective gear.

• Follow the procedure below to connect the heater harness connector.

JSCIA0559ZZ

JSCIA0562ZZ

JSCIA0556ZZ

JSCIA0563ZZ

EVB-188

< UNIT REMOVAL AND INSTALLATION >

LI-ION BATTERY

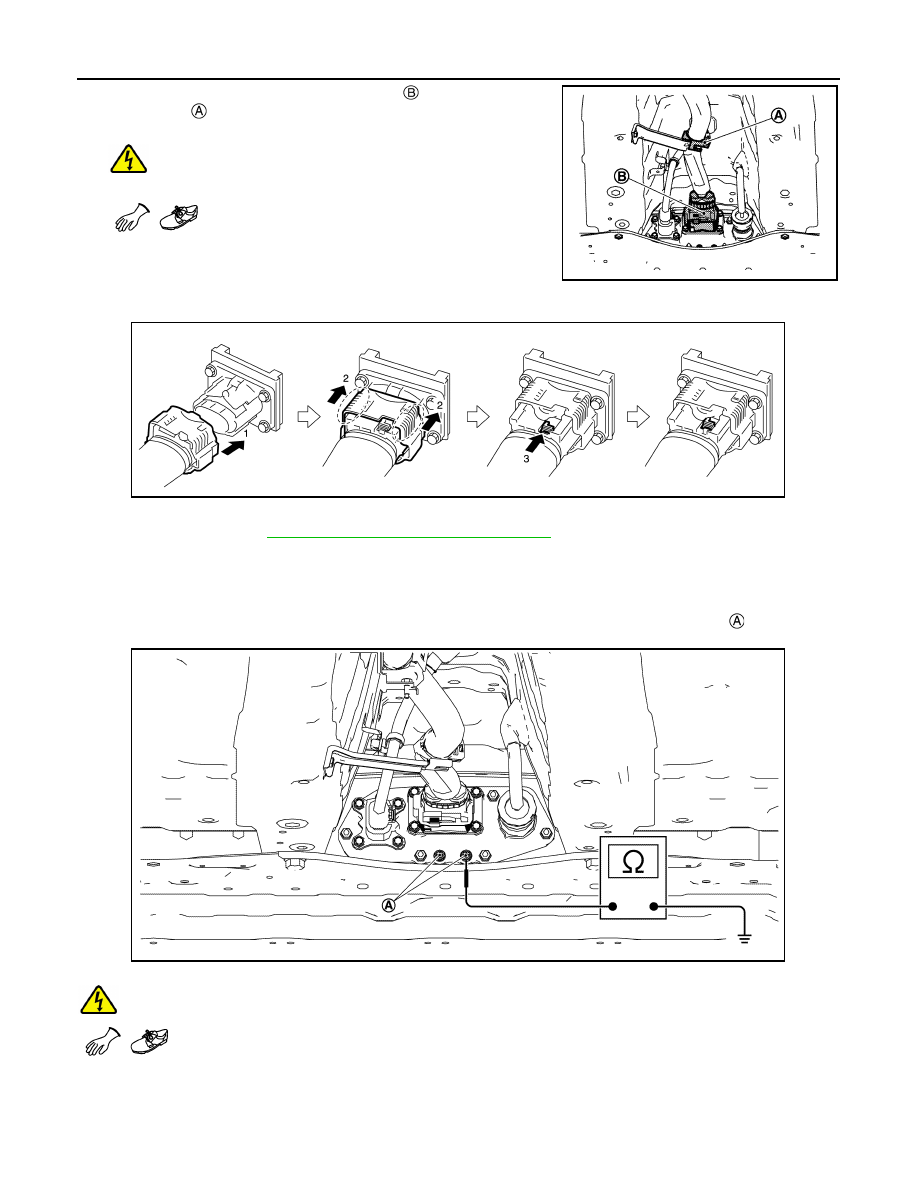

11. Install the high-voltage harness connector   and install the har-

ness clamp  .

WARNING:

To prevent electric shock, wear insulated protective

gear.

• Connect the high-voltage harness connector by the following procedure.

12. Install the Li-ion battery undercover.
13. Install the service plug

GI-33, "How to Disconnect High Voltage"

.

Inspection

INFOID:0000000010121173

ELECTRIC EQUIPOTENTIAL TEST

After installing the Li-ion battery, measure the resistance between the battery pack ground bolt   and the body

ground.

WARNING:

To prevent electric shock, wear insulated protective gear.

If the result deviates from the standard value, check the following and correct the malfunction location.

JSCIA0555ZZ

JPCIA0036ZZ

Standard

: Less than 0.1

Ω

JSCIA0707ZZ

LI-ION BATTERY

EVB-189

< UNIT REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

• Conditions of bonding plate connection

• Corrosion on bonding plate mounting surface

• Presence of paint, oil, dirt, or other substance on the bonding plate mounting surface

EVB-190

< UNIT DISASSEMBLY AND ASSEMBLY >

LI-ION BATTERY

UNIT DISASSEMBLY AND ASSEMBLY

LI-ION BATTERY

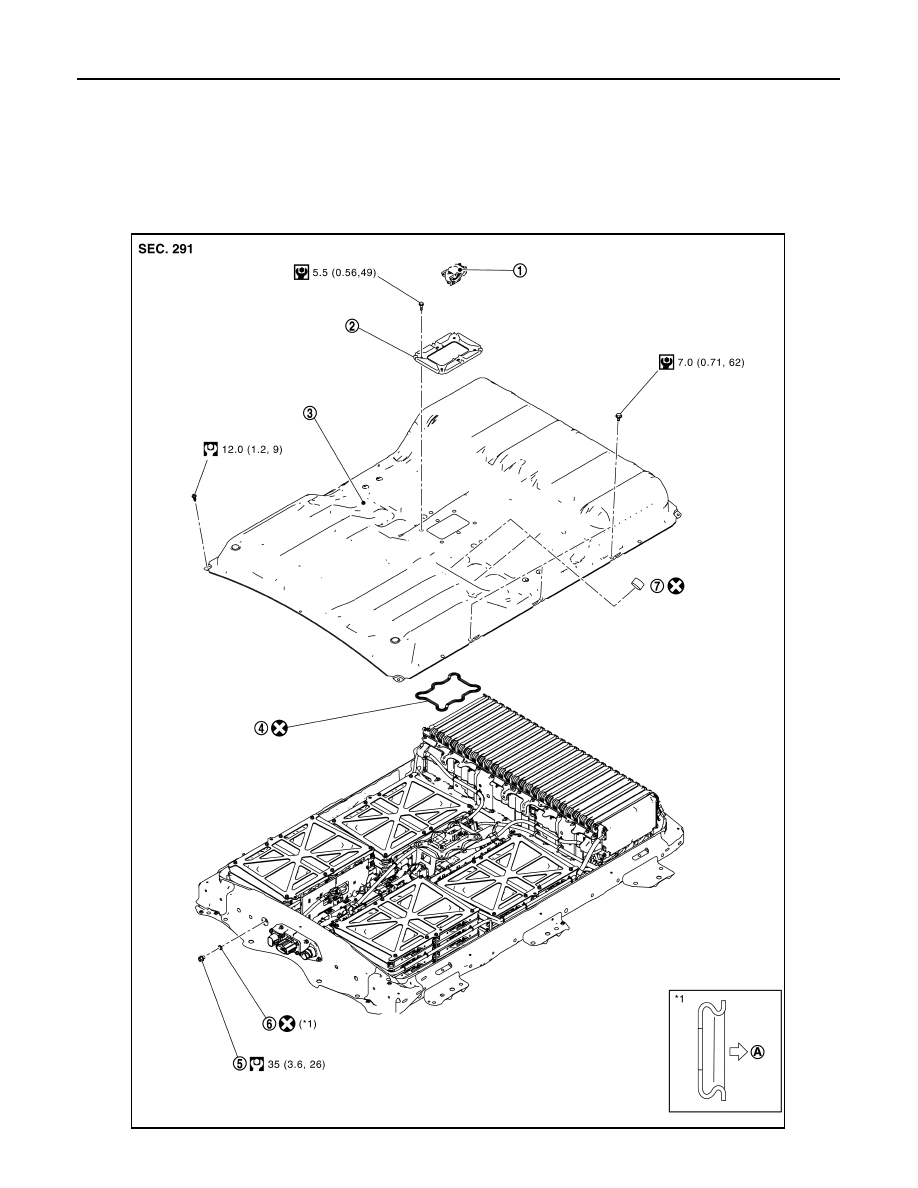

BATTERY PACK UPPER CASE
BATTERY PACK UPPER CASE : Exploded View

INFOID:0000000010121174

JSCIA0565GB
