LI-ION BATTERY

EVB-183

< UNIT REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

•

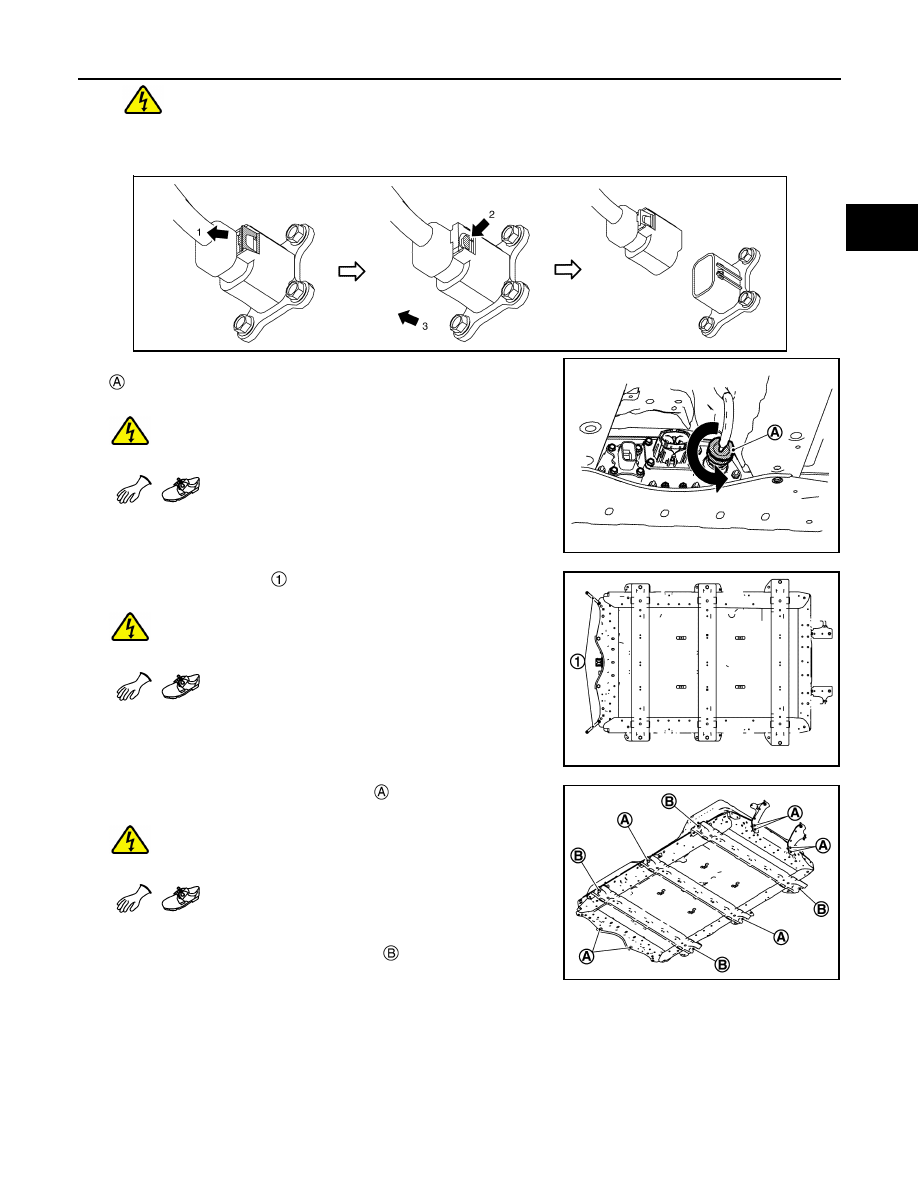

Because there is the danger of electric shock, immediately insulate disconnected high volt-

age connectors and terminals with insulating tape.

• Follow the procedure below to disconnect the PTC heater harness connector.

4. Disconnect the Li-ion battery vehicle communications connector

 while rotating it in the counterclockwise direction.

WARNING:

To prevent electric shock, wear insulated protective

gear.

5. Remove bonding plate  .

WARNING:

To prevent electric shock, wear insulated protective

gear.

6. Remove Li-ion battery mounting bolts  .

WARNING:

To prevent electric shock, wear insulated protective

gear.

CAUTION:

Do not remove the 4 bolts shown by   in the figure.

7. Set the pallet [SST: — (J-50583)] onto the lift table.

JSCIA0557ZZ

JSCIA0558ZZ

JSCIA0559ZZ

JSCIA0560ZZ

EVB-184

< UNIT REMOVAL AND INSTALLATION >

LI-ION BATTERY

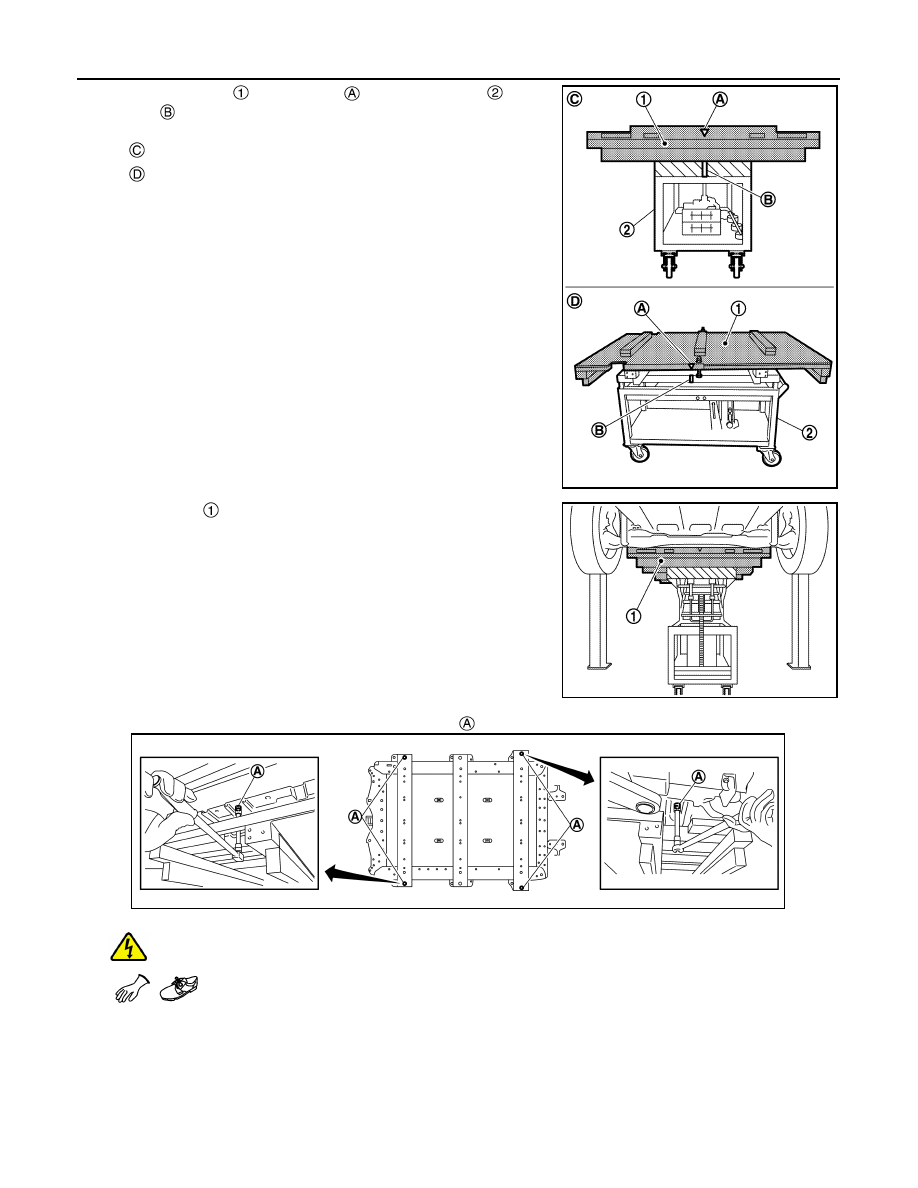

• Align the pallet   center mark   and the lift table   center

mark .

8. Set the pallet   onto the Li-ion battery.

CAUTION:

For preventing the battery from falling, fasten the pallet and

battery with transport fastening bolts.

9. Remove the Li-ion battery mounting bolts (4 bolts)  .

WARNING:

To prevent electric shock, wear insulated protective gear.

Front

Side

JSCIA0178ZZ

JSCIA0179ZZ

JSCIA0561ZZ

LI-ION BATTERY

EVB-185

< UNIT REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

EVB

N

O

P

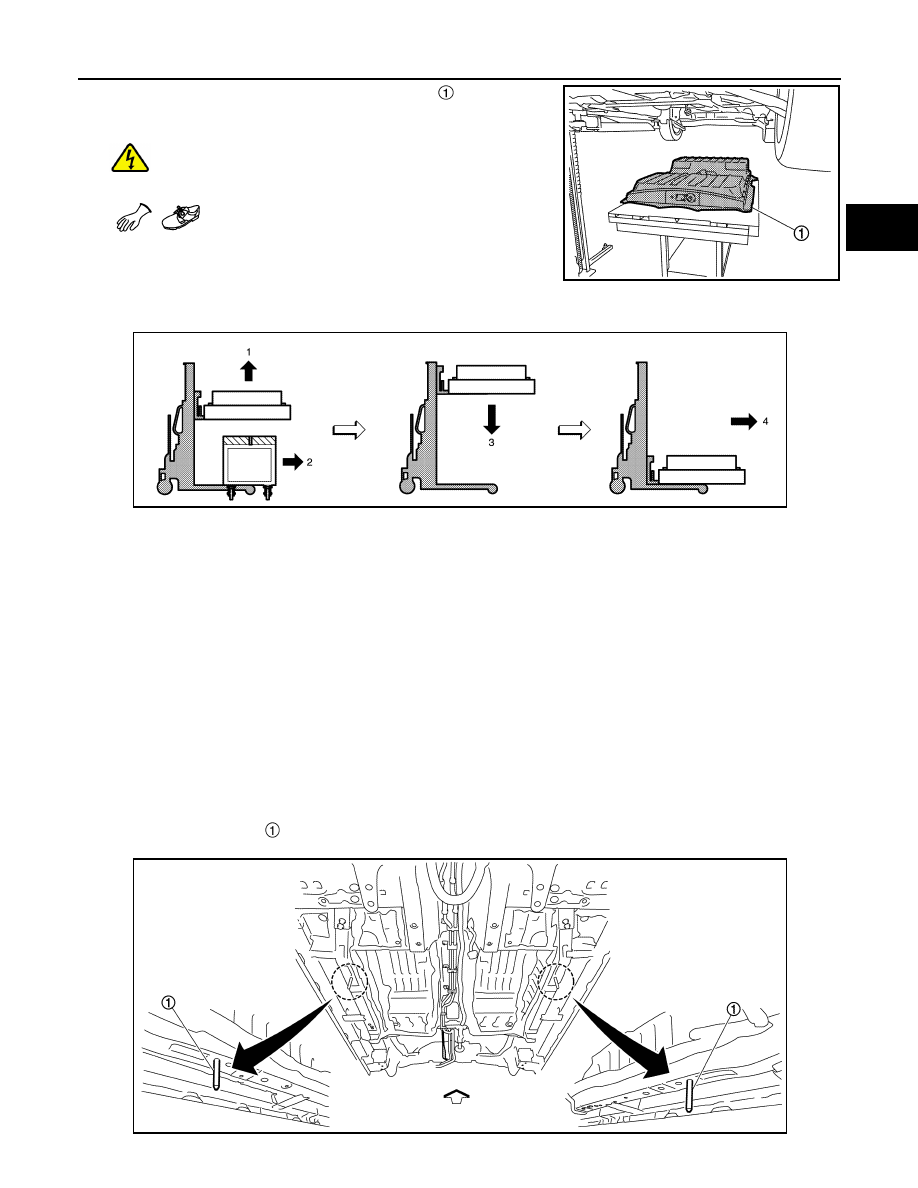

10. Lower the pallet, and remove the Li-ion battery   from the vehi-

cle.

WARNING:

To prevent electric shock, wear insulated protective

gear.

11. Lower the Li-ion battery from the lift table together with the pallet.

CAUTION:

Because there is the danger of tipping over, do not move the stacker while the Li-ion battery is

lifted up.

INSTALLATION

1. When replacing the Li-ion battery with a new battery, perform the work listed below.
a. Enter the date of the (replacement) work on the EV battery tracking identification seal that is packaged

together with the new part.

b. Cut the EV battery tracking identification seal into 2 pieces and apply them to the body of the replaced

(old) Li-ion battery and to the “Li-ion battery replacement history record”.

c. Enter the necessary information in the “Li-ion battery replacement history record”.
2. Install the locating pin   [SST: KV99111300 (J-50306)] in the position on the body as shown in the figure.

JSCIA0181ZZ

1.

Lift up the Li-ion battery.

2.

Move the lift table.

3.

Lower the Li-ion battery.

4.

Operate the stacker and move the Li-ion battery.

JPCIA0196ZZ

JSCIA0182ZZ

EVB-186

< UNIT REMOVAL AND INSTALLATION >

LI-ION BATTERY

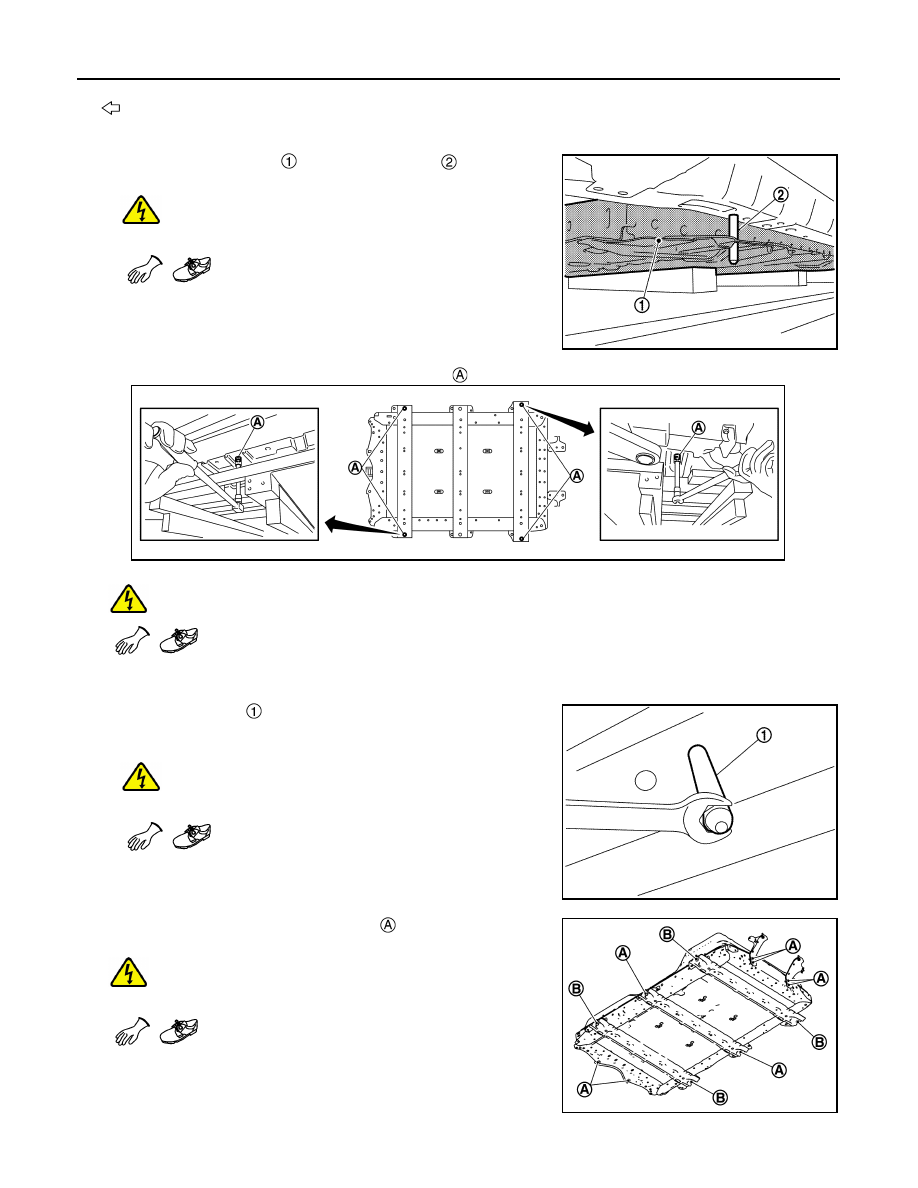

3. Install the Li-ion battery onto the vehicle body.

• Align the Li-ion battery   and the locating pin  .

WARNING:

To prevent electric shock, wear insulated protective

gear.

4. Tighten the Li-ion battery mounting bolts (4 bolts)  , then remove the pallet.

WARNING:

To prevent electric shock, wear insulated protective gear.

5. Remove the locating pin from the body.

• If the locating pin   is stuck and cannot be removed, remove

it using a wrench.

WARNING:

To prevent electric shock, wear insulated protective

gear.

6. Install the Li-ion battery mounting bolts  .

WARNING:

To prevent electric shock, wear insulated protective

gear.

: Vehicle front

JSCIA0183ZZ

JSCIA0561ZZ

JSCIA0185ZZ

JSCIA0560ZZ
