SYSTEM (BACK DOOR OPENER SYSTEM)

DLK-35

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (BACK DOOR OPENER SYSTEM)

System Description

INFOID:0000000010119730

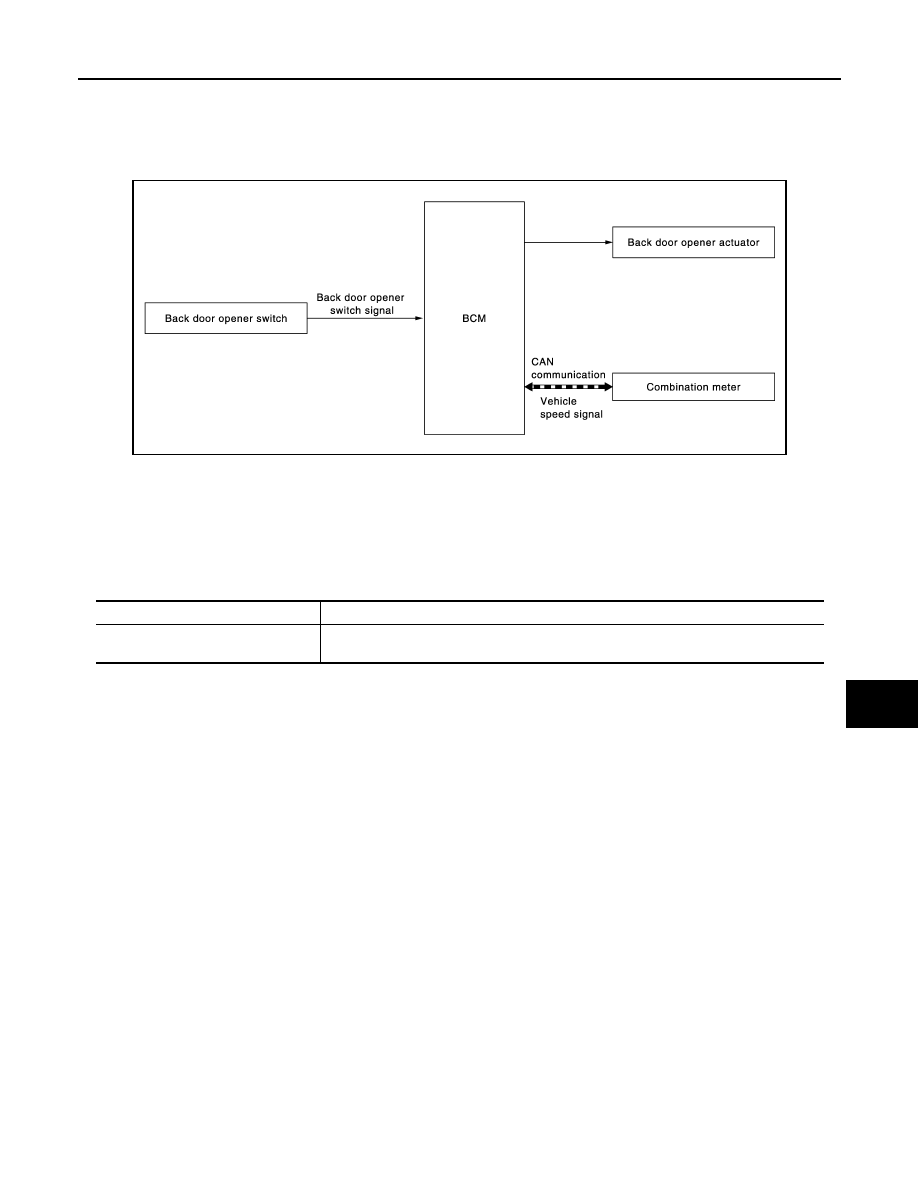

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.

NOTE:

Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed:

NOTE:

• When 12V battery terminal is disconnected and reconnected during all doors unlock state, back door may

not open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after 12V battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When 12V battery terminal is reconnected and back door does not open, have BCM recognize that all doors

are in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• When back door opener switch is pressed while all doors are in unlock status.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-36

< SYSTEM DESCRIPTION >

SYSTEM (HOMELINK UNIVERSAL TRANSCEIVER)

SYSTEM (HOMELINK UNIVERSAL TRANSCEIVER)

System Description

INFOID:0000000010119731

Item

Function

HomeLink® Universal Transceiver

A maximum of 3 radio signals can be stored and transmitted to operate the garage door, etc.

SYSTEM (CHARGE PORT LID OPEN CONTROL)

DLK-37

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (CHARGE PORT LID OPEN CONTROL)

System Description

INFOID:0000000010119732

OPERATION DESCRIPTION

Charge port lid open can be performed by pressing the charge port lid opener button or charge port lid opener

switch. Refer to

EVC-61, "CHARGE PORT CONTROL : System Description"

.

DLK-38

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010500887

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

DOOR LOCK

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Air conditioner

AIR CONDITIONER

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×
