WARNING/INDICATOR/CHIME LIST

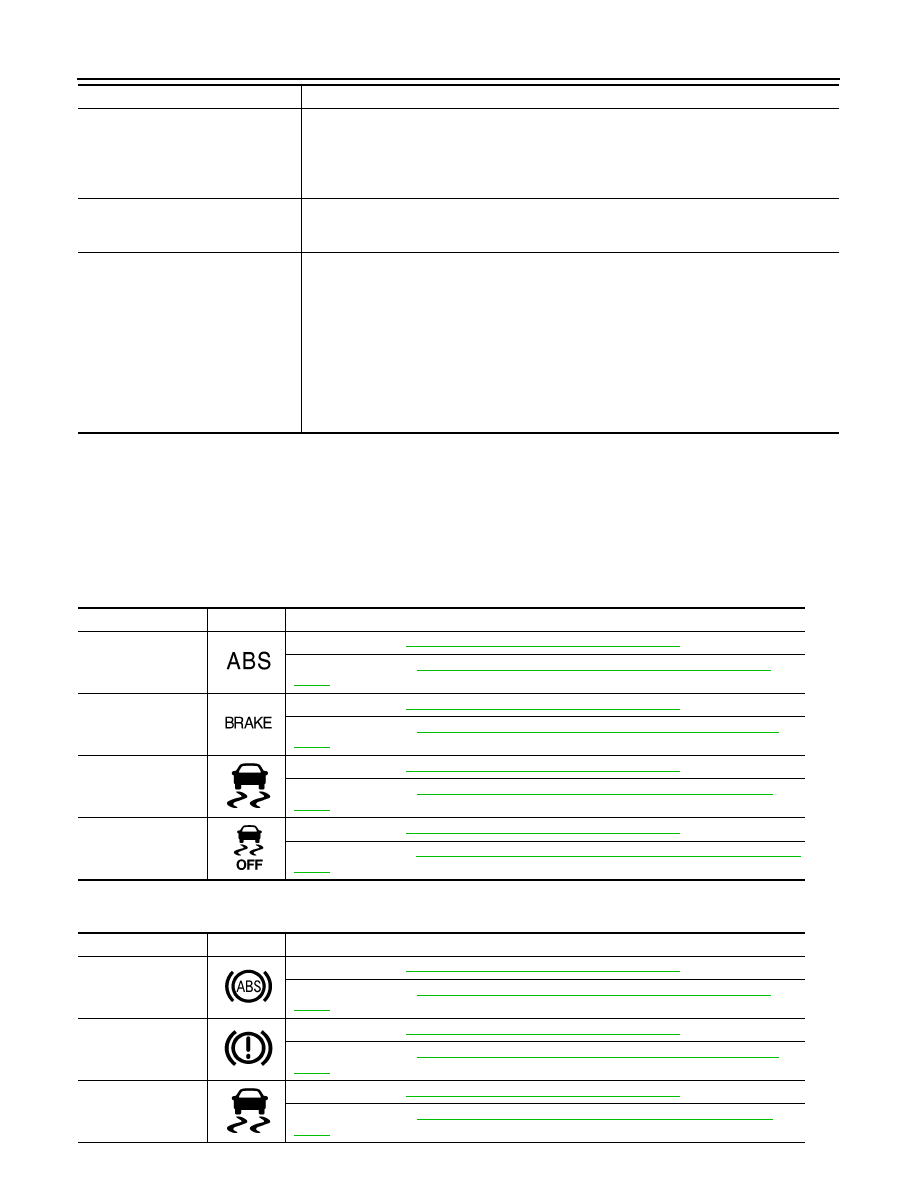

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010120038

FOR U.S.A.

FOR CANADA AND MEXICO

Electrically-driven intelligent brake

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication line

*2

:

• Electrically-driven intelligent brake control signal
• Brake warning lamp request signal
• Brake system warning lamp request signal

Steering angle sensor

Mainly transmits the following signal to ABS actuator and electric unit (control unit) via CAN
communication:
• Steering angle sensor signal

Combination meter

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Brake fluid level switch signal
• Parking brake switch signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication:
• ABS warning lamp signal
• VDC warning lamp signal
• Brake warning lamp signal
• Brake system warning lamp signal
• VDC OFF indicator lamp signal

Component

Signal description

Name

Design

Layout/Function

ABS warning lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-39, "WARNING/INDICATOR/CHIME LIST : ABS Warning

Lamp"

.

Brake warning lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-40, "WARNING/INDICATOR/CHIME LIST : Brake Warning

Lamp"

.

VDC warning lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-43, "WARNING/INDICATOR/CHIME LIST : VDC Warning

Lamp"

.

VDC OFF indicator
lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-42, "WARNING/INDICATOR/CHIME LIST : VDC OFF Indicator

Lamp"

.

Name

Design

Layout/Function

ABS warning lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-39, "WARNING/INDICATOR/CHIME LIST : ABS Warning

Lamp"

.

Brake warning lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-40, "WARNING/INDICATOR/CHIME LIST : Brake Warning

Lamp"

.

VDC warning lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-43, "WARNING/INDICATOR/CHIME LIST : VDC Warning

Lamp"

.

SYSTEM

BRC-39

< SYSTEM DESCRIPTION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

WARNING/INDICATOR/CHIME LIST : ABS Warning Lamp

INFOID:0000000010120039

DESIGN/PURPOSE

The ABS warning lamp warns the driver of a malfunction in the ABS function or EBD function of ABS actuator

and electric unit (control unit).

• For U.S.A.

• For Canada and Mexico

NOTE:

The ABS warning lamp may turn ON simultaneously with the brake warning lamp, VDC warning lamp. For

details, refer to

BRC-16, "System Description"

.

BULB CHECK

The ABS warning lamp turns ON and stays ON for several seconds after turning ON the power switch.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-64, "Fail-Safe"

.

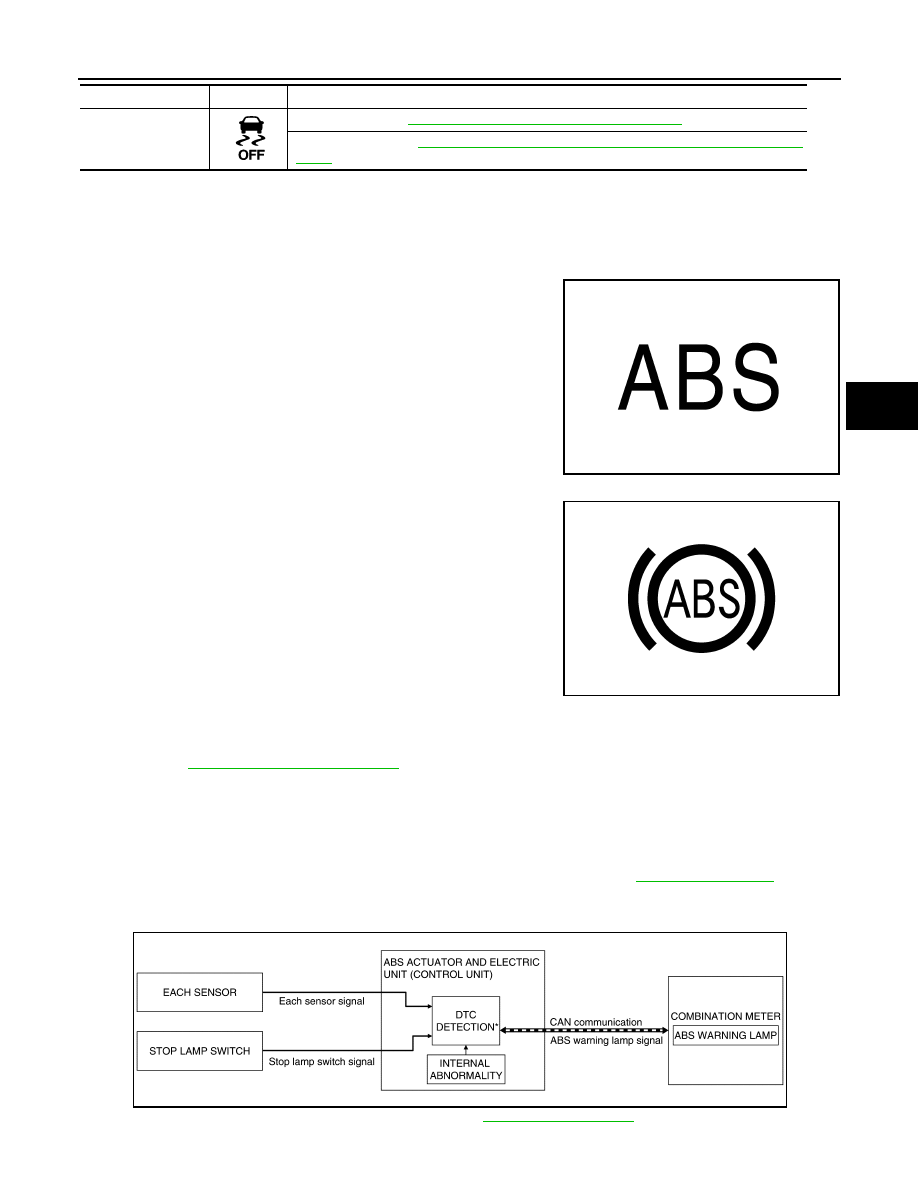

SYSTEM DIAGRAM

*: For DTCs that the ABS warning lamp turns ON, refer to

BRC-56, "DTC Index"

.

VDC OFF indicator
lamp

For layout: Refer to

MWI-8, "METER SYSTEM : System Description"

.

For function: Refer to

BRC-42, "WARNING/INDICATOR/CHIME LIST : VDC OFF Indicator

Lamp"

.

Name

Design

Layout/Function

JPNIA1866ZZ

JPNIA1865ZZ

JSFIA1854GB

BRC-40

< SYSTEM DESCRIPTION >

[WITH VDC]

SYSTEM

SIGNAL PATH

• The ABS actuator and electric unit (control unit) transmits an ABS warning lamp signal to the combination

meter via CAN communication when detecting a malfunction.

• The combination meter turns ON the ABS warning lamp when receiving an ABS warning lamp signal.

• For the relationship between warning lamp and DTC, refer to

BRC-56, "DTC Index"

.

LIGHTING CONDITION

• A malfunction is detected in the ABS function or EBD function of the ABS actuator and electric unit (control

unit).

• For the relationship between warning lamp and DTC, refer to

BRC-56, "DTC Index"

.

SHUTOFF CONDITION

• When the condition listed below is satisfied while the power switch ON:

- Erase  DTC

• Power switch OFF.

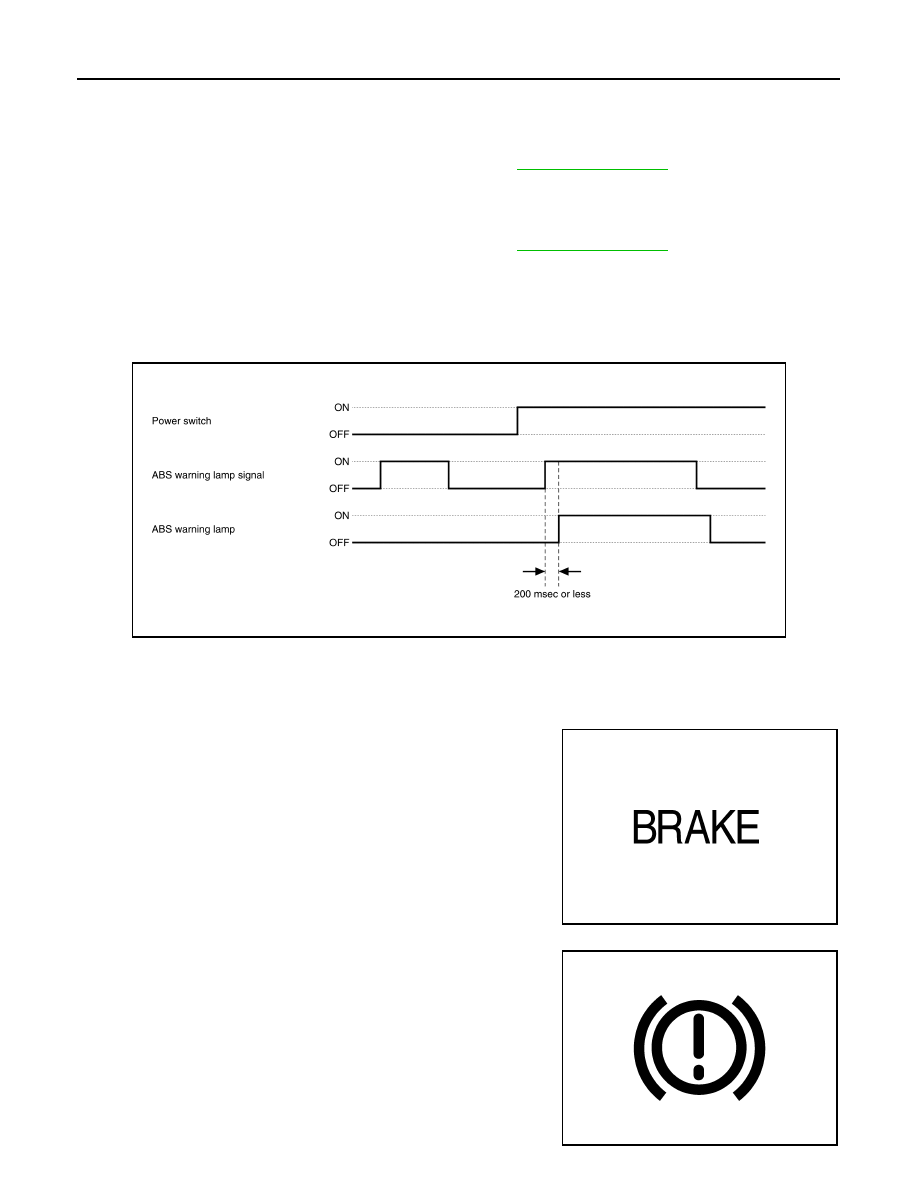

TIMING CHART

WARNING/INDICATOR/CHIME LIST : Brake Warning Lamp

INFOID:0000000010120040

DESIGN/PURPOSE

• The brake warning lamp warns the driver of brake fluid shortages.

- For U.S.A.

- For Canada and Mexico

JSFIA1855GB

JPNIA1873ZZ

JPNIA1872ZZ

SYSTEM

BRC-41

< SYSTEM DESCRIPTION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• The brake warning lamp warns the driver that the parking brake is engaged.

• The brake warning lamp warns the driver of a malfunction in the ABS actuator and electric unit (control unit).

• The brake warning lamp warns the driver of a malfunction in the electrically-driven intelligent brake unit.

NOTE:

The brake warning lamp may turn ON simultaneously with the ABS warning lamp, VDC warning lamp. For

details, refer to

BRC-16, "System Description"

 (ABS warning lamp, VDC warning lamp) and

BR-14, "System

Description"

 (brake system warning lamp).

BULB CHECK

Several seconds after power switch is turned ON

SYNCHRONIZATION WITH WARNING CHIME

YES

For warning chime, refer to

WCS-11, "PARKING BRAKE RELEASE WARNING CHIME : Parking Brake

Release Warning Chime"

.

MASTER WARNING LAMP WITH WARNING CHIME

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-64, "Fail-Safe"

.

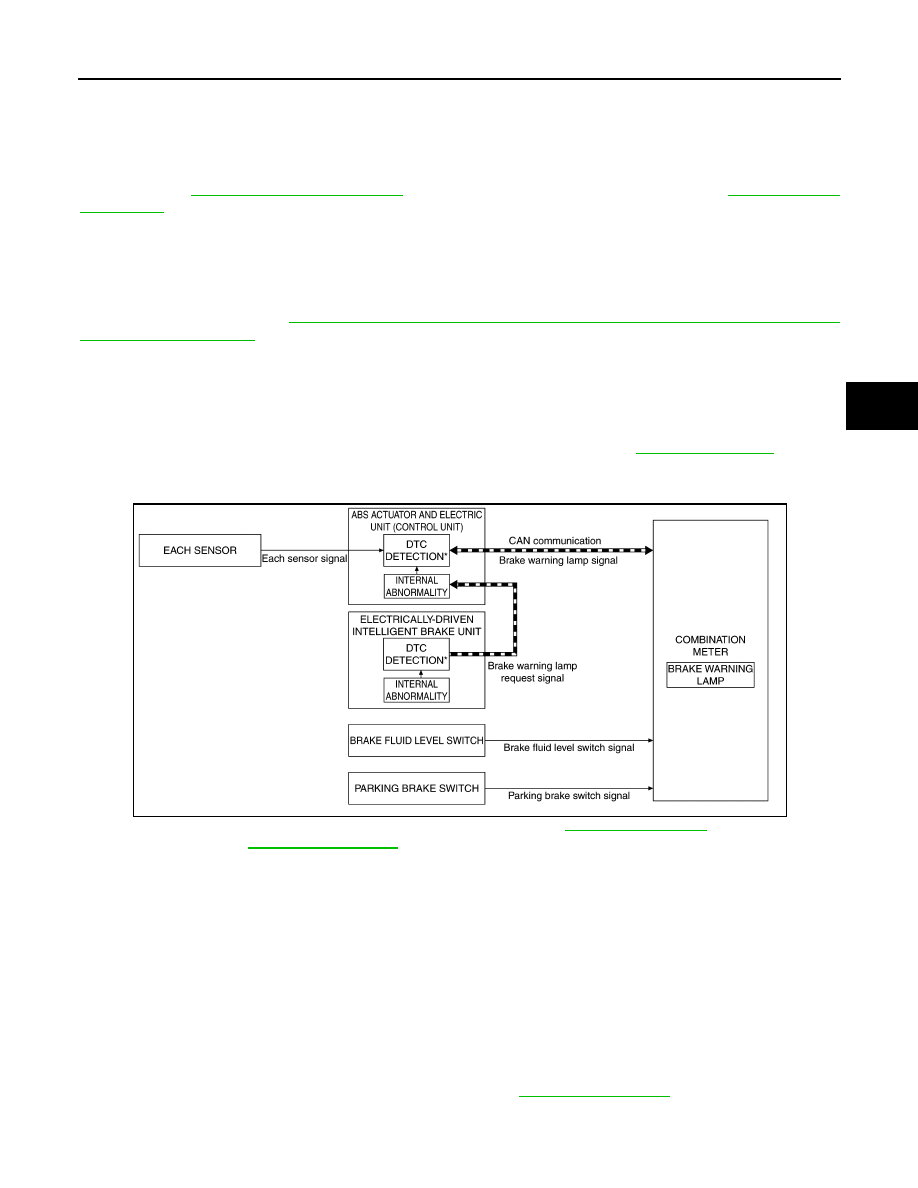

SYSTEM DIAGRAM

*: For DTCs that the brake system warning lamp turns ON, refer to

BR-38, "DTC Index"

 (electrically-driven

intelligent brake unit) or

BRC-56, "DTC Index"

 [ABS actuator and electric unit (control unit)].

SIGNAL PATH

When Brake Fluid Is Insufficient:

The combination meter turns ON/OFF the brake warning lamp, according to the ON/OFF state of the brake

fluid level switch.

When Operating The Parking Brake:

The combination meter turns ON/OFF the brake warning lamp, according to the ON/OFF state of the parking

brake switch.

When The EBD Function Is In Abnormal State:

• The ABS actuator and electric unit (control unit) transmits a brake warning lamp signal to the combination

meter via CAN communication when detecting a malfunction in the EBD function.

• The combination meter turns ON the brake warning lamp when receiving a brake warning lamp signal.

• For the relationship between warning lamp and DTC, refer to

BRC-56, "DTC Index"

.

When The Electrically-driven Intelligent Brake Unit Is In Abnormal State:

JSFIA1852GB
