FRONT DISC BRAKE

BR-497

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

THICKNESS INSPECTION

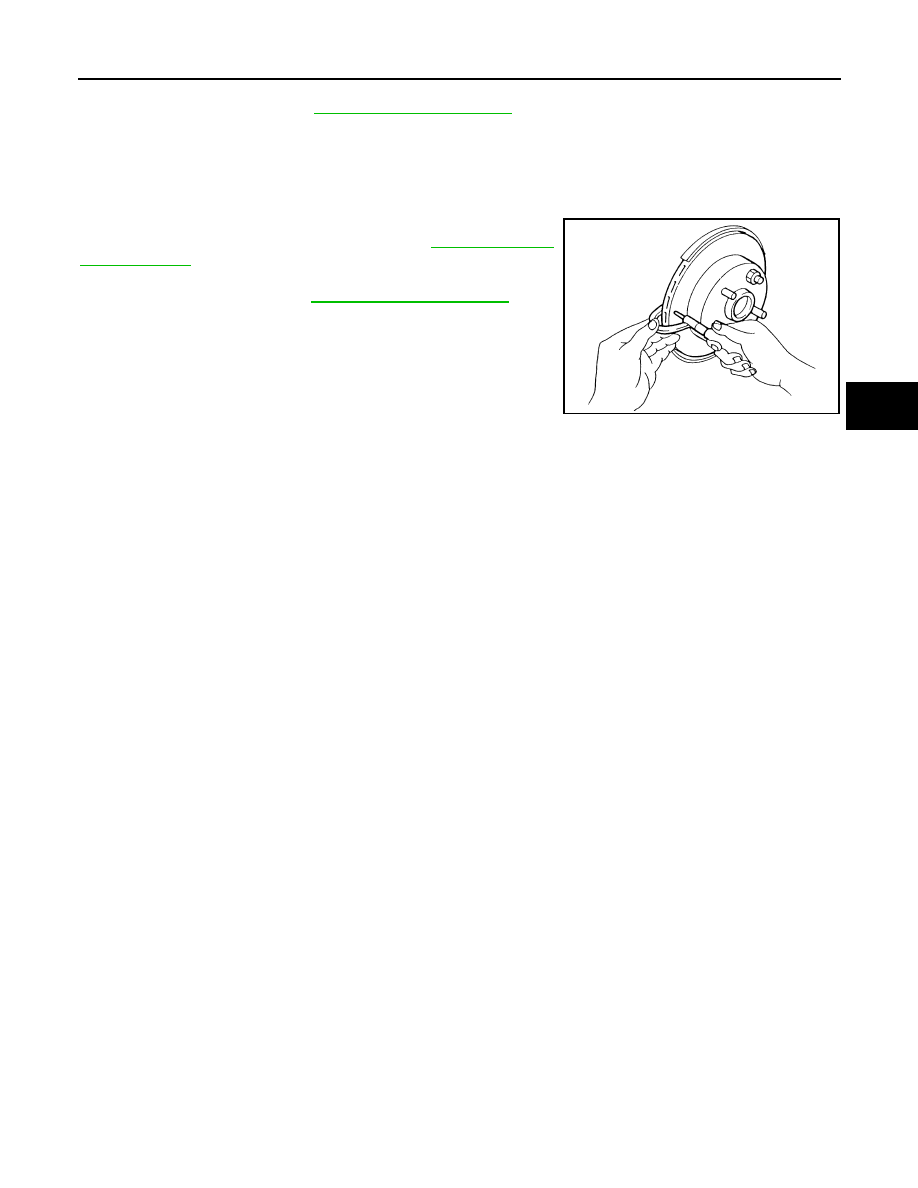

Check thickness of the disc rotor using a micrometer. Replace disc

rotor if thickness is under the wear limit.

FAX-9, "Removal and Instal-

lation"

.

ADJUSTMENT

If the brake pad is ground or replaced, or if there is an abnormal feel to the braking force, follow the procedure

below and perform break-in work.

CAUTION:

• Because the brake effectiveness is reduced, pay sufficient attention to the vehicle speed.

• Perform checks on a safe road and be careful of the traffic conditions.
1. Drive on straight and flat roads.
2. Stop the vehicle by depressing the brake pedal to generate braking force that stops the vehicle in 3 to 5

seconds.

3. Cool the brakes.
4. Repeat steps 1 to 3 until the abnormal feel in braking force disappears.

Wear limit
thickness

: Refer to

BR-531, "Front Disc Brake"

.

Tool number

: 38-PFM92 ( — )

Wear limit
thickness

: Refer to

BR-531, "Front Disc

Brake"

.

SBR020B

BR-498

< PERIODIC MAINTENANCE >

REAR DISC BRAKE

REAR DISC BRAKE

BRAKE PAD
BRAKE PAD : Inspection and Adjustment

INFOID:0000000010123125

Brake pad wear inspection

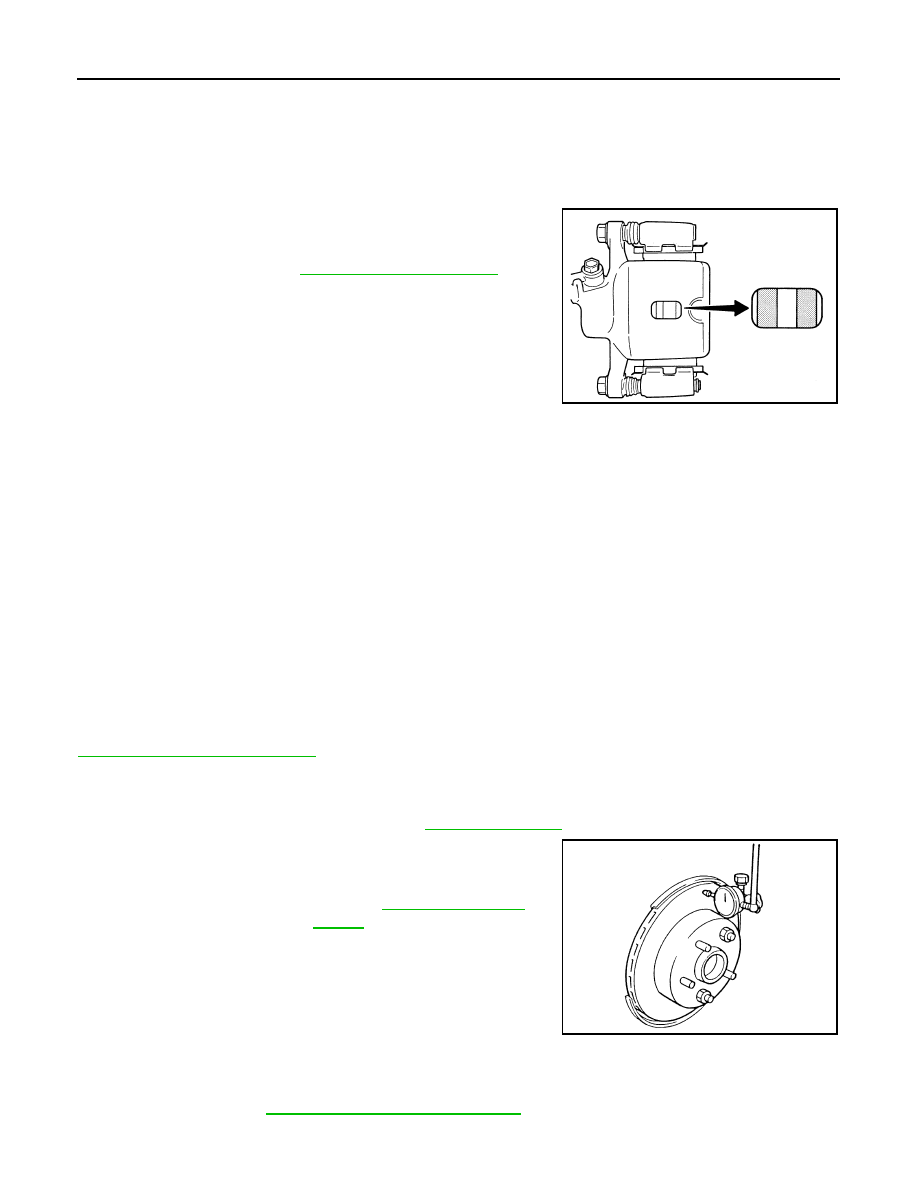

Check the brake pad thickness from the inspection hole in the cylin-

der body. Use a scale to check it if necessary.

ADJUSTMENT

If the brake pad is ground or replaced, or if there is an abnormal feel to the braking force, follow the procedure

below and perform break-in work.

CAUTION:

• Because the brake effectiveness is reduced, pay sufficient attention to the vehicle speed.

• Perform checks on a safe road and be careful of the traffic conditions.
1. Drive on straight and flat roads.
2. Stop the vehicle by depressing the brake pedal to generate braking force that stops the vehicle in 3 to 5

seconds.

3. Cool the brakes.
4. Repeat steps 1 to 3 until the abnormal feel in braking force disappears.

DISC ROTOR
DISC ROTOR : Inspection and Adjustment

INFOID:0000000010123126

Visual inspection

Check surface of the disc rotor for uneven wear, cracks, and serious damage. Replace if necessary. Refer to

RAX-7, "Removal and Installation"

.

RUNOUT INSPECTION

1. Use the wheel nuts and fasten the disc rotor to the wheel hub assembly (minimum 2 positions).
2. Check axial end play of wheel hub assembly.

RAX-6, "Inspection"

.

3. Check runout using a dial indicator [at 10 mm (0.39 in) from

outer edge of disc rotor].

4. If runout is outside the specified value, find the minimum runout

point by shifting mounting positions of the disc rotor and wheel

hub by one hole.

5. If runout is outside the specified value after performing the

above operation, refinish disc rotor using Tool.

CAUTION:

• Perform grinding of disc rotor if disc rotor thickness is 0.3 mm (0.012 in) or more above the wear

limit thickness.

• Replace disc rotor if disc rotor thickness is less than 0.3 mm (0.012 in) above the wear limit

thickness. Refer to

RAX-7, "Removal and Installation"

.

Wear limit
thickness

: Refer to

BR-531, "Rear Disc Brake"

.

BRA0010D

Maximum runout (ve-
hicle stopped)

: Refer to

BR-531, "Rear Disc

Brake"

.

SBR019B

REAR DISC BRAKE

BR-499

< PERIODIC MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

THICKNESS INSPECTION

Check thickness of the disc rotor using a micrometer. Replace disc

rotor if thickness is under the wear limit. Refer to

RAX-7, "Removal

and Installation"

.

ADJUSTMENT

If the brake pad is ground or replaced, or if there is an abnormal feel to the braking force, follow the procedure

below and perform break-in work.

CAUTION:

• Because the brake effectiveness is reduced, pay sufficient attention to the vehicle speed.

• Perform checks on a safe road and be careful of the traffic conditions.
1. Drive on straight and flat roads.
2. Stop the vehicle by depressing the brake pedal to generate braking force that stops the vehicle in 3 to 5

seconds.

3. Cool the brakes.
4. Repeat steps 1 to 3 until the abnormal feel in braking force disappears.

Wear limit
thickness

: Refer to

BR-531, "Rear Disc Brake"

.

Tool number : 38-PFM92 ( — )

Wear limit
thickness

: Refer to

BR-531, "Rear Disc Brake"

.

SBR020B

BR-500

< REMOVAL AND INSTALLATION >

BRAKE PEDAL

REMOVAL AND INSTALLATION

BRAKE PEDAL

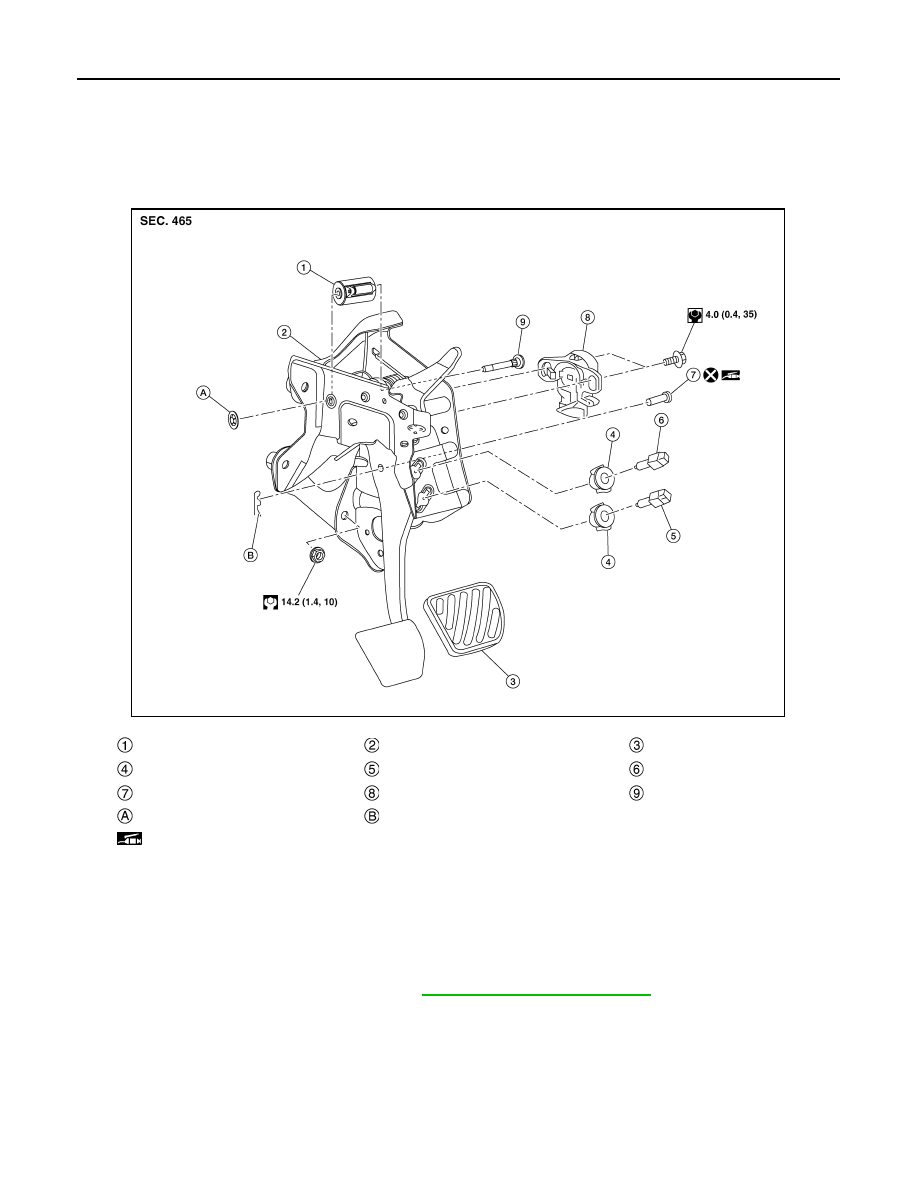

Exploded View

INFOID:0000000010123127

Removal and Installation

INFOID:0000000010123128

REMOVAL

CAUTION:

Prevent impact on brake pedal assembly. To prevent damage to the parts, do not drop brake pedal

assembly.
1. Remove instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Disconnect the harness connectors from stop lamp switch and brake pedal position switch (if equipped).
3. Disconnect the harness connector from the stroke sensor.

Hysteresis unit assembly

Brake pedal assembly

Brake pedal pad

Clip

Brake pedal position switch (if equipped)

Stop lamp switch

Clevis pin

Stroke sensor

Hysteresis shaft

Push nut

Snap pin

: Apply multi-purpose grease.

AWFIA1084ZZ
