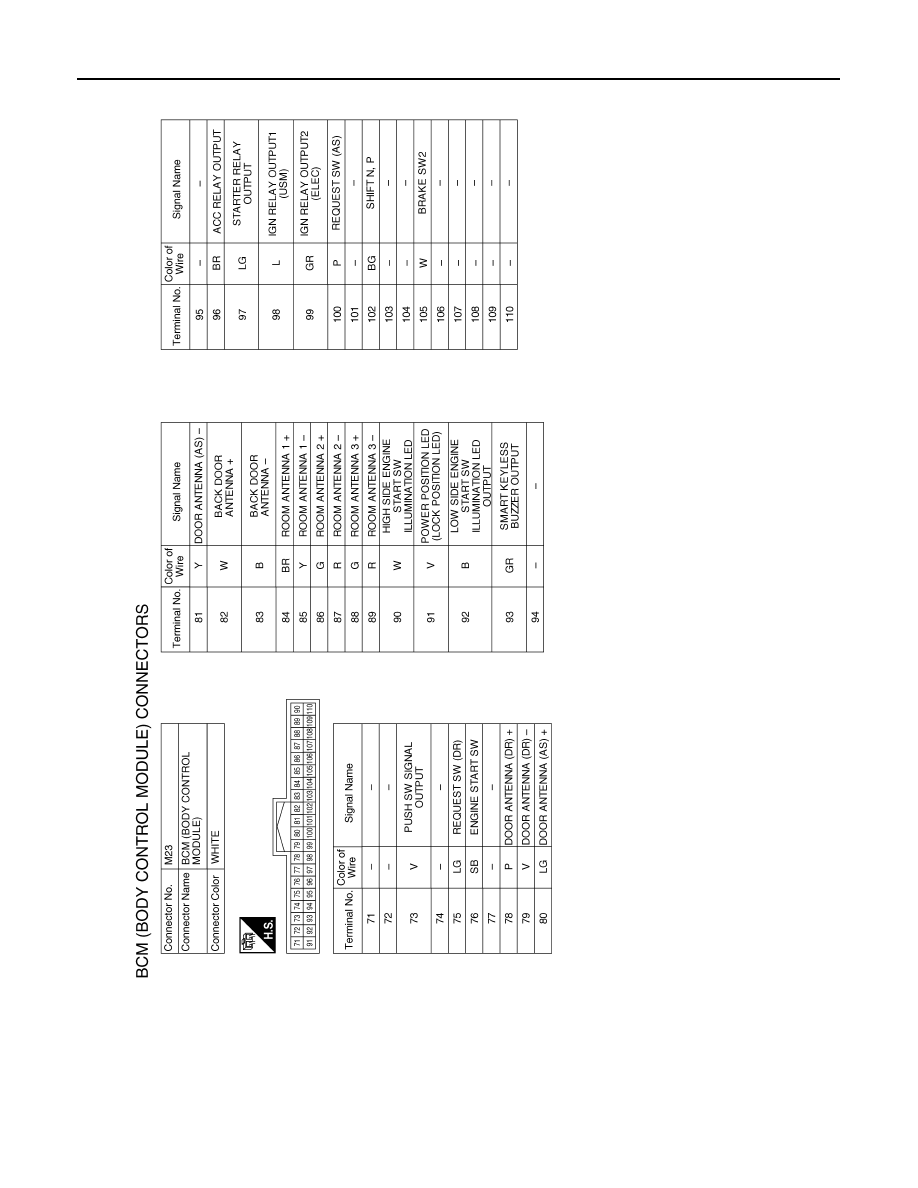

BCS-54

< WIRING DIAGRAM >

BCM

AAMIA2418GB

BCS

BCM

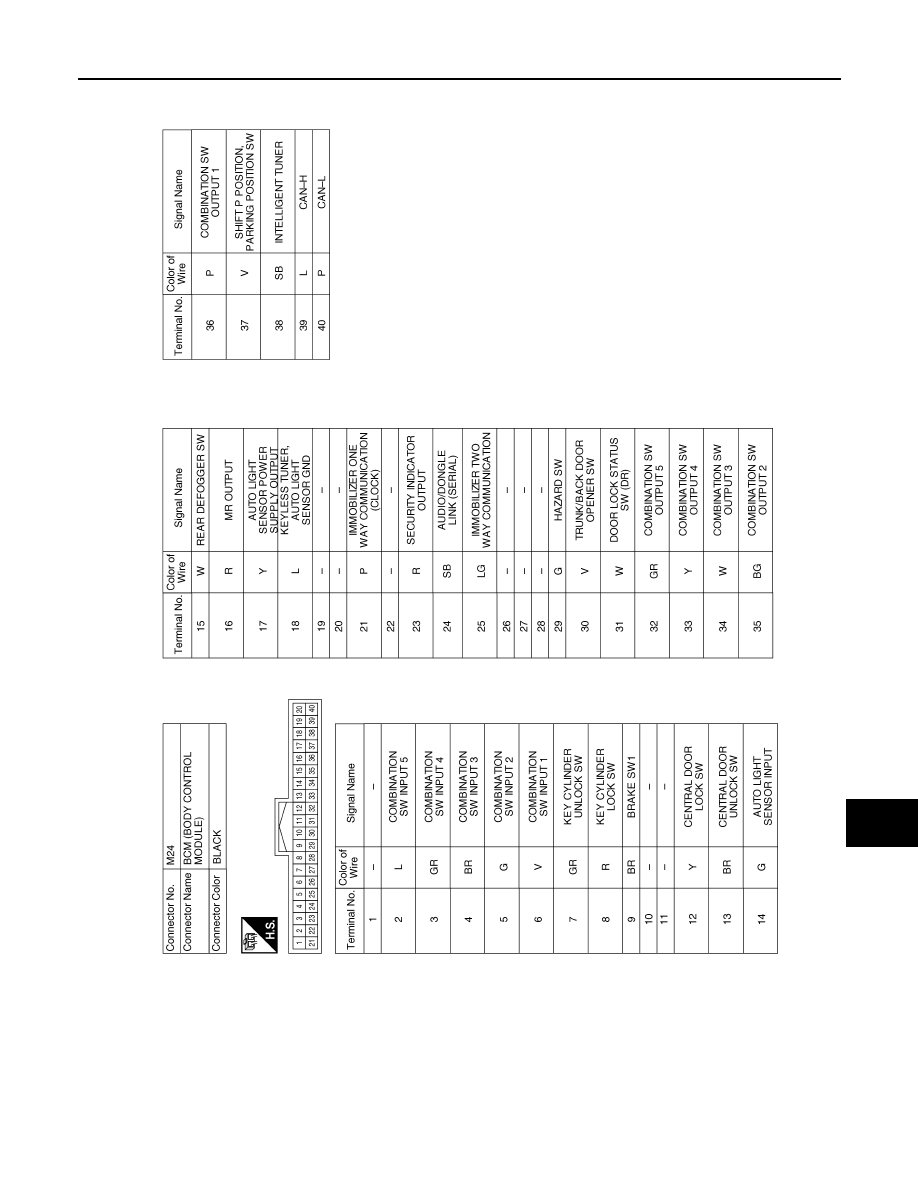

BCS-55

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA2419GB

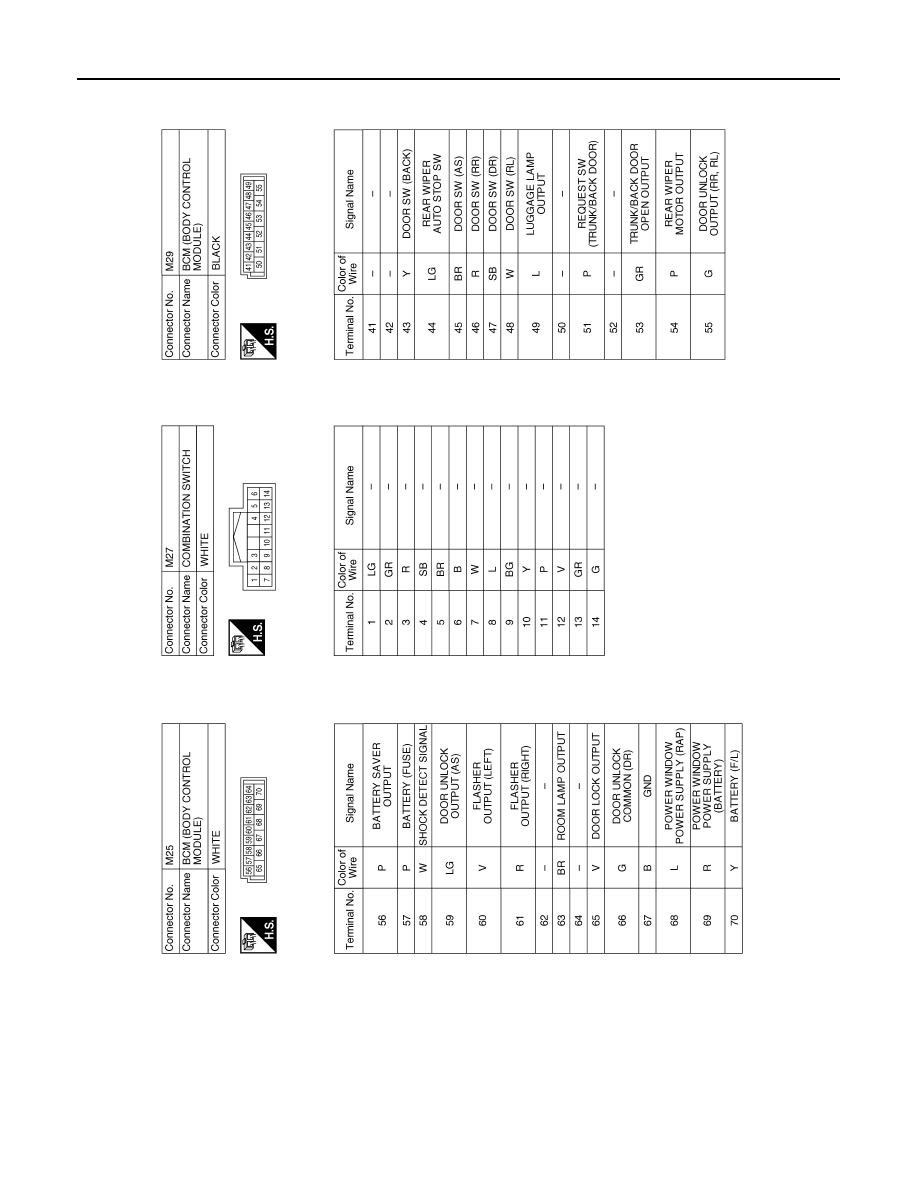

BCS-56

< WIRING DIAGRAM >

BCM

AAMIA2420GB

BCS

INSPECTION AND ADJUSTMENT

BCS-57

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM)
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Description

INFOID:0000000010122331

BEFORE REPLACEMENT

When replacing BCM, save or print current vehicle specification with CONSULT configuration before replace-

ment.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing BCM.

AFTER REPLACEMENT

CAUTION:

• When replacing BCM, you must perform “After Replace ECU” with CONSULT.

- Complete the procedure of “After Replace ECU” in order.

- If you set incorrect “After Replace ECU”, incidents might occur.

- Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• When replacing BCM, perform the system initialization (NATS).

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Proce-
dure

INFOID:0000000010122332

1.

SAVING VEHICLE SPECIFICATION

CONSULT

Enter "Re/Programming, Configuration" and perform “Before Replace ECU” to save or print current vehicle

specification.

NOTE:

If “Before Replace ECU” cannot be used, use the "After Replace ECU" or "Manual Configuration" after replac-

ing BCM.

>> GO TO 2.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT

1. Enter "Re/Programming, Configuration".

2. If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will

be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle

specification. Refer to

BCS-58, "CONFIGURATION (BCM) : Work Procedure"

.

3. If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-

tion" to write vehicle specification. Refer to

BCS-58, "CONFIGURATION (BCM) : Work Procedure"

.

>> GO TO 4.

4.

INITIALIZE BCM (NATS)

Perform BCM initialization. (NATS)

>> Work End.

CONFIGURATION (BCM)
