Nissan Leaf. Manual - part 1296





WW-12

< SYSTEM DESCRIPTION >

SYSTEM

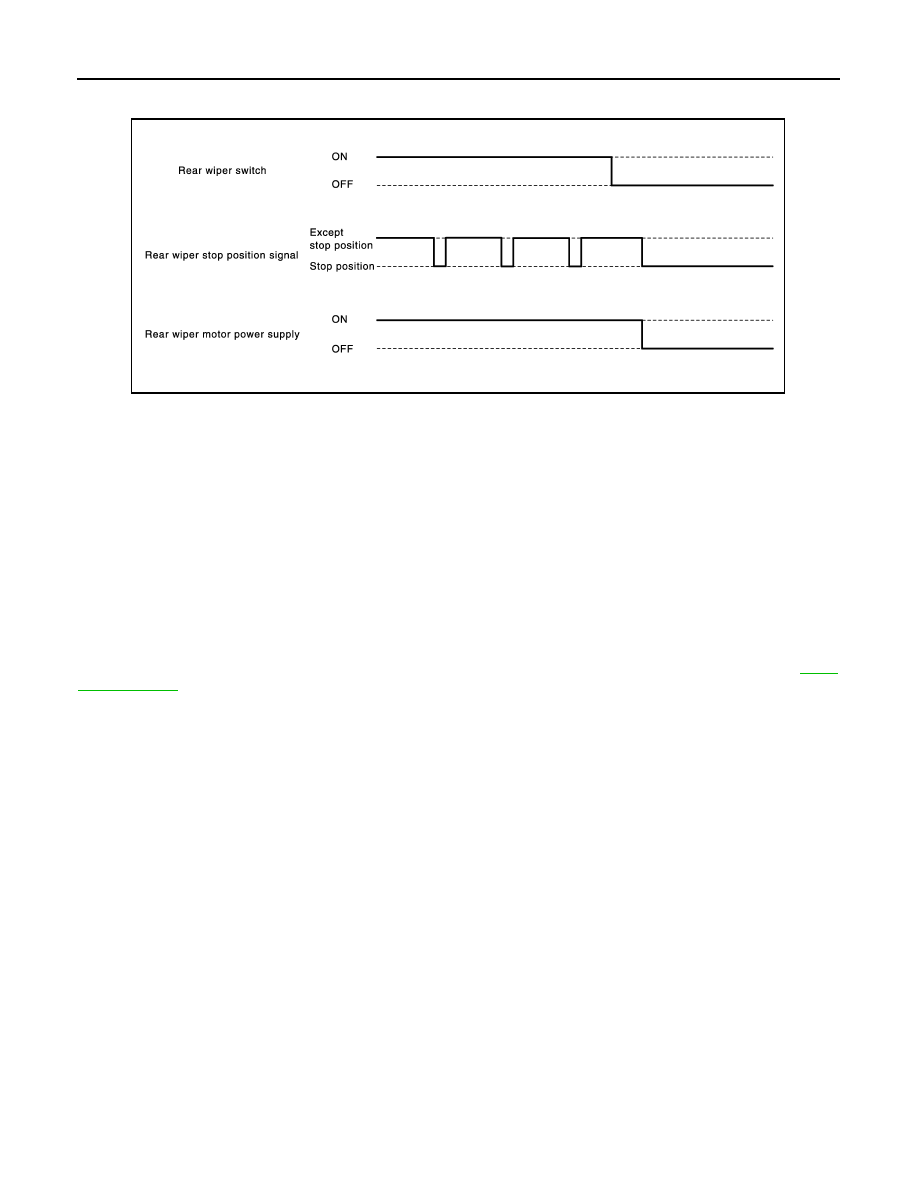

• When the rear wiper motor is at other than the stopping position, BCM continues to supply power to the rear

wiper motor until it returns to the stopping position.

NOTE:

BCM stops supplying power to the rear wiper motor when the power switch is turned OFF.

REAR WIPER OPERATION LINKED WITH WASHER

• BCM supplies power to the rear wiper motor according to the washer linked operating condition of rear

wiper. When the rear washer switch is turned OFF, BCM controls rear wiper to operate approximately 3

times.

Washer linked operating condition of rear wiper

- Power switch ON

- Rear washer switch ON (0.4 second or more)

• The washer motor is grounded through the combination switch with the rear washer switch ON.

REAR WIPER AND WASHER SYSTEM : Fail-safe

INFOID:0000000010122202

FAIL

−SAFE OPERATION

IPDM E/R performs the fail-safe function when the rear wiper auto stop circuit is malfunctioning. Refer to

PCS-

17, "Fail-Safe"

.

JPLIA1259GB

DIAGNOSIS SYSTEM (BCM)

WW-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010499444

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

WIPER

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Air conditioner

AIR CONDITIONER

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

WW-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

WIPER : CONSULT Function - WIPER

INFOID:0000000010499445

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

*: Initial setting

Monitor Item [Unit]

Description

PUSH SW [On/Off]

Indicates condition of power switch.

VEH SPEED 1 [km/h]

Indicates vehicle speed signal received from ABS on CAN communication line.

FR WIPER HI [On/Off]

Indicates condition of wiper operation of combination switch.

FR WIPER LOW [On/Off]

FR WASHER SW [On/Off]

FR WIPER INT [On/Off]

FR WIPER STOP [On/Off]

Indicates front wiper auto stop signal received from IPDM E/R on CAN communication
line.

INT VOLUME [1

− 7]

Indicates condition of intermittent wiper operation of combination switch.

RR WIPER ON [On/Off]

Indicates condition of rear wiper operation of combination switch.

RR WIPER INT [On/Off]

RR WASHER SW [On/Off]

RR WIPER STOP [On/Off]

Indicates rear wiper auto stop input from rear wiper motor.

Test Item

Description

FR WIPER

This test is able to check front wiper operation [Hi/Lo/INT/Off].

RR WIPER

This test is able to check rear wiper operation [On/Off].

Support Item

Setting

Description

DROP WIPE FUNC SET

MODE4

Front wiper and rear wiper drop wiper function ON.

MODE3

Front wiper drop wiper function OFF and rear wiper drop wiper function ON.

MODE2*

Front wiper drop wiper function ON and rear wiper drop wiper function OFF.

MODE1

Front wiper and rear wiper drop wiper function OFF.

WIPER SPEED SETTING

Off*

Front wiper intermittent time linked with wiper dial position.

On

Front wiper intermittent time linked with vehicle speed and wiper dial position.

DIAGNOSIS SYSTEM (IPDM E/R)

WW-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000010499446

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.

• Rear window defogger

• Front wiper motor

• Parking lamp

• License plate lamp

• Tail lamp

• Front fog lamp

• Side marker lamp

• Headlamp (LO, HI)

Operation Procedure

NOTE:

Never perform auto active test in the following conditions.

• CONSULT is connected.

• Passenger door is open.
1. Turn the power switch OFF.
2. Turn the power switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the

power switch OFF.

3. Turn the power switch ON within 10 seconds. After that the horn sounds once and the auto active test

starts.

NOTE:

Never depress brake pedal while operating power switch so that auto active test is not activated.

4. After a series of the following operations is repeated 3 times, auto active test is completed.
NOTE:

• When auto active test mode has to be cancelled halfway through test, turn the power switch OFF.

• When auto active test is not activated, door switch may be the cause. Check door switch. Refer to

DLK-102,

"Component Function Check"

.

Inspection in Auto Active Test Mode

When auto active test mode is actuated, the following operation sequence is repeated 3 times.

Operation
sequence

Inspection location

Operation

1

Rear window defogger

10 seconds

2

Front wiper motor

LO for 5 seconds

→ HI for 5 seconds

3

• Parking lamp
• License plate lamp
• Tail  lamp
• Front fog lamp
• Side marker lamp

10 seconds

4

Headlamp

LO for 10 seconds

→HI ON ⇔ OFF 5 times
