Nissan Leaf. Manual - part 1285





DIAGNOSIS AND REPAIR WORK FLOW

WT-19

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010120184

NOTE:

The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

1.

COLLECT INFORMATION FROM CUSTOMER

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

TIRE PRESSURE INSPECTION

1. Turn the power switch ON.

CAUTION:

Never set the vehicle to READY.

2. Check the tire pressure for all wheels and adjust to the specified value. Refer to

WT-51, "Tire Air Pres-

sure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace tire(s) or wheel(s).

3.

CHECK LOW TIRE PRESSURE WARNING LAMP

Check that the low tire pressure warning lamp illuminates for approximately 1 second after the ignition switch

is turned ON, then turns OFF.
Does the low tire pressure warning lamp turn OFF?

YES

>> Inspection End.

NO

>> GO TO 4.

4.

PERFORM SELF DIAGNOSTIC RESULT

Perform “Self Diagnostic Result” of “BCM”. Refer to

WT-13, "AIR PRESSURE MONITOR : CONSULT Func-

tion (BCM - AIR PRESSURE MONITOR)"

.

Are any DTCs displayed?

YES

>> Refer to

BCS-48, "DTC Index"

. If two or more DTCs are displayed, refer to

BCS-47,

"DTC Inspection Priority Chart"

.

NO

>> GO TO 5.

5.

PERFORM DIAGNOSIS APPLICABLE TO THE SYMPTOM

Perform diagnosis applicable to the symptom. Refer to

WT-33, "Symptom Table"

.

>> GO TO 6.

6.

FINAL CHECK

Perform “Self Diagnostic Result“” of “BCM“” again, and check that the malfunction is repaired. After checking,

erase the self diagnosis memory. Refer to

WT-13, "AIR PRESSURE MONITOR : CONSULT Function (BCM -

AIR PRESSURE MONITOR)"

.

>> Inspection End.

WT-20

< BASIC INSPECTION >

ADDITIONAL SERVICE WHEN REPLACING BCM

ADDITIONAL SERVICE WHEN REPLACING BCM

Description

INFOID:0000000010120185

When replacing BCM, tire pressure sensor ID registration is required.

Work Procedure

INFOID:0000000010120186

1.

PERFORM TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration.

>> Refer to

WT-21, "Work Procedure"

.

TIRE PRESSURE SENSOR ID REGISTRATION

WT-21

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE SENSOR ID REGISTRATION

Description

INFOID:0000000010120187

This procedure must be done after replacing tire pressure sensor or BCM.

Work Procedure

INFOID:0000000010120188

TPMS ID registration can be performed using one of the following procedures:

• Transmitter Activation tool [KV48105501 (J-45295-A)] with CONSULT (preferred method)

• Signal Tech II tool [- (J-50190)] with CONSULT (preferred method)

• Signal Tech II tool [- (J-50190)] without CONSULT

• CONSULT only

TPMS REGISTRATION WITH TRANSMITTER ACTIVATION TOOL [KV48105501 (J-45295-A)]

 With CONSULT

1. Turn the ignition switch ON.

2. Using CONSULT, select “Work support” of “BCM“. Then, select “ID REGIST.”

3. Select “Start” on “ID REGIST” screen.

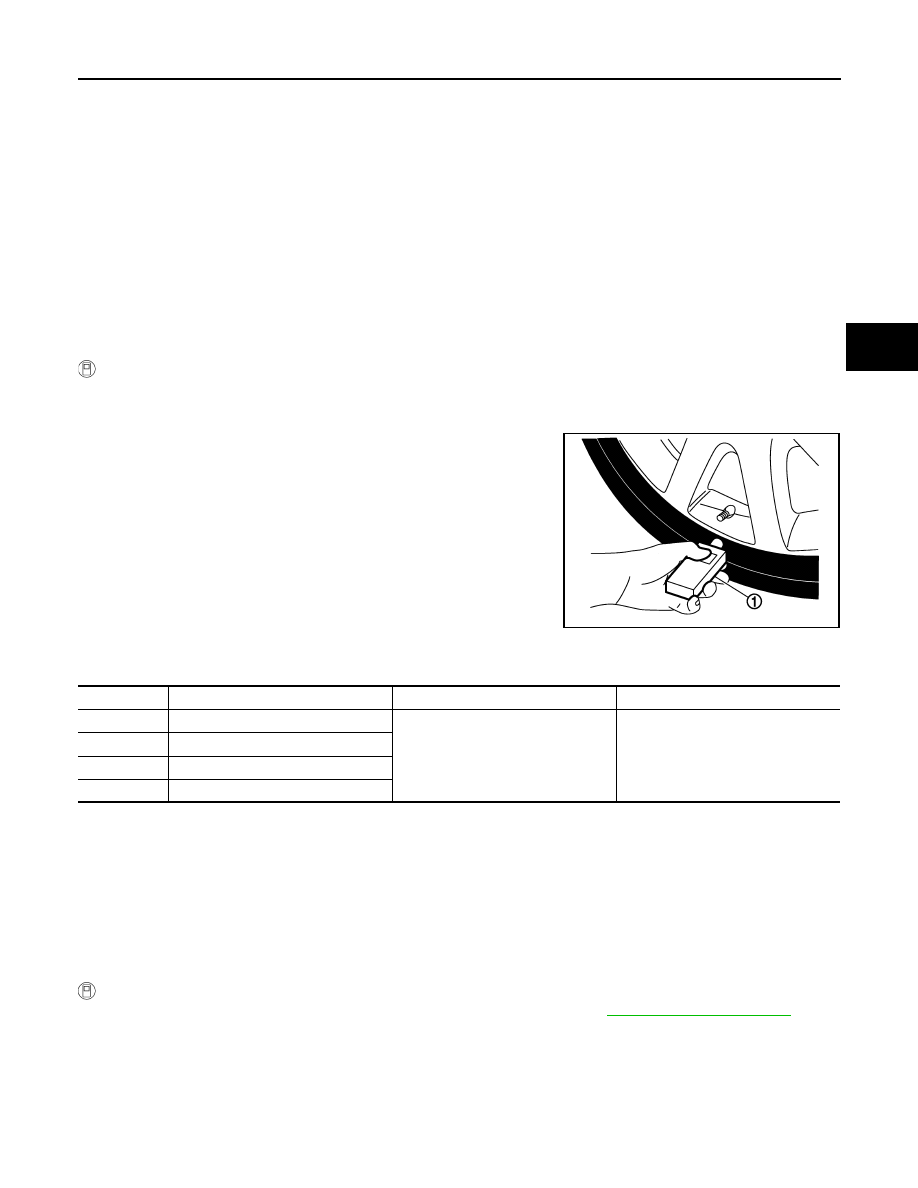

4. Hold the transmitter activation tool [KV48105501 (J-45295-A)]

(1) against the side of the left front tire, near the valve stem.

5. With the tool held at a 0 to 15 degree angle to the tire, press and

hold the transmitter activation tool button until the indicator lamp

turns OFF (approximately 5 seconds).

6. Repeat steps 4 and 5 for the remaining tires in this order: right

front, right rear and left rear.

7. When ID registration is complete, check the following pattern at each wheel.

8. After the ID registration procedure for all wheels is complete, press “End” on the CONSULT to finish ID

registration.

9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.

TPMS REGISTRATION WITH SIGNAL TECH II TOOL [- (J-50190)]

NOTE:

The Signal Tech II must be updated with the newest software version in order to perform the below proce-

dures. The Signal Tech II software updates can only be downloaded from a CONSULT unit with ASIST. Other

versions of ASIST will not show the updates.

 With CONSULT

1. Adjust the tire pressure for all tires to the recommended value. Refer to

WT-51, "Tire Air Pressure"

.

2. Turn the ignition switch ON.

3. Using CONSULT, select “Work support” of “”BCM”. Then, select “ID REGIST.”

4. Select “Start” on “ID REGIST” screen.

5. Turn on the Signal Tech II tool [- (J-50190)].

NNEIC0020ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front LH

2 blinks

“Yet (red)”

“Done (green)”

2

Front  RH

3

Rear RH

4

Rear LH

WT-22

< BASIC INSPECTION >

TIRE PRESSURE SENSOR ID REGISTRATION

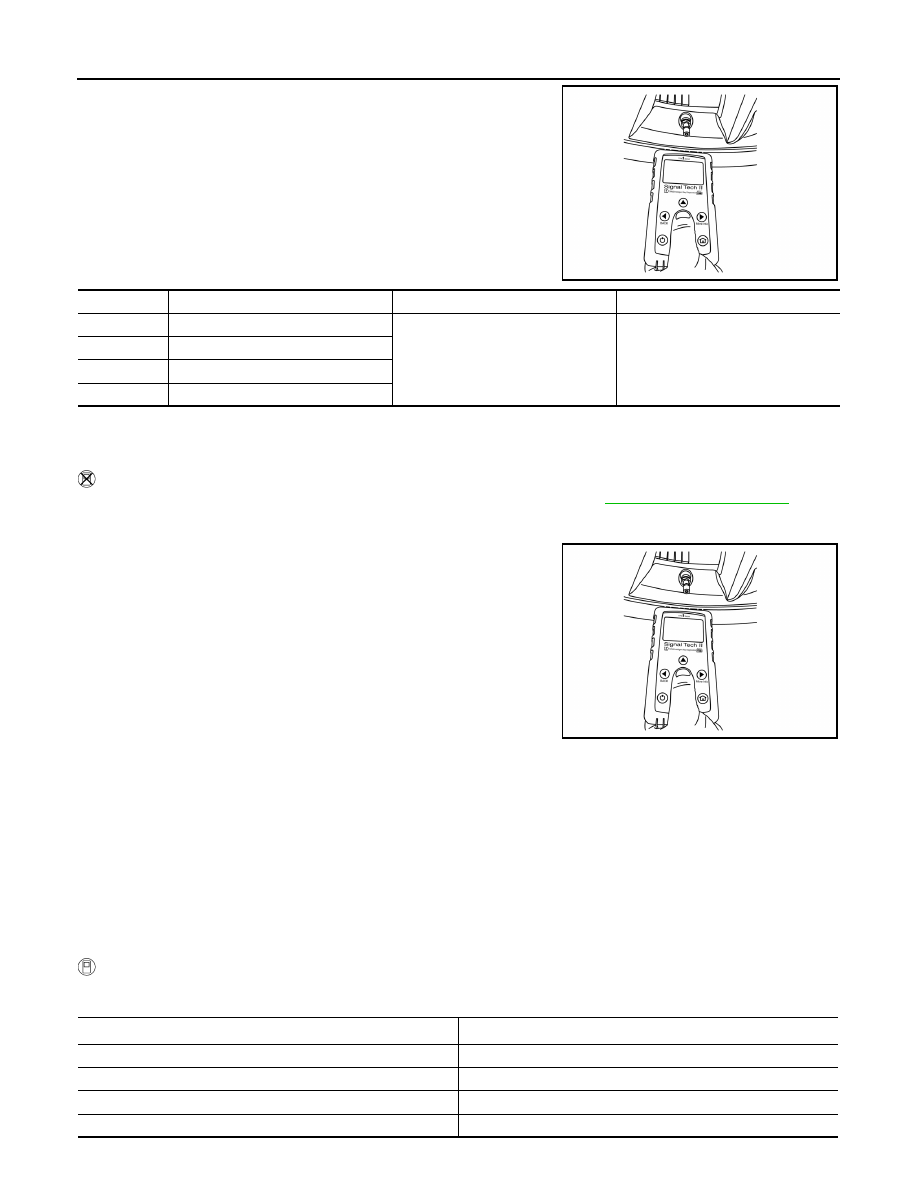

6. Hold the Signal Tech II against the side of the left front tire, near

the valve stem.

7. With the tool held at a 0 to 15 degree angle to the tire, select

“Activate Sensor” from the main menu, then press and release

the “OK” button to activate the sensor. Once the sensor is acti-

vated, the vehicle parking lamps will flash and the sensor ID will

appear on the CONSULT screen.

8. Repeat steps 6 and 7 for the remaining tires in this order: right

front, right rear and left rear.

9. When ID registration is complete, check the following pattern at

each wheel.

10. Once all sensors have been activated, select “End” on the CONSULT to finish ID registration.

11. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.

 Without CONSULT

1. Adjust the tire pressure for all tires to the recommended value. Refer to

WT-51, "Tire Air Pressure"

.

2. Turn on the Signal Tech II tool [- (J-50190)] and select “TPMS Check” from the main menu.

3. Select vehicle model and year.

4. When prompted, hold the Signal Tech II against the side of the

left front tire, near the valve stem.

5. With the tool held at a 0 to 15 degree angle to the tire, press and

release the “OK” button to activate the sensor. Once the sensor

is activated, the tool will sound a tone and the tire pressure will

be displayed.

6. Repeat steps 4 and 5 for the remaining tires in this order: right

front, right rear and left rear.

7. When prompted, connect the tool to the data link connector. The

tool will connect to the BCM, read the VIN, read sensor IDs and

check for TPMS DTCs. Along with DTCs detected, one of the

following will be displayed next to each wheel:

-

 N/A - Not applicable because no ID found by the tool

-

 OK - Wheel and sensor are in original position

-

 NEW - New ID found compared to BCM

-

 RT - Wheel has been rotated

-

 Low Press - Low tire pressure

8. If no DTC is present or the repair has been completed, press the “OK” button to register the IDs and clear

DTCs.

9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.

10. Print a Signal Tech II Audit Report for your records. Refer to the Signal Tech II User Guide for instructions.

TPMS REGISTRATION WITH CONSULT ONLY

 With CONSULT

1. Adjust the tire pressure for all wheels to match the list below.

ALEIA0177ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front  LH

2 blinks

“Yet (red)”

“Done (green)”

2

Front  RH

3

Rear  RH

4

Rear  LH

ALEIA0177ZZ

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

240 (2.4, 35)

Front RH

220 (2.2, 32)

Rear RH

200 (2.0, 29)

Rear LH

180 (1.8, 26)
