SYSTEM

WT-11

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

• When ID registration is completed. Refer to

WT-21, "Work Procedure"

.

• During the use of the Easy Fill tire alert function.

HORN CONTROL CONDITION

During the use of Easy Fill tire alert function.

Easy Fill Tire Alert Function

INFOID:0000000010120179

• This function operates only when the select lever position is in P-range with the power switch ON or with the

vehicle set to READY.

NOTE:

The Easy Fill tire alert function is recommended to use with the power switch ON.

NOTE:

When beginning tire inflation, it takes a few seconds for the Easy Fill tire alert to function. If there is no

response for approximately 15 seconds or more, cancel the Easy Fill tire alert function and move the vehicle

approximately 1 m (3.2 ft) backward or forward to try again.

• The Easy Fill tire alert function operates only when the select lever position is in P-range with the ignition

switch ON.

• This function informs the driver with a visual and audible indication that the recommended COLD tire pres-

sure has been reached.

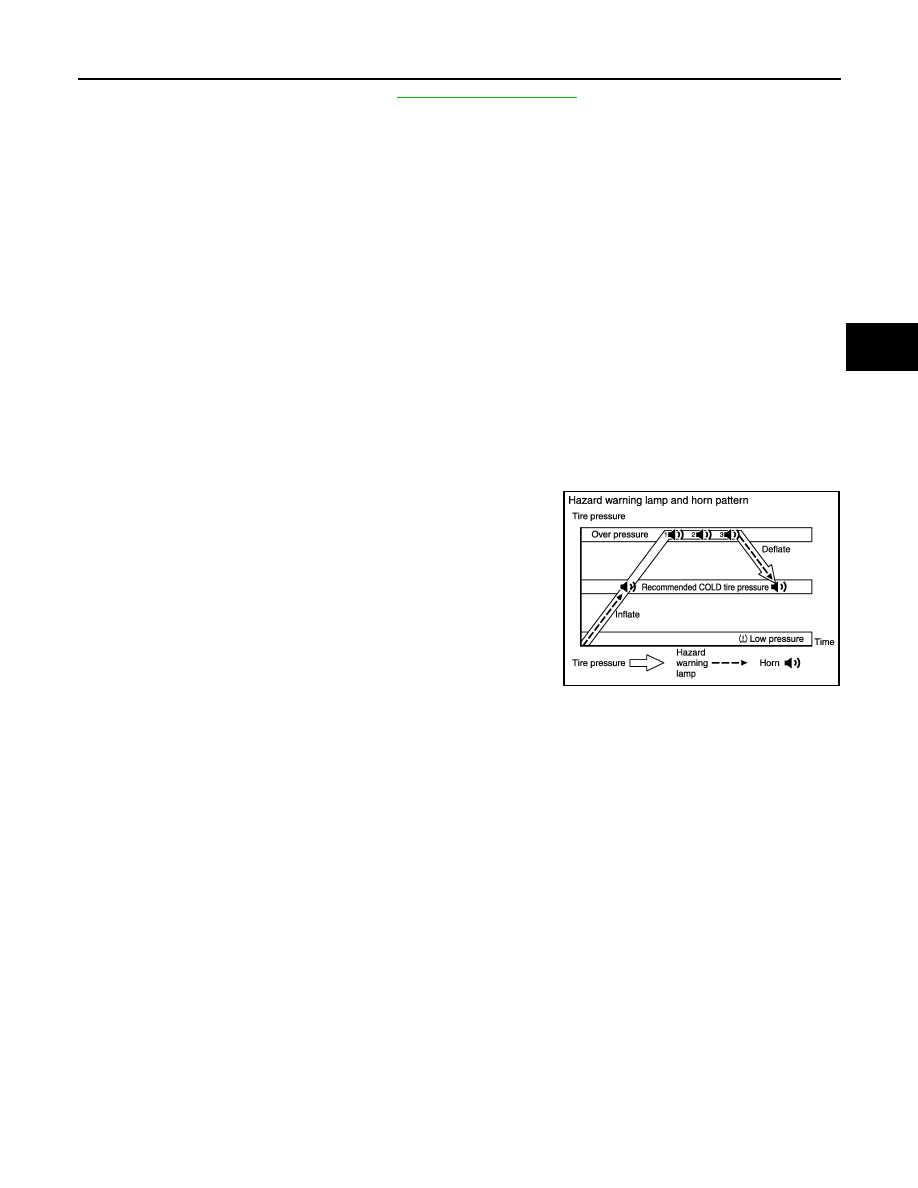

• The hazard warning lamps blink when the recommended COLD

tire pressure has been reached. After the recommended COLD tire

pressure has been reached, the horn sounds once and the hazard

warning lamps stop blinking.

• If the tire pressure value is equal to or greater than 30 kPa (0.31

kg/cm

2

, 4 psi) more than the recommended COLD tire pressure,

the hazard warning lamps flash and horn sounds three times.

• To return the tire to the recommended COLD tire pressure, deflate

the tire until the horn sounds once and the hazard warning lamps

stop blinking.

JSEIA0214GB

WT-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010383725

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

AIR PRESSURE MONITOR

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

×

Air conditioner

AIR CONDITIONER

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

DIAGNOSIS SYSTEM (BCM)

WT-13

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

AIR PRESSURE MONITOR : CONSULT Function (BCM - AIR PRESSURE MONI-
TOR)

INFOID:0000000010383726

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

• Check Intelligent Key relative signal strength

• Confirm vehicle Intelligent Key antenna signal strength

SELF DIAGNOSTIC RESULT

NOTE:

Before performing Self Diagnostic Result, be sure to register the transmitter ID or the actual malfunction may

be different from that displayed on CONSULT.

Refer to

BCS-48, "DTC Index"

.

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Monitor Item [Unit]

Description

AIR PRESS FL [kPa, kg/cm

2

 or Psi]

Indicates air pressure of front LH tire.

AIR PRESS FR [kPa, kg/cm

2

 or Psi]

Indicates air pressure of front RH tire.

AIR PRESS RR [kPa, kg/cm

2

 or Psi]

Indicates air pressure of rear RH tire.

AIR PRESS RL [kPa, kg/cm

2

 or Psi]

Indicates air pressure of rear LH tire.

ID REGST FL1 [Done/Yet]

Indicates ID registration status of front LH transmitter.

ID REGST FR1 [Done/Yet]

Indicates ID registration status of front RH transmitter.

ID REGST RR1 [Done/Yet]

Indicates ID registration status of rear RH transmitter.

ID REGST RL1 [Done/Yet]

Indicates ID registration status of rear LH transmitter.

WARNING LAMP [Off/On]

Indicates condition of low tire pressure warning lamp in combination meter.

Test Item

Description

HORN

This test is able to check horn operation [On].

FLASHER

This test is able to check turn signal lamp operation [RH/LH/Off].

WARNING LAMP

This test is able to check tire pressure warning lamp operation [Off/On].

Support Item

Description

ID READ

Registered ID number of the wheel transmitters is displayed.

ID REGIST

Wheel transmitter ID registration procedure. Refer to

WT-21, "Description"

.

WT-14

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010120182

ECU

Reference

BCM

BCS-28, "Reference Value"

BCS-46, "Fail-safe"

BCS-47, "DTC Inspection Priority Chart"

BCS-48, "DTC Index"
