WARNING CHIME SYSTEM : Fail-Safe

INFOID:0000000010546302

FAIL-SAFE

• The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

Warning functions

Outline

Warning judgment unit

Refer to

Light reminder warning chime

The warning chime sounds when the power switch
is in LOCK, OFF or ACC position with the combi-
nation switch (lighting switch) in the 1st or 2nd po-
sition and the driver side door open.

BCM

WCS-8,
"LIGHT RE-
MINDER
WARNING
CHIME : Sys-
tem Descrip-
tion"

Seat belt warning chime

The warning chime sounds when the driver seat
belt is unfastened with the power switch in ON or
READY position.

BCM

WCS-10,
"SEAT BELT
WARNING
CHIME : Sys-
tem Descrip-
tion"

Parking brake release warning chime

The warning chime sounds when the parking
brake is applied and the vehicle speed 4.3 MPH (7
km/h) or more.

Combination meter

WCS-11,
"PARKING
BRAKE RE-
LEASE WARN-
ING CHIME :
Parking Brake
Release Warn-
ing Chime"

Function

Specifications

Power meter

The display turns OFF by suspending communication.

Li-ion battery temperature gauge

Li-ion battery capacity level gauge

Li-ion battery available charge gauge

Driving range display

The display turns “– – –” by suspending communication.

Illumination control

When suspending communication, changes to nighttime mode.

Information display

Odo/trip meter

An indicated value is maintained at communications blackout.

Shift indicator

The display turns OFF by suspending communication.

Li-ion low battery charge warning dis-
play

The display turns ON by suspending communication.

Electric shift warning display

Other than the above

The display turns OFF by suspending communication.

Buzzer

The buzzer turns OFF by suspending communication.

WCS-8

< SYSTEM DESCRIPTION >

SYSTEM

• The upper meter performs the fail-safe control when a breakdown of communications between the upper

meter and the combination meter occurs.

LIGHT REMINDER WARNING CHIME
LIGHT REMINDER WARNING CHIME : System Description

INFOID:0000000010121624

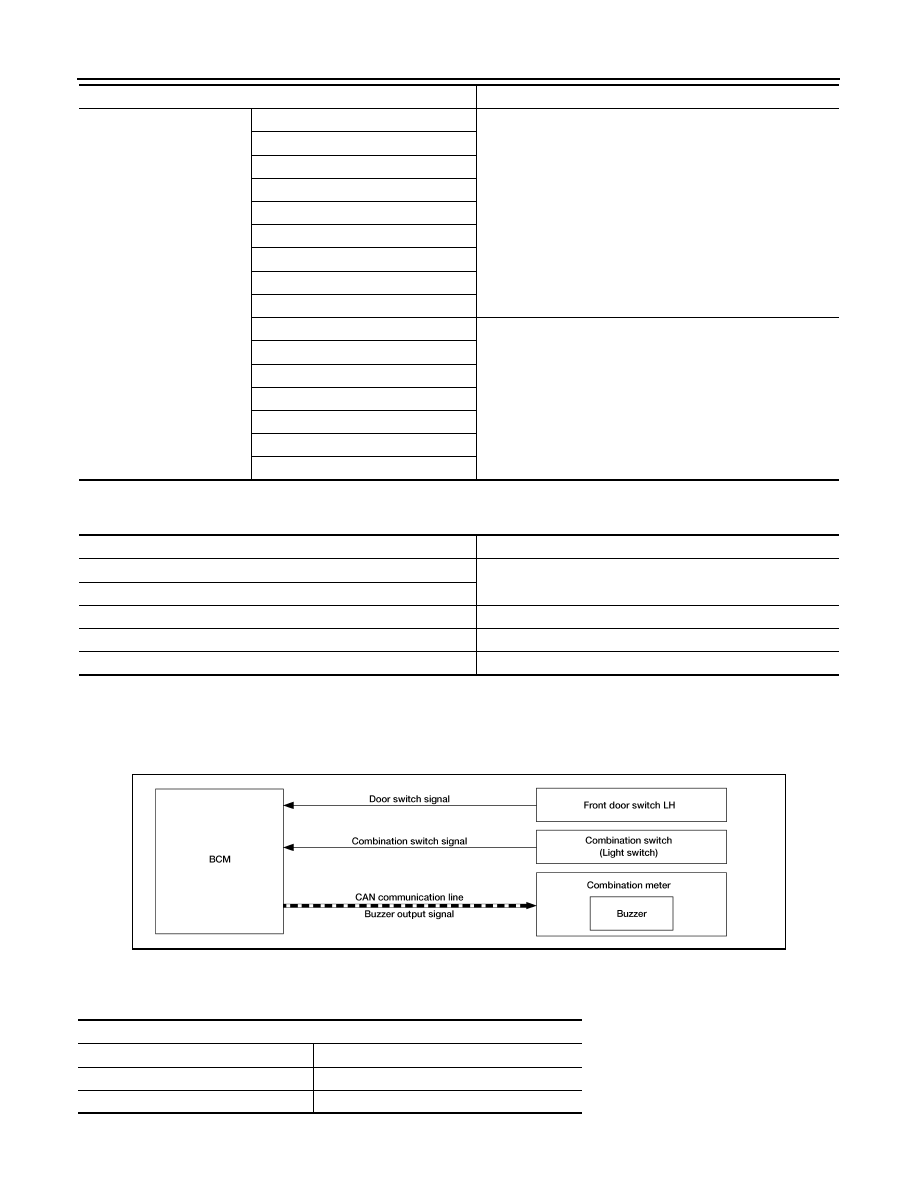

SYSTEM DIAGRAM

WARNING CHIME OPERATION CONDITIONS

If all of the following conditions are fulfilled:

WARNING CHIME CANCEL CONDITIONS

Warning lamp/indicator lamp

ABS warning lamp

The lamp turns ON by suspending communication.

VDC warning lamp

Brake warning lamp

Front fog lamp indicator lamp

Brake system warning lamp

EPS warning lamp

Low battery charge warning lamp

Electric shift waning lamp

TPMS waning lamp

High beam indicator lamp

The lamp turns OFF by suspending communication.

VDC OFF indicator lamp

Tail lamp indicator lamp

READY to drive indicator lamp

12-volt battery charge warning lamp

Power limitation indicator lamp

EV system warning lamp

Function

Specifications

Function

Specifications

Speedometer

The display turns OFF by suspending communication.

Eco indicator

Outside air temperature display

The last result calculated during normal condition is indicated.

Illumination control

When suspending communication, changes to nighttime mode.

Turn signal indicator lamp

The lamp turns OFF by suspending communication.

AWNIA3464GB

Operation conditions

Power switch

LOCK, OFF or ACC position

Combination switch (Lighting switch)

1st or 2nd position

Driver side door

Open [front door switch LH ON]

WCS

SYSTEM

WCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Warning is canceled if any of the following conditions is fulfilled:

SIGNAL PATH

1. BCM requires warning chime output to combination meter when it judges light reminder warning chime is

necessary from signals below.

2. Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-

nal) from BCM.

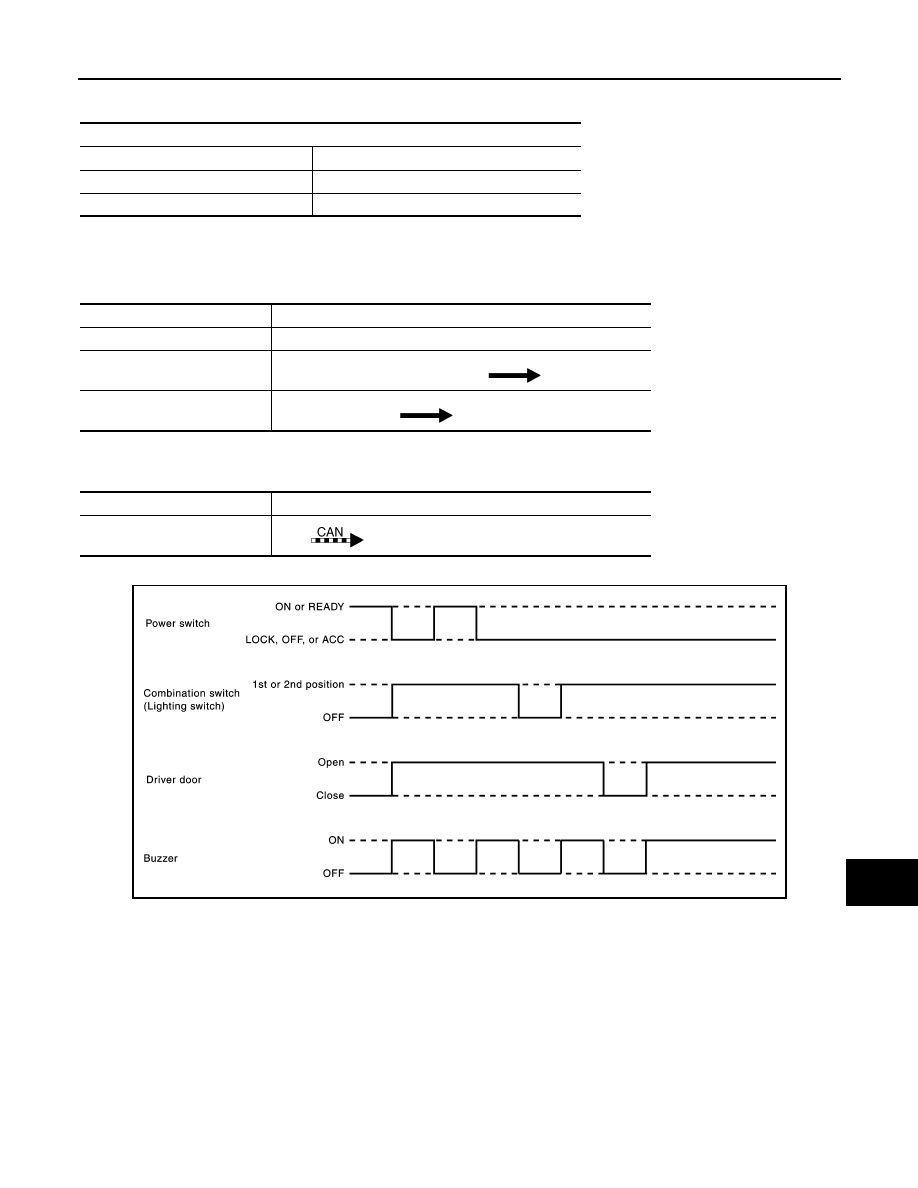

TIMING CHART

SEAT BELT WARNING CHIME

Operation conditions

Power switch

ON or READY position

Combination switch (Lighting switch)

OFF or AUTO position

Driver side door

Close [front door switch LH OFF]

Signal name

Signal path

Power switch ON signal

—

Combination switch signal

Combination switch (Lighting switch)

 BCM

Front door switch LH signal

Front door switch LH

 BCM

Signal name

Signal path

Buzzer output signal

BCM

Combination

meter

JSNIA3751GB

WCS-10

< SYSTEM DESCRIPTION >

SYSTEM

SEAT BELT WARNING CHIME : System Description

INFOID:0000000010121625

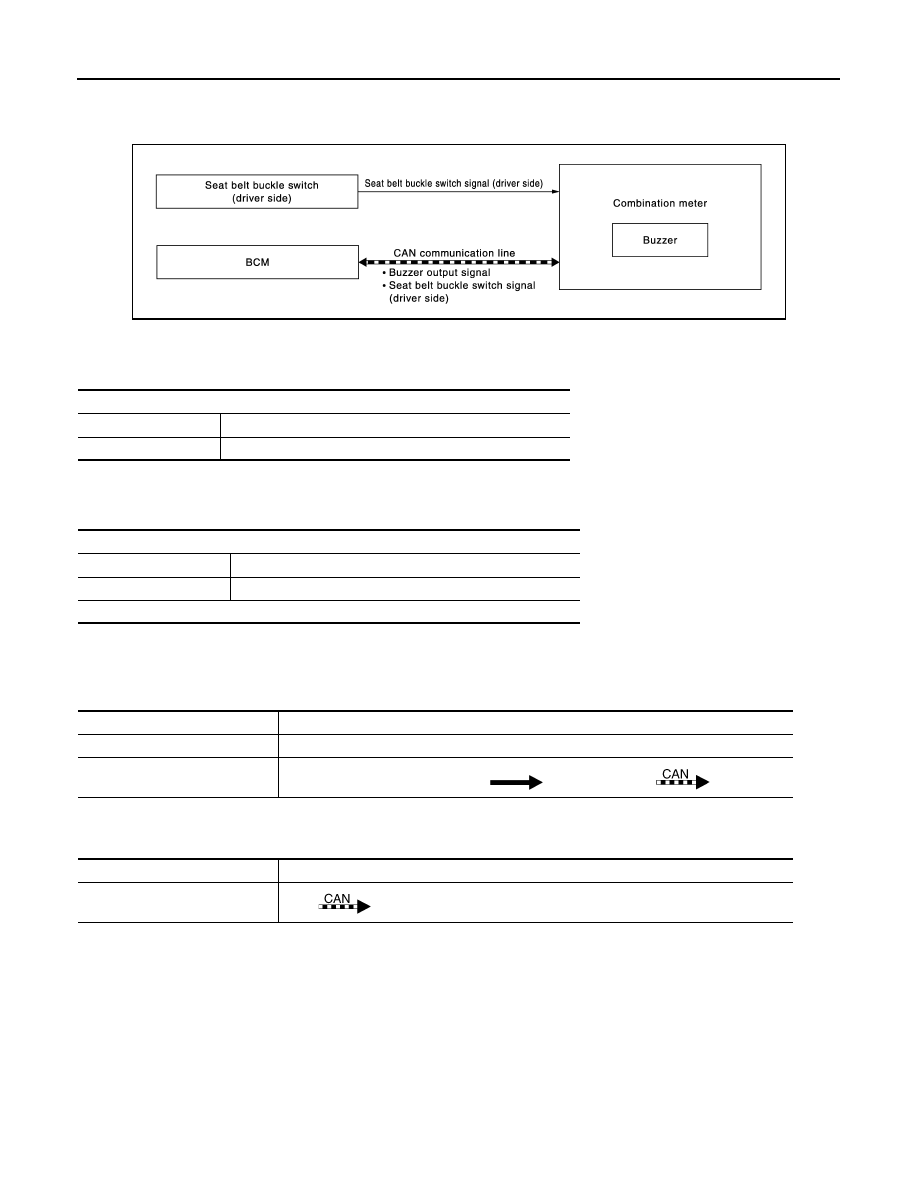

SYSTEM DIAGRAM

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled:

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled:

SIGNAL PATH

1. BCM requires warning chime output to combination meter when it judges seat belt warning chime is nec-

essary from signals below.

2. Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-

nal) from BCM.

JSNIA3118GB

Operation conditions

Power switch

ON or READY position

Driver seat belt

Unfastened [seat belt buckle switch (driver side) ON]

Operation conditions

Power switch

LOCK, OFF, or ACC position

Driver seat belt

Fastened [seat belt buckle switch (driver side) OFF]

6 seconds after the start of warning sound

Signal name

Signal path

Power switch ON signal

—

Seat belt buckle switch signal
(driver side)

Seat belt buckle switch (driver side)

 Combination meter

 BCM

Signal name

Signal path

Buzzer output signal

BCM

Combination

meter
