Nissan Leaf. Manual - part 1262

VSP-68

< REMOVAL AND INSTALLATION >

START UP SOUND SPEAKER

START UP SOUND SPEAKER

Removal and Installation

INFOID:0000000010121613

REMOVAL

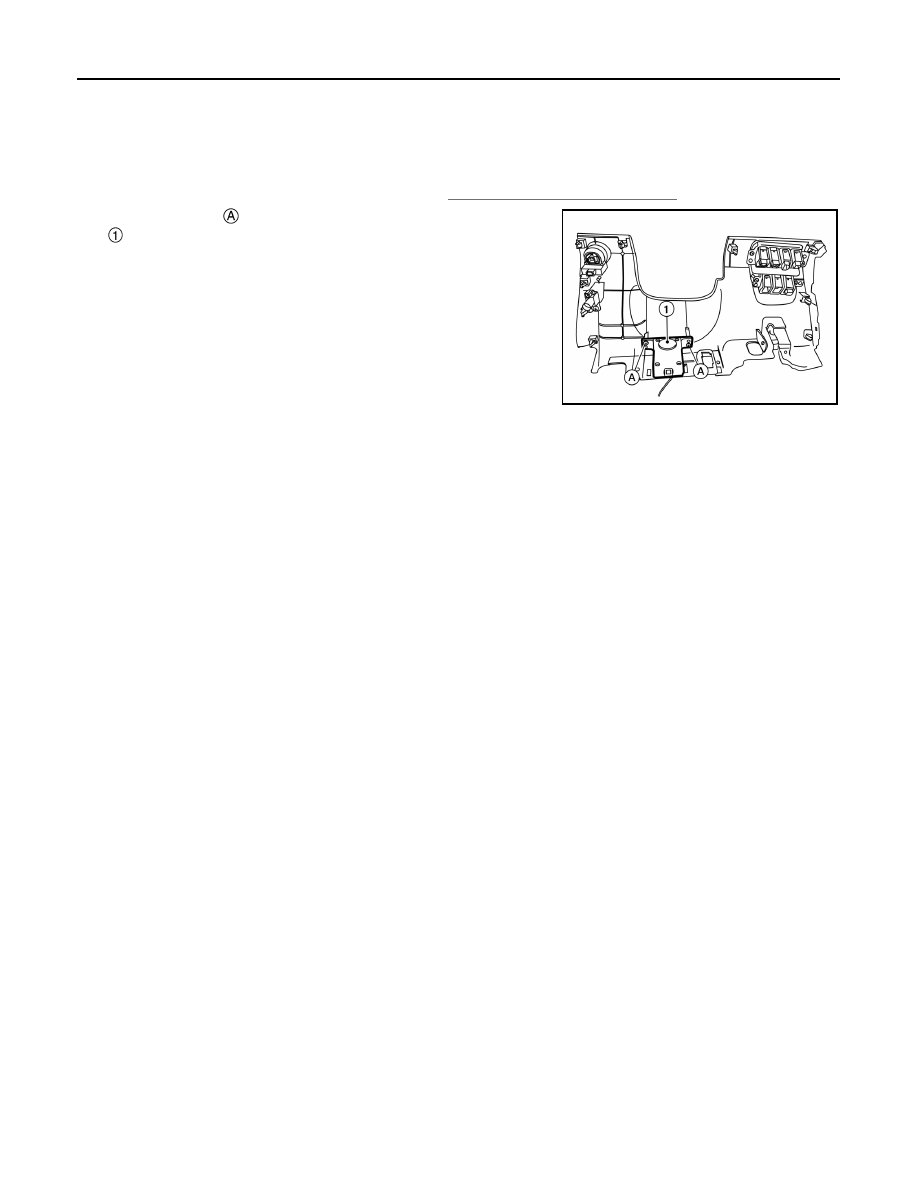

1. Remove the instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove screws  , and then remove the start up sound speaker

.

INSTALLATION

Install in the reverse order of removal.

ALMIA0640ZZ

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) SPEAKER

VSP-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

VSP

N

O

P

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) SPEAKER

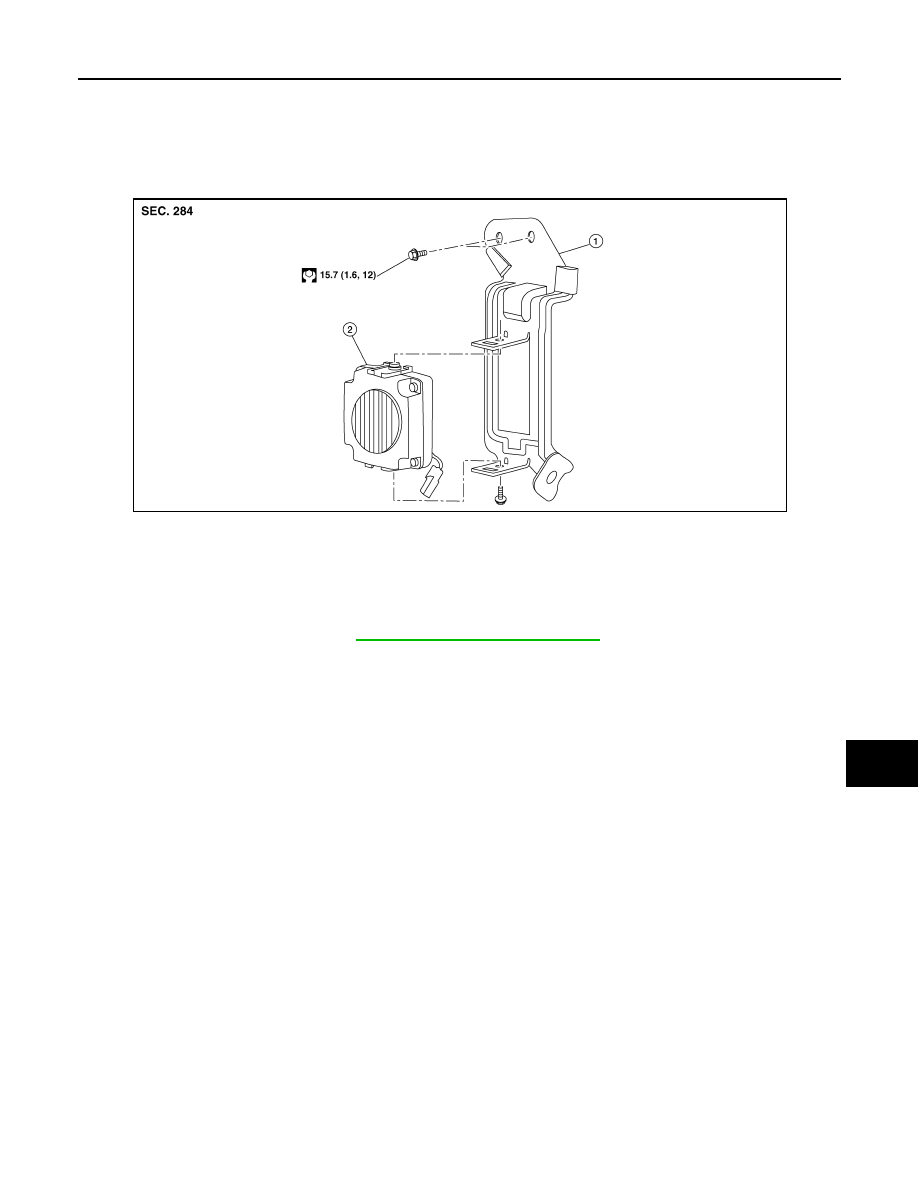

Exploded View

INFOID:0000000010121614

DISASSEMBLY

Removal and Installation

INFOID:0000000010121615

REMOVAL

1. Remove the front bumper. Refer to

EXT-13, "Removal and Installation"

.

2. Disconnect the harness connector from the VSP speaker.
3. Remove bolts, and then remove the VSP speaker .

INSTALLATION

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000010121616

DISASSEMBLY

Remove screws, and then remove bracket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1.

Bracket

2.

VSP speaker

ALLIA1432ZZ

VSP-70

< REMOVAL AND INSTALLATION >

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) OFF SWITCH

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) OFF
SWITCH

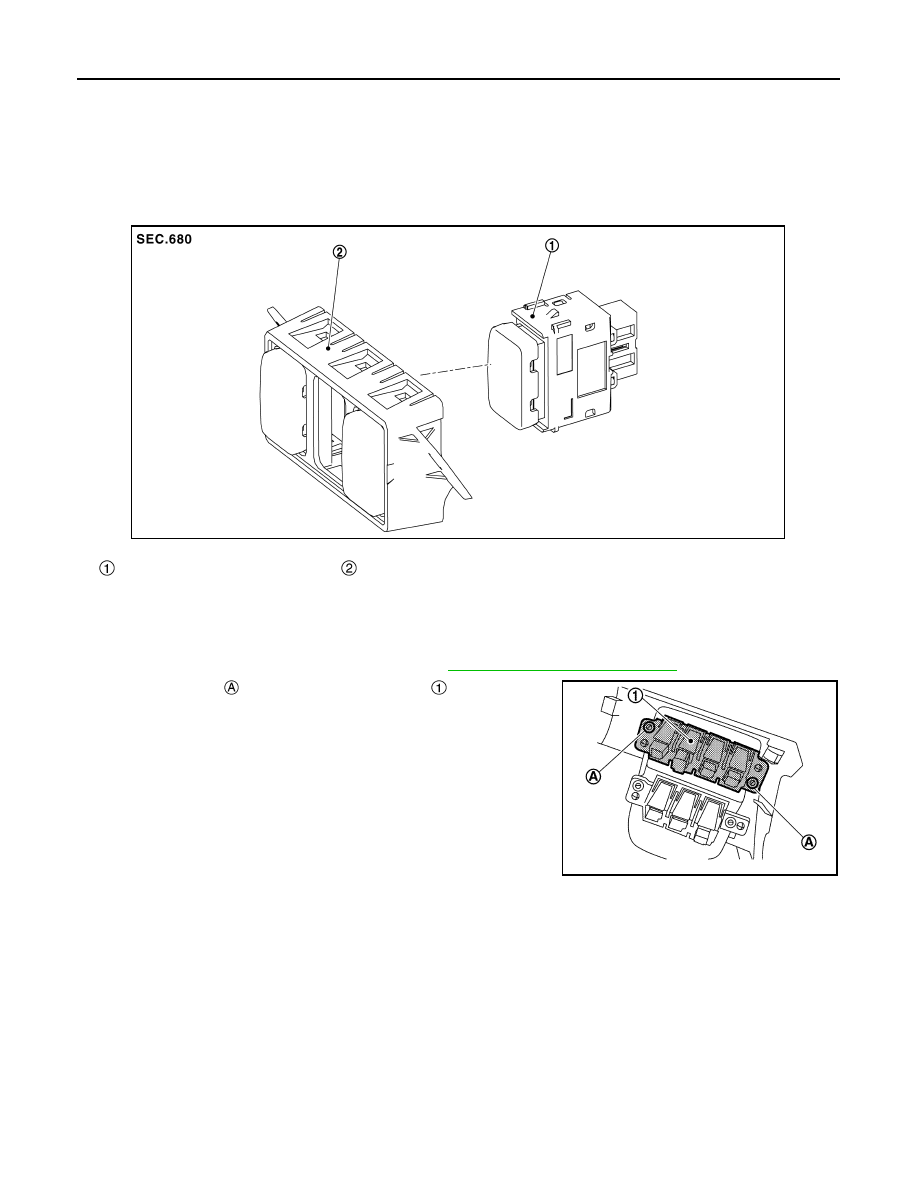

Exploded View

INFOID:0000000010310093

REMOVAL

Removal and Installation

INFOID:0000000010310094

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove screws  , and then switch assembly  .

3. Disengage the pawls to remove the VSP OFF switch.

INSTALLATION

Install in the reverse order of removal.

VSP OFF switch

Switch assembly

JSMIA1204ZZ

JSMIA1349ZZ
