VSP-64

< SYMPTOM DIAGNOSIS >

THE START UP SOUND SPEAKER DOES NOT SOUND

THE START UP SOUND SPEAKER DOES NOT SOUND

Description

INFOID:0000000010121605

The start up sound do not sound.

Diagnosis Procedure

INFOID:0000000010121606

1.

CHECK START UP SOUND SPEAKER SIGNAL CIRCUIT

Check start up sound speaker signal circuit. Refer to

VSP-50, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-53, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

THE POWER SWITCH OPERATION SOUND DOES NOT SOUND

VSP-65

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

VSP

N

O

P

THE POWER SWITCH OPERATION SOUND DOES NOT SOUND

Description

INFOID:0000000010121607

The power switch operation sound does not sound when the power switch is operated.

Diagnosis Procedure

INFOID:0000000010121608

1.

CHECK POWER SWITCH SIGNAL CIRCUIT

Check power switch signal circuit. Refer to

VSP-58, "Component Function Check"

.

Is the inspection result normal?

YES

>> Refer to

GI-53, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

VSP-66

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) SYSTEM
APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) SYSTEM : Descrip-
tion

INFOID:0000000010121609

• The VSP during forward driving fades out and stops operating when the vehicle stops [vehicle speed 0 km/h

(0 MPH) is detected].

• The VSP during reverse driving continues to operate when the vehicle is stopped.

START UP SOUND SYSTEM
START UP SOUND SYSTEM : Description

INFOID:0000000010121610

• The power switch operation sound may not be able to respond normally if the power switch is pressed

quickly.

• The power switch operation sound is inoperative when “Effects” in the combination meter settings is OFF.

CHARGE SOUND SYSTEM
CHARGE SOUND SYSTEM : Description

INFOID:0000000010121611

• Charge acceptance sound is inoperative when the power switch is ON.

• During quick charge, the plug-in detection sound does not operate.

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) CONTROL UNIT

VSP-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

VSP

N

O

P

REMOVAL AND INSTALLATION

APPROACHING VEHICLE SOUND FOR PEDESTRIANS (VSP) CONTROL
UNIT

Removal and Installation

INFOID:0000000010121612

REMOVAL

1. Remove the glove box cover assembly. Refer to

IP-17, "Removal and Installation"

.

2. Remove the VSP control unit connector.
3. Remove screw  , and then remove the  VSP control unit  .

INSTALLATION

Install in the reverse order of removal.

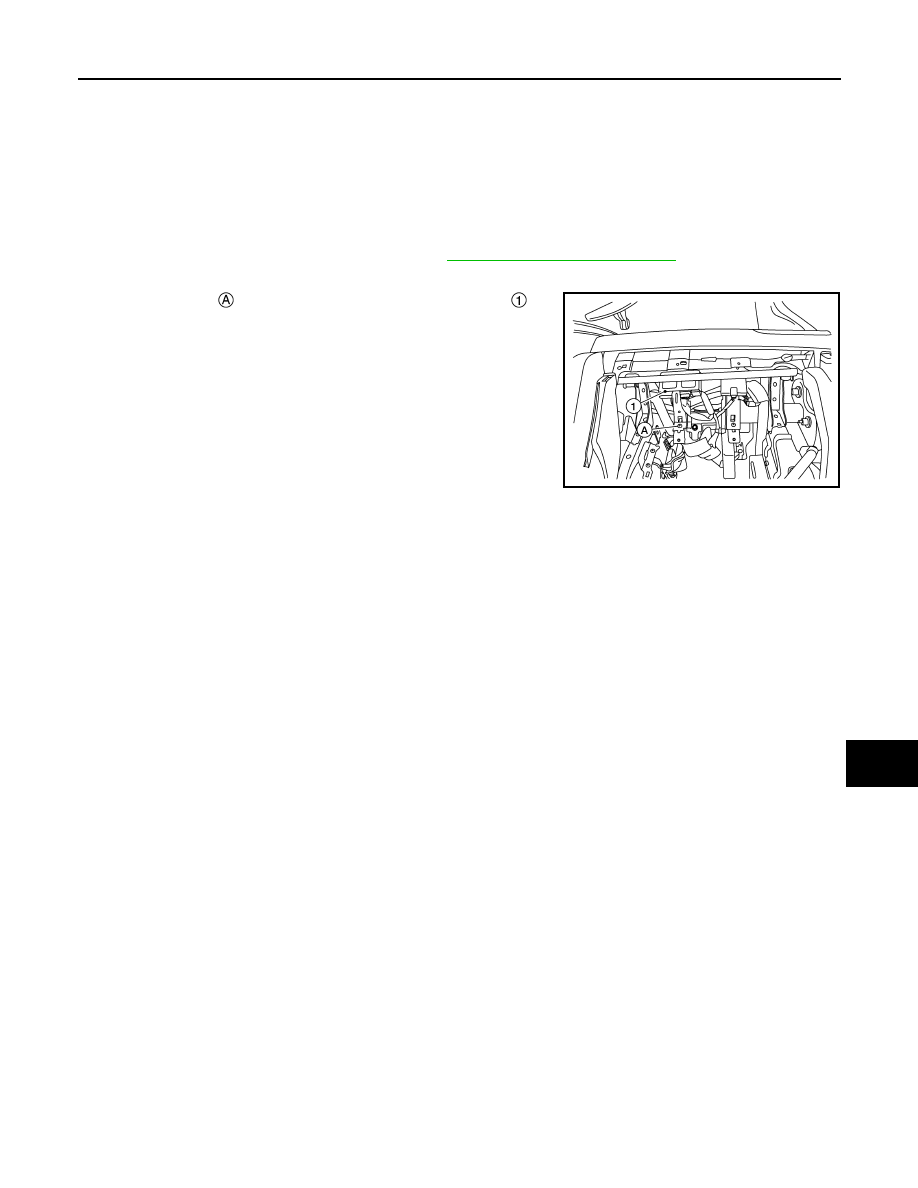

AWMIA1409ZZ
