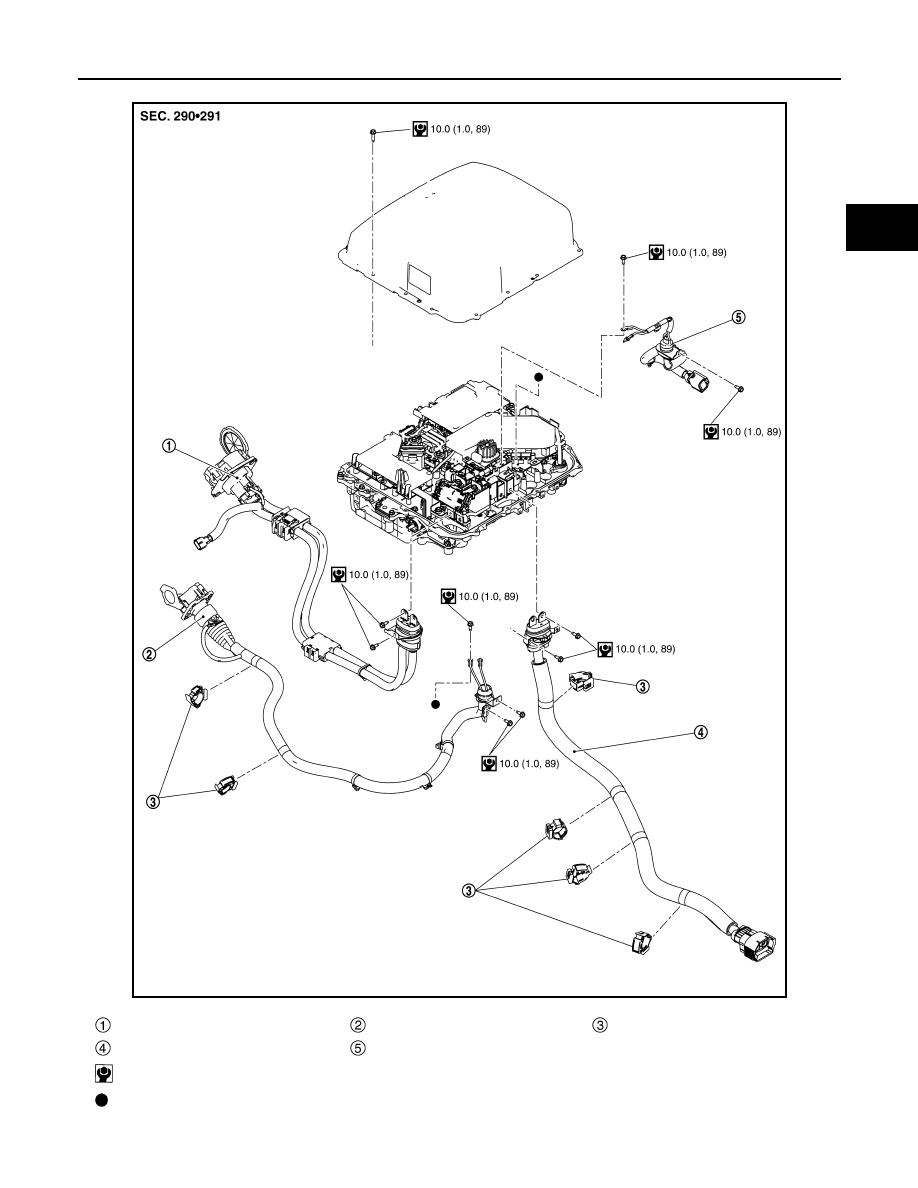

DISASSEMBLY

JPCIA0298GB

Quick charge port

Normal charge port

Clamp

Li-ion battery high-voltage harness

Electric compressor harness

: N·m (kg-m, in-lb)

 : Indicate connections which bear the same mark.

VC-112

< REMOVAL AND INSTALLATION >

PDM(POWER DELIVERY MODULE)

Removal and Installation

INFOID:0000000010121293

DANGER:

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of

electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are

handled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-

ing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in

the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses

before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the vehicle containing high voltage

parts. To keep others from touching the high voltage parts, these parts must be covered with an insu-

lating sheet except when using them.

• Refer to

VC-6, "High Voltage Precautions"

.

CAUTION:

Never bring the vehicle into the READY status with the service plug removed unless otherwise

instructed in the Service Manual. A malfunction may occur if this is not observed.

REMOVAL

WARNING:

Disconnect high voltage. Refer to

GI-33, "How to Disconnect High Voltage"

.

1. Check voltage in high voltage circuit. (Check that condenser are discharged.)

WARNING:

Be sure to put on insulating protective gear before beginning work on the high voltage sys-

tem.

a. Lift up the vehicle and remove the Li-ion battery under covers. Refer to

EVB-181, "Exploded View"

.

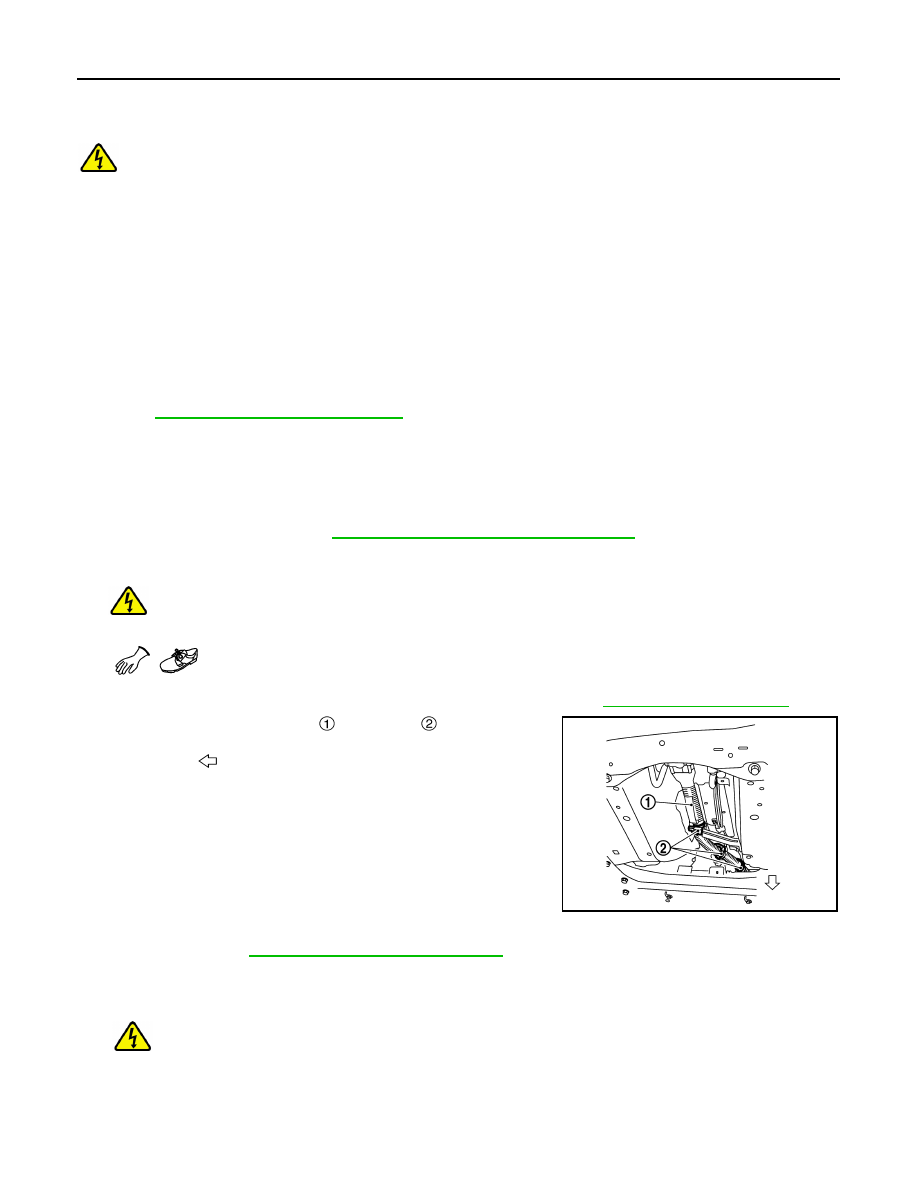

b. Remove high voltage harness   from clamp  .

c.

Disconnect high voltage harness connector and high voltage harness for PTC heater from front side of Li-

ion battery. Refer to

EVB-181, "Removal and Installation"

.

d. Measure voltage between high voltage harness connector terminals and high voltage harness connector

terminals for PTC heater.

DANGER:



 Touching high voltage components without using the appropriate protective equipment will

cause electrocution.

: Vehicle front

JPCIA0299ZZ

PDM(POWER DELIVERY MODULE)

VC-113

< REMOVAL AND INSTALLATION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

CAUTION:

For voltage measurements, use a tester which can measure to 500 V or higher.

2. Drain coolant. Refer to

HCO-11, "Draining"

.

3. Remove the cowl top extension. Refer to

EXT-19, "Removal and Installation"

.

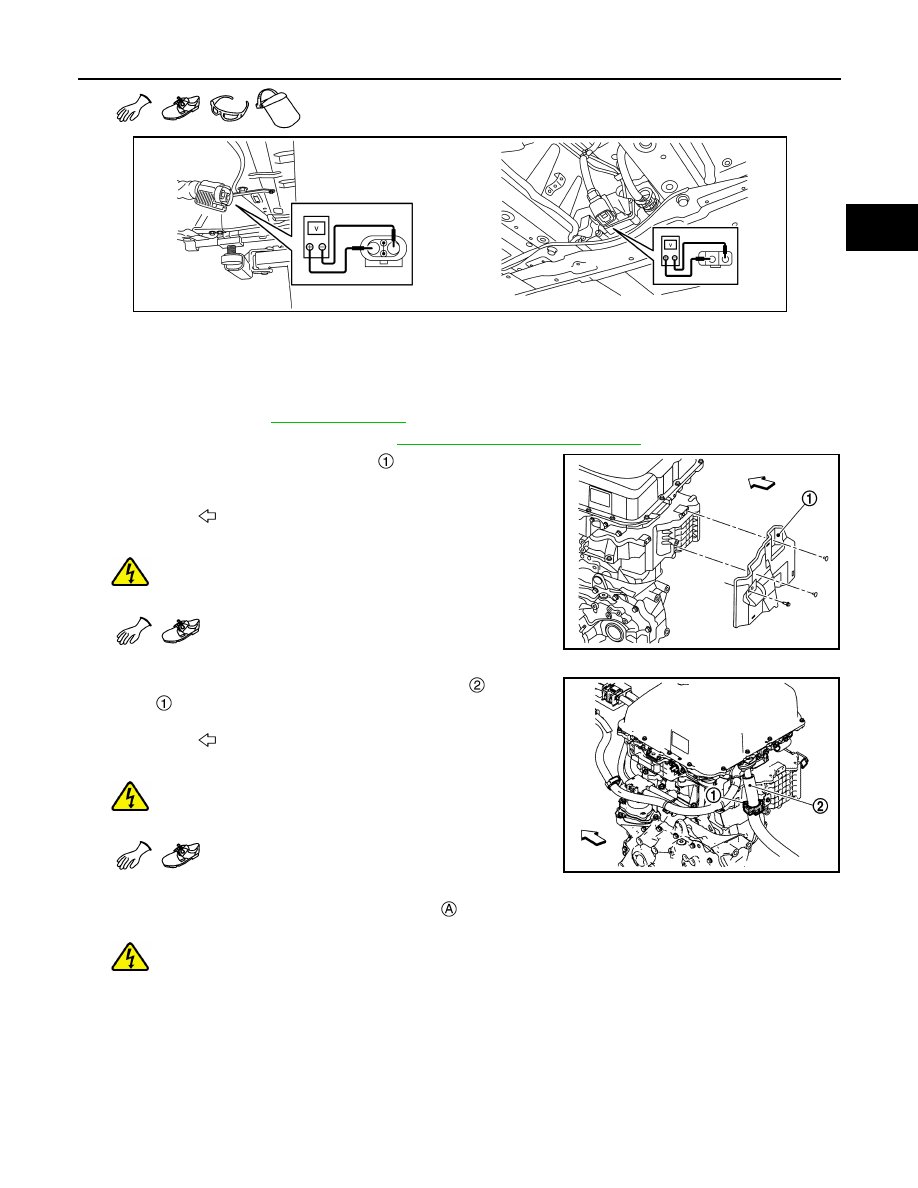

4. Remove the acoustic insulating plate   located on the rear of

the PDM (Power Delivery Module).

WARNING:

Be sure to put on insulating protective gear before

beginning work on the high voltage system.

5. Remove the Li-ion battery high-voltage harness   from the

clamp .

WARNING:

Be sure to put on insulating protective gear before

beginning work on the high voltage system.

6. Remove the normal charge port harness clamp   from the harness bracket.

WARNING:

Be sure to put on insulating protective gear before beginning work on the high voltage sys-

tem.

Standard

: 5 V or less

JPCIA0296ZZ

: Vehicle front

JPCIA0300ZZ

: Vehicle front

JPCIA0301ZZ

VC-114

< REMOVAL AND INSTALLATION >

PDM(POWER DELIVERY MODULE)

7. Remove the radiator upper grille. Refer to

DLK-165, "RADIATOR UPPER GRILLE : Removal and Installa-

tion"

.

8. Remove the reservoir tank. Refer to

HCO-14, "Exploded View"

.

9. Disconnect the electric compressor high-voltage harness connector and low-voltage harness connector.

Refer to

HA-37, "Removal and Installation"

 (WITH HEAT PUMP SYSTEM), or

HA-95, "Removal and

Installation"

 (WITHOUT HEAT PUMP SYSTEM).

WARNING:

Be sure to put on insulating protective gear before beginning work on the high voltage sys-

tem.

10. Remove the right front wheel.
11. Remove the front side of the right fender protector in order to secure work space for removal of the electric

compressor mounting bolts.

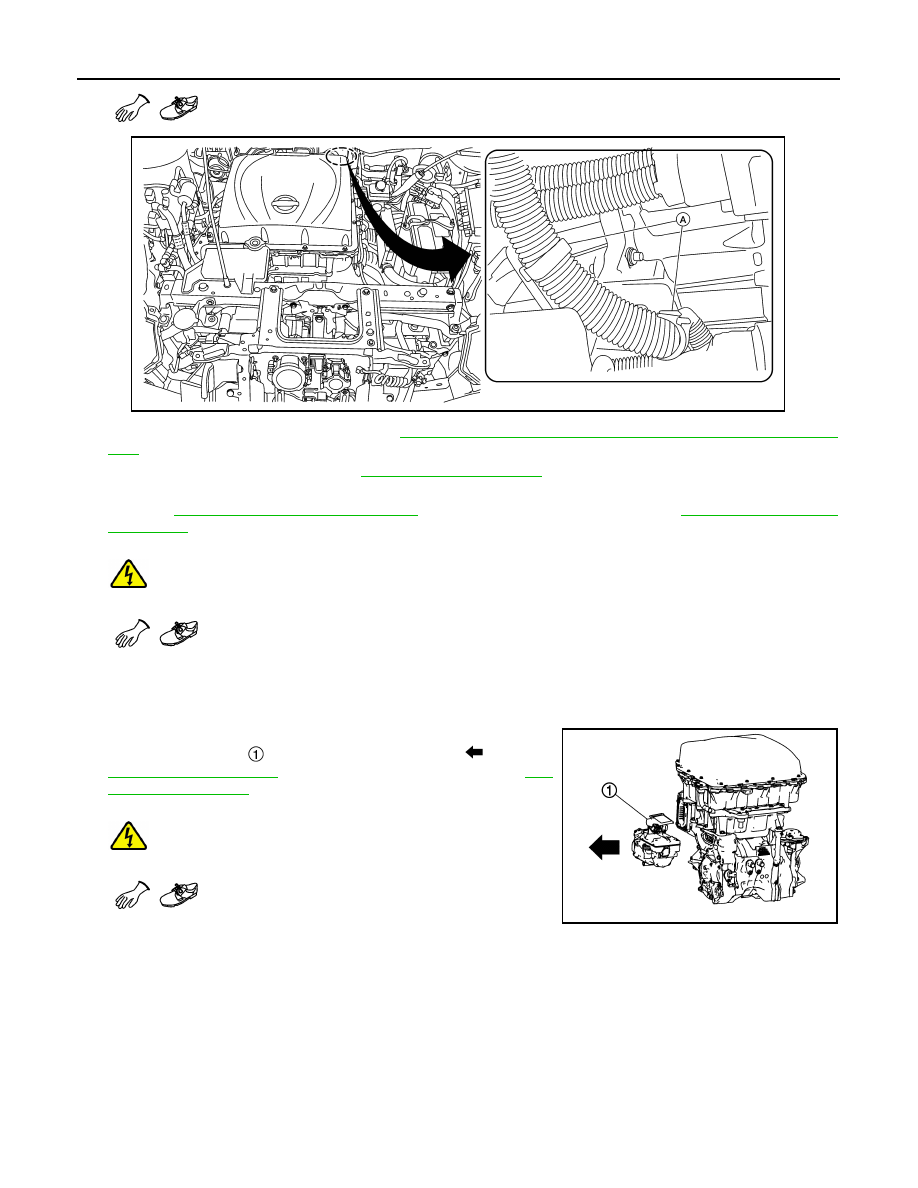

12. Remove the electric compressor mounting bolts and move the

electric compressor   in the direction of the arrow (

). Refer to

HA-37, "Exploded View"

 (WITH HEAT PUMP SYSTEM) or

HA-

95, "Exploded View"

 (WITHOUT HEAT PUMP SYSTEM).

WARNING:

Be sure to put on insulating protective gear before

beginning work on the high voltage system.

NOTE:

Use rope or other means to fasten the electric compressor in a location where it does not interfere with

work.

ALCIA0112ZZ

JPCIA0357ZZ
