Nissan Leaf. Manual - part 1231

B2980 QUICK CHARGE PORT

VC-91

< DTC/CIRCUIT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

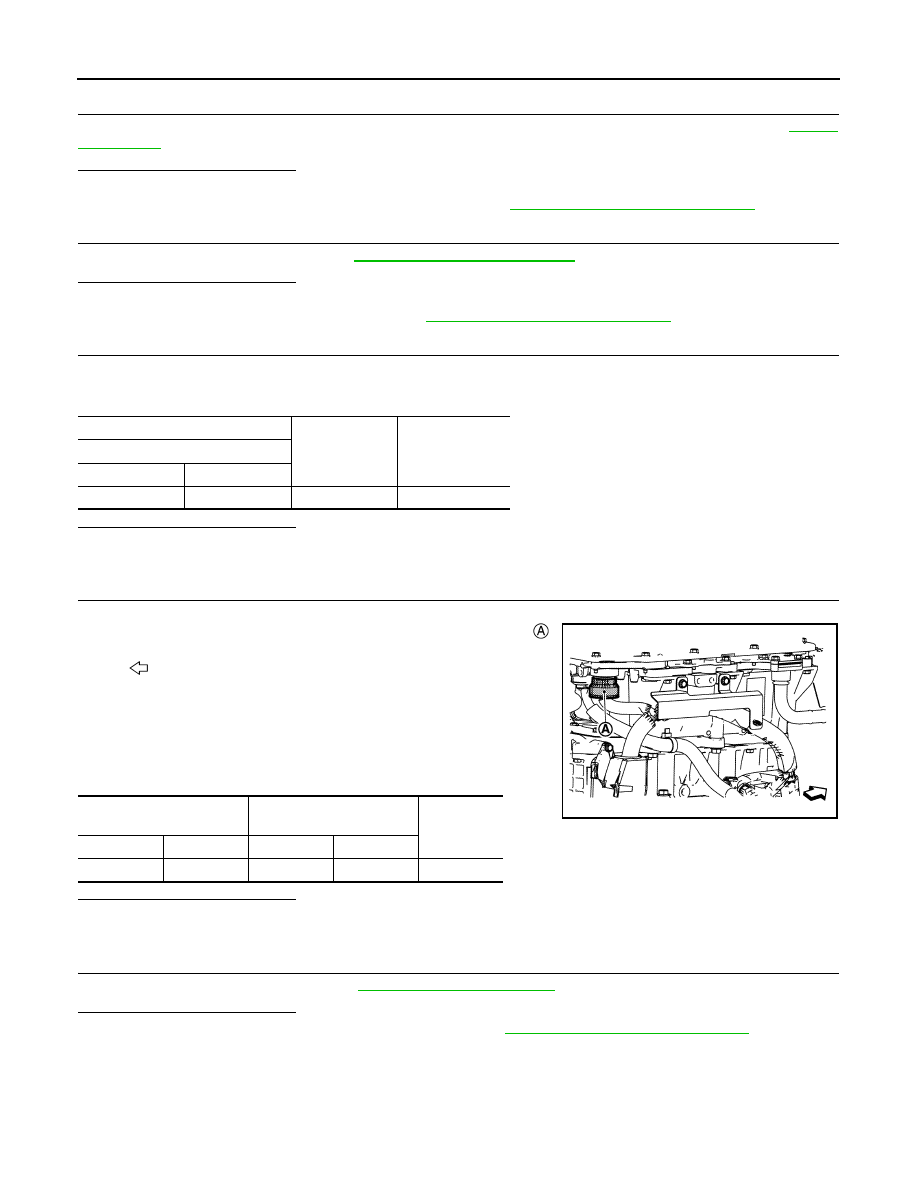

Check the installation of 12V battery negative cable  on PDM

(Power Delivery Module) side.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace 12V battery negative cable on PDM (Power Delivery Module) side connection.

8.

CHECK 12V BATTERY NEGATIVE CABLE ON PDM (POWER DELIVERY MODULE) SIDE (2)

Check the continuity between 12V battery negative cable  on PDM (Power Delivery Module) side and

ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace error-detected parts.

9.

CHECK INTERMITTENT INCIDENT

Check the intermittent incident. Refer to

GI-53, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace PDM (Power Delivery Module). Refer to

VC-112, "Removal and Installation"

.

NO

>> Repair or replace error-detected parts.

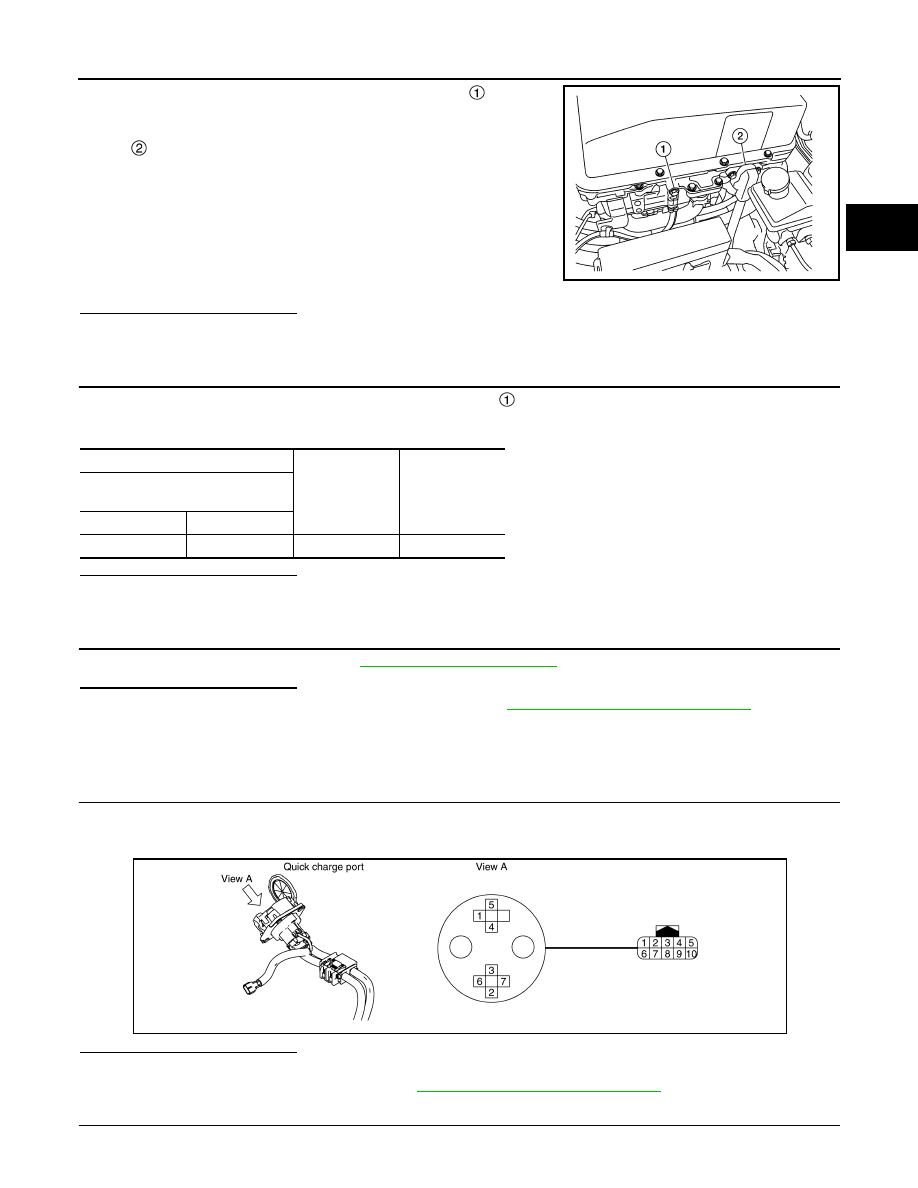

Component Inspection

INFOID:0000000010121280

1.

CHECK QUICK CHARGE PORT

1. Disconnect quick charge port harness connector.

2. Check the continuity between quick charge port terminals and quick charge port side harness connector

of same terminals.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace quick charge port. Refer to

VC-128, "Removal and Installation"

.

2.

CHECK QUICK CHARGE PORT TEMPERATURE SENSOR

Check the resistance between quick charge port side harness connector terminals.

: 12V battery positive cable

ALCIA0137ZZ

+

−

Continuity

PDM

(Power Delivery Module)

Connector

Terminal

F32

51

Ground

Existed

JSCIA0660GB

VC-92

< DTC/CIRCUIT DIAGNOSIS >

B2980 QUICK CHARGE PORT

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace quick charge port. Refer to

VC-128, "Removal and Installation"

.

Quick charge side harness

connector

Condition

Resistance (k

Ω)

Terminal

5

9

Temperature
[

°C (°F)]

-40 – 50
(

−40 – 122)

4

− 170

10

B29A0 NORMAL CHARGE PORT

VC-93

< DTC/CIRCUIT DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

B29A0 NORMAL CHARGE PORT

DTC Logic

INFOID:0000000010121281

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

TYPE A

1.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Perform normal charging for 10 seconds or more.

2. Turn power switch ON.

3. Check “Self-diagnosis result” of “CHARGER/PD MODULE”.
Is DTC detected?

YES

>> Proceed to

VC-93, "TYPE A : Diagnosis Procedure"

.

NO

>> INSPECTION END

TYPE B

1.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Perform normal charging for 2 minutes or more.

2. Turn power switch ON.

3. Check “Self-diagnosis result” of “CHARGER/PD MODULE”.
Is DTC detected?

YES

>> Proceed to

VC-95, "TYPE B : Diagnosis Procedure"

.

NO

>> INSPECTION END

TYPE A
TYPE A : Diagnosis Procedure

INFOID:0000000010121282

1.

PERFORM DTC CONFIRMATION PROCEDURE AGAIN

With CONSULT

1. Turn power switch ON.

2. Erase DTC.

3. Turn power switch OFF.

4. Perform DTC confirmation procedure again by using a EVSE other than the one is used for the previous

DTC confirmation procedure. Refer to

VC-93, "DTC Logic"

.

Is the DTC detected again?

YES

>> GO TO 2.

NO

>> Replace EVSE.

DTC

CONSULT display

(Malfunction type)

DTC detection condition

Possible causes

B29A0

A

N/CHG PORT ENGAGE-
MENT ERROR
(Signal stuck high)

• At the start of charging or during charging,

the EVSE connection detection signal volt-
age is approximately 4.8 V or more, or 1.0
V or less, continuously for 3 seconds or
more.

• During normal charging, the EVSE con-

nection detection signal voltage is approxi-
mately 3.3 V or more continuously for 3
seconds or more.

• Harness and connector

(Normal charge port circuit is
open or shorted.)

• Normal charge port
• EVSE
• PDM (Power Delivery Module)

B

N/CHG PORT ENGAGE-
MENT ERROR
(Signal invalid)

During normal charging, the EVSE connec-
tion detection signal voltage is approximately
3.7 – 4.8 V continuously for 100 seconds or
more.

• Harness and connector

(Normal charge port circuit is
open or shorted.)

• Normal charge port

VC-94

< DTC/CIRCUIT DIAGNOSIS >

B29A0 NORMAL CHARGE PORT

2.

CHECK NORMAL CHARGE PORT CONDITION

Check for any adhering foreign substances, cracking or damage on the normal charge port. Refer to

VC-52,

"Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Clean or replace the normal charge port. Refer to

VC-135, "Removal and Installation"

.

3.

CHECK NORMAL CHARGE PORT

Check the normal charge port. Refer to

VC-95, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace normal charge port. Refer to

VC-135, "Removal and Installation"

.

4.

CHECK EVSE CONNECTION DETECTING CIRCUIT POWER SUPPLY

1. Turn power switch ON.

2. Check the voltage between normal charge port harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

CHECK EVSE CONNECTION DETECTING CIRCUIT

1. Turn power switch OFF.
2. Disconnect PDM (Power Delivery Module) harness connector .

NOTE:

Loosen the PDM (Power Delivery Module) harness connector by

rotating it counterclockwise and remove it.

3. Check the continuity between normal charge port harness con-

nector and PDM (Power Delivery Module) harness connector.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK INTERMITTENT INCIDENT

Check the intermittent incident. Refer to

GI-53, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace PDM (Power Delivery Module). Refer to

VC-112, "Removal and Installation"

.

NO

>> Repair or replace error-detected parts.

TYPE B

+

−

Voltage

Normal charge port

Connector

Terminal

E25

2

Ground

5.0 V

: Vehicle front

Normal charge port

PDM

(Power Delivery Module)

Continuity

Connector

Terminal

Connector

Terminal

E25

2

F23

29

Existed

JSCIA0693ZZ
