Nissan Leaf. Manual - part 1210





PRECAUTIONS

VC-7

< PRECAUTION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

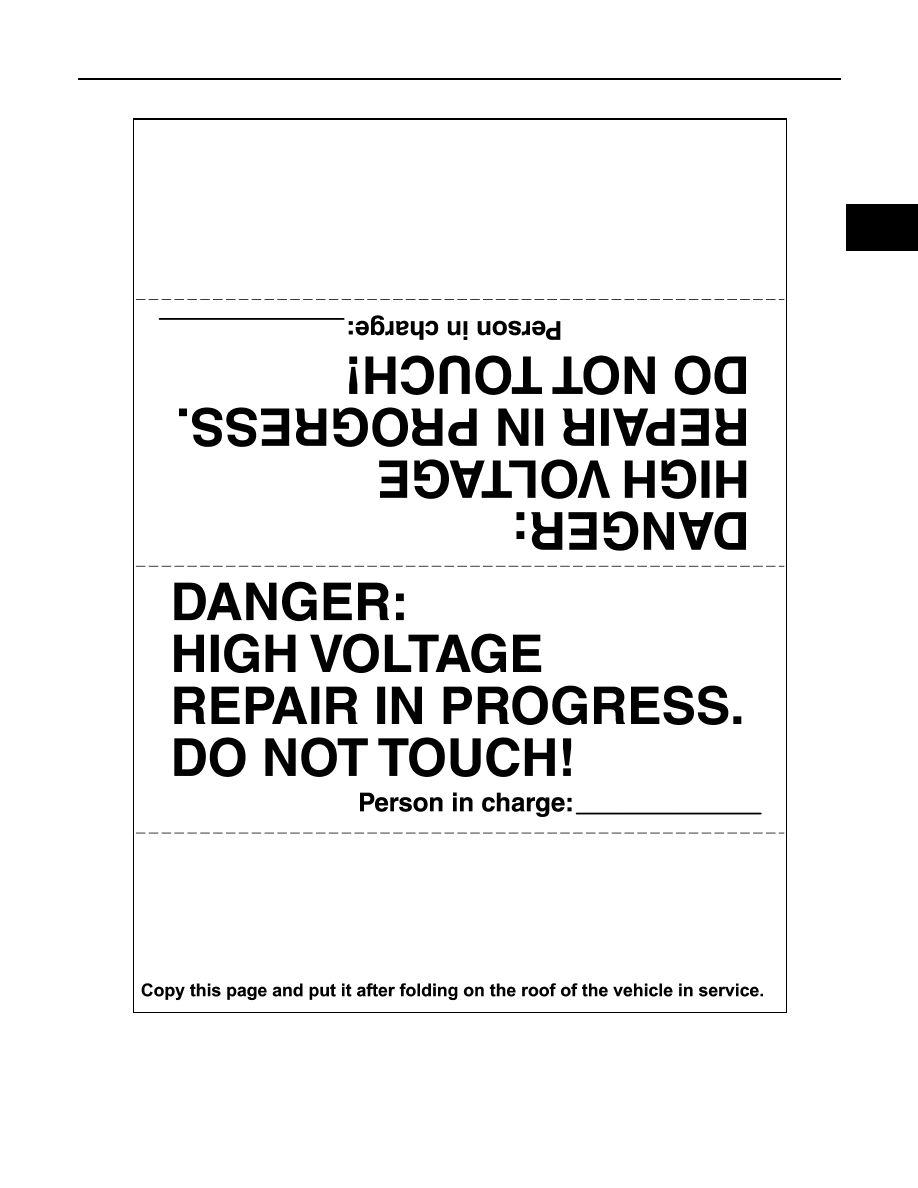

Indicate "HIGH VOLTAGE. DO NOT TOUCH" on the vehicle under repair/inspection to call attention to other

workers.

JSAIA1600GB

V

C

- 8

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

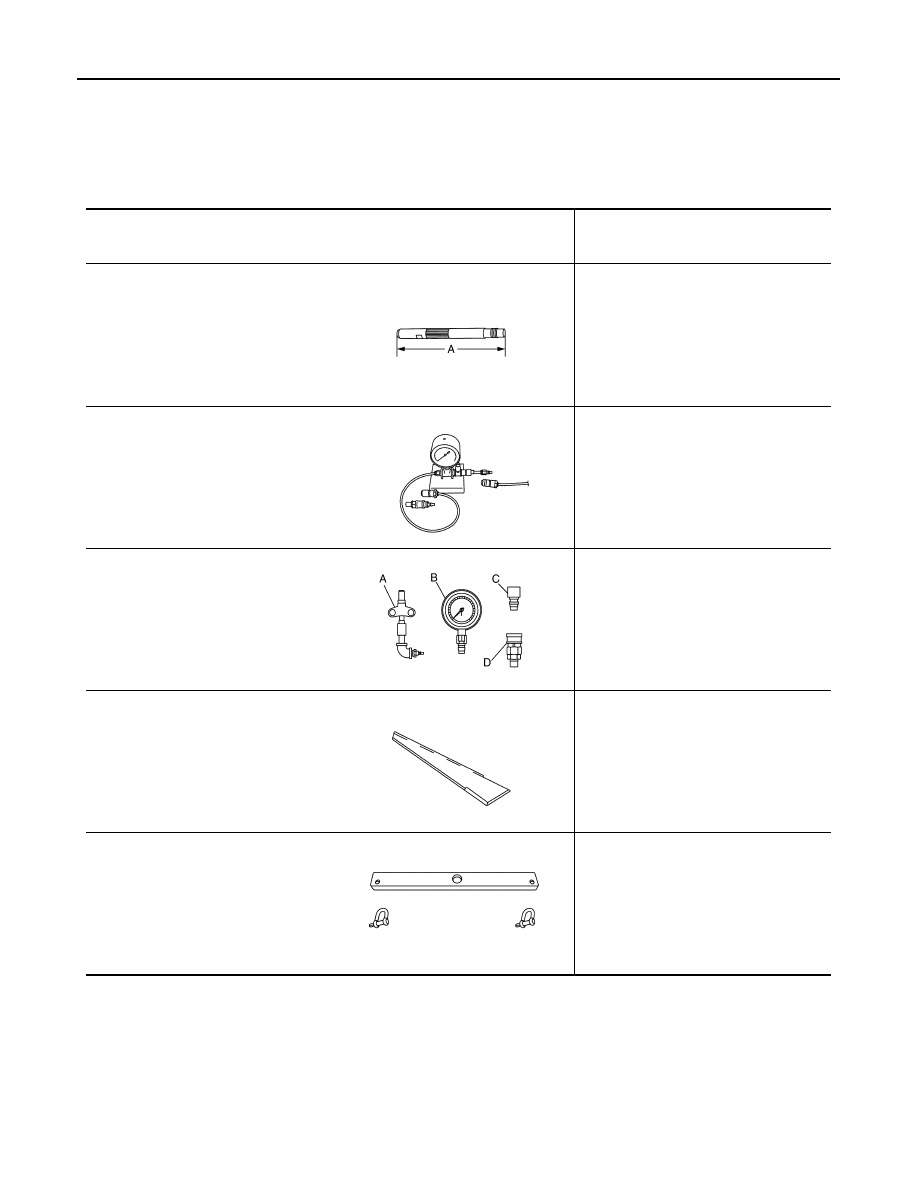

Special Service Tools

INFOID:0000000010121200

The actual shape of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

KV99112300
(J - 51050)
Guide pin

Removing and installing the PDM (Power
Delivery Module)
3 pins/set
A: 106 mm (4.17 in) / 1 pin
     96 mm (3.78 in) / 2 pins

KV99111400
(J - 50378)
Air leak tester

When checking air leaks after disassem-
bling/assembling Li-ion battery.

KV99112400
(J - 51051)
Air leak tester
A: Attachment
B: 25 kPa pressure gauge
C: Male coupler
D: Female coupler for base mounting

Air leak test following disassembly and re-
assembly of the PDM (Power Delivery
Module)

KV10120900
(J - 51053)
Acrylic scraper

Removing liquid gasket

KV99112200
(J - 51049)
Slinger
NOTE:
The slinger comes as a set with 2
shackles.

Supporting and hoisting the PDM (Power
Delivery Module)

JPCIA0332ZZ

JSCIA0257ZZ

JPCIA0351ZZ

JPCIA0335ZZ

JPCIA0373ZZ

PREPARATION

VC-9

< PREPARATION >

D

E

F

G

H

I

J

K

L

M

A

B

VC

N

O

P

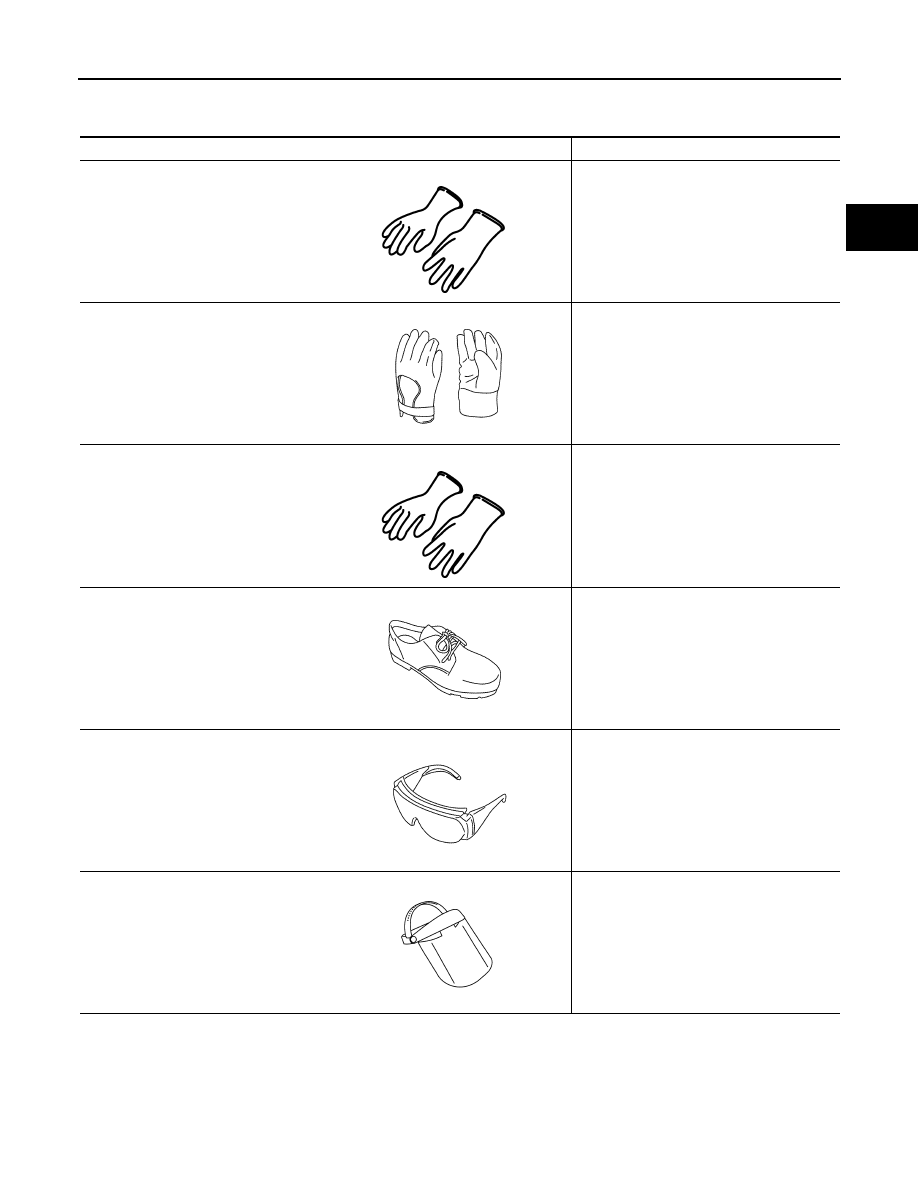

Commercial Service Tools

INFOID:0000000010121201

Tool name

Description

Insulated gloves

Removing and installing high voltage com-
ponents
[Guaranteed insulation performance for
1000V/300A]

Leather gloves

• Removing and installing high voltage

components

• Protect insulated gloves
[Use leather gloves that can fasten the wrist
tight]

Anti-static gloves

• Gloves for preventing static electricit
• Disassembly and reassembly of the PDM

(Power Delivery Module)

Insulated safety shoes

Removing and installing high voltage com-
ponents

Safety glasses

• Removing and installing high voltage

components

• To protect eye from the spatter on the

work to electric line

[ANSI Z87.1]

Face shield

• Removing and installing high voltage

components

• To protect face from the spatter on the

work to electric line

JMCIA0149ZZ

JPCIA0066ZZ

JMCIA0149ZZ

JPCIA0011ZZ

JPCIA0012ZZ

JPCIA0167ZZ

VC-10

< PREPARATION >

PREPARATION

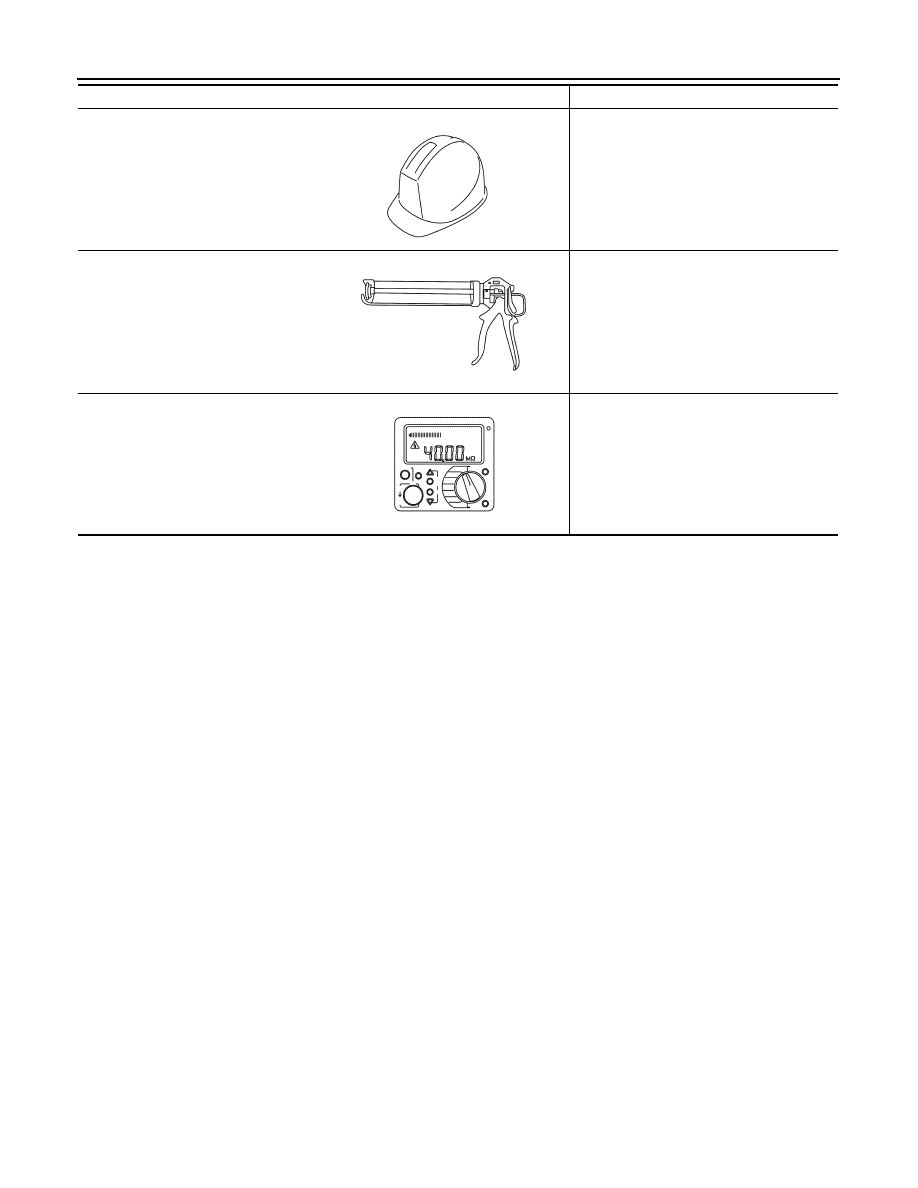

Insulated helmet

Removing and installing high voltage com-
ponents

Tube presser [Gasket material appli-
cator]

 Installing PDM (Power Delivery Module)
cover
(Apply the liquid gasket)

Insulation resistance tester
(Multi tester)

Measuring insulation resistance, voltage,
and resistance

Tool name

Description

JPCIA0013ZZ

JSCIA0639ZZ

JPCIA0014ZZ
