Nissan Leaf. Manual - part 1152

TM-14

< REMOVAL AND INSTALLATION >

[REDUCTION GEAR: RE1F61B]

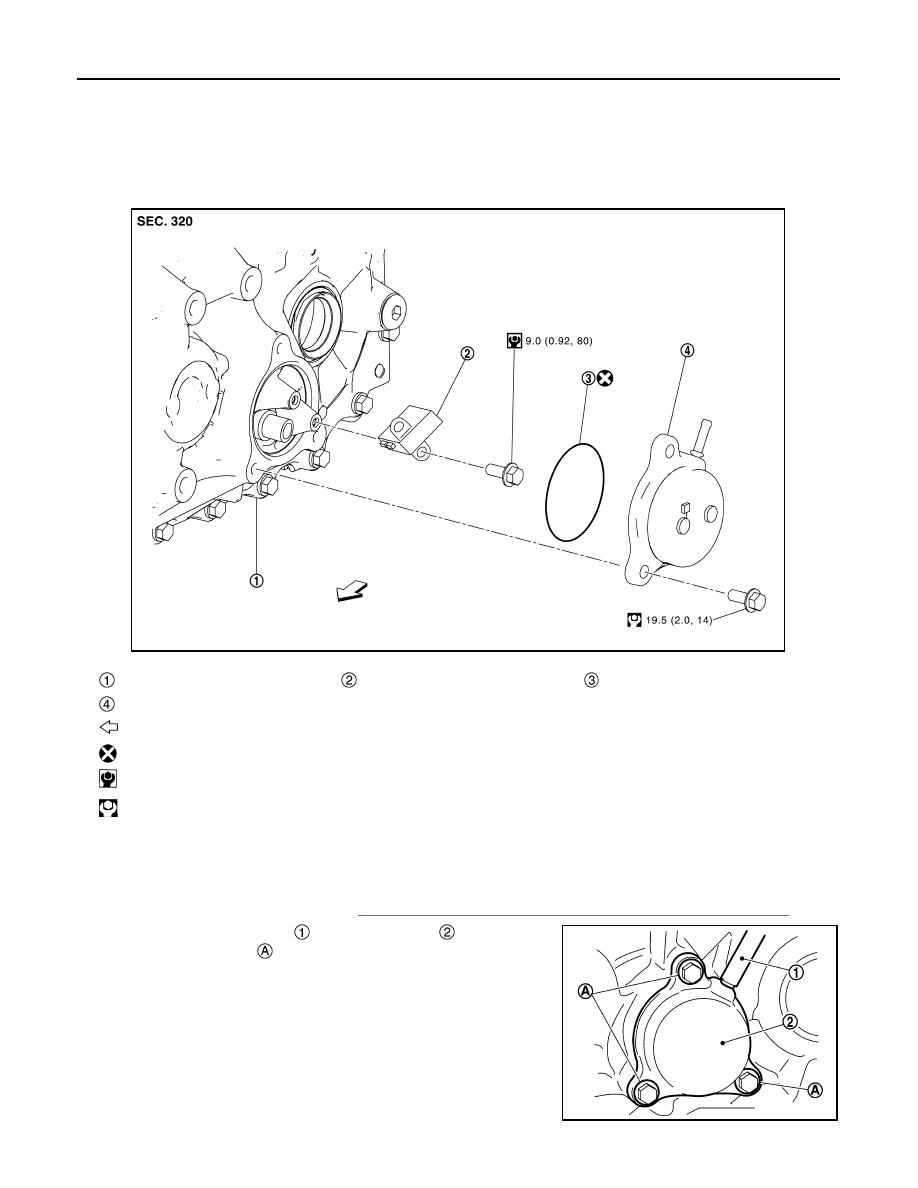

EARTH BRUSH

REMOVAL AND INSTALLATION

EARTH BRUSH

Exploded View

INFOID:0000000010119525

Removal and Installation

INFOID:0000000010119526

REMOVAL

1. Remove front under cover. Refer to

EXT-23, "FRONT UNDER COVER : Removal and Installation"

.

2. Disconnect breather hose   from brush cover  , then remove

the brush cover bolts   and remove brush cover.

Reduction gear

Earth brush

O-ring

Brush cover

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JSDIA3954GB

JSDIA2106ZZ

EARTH BRUSH

TM-15

< REMOVAL AND INSTALLATION >

[REDUCTION GEAR: RE1F61B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

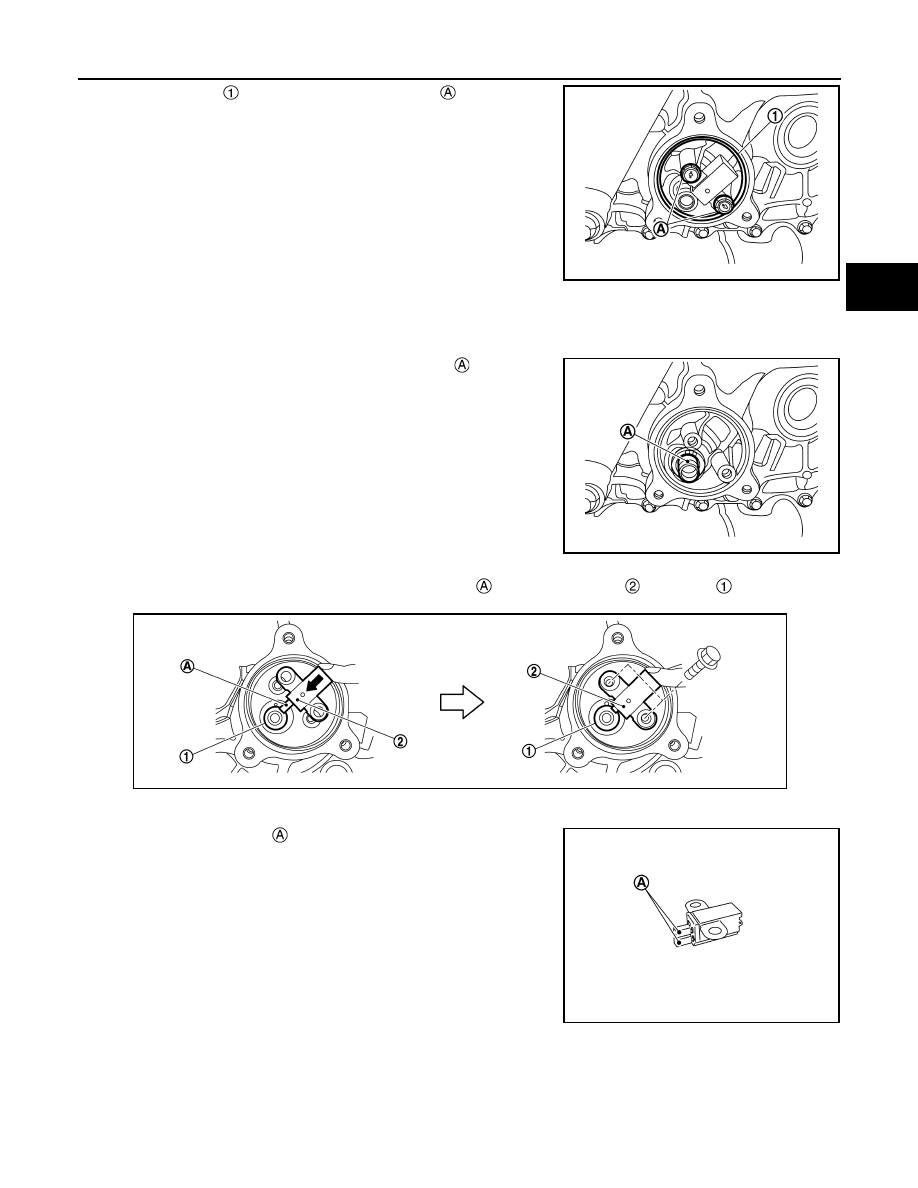

3. Remove O-ring  . Remove brush fixing bolts  , then remove

earth brush.

CAUTION:

• Carefully remove earth brush, because the spring in the

earth brush pushes out the brush.

• Never touch brush area.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Degrease shaft surface (brush contact surface)  , and verify

that there is no dust or other substance on it, then install the

earth brush.

• Degrease brush surface, and verify that there is no dust or

other substance on it, then install the earth brush.

• Never reuse O-ring.

• Never apply oil to O-ring. Verify that there is no oil on it, then

install O-ring.

• Never touch brush area.

• When assembling earth brush, do not touch brush area  , press earth brush   onto shaft   and fasten with

brush fixing bolt.

CAUTION:

Never touch brush area  .

When Replacing With New Part

NOTE:

A new earth brush includes a stopper for preventing brush pop-out. Install with stopper attached.

JSDIA3956ZZ

JSDIA3957ZZ

JSDIA3958ZZ

JSDIA2925ZZ

TM-16

< REMOVAL AND INSTALLATION >

[REDUCTION GEAR: RE1F61B]

EARTH BRUSH

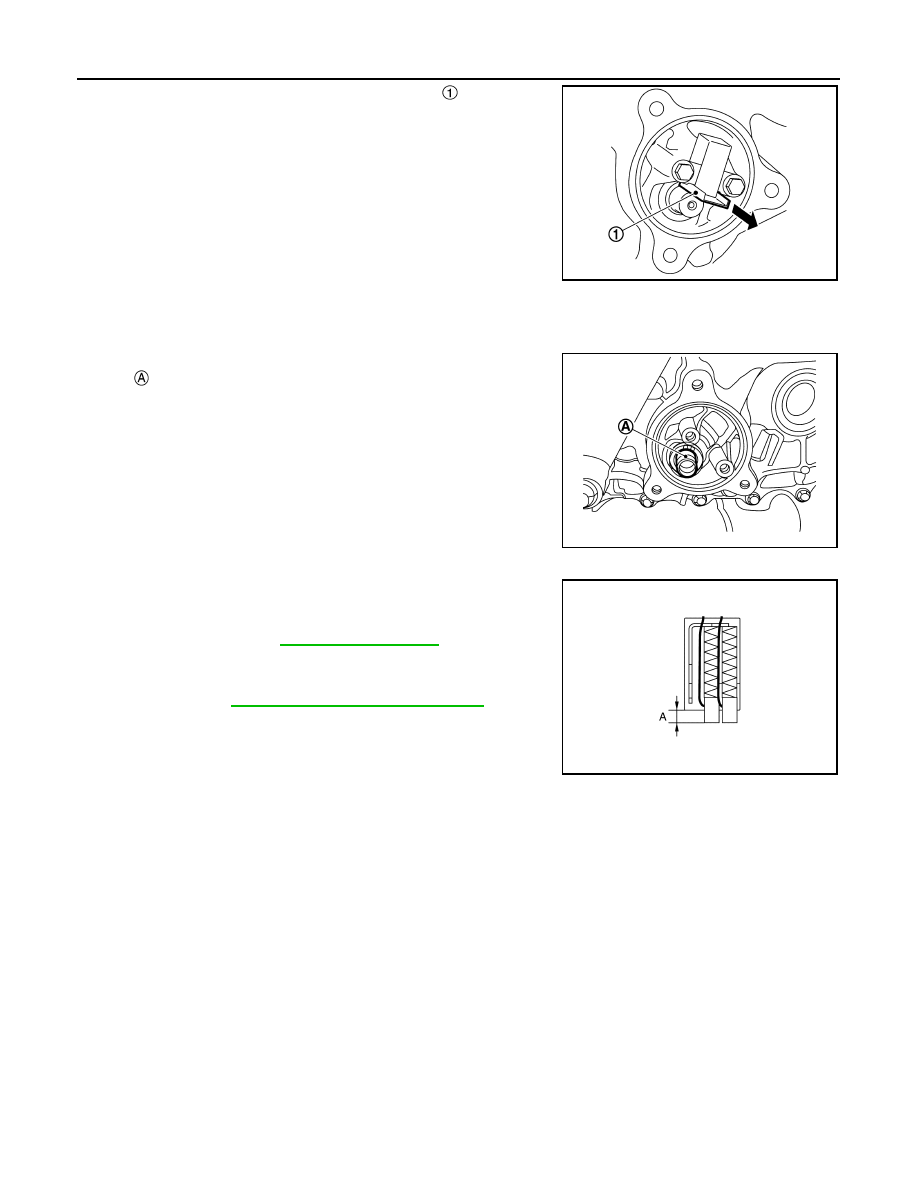

When installing a new earth brush, pull out stopper   after installa-

tion, allowing brush to contact shaft.

CAUTION:

Before installation, degrease the stopper surface (shaft side)

and check that the surface is free of foreign matter.

Inspection

INFOID:0000000010119527

INSPECTION OF REDUCTION GEAR MAIN SHAFT

Check that there is no substance such as oil and dust on main shaft
surface  , and that no corrosion has occurred.

CAUTION:

• When substances such as oil and dust are adherent to the

shaft surface (brush contact surface), remove them and

degrease the shaft surface to install brush.

• When there is corrosion on shaft surface, remove corrosion

to install brush.

INSPECTION FOR BRUSH WEAR

Remove earth brush and measure amount of protrusion (A). If it is at

or below limit value, replace earth brush.

CAUTION:

When reusing with original parts, never allow oil to contact

brush area. Refer to

TM-14, "Removal and Installation"

.

JSDIA2931ZZ

JSDIA3957ZZ

Brush wear limit

:

TM-27, "Earth Brush"

JSDIA2926ZZ

BREATHER HOSE

TM-17

< REMOVAL AND INSTALLATION >

[REDUCTION GEAR: RE1F61B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

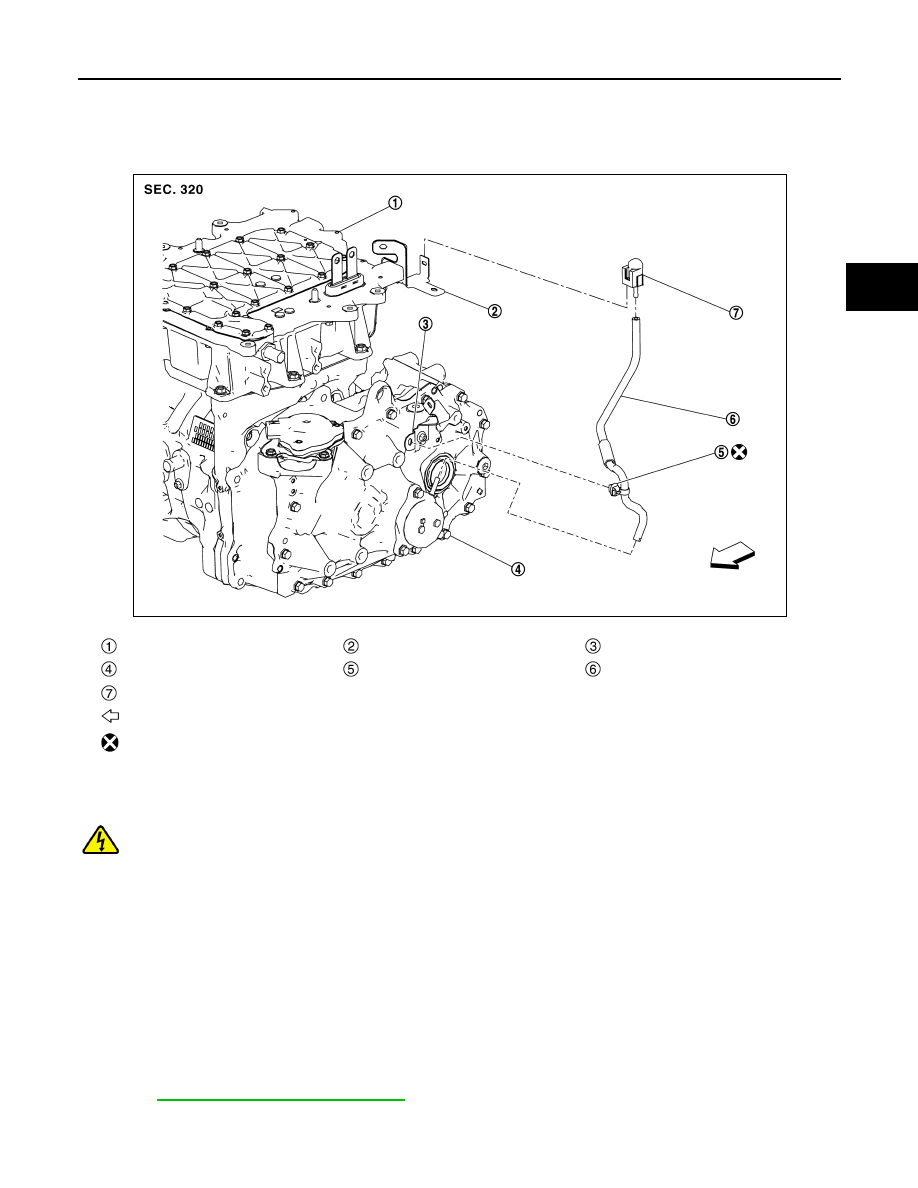

BREATHER HOSE

Exploded View

INFOID:0000000010119528

Removal and Installation

INFOID:0000000010119529

DANGER:

Since hybrid vehicles and electric vehicles contain a high voltage battery, there is the risk of

electric shock, electric leakage, or similar accidents if the high voltage component and vehicle are

handled incorrectly. Be sure to follow the correct work procedures when performing inspection and

maintenance.

WARNING:

• Be sure to remove the service plug in order to disconnect the high voltage circuits before perform-

ing inspection or maintenance of high voltage system harnesses and parts.

• The removed service plug must always be carried in a pocket of the responsible worker or placed in

the tool box during the procedure to prevent the plug from being connected by mistake.

• Be sure to wear insulating protective equipment consisting of glove, shoes, face shield and glasses

before beginning work on the high voltage system.

• Never allow workers other than the responsible person to touch the vehicle containing high voltage

parts. To keep others from touching the high voltage parts, these parts must be covered with an insu-

lating sheet except when using them.

• Refer to

TM-5, "High Voltage Precautions"

.

CAUTION:

Inverter

Harness bracket

Harness bracket

Reduction gear

Clip

Breather hose

Breather

: Vehicle front

: Always replace after every disassembly.

JSDIA3969ZZ
