TM-10

< PREPARATION >

[REDUCTION GEAR: RE1F61B]

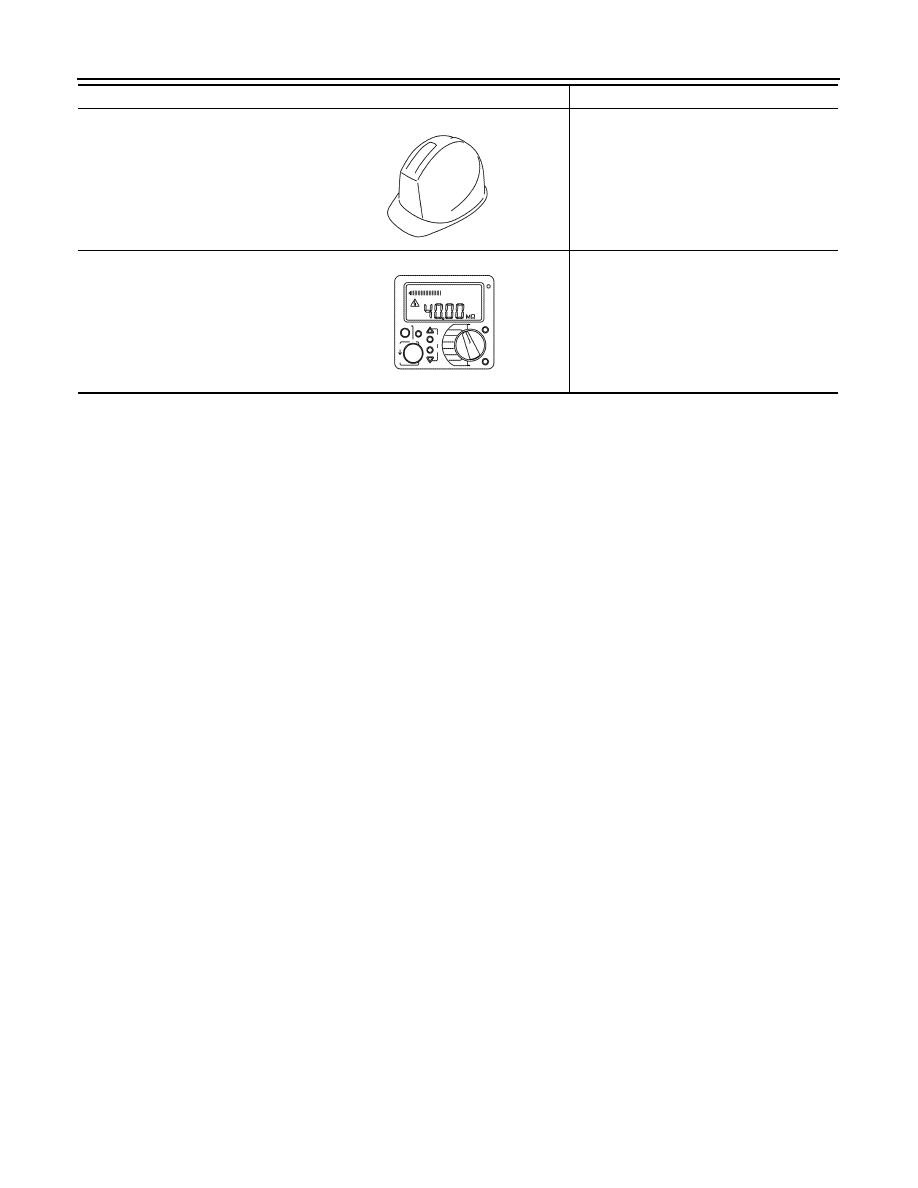

PREPARATION

Insulated helmet

Removing and installing high voltage com-
ponents

Insulation resistance tester
(Multi tester)

Measuring insulation resistance, voltage,
and resistance

Tool name

Description

JPCIA0013ZZ

JPCIA0014ZZ

STRUCTURE AND OPERATION

TM-11

< SYSTEM DESCRIPTION >

[REDUCTION GEAR: RE1F61B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SYSTEM DESCRIPTION

STRUCTURE AND OPERATION

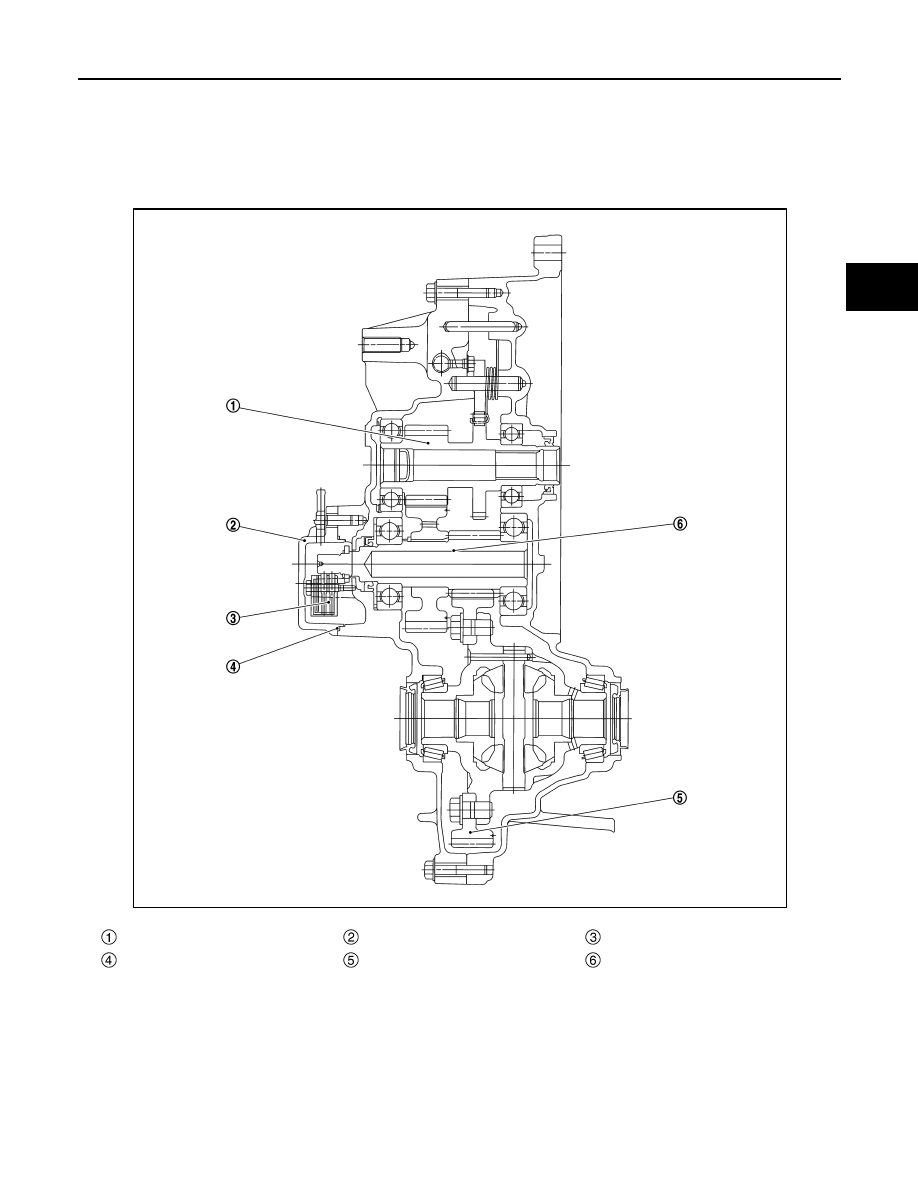

Sectional View

INFOID:0000000010119521

Input gear

Brush cover

Earth brush

O-ring

Final gear

Main shaft

JSDIA3977ZZ

TM-12

< SYSTEM DESCRIPTION >

[REDUCTION GEAR: RE1F61B]

STRUCTURE AND OPERATION

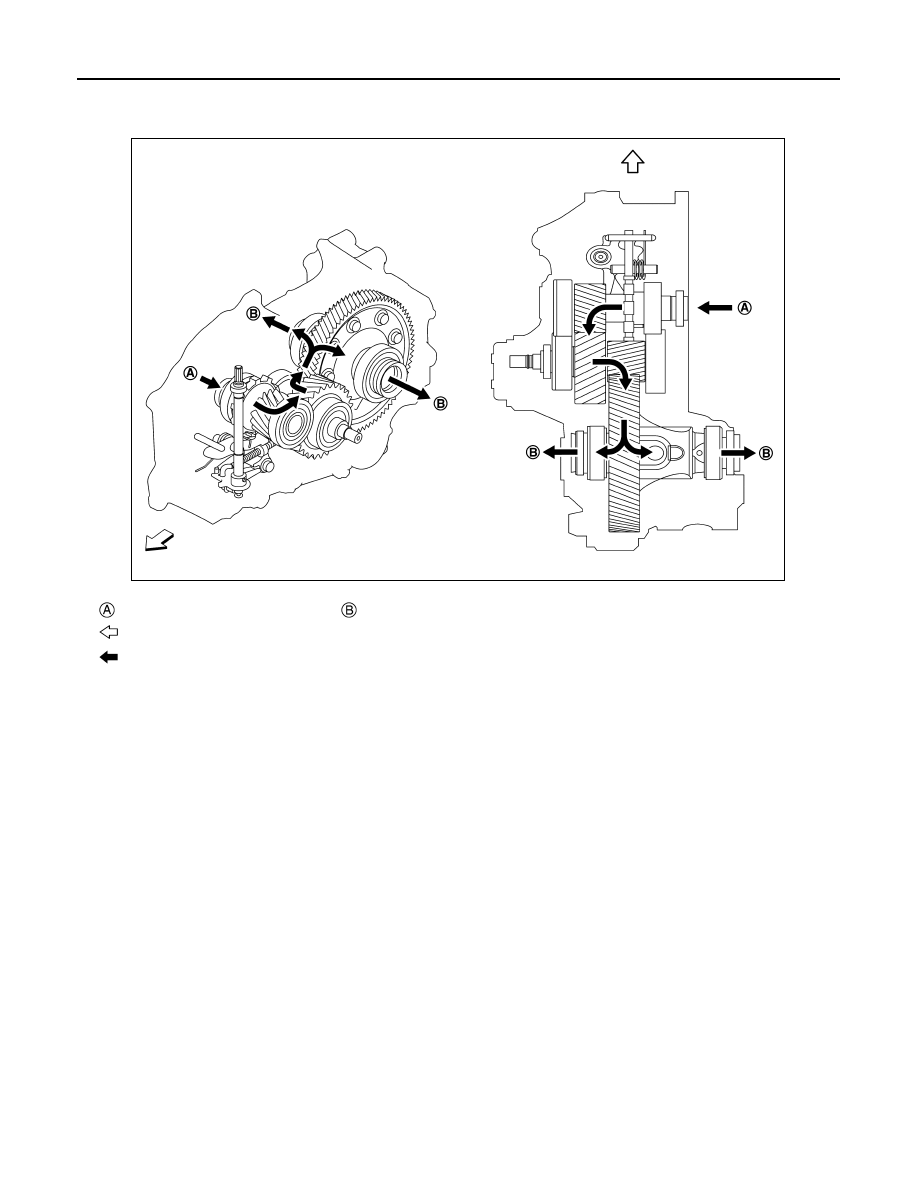

Power Transfer Diagram

INFOID:0000000010119522

From traction motor

To drive shaft

: Vehicle front

: Power flow

JSDIA3980ZZ

REDUCTION GEAR OIL

TM-13

< PERIODIC MAINTENANCE >

[REDUCTION GEAR: RE1F61B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PERIODIC MAINTENANCE

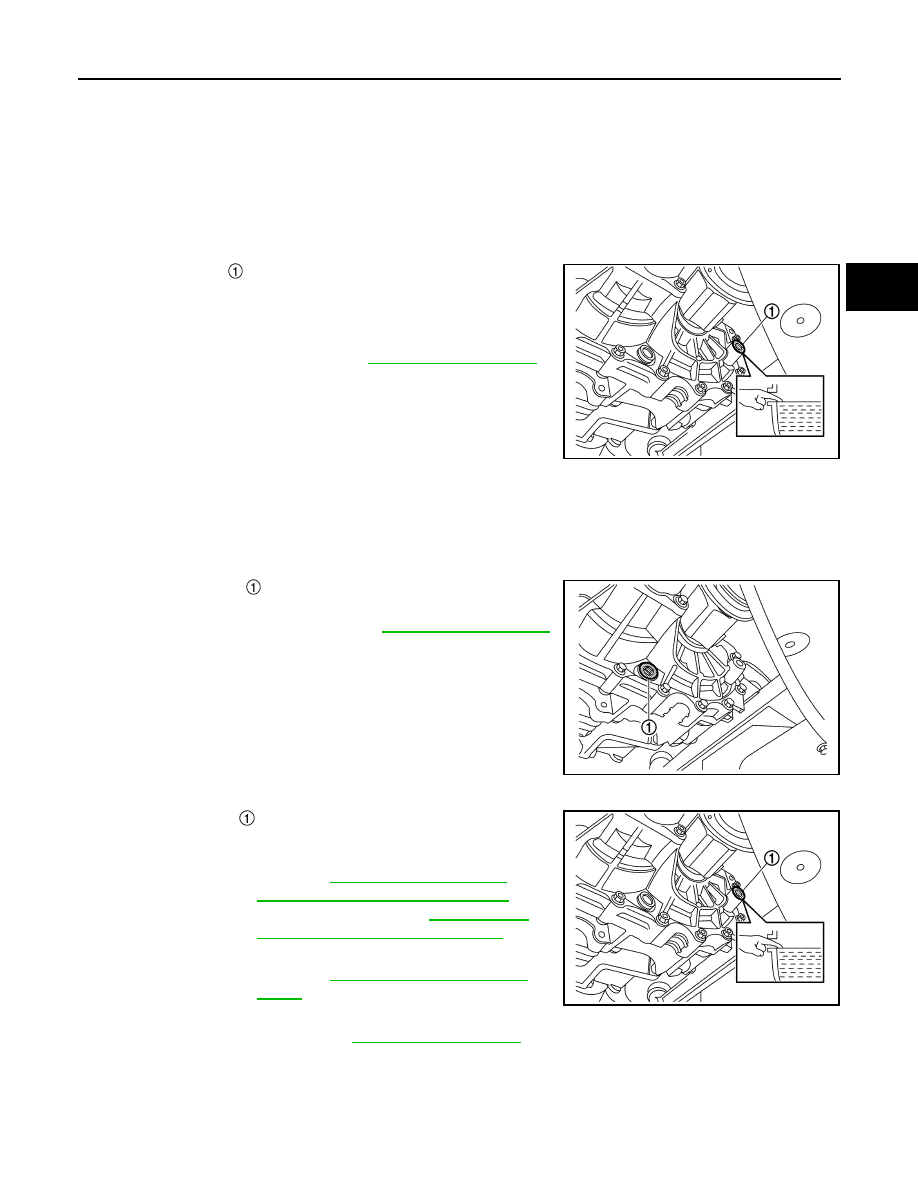

REDUCTION GEAR OIL

Inspection

INFOID:0000000010119523

OIL LEAKAGE

Check reduction gear surrounding area (oil seal, drain plug, and filler plug etc.) for oil leakage.

OIL LEVEL

• Remove filler plug   and gasket. Then check that oil is filled up

from mounting hole for the filler plug.

CAUTION:

Turn the power switch OFF while checking oil level.

• Set a gasket on filler plug and install it on reduction gear and

tighten to the specified torque. Refer to

TM-21, "Exploded View"

.

CAUTION:

• Never reuse gasket.

• If foreign matter, such as gear abrasion powder, is on the

magnet of the filler plug, wipe it free of adherents before

installation.

Draining and Refilling

INFOID:0000000010119524

DRAINING

1. Turn the power switch OFF.
2. Remove filler plug.
3. Remove drain plug   and drain gear oil.
4. Set a gasket on drain plug and install it to reduction gear and

tighten to the specified torque. Refer to

TM-21, "Exploded View"

.

CAUTION:

• Never reuse gasket.

• If foreign matter, such as gear abrasion powder, is on the

magnet of the drain plug, wipe it free of adherents before

installation.

REFILLING

1. Remove filler plug  . Fill with new gear oil until oil level reaches

the specified level near filler plug mounting hole.

2. After refilling oil, check oil level. Set a gasket on filler plug, then

install it to reduction gear. Refer to

TM-21, "Exploded View"

.

CAUTION:

• Never reuse gasket.

• If foreign matter, such as gear abrasion powder, is on the magnet of the filler plug, wipe it free of

adherents before installation.

JSDIA3975ZZ

JSDIA3976ZZ

Oil grade

: Refer to

MA-16, "FOR USA AND

CANADA : Fluids and Lubricants"



(USA and Canada) and

MA-17, "FOR

MEXICO : Fluids and Lubricants"



(Mexico).

Oil capacity

: Refer to

TM-27, "General Specifica-

tions"

.

JSDIA3975ZZ
