Perform “After Replace ECU” or “Manual Configuration” to write vehicle specification. Refer to

AV-423, "CON-

FIGURATION (AV CONTROL UNIT) : Work Procedure"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> WORK END

ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-
TROL UNIT
ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL
UNIT : Description

INFOID:0000000010122643

Perform the calibrating camera image when replacing around view monitor control unit. Refer to

AV-425,

"CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

.

CONFIGURATION (AV CONTROL UNIT)
CONFIGURATION (AV CONTROL UNIT) : Description

INFOID:0000000010122644

• Since vehicle specifications are not included in the AV control unit after replacement, it is required to write

vehicle specifications with CONSULT.

• Configuration has three functions as follows.

CONFIGURATION (AV CONTROL UNIT) : Work Procedure

INFOID:0000000010122645

1.

WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Write vehicle specification into AV control unit.

To write vehicle specification stored in CONSULT into the AV control unit>>GO TO 2.

To write vehicle specification into the AV control unit by hand>>GO TO 3.

2.

WRITE STORED DATA

CONSULT Configuration

Select “After Replace ECU” in “Read/Write Configuration.” Write data stored in CONSULT with the “Before

Replace ECU” function into the AV control unit.

>> GO TO 4.

3.

MANUALLY WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Perform “Manual Configuration.” Refer to the Configuration List to write vehicle specification into the AV con-

trol unit.  Refer to

AV-424, "CONFIGURATION (AV CONTROL UNIT) : Configuration List"

.

NOTE:

If selection items are not displayed on the CONSULT screen, touch “NEXT.”

Function

Description

Read/Write Configuration

Before Replace ECU

Allows the reading of vehicle specification written in AV control unit
to store the specification in CONSULT.

After Replace ECU

Allows the writing of the vehicle information stored in CONSULT
into the AV control unit.

Manual Configuration

Allows the writing of the vehicle specification into the AV control
unit by hand.

AV-424

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

INSPECTION AND ADJUSTMENT

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines and predictive course

lines) are normal.

>> WORK END

CONFIGURATION (AV CONTROL UNIT) : Configuration List

INFOID:0000000010122646

CAUTION:

Check vehicle specifications before servicing.

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)
CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Work Procedure

INFOID:0000000010122647

1.

SAVING VEHICLE SPECIFICATION

-CONSULT Configuration

Perform “Before Replace ECU”, and save the current vehicle specification in CONSULT.
Is the vehicle specification saved normally?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-502, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

-CONSULT Configuration

Select “Configuration” or “After Replace ECU”, and write the vehicle specification saved in CONSULT to

around view monitor control unit.

>> GO TO 6.

4.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-502, "Removal and Installation"

.

>> GO TO 5.

5.

WRITE VEHICLE SPECIFICATION

CONSULT Configuration

Select “Manual Configuration”, and write the vehicle specification to around view monitor control unit.

NOTE:

Around view monitor control unit does not have any setting items. Selection of items on “Manual Configura-

tion” screen is not required.

MANUAL SETTING ITEM

Items

Setting value

STEERING

LHD

RHD

SOUND SYSTEM

BASE

BOSE

AV

INSPECTION AND ADJUSTMENT

AV-425

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

>> GO TO 6.

6.

PERFORM SELF-DIAGNOSIS

CONSULT Self Diagnostic Result

Perform self-diagnosis of CONSULT, and check whether or not DTC U1305 is detected.
Is DTC U1305 detected?

>> GO TO 5.

>> GO TO 7.

7.

OPERATION CHECK

Check that the operation of the around view monitor control unit and camera images (fixed guide lines and

predictive course lines) are normal.

>> WORK END

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT
PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Description

INFOID:0000000010122648

Adjust the center position of the predictive course line of the rear view monitor if it is shifted.

PREDICTIVE COURSE LINE CENTER POSITION ADJUSTMENT : Work Procedure

INFOID:0000000010122649

1.

DRIVING

Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.

>> END

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)
CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Description

INFOID:0000000010122650

• Calibration must be performed after removing/replacing the cameras, removing parts (e.g. front grille, door

mirror, and others) mounted on the cameras, or replacing the Around view monitor control unit.

• The use of CONSULT is required to perform calibration or writing of calibration results to the Around view

monitor control unit.

• Align the white lines on the road near the vehicle at the boundary of each camera image by this camera cal-

ibration. The white lines far from the vehicle may not be aligned at the boundary of each camera image. The

farther the line, the greater the difference is.

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure

INFOID:0000000010122651

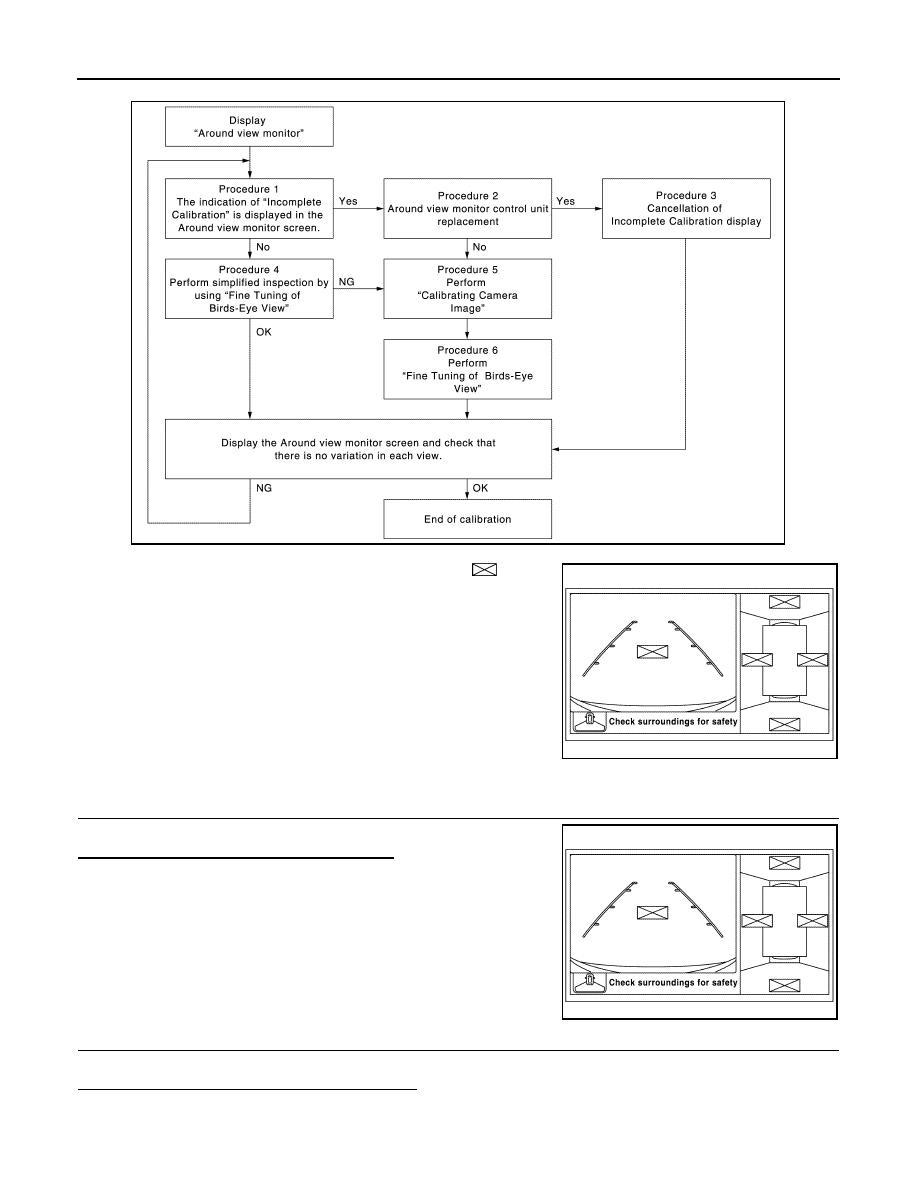

CALIBRATION FLOWCHART

AV-426

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

INSPECTION AND ADJUSTMENT

Following the flowchart shown in the figure, perform the calibration.

NOTE:
View in the incomplete calibration state is indicated by “

” on the

around view monitor.

CALIBRATION PROCEDURE

1.

AROUND VIEW MONITOR SCREEN CONFIRMATION

Check that there is no indication of “Incomplete calibration”.
Is the “Incomplete calibration” display visible?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK THAT AROUND VIEW MONITOR CONTROL UNIT IS REPLACED

Check that the around view monitor control unit is replaced.
Is the around view monitor control unit replaced?

YES

>> GO TO 3.

NO

>> GO TO 5.
