VEHICLE SECURITY SYSTEM : System Description (Except for Canada)

INFOID:0000000010119232

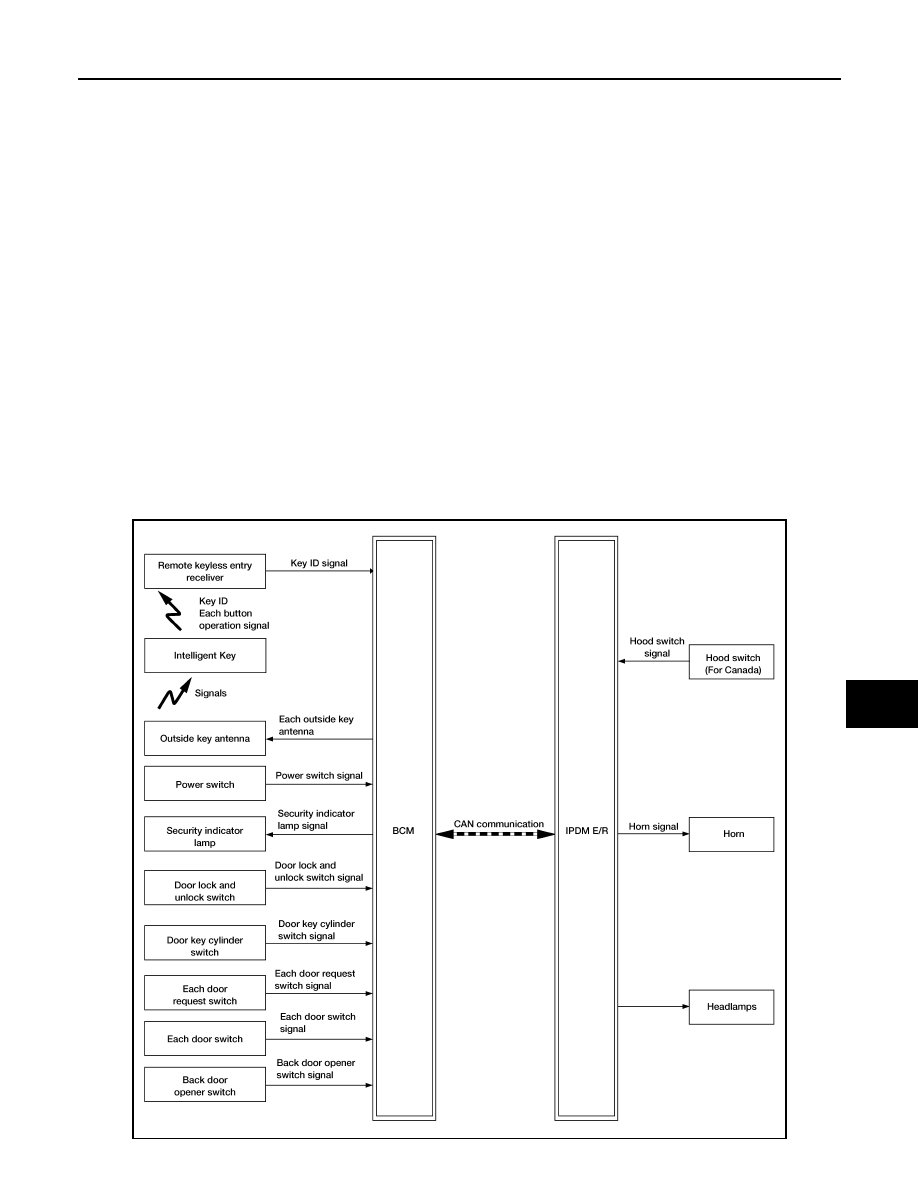

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL CHART

Input Signal Item

Output Signal Item

ALKIA3524GB

Transmit unit

Signal name

IPDM E/R

CAN communication

Power switch status signal

Remote keyless entry receiver

Key ID signal
Intelligent Key button operation signal

Power switch

Power switch operation signal

Each door switch

Door open/close condition signal

Each door request switch

Door lock/unlock request signal

Back door opener switch

Back door opener operation signal

Door key cylinder switch

Door key cylinder lock/unlock switch signal

Door lock and unlock switch

Door lock/unlock switch operation signal

SYSTEM

SEC-19

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SYSTEM DESCRIPTION

• The vehicle security system has two alarm functions (theft warning alarm and panic alarm), and reduces the

possibility of a theft or mischief by activating horns and headlamps intermittently.

• The panic alarm does not start when the theft warning alarm is activating, and the panic alarm stops when

the theft warning alarm is activated.

The priority of the functions are as per the following.

THEFT WARNING ALARM

• The theft warning alarm function activates horns and headlamps intermittently when BCM detects that any

door is opened by unauthorized means, while the system is in the ARMED state.

• Security indicator lamp on combination meter always blinks when power supply position is any position other

than ON. Security indicator lamp blinking warns that the vehicle is equipped with a vehicle security system.

Operation Flow

Reception unit

Signal name

Combination meter

CAN communication

Security indicator lamp signal

IPDM E/R

Vehicle security horn request signal

High beam request signal

Outside key antenna

Key ID request signal

Priority

Function

1

Theft warning alarm

2

Panic alarm

JMKIA5416GB

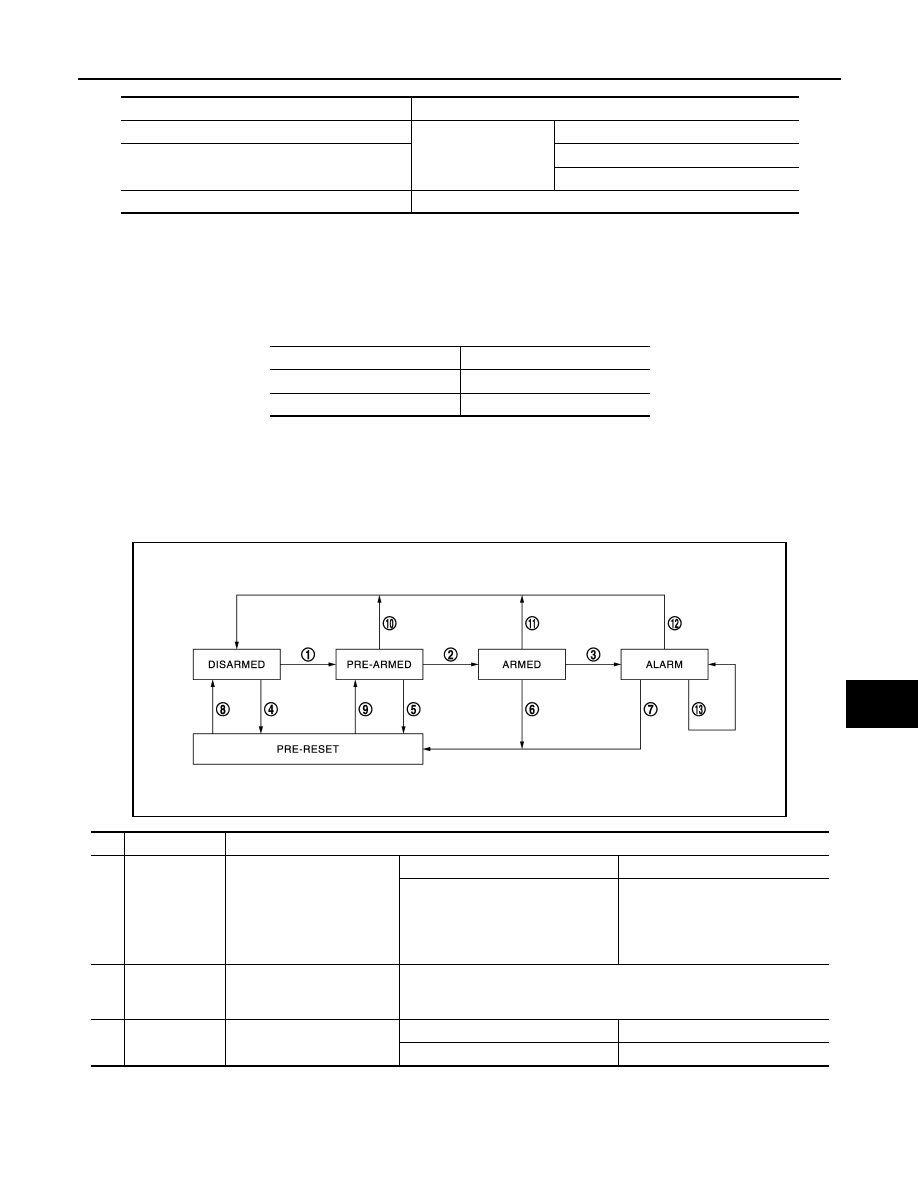

No.

System state

Switching condition

1

DISARMED to
PRE-ARMED

When all conditions of A and
one condition of B is satis-
fied.

A

B

• Power switch: OFF
• All doors: Closed

All doors are locked by:
• Door key cylinder LOCK switch
• LOCK button of Intelligent Key
• Door request switch
• Door lock and unlock switch

2

PRE-ARMED
to ARMED

When all of the following
conditions are satisfied for
30 seconds.

• Power switch: OFF
• All doors: Locked

3

ARMED  to
ALARM

When all conditions of A and
B are satisfied.

A

B

Intelligent Key: Not used

• Any door: Open

SEC-20

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

NOTE:
• BCM ignores the door key cylinder UNLOCK switch signal input for 1 second after the door key cylinder LOCK switch signal input.
• To lock/unlock all doors by operating remote controller button of Intelligent Key or door request switch, Intelligent Key must be within

the detection area of outside key antenna. For details, refer to

DLK-25, "DOOR LOCK FUNCTION : System Description"

.

• To open back door by operating back door opener switch, Intelligent Key must be within the detection area of outside key antenna. For

details, refer to

DLK-25, "DOOR LOCK FUNCTION : System Description"

.

DISARMED Phase

The vehicle security system is not set in the DISARMED phase. The vehicle security system stays in this

phase while any door is open, because it is assumed that the owner is inside or nearby the vehicle. Security

indicator lamp blinks every 2.4 seconds.

When the vehicle security system is reset, each phase switches to the DISARMED phase directly.

PRE-ARMED Phase

The PRE-ARMED phase is the transient state between the DISARMED phase and the ARMED phase. This

phase is maintained for 30 seconds, so that the owner can reset the setting due to a mis-operation. This phase

switches to the ARMED phase when vehicle conditions are not changed for 30 seconds. Security indicator

lamp illuminates while being in this phase.

To reset the PRE-ARMED phase, refer to the switching condition of No. 10 in the table above.

ARMED Phase

The vehicle security system is set, and BCM monitors all necessary inputs. If any door is opened without using

Intelligent Key, vehicle security system switches to the ALARM phase. Security indicator lamp blinks every 2.4

seconds.

To reset the ARMED phase, refer to the switching condition of No. 11 in the table above.

ALARM Phase

BCM transmits “Theft Warning Horn Request” signal and “High Beam Request” signal intermittently to IPDM

E/R via CAN communication. In this phase, horns and headlamps are activated intermittently for approxi-

mately 50 seconds to warn that the vehicle is accessed by unauthorized means. ON/OFF timing of horns and

headlamps are synchronized. After 50 seconds, the vehicle security system returns to the ARMED phase. At

this time, if BCM still detects unauthorized access to the vehicle, the system is switched to the ALARM phase

again. This RE-ALARM operation is carried out a maximum of 2 times.

4

DISARMED to
PRE-RESET

No conditions.

5

PRE-ARMED
to PRE-RESET

6

ARMED to
PRE-RESET

7

ALARM  to
PRE-RESET

8

PRE-RESET to
DISARMED

9

PRE-RESET to
PRE-ARMED

10

PRE-ARMED
to DISARMED

When one of the following
condition is satisfied.

• Power switch: ACC/ON
• Door key cylinder UNLOCK switch: ON
• UNLOCK button of Intelligent Key: ON
• Door request switch: ON
• Back door opener switch: ON
• Any door: Open

11

ARMED to
DISARMED

When one of the following
condition is satisfied.

• Power switch: ACC/ON
• Door key cylinder UNLOCK switch: ON
• UNLOCK button of Intelligent Key: ON
• Door request switch: ON
• Back door opener switch: ON

12

ALARM to
DISARMED

13

RE-ALARM

When the following condition
is satisfied after the ALARM
operation is finished.

• Any door: Open

No.

System state

Switching condition

SYSTEM

SEC-21

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

To cancel the ALARM operation, refer to the switching condition of No. 12 in the table above.

NOTE:

If a battery terminal is disconnected during the ALARM phase, theft warning alarm stops. But when the battery

terminal is reconnected, theft warning alarm is activated again.

PRE-RESET Phase

The PRE-RESET phase is the transient state between each phase and DISARMED phase.

The PRE-RESET phase is not available for this models.

PANIC ALARM

• The panic alarm function activates horns and headlamps intermittently when the owner presses the PANIC

ALARM button of Intelligent Key outside the vehicle while the power supply position is OFF.

• When BCM receives panic alarm signal from Intelligent Key, BCM transmits “Theft Warning Horn Request”

signal and “High Beam Request” signal intermittently to IPDM E/R via CAN communication. To prevent the

activation due to mis-operation of Intelligent Key by owner, the panic alarm function is activated when BCM

receives the signal for 0.4 - 0.6 seconds.

• Panic alarm operation is maintained for 25 seconds.

• Panic alarm operation is cancelled when BCM receives one of the following signals.

- LOCK button of Intelligent Key: ON

- UNLOCK button of Intelligent Key: ON

- PANIC ALARM button of Intelligent Key: Long pressed

- Any door request switch: ON
