Nissan Leaf. Manual - part 1037

PWO

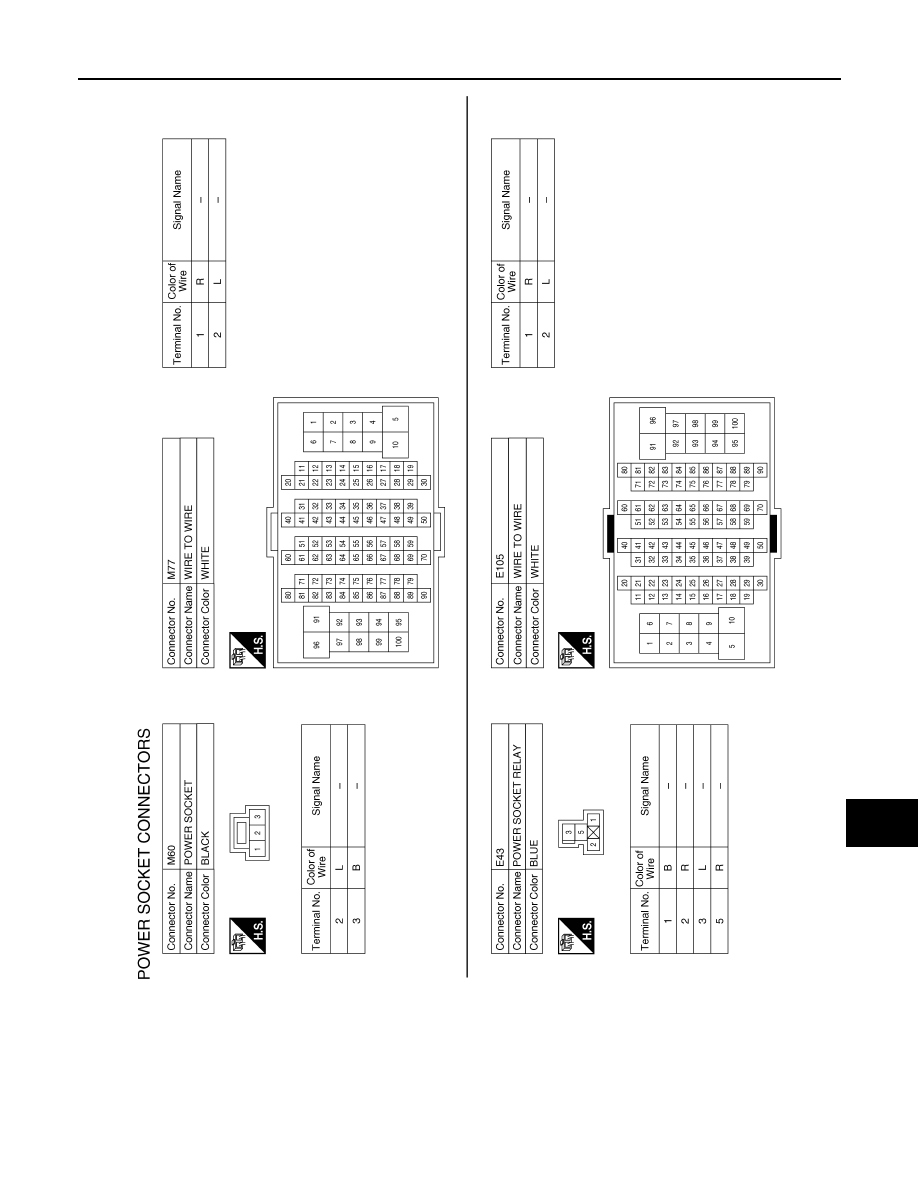

POWER SOCKET

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA2298GB

PWO-6

< REMOVAL AND INSTALLATION >

POWER SOCKET

REMOVAL AND INSTALLATION

POWER SOCKET

Removal and Installation

INFOID:0000000010119415

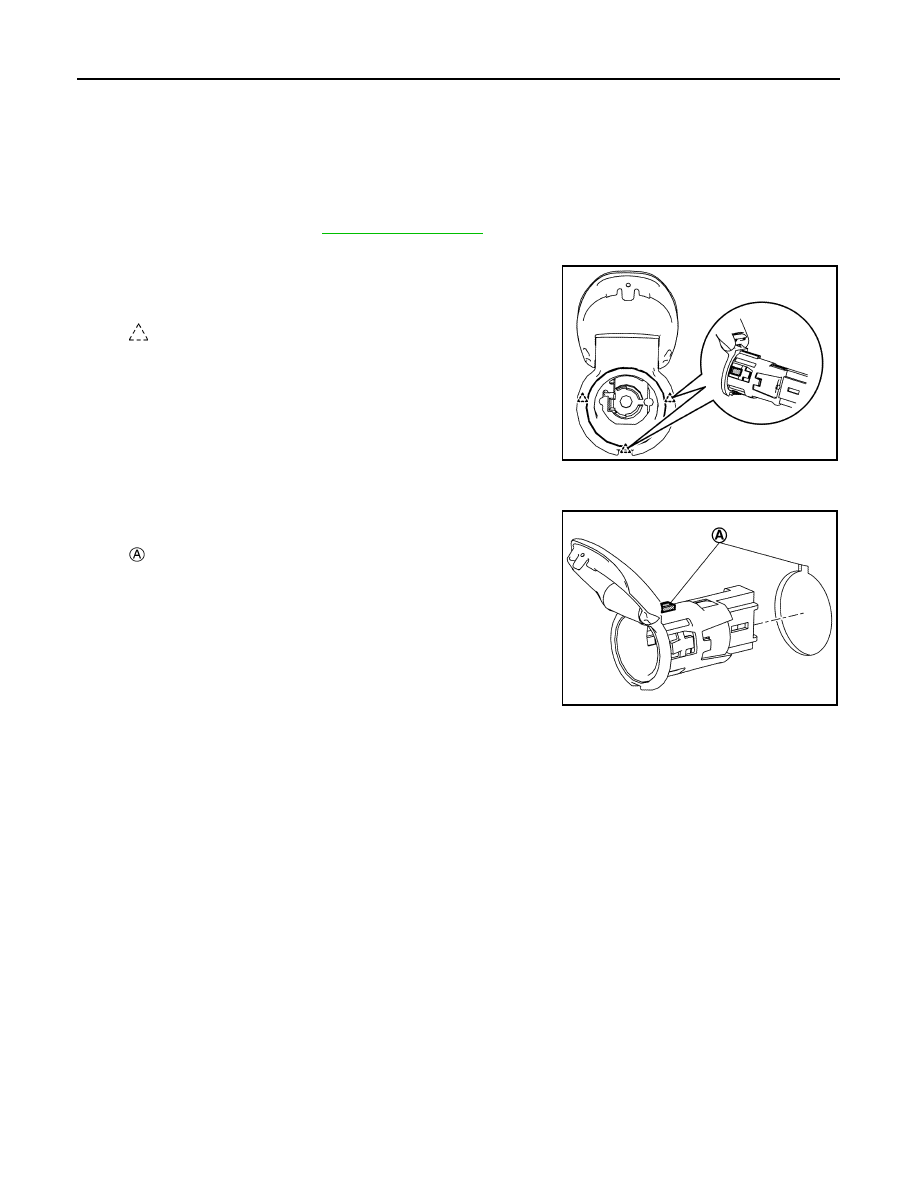

REMOVAL

1. Remove cluster lid C. Refer to

IP-16, "Exploded View"

.

2. Disconnect power socket connector.
3. Press the power socket pawl from the back of the cluster lower

panel to remove the power socket.

INSTALLATION

Note the following, and install in the reverse order of removal.

Align the cut outs of power socket and cluster lower panel.

: Pawl

JSMIA1116ZZ

: Cut out

JSMIA1119ZZ

PWO

SERVICE DATA AND SPECIFICATIONS (SDS)

PWO-7

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Power Socket

INFOID:0000000010119416

Rated voltage

DC 12 V

Maximum electric capacity

120 W or less (Total)

Maximum current

10 A or less (Total)

RAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

RAX

A

B

RAX

N

O

P

CONTENTS

REAR AXLE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Technicians Using Medical Electric

......

2

Point to Be Checked Before Starting Maintenance
Work ..........................................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tools  ........................................

4

SYMPTOM DIAGNOSIS  ...............................

5

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

5

NVH Troubleshooting Chart  ......................................

5

PERIODIC MAINTENANCE  .........................

6

REAR WHEEL HUB ...........................................

6

Inspection .................................................................

6

REMOVAL AND INSTALLATION ................

7

REAR WHEEL HUB ...........................................

7

Exploded View ..........................................................

7

Removal and Installation  ..........................................

7

Inspection .................................................................

8

SERVICE DATA AND SPECIFICATIONS
(SDS) .............................................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

9

Wheel Bearing  ..........................................................

9
