< SYMPTOM DIAGNOSIS >

ANTI-PINCH SYSTEM DOES NOT OPERATE NORMALLY (DRIVER SIDE)

ANTI-PINCH SYSTEM DOES NOT OPERATE NORMALLY (DRIVER SIDE)

Diagnosis Procedure

INFOID:0000000010119971

1.

CHECK POWER WINDOW AUTO OPERATION

Check AUTO operation when anti-pinch function does not operate.

Refer to

PWC-57, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

REPLACE MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

• Replace main power window and door lock/unlock switch.

• Confirm the operation after replacement.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-53, "Intermittent Incident"

.

POWER WINDOW RETAINED POWER OPERATION DOES NOT OPERATE

PROPERLY

PWC-59

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW RETAINED POWER OPERATION DOES NOT OPER-
ATE PROPERLY

Diagnosis Procedure

INFOID:0000000010119972

1.

CHECK FRONT DOOR SWITCH

Check front door switch.

Refer to

DLK-102, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

• Replace BCM. Refer to

BCS-72, "Removal and Installation"

.

• Confirm the operation after replacement.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-53, "Intermittent Incident"

.

PWC-60

< SYMPTOM DIAGNOSIS >

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

Diagnosis Procedure

INFOID:0000000010119973

1.

REPLACE POWER WINDOW MAIN SWITCH

• Replace power window main switch.

• Confirm the operation after replacement.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-53, "Intermittent Incident"

.

POWER WINDOW MAIN SWITCH

PWC-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REMOVAL AND INSTALLATION

POWER WINDOW MAIN SWITCH

Removal and Installation

INFOID:0000000010119974

REMOVAL

1. Remove power window main switch finisher. Refer to

INT-19, "Removal and Installation"

.

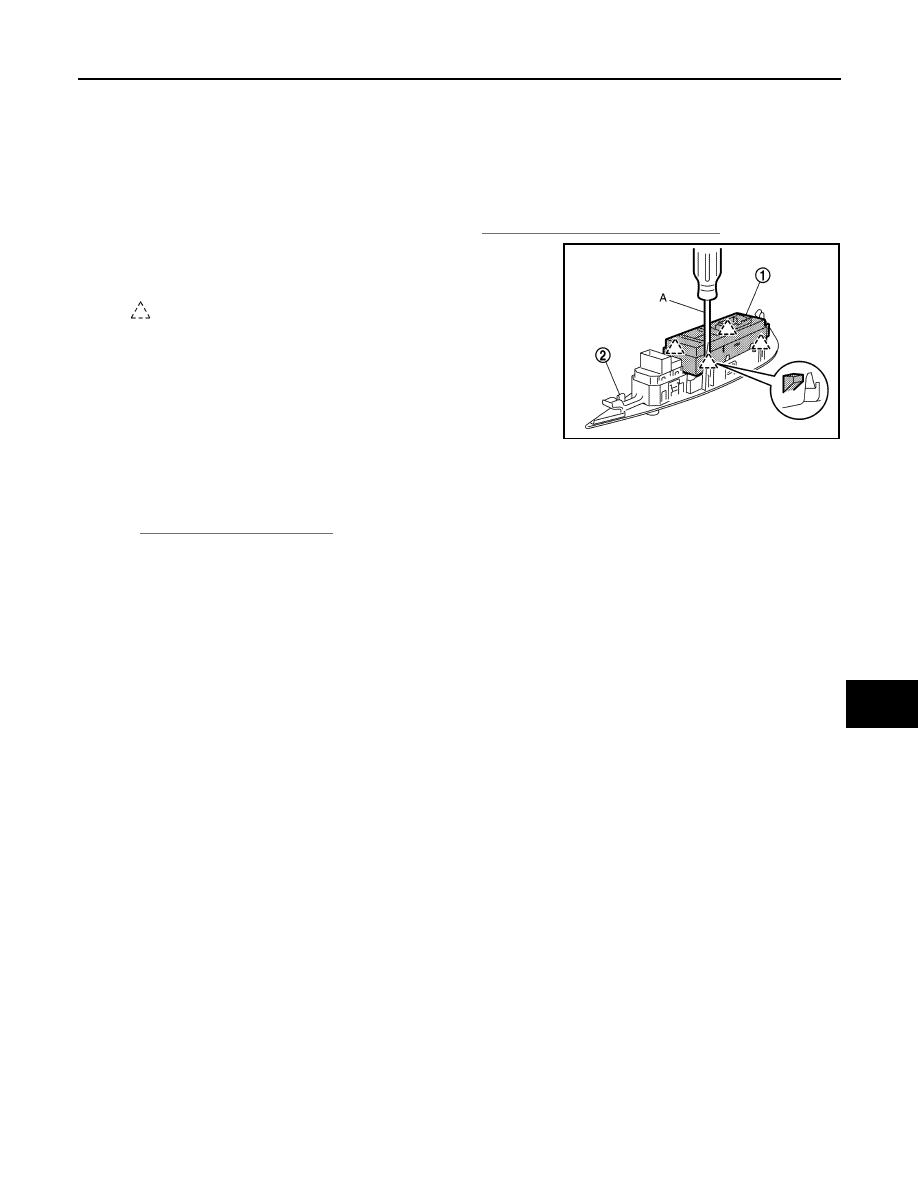

2. Remove power window main switch (1) from power window

main switch finisher (2) using flat-head screw driver (A).

CAUTION:

Do not fold the pawl of power window main switch finisher.

NOTE:

The same procedure is also performed for front power window

switch (passenger side) and rear power window switch (LH & RH).

INSTALLATION

Install in the reverse order of removal.

NOTE:

If power window main switch is replaced or is removed, it is necessary to perform the initialization procedure.

Refer to

PWC-28, "Work Procedure"

.

: Pawl

JMKIA6331ZZ
