AV

AROUND VIEW MONITOR CONTROL UNIT

AV-391

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Power
switch

Operation

1

(B)

Ground Ground

ON

0 V

2

(SB)

Ground Battery power supply

Input

OFF

Battery voltage

4

(W)

Ground Power signal

Input

ON

Battery voltage

OFF

0 V

8

(SB)

Ground Reverse signal

Input

ON

Selector lever in R (re-
verse) position

Battery voltage

Selector lever in other than
R (reverse) position

0 V

10

(P)

CAN–L

Input/

Output

12

(L)

CAN–H

Input/

Output

13

(L)

Ground AVM detection

ON

0 V

23

(Shield)

Camera image signal
shield

24

(W)

Ground Camera image signal

Output

ON

Camera image displayed

25

(B)

Ground Rear view camera ground

ON

0 V

26

(W)

Ground

Rear view camera power
supply

Output

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

6.2 V

27

(Shield)

Rear view camera image
signal shield

28

(R)

Ground

Rear view camera image
signal

Input

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

29

(W)

Ground Side camera LH ground

ON

0 V

30

(B)

Ground

Side camera LH power
supply

Output

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

6.2 V

31

(Shield)

Side camera LH image sig-
nal shield

JSNIA0834GB

JSNIA0834GB

AV-392

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

AROUND VIEW MONITOR CONTROL UNIT

DTC Index

INFOID:0000000010122634

32

(R)

Ground

Side camera LH image sig-
nal

Input

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

33

(B)

Ground

Side camera RH side
ground

ON

0  V

34

(W)

Ground

Side camera RH power
supply

Output

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

6.2 V

35

(Shield)

Side camera RH image sig-
nal shield

36

(R)

Ground

Side camera RH image sig-
nal

Input

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

37

(W)

Ground Front camera ground

ON

0 V

38

(R)

Ground Front camera power supply

Output

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

6.2 V

39

(Shield)

Front camera image signal
shield

40

(B)

Ground Front camera image signal

Input

ON

CAMERA switch ON
or
Selector lever in R (re-
verse) position

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

Power
switch

Operation

JSNIA0834GB

JSNIA0834GB

JSNIA0834GB

DTC

CONSULT display

Refer to

U0428

ST ANGLE SENSOR CALIBRATION

AV-431, "DTC Logic"

U1000

CAN COMM CIRCUIT

AV-432, "AROUND VIEW MONI-

TOR CONTROL UNIT : DTC Log-

ic"

U1010

CONTROL UNIT (CAN)

AV-434, "AROUND VIEW MONI-

TOR CONTROL UNIT : DTC Log-

ic"

U111A

REAR CAMERA IMAGE SIGNAL

AV-435, "DTC Logic"

AV

AROUND VIEW MONITOR CONTROL UNIT

AV-393

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111B

SIDE CAMERA RH IMAGE SIGNAL

AV-437, "DTC Logic"

U111C

FRONT CAMERA IMAGE SIGNAL

AV-439, "DTC Logic"

U111D

SIDE CAMERA LH IMAGE SIGNAL

AV-441, "DTC Logic"

U1232

ST ANGLE SEN CALIB

AV-444, "AV CONTROL UNIT :

DTC Logic"

U1304

CAMERA IMAGE CALIB

AV-450, "DTC Logic"

U1305

CONFIG UNFINISH

AV-451, "DTC Logic"

DTC

CONSULT display

Refer to

AV-394

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

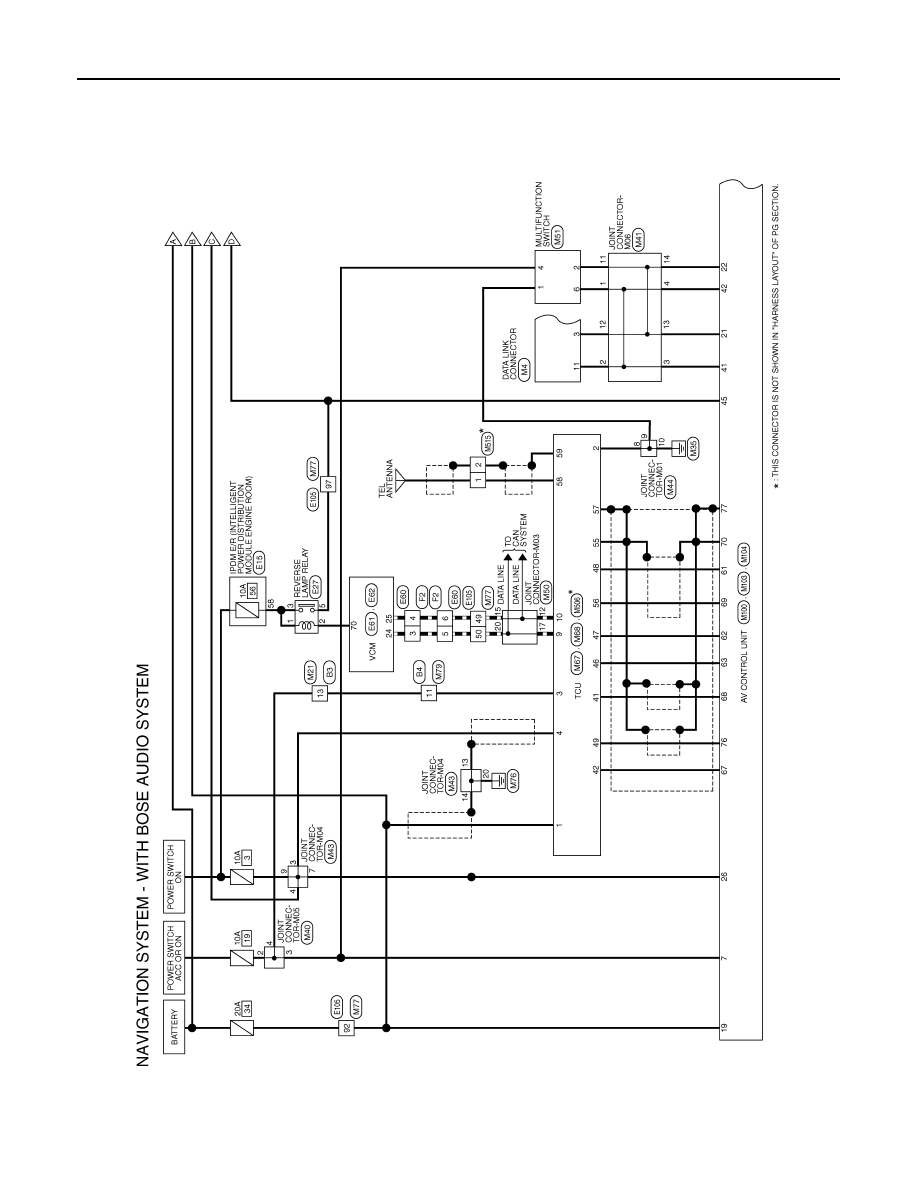

NAVIGATION WITH BOSE

WIRING DIAGRAM

NAVIGATION WITH BOSE

Wiring Diagram

INFOID:0000000010122635

AANWA1077GB
