AV

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

AV-379

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Adjust the steering angle sensor neutral position on the ABS actuator control unit side.

Non-Viewable Area Reminder

ON/OFF setting of the non-viewable area reminder can be performed.

CONFIGURATION

Refer to

AV-424, "CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Work Procedure"

.

CAN DIAG SUPPORT MNTR

Refer to

LAN-14, "CAN Diagnostic Support Monitor"

.

AV-380

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

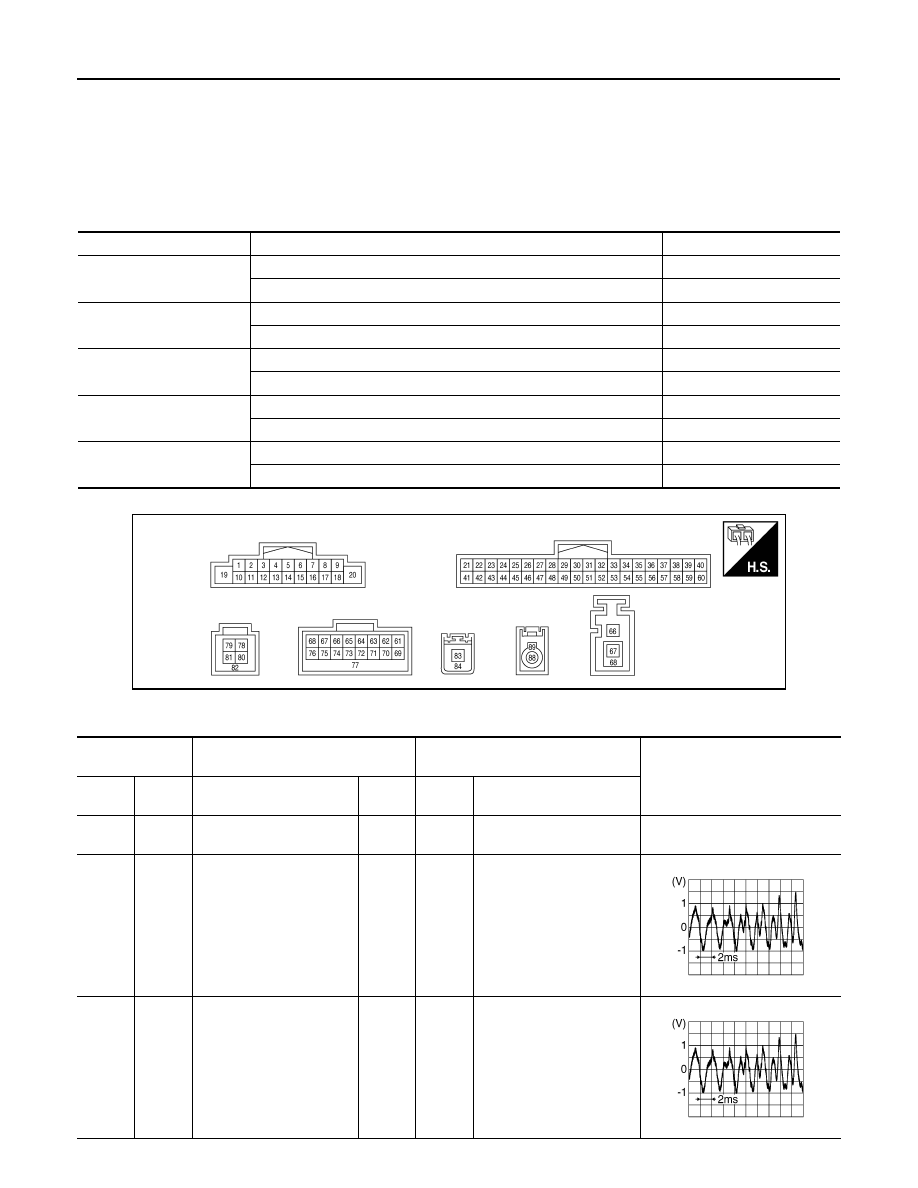

AV CONTROL UNIT

ECU DIAGNOSIS INFORMATION

AV CONTROL UNIT

Reference Value

INFOID:0000000010122629

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

VHCL SPD SIG

Vehicle speed = 0 km/h (0 MPH).

Off

Vehicle speed > 0 km/h (0 MPH).

On

PKB SIG

Parking brake released.

Off

Parking brake applied.

On

ILLUM SIG

Illumination signal is not received.

Off

Illumination signal is received.

On

IGN SIG

Power switch OFF or ACC.

Off

Power switch ON.

On

REV SIG

Selector lever in any position other than R.

Off

Selector lever in R position.

On

AWNIA3455ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Power
switch

Operation

1

(L)

Ground BOSE amp. ON signal

Output

ACC

—

Battery voltage

2

(Y)

3

(BR)

Pre amp sound signal front
LH

Output

ON

Sound output

4

(P)

5

(L)

Pre amp sound signal rear
LH

Output

ON

Sound output

SKIB3609E

SKIB3609E

AV

AV CONTROL UNIT

AV-381

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

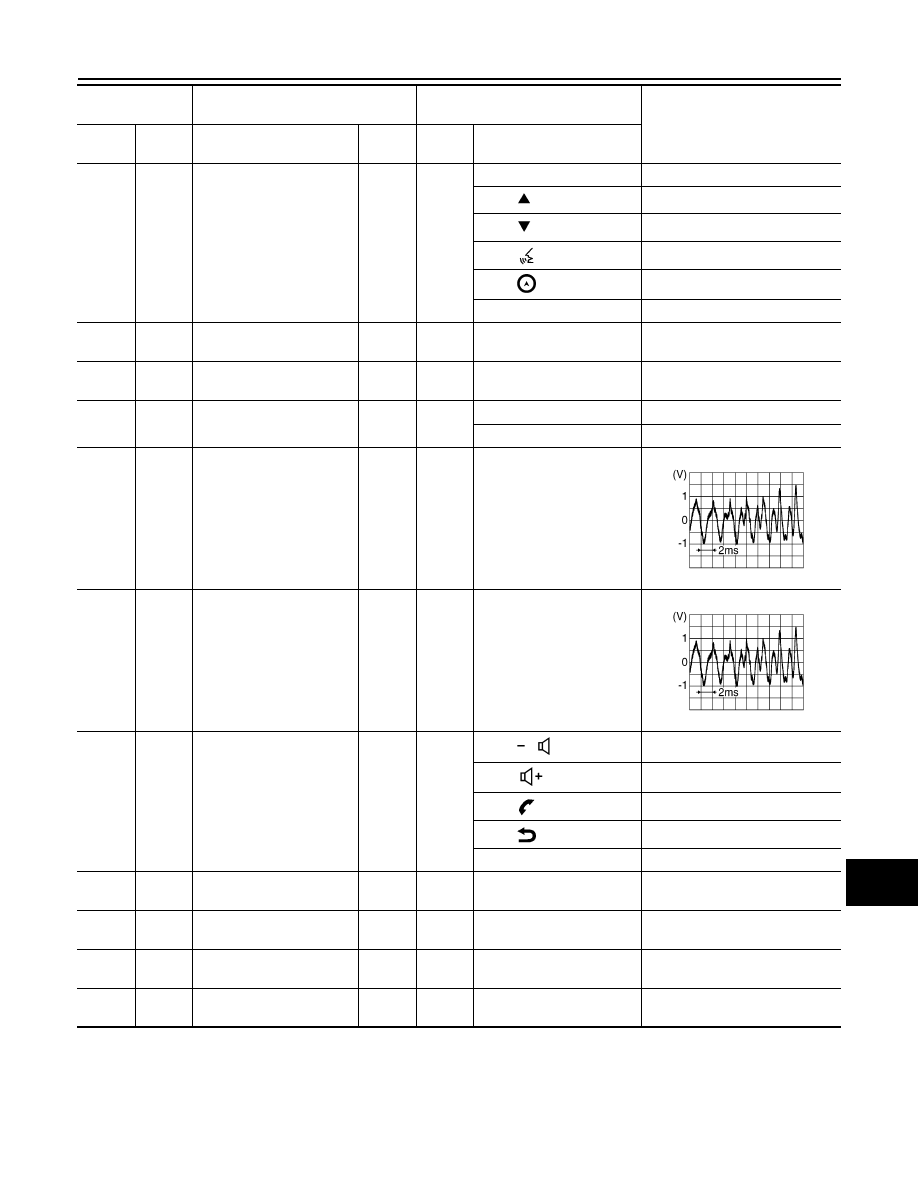

6

(R)

15

(B)

Steering switch signal A

Input

ON

Press SOURCE switch.

0 V

Press

switch.

1.0 V

Press

switch.

2.0 V

Press

switch.

3.0 V

Press

switch.

4.0 V

Except above.

5.0 V

7

(BR)

Ground ACC power supply

Input

ACC

—

Battery voltage

8

(B)

—

Illumination ground

—

—

—

—

9

(W)

Ground Illumination signal

Input

ON

Lighting switch ON.

Battery voltage

Lighting switch OFF.

0 V

11

(G)

12

(R)

Pre amp sound signal front
RH

Output

ON

Sound output

13

(BR)

14

(Y)

Pre amp sound signal rear
RH

Output

ON

Sound output

16

(W)

15

(B)

Steering switch signal B

Input

ON

Press

switch.

0 V

Press

switch.

1.0 V

Press

switch.

2.0 V

Press

switch.

3.0 V

Except above.

5.0 V

19

(BR)

Ground Battery power supply

Input

OFF

—

Battery voltage

21

(LG)

—

AV communication signal
(L)

Input/

Output

—

—

—

22

(LG)

—

AV communication signal
(L)

Input/

Output

—

—

—

23

(P)

—

CAN  L

Input/

Output

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Power
switch

Operation

SKIB3609E

SKIB3609E

A

V

- 3 8 2

< ECU DIAGNOSIS INFORMATION >

[NAVIGATION WITH BOSE]

AV CONTROL UNIT

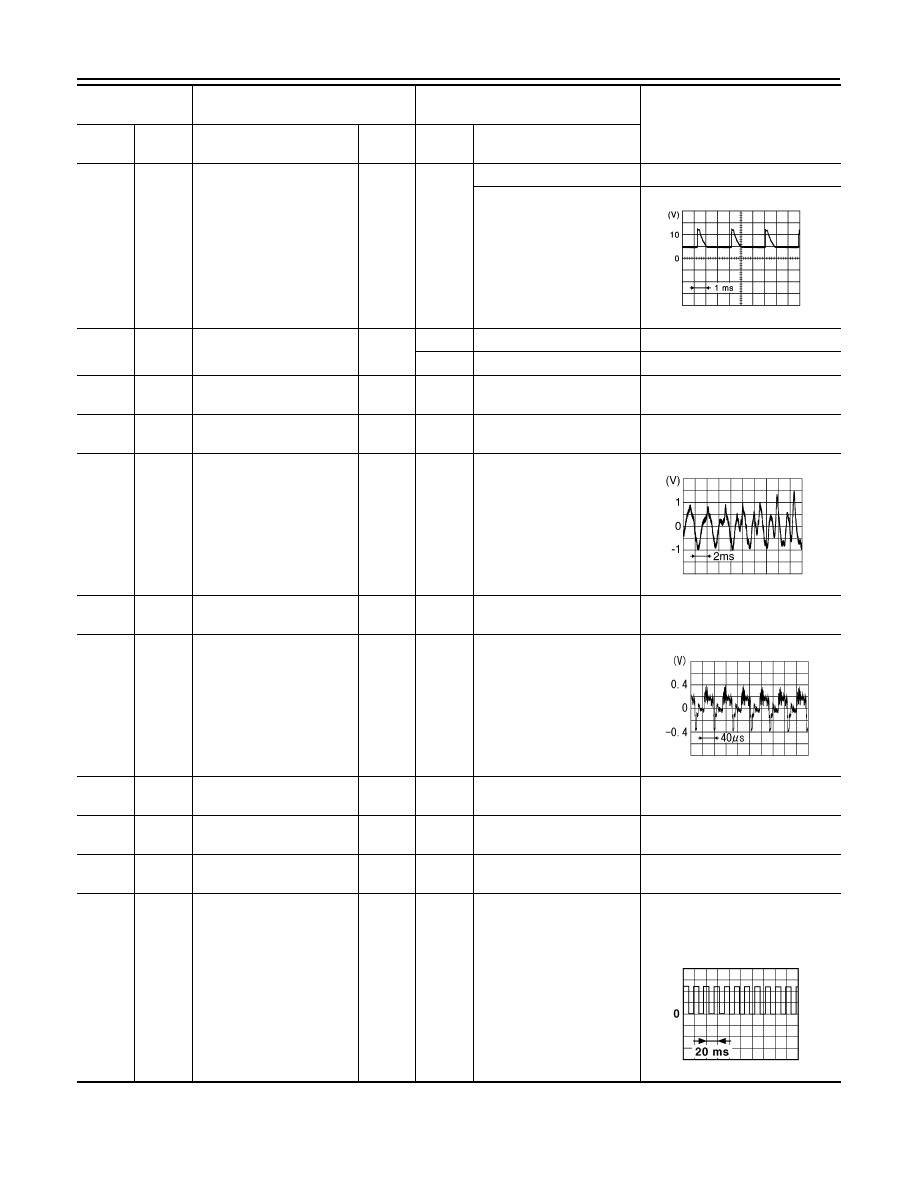

25

(Y)

Ground Parking brake signal

Input

ON

Parking brake applied.

0 V

Parking brake released.

26

(V)

Ground Power signal

Input

ON

—

Battery voltage

OFF

—

 0 V

27

(L)

Ground AVM detection

—

ON

—

0 V

34

(P)

Ground Microphone VCC

Output

ON

—

 5 V

35

(R)

Ground AUX sound signal LH

Input

ON

AUX mode selected.

36

(B)

Ground AUX ground

—

ON

—

0 V

40

(W)

Ground Camera image signal

Input

ON

AVM image displayed.

41

(SB)

—

AV communication signal
(H)

Input/

Output

—

—

—

42

(SB)

—

AV communication signal
(H)

Input/

Output

—

—

—

43

(L)

—

CAN  H

Input/

Output

—

—

—

44

(GR)

Ground

Vehicle speed signal
(8-pulse)

Input

ON

When vehicle speed is ap-
prox. 40 km/h (25 MPH)

NOTE:
The maximum voltage varies de-
pending on the specification (des-
tination unit).

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

Power
switch

Operation

JSNIA1938ZZ

SKIB3609E

SKIB2251J

JSNIA0012GB
