AV

COMPONENT PARTS

AV-343

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

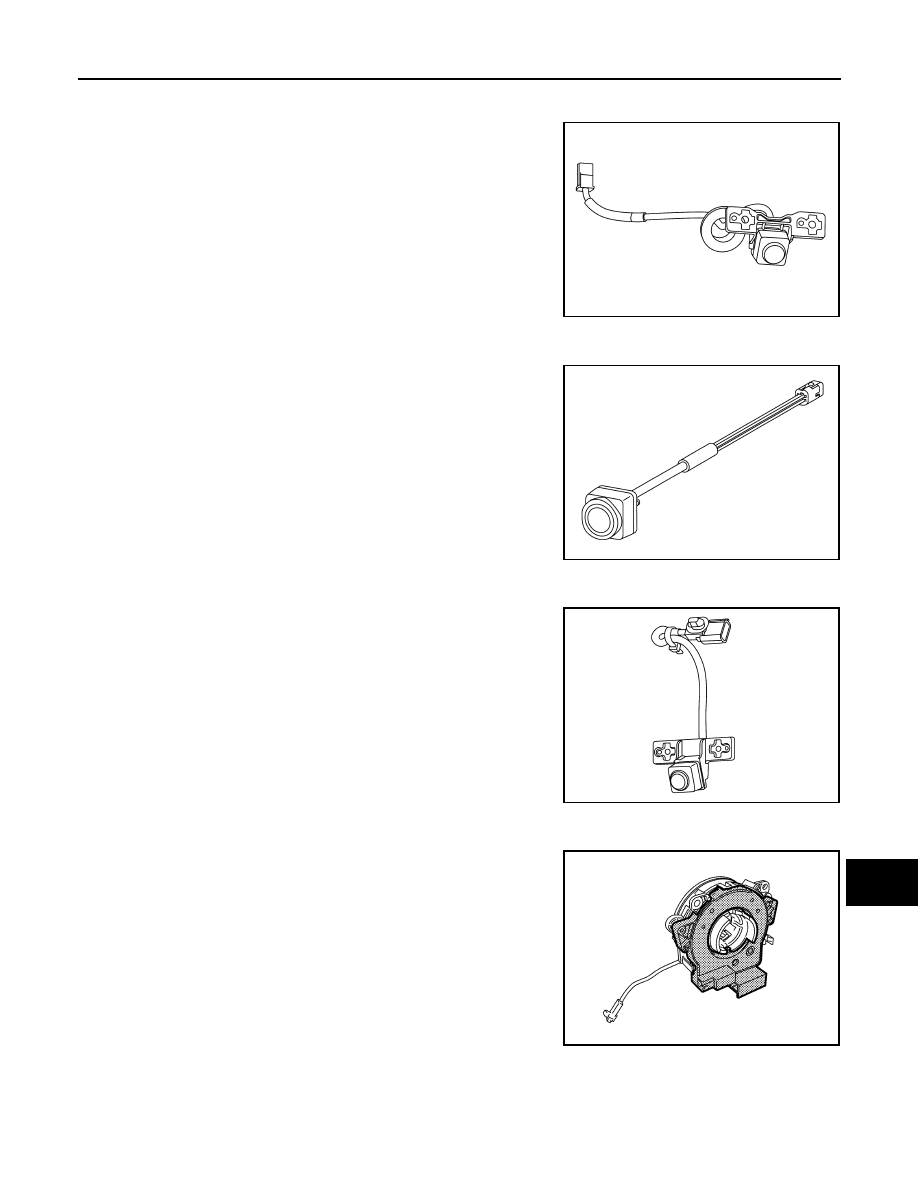

Rear View Camera

INFOID:0000000010122606

• The rear camera is installed to the back door finisher.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the rear of the vehicle is sent to the

around view monitor control unit.

Side Camera

INFOID:0000000010122607

• The side camera is installed to the door mirror.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the side of the vehicle is sent to the

around view monitor control unit.

Front Camera

INFOID:0000000010122608

• The front camera is installed to the front grille.

• Power for the camera is supplied from the around view monitor

control unit, and the image at the front of the vehicle is sent to the

around view monitor control unit.

Steering Angle Sensor

INFOID:0000000010122609

• Steering sensor is installed to the spiral cable.

• Steering angle sends the steering signal necessary for possible

route line of the around view monitor function to the AV control unit

via CAN communication.

JSNIA5396ZZ

JSNIA5397ZZ

JSNIA5398ZZ

JSNIA1571ZZ

AV-344

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

COMPONENT PARTS

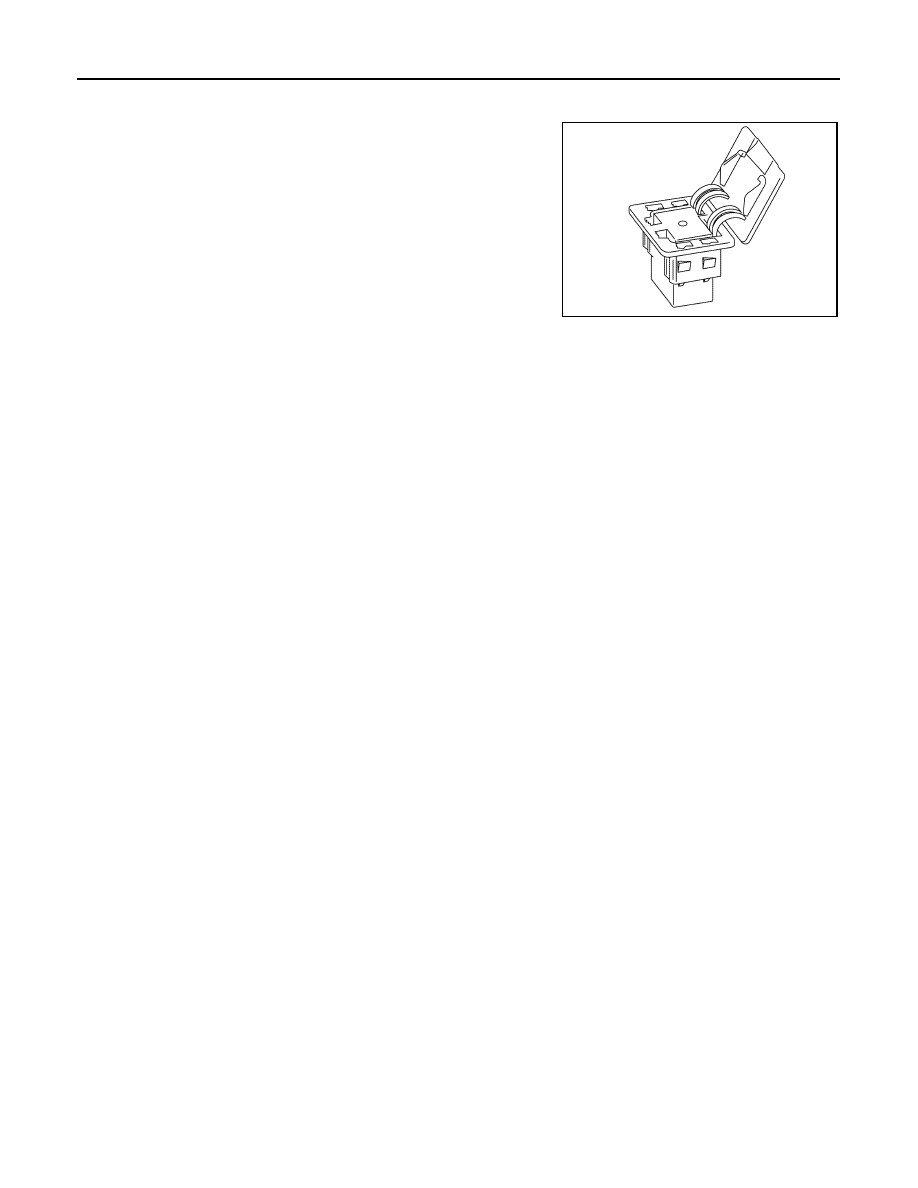

Auxiliary Input Jack

INFOID:0000000010122610

• AUX jack is installed at the lower right of the instrument panel.

• Connection to an external audio device can provide sound output.

NOTE:

When connected to monaural mini-jack plug cable, sound may not

be output.

SD Card

INFOID:0000000010122611

• Map data is memorized in an 8 GB SDHC

*

 card.

• Map data is sent to the AV control unit from the SD slot.

NOTE:

*SDHC: Abbreviation of SD High-Capacity. It is the upper level standard of the SD memory card. A large quan-

tity of data can be memorized, and the transfer speed of data is high.

External input terminal for connection

φ3.5 mm stereo mini-jack

JSNIA3792ZZ

AV

SYSTEM

AV-345

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

MULTI AV SYSTEM

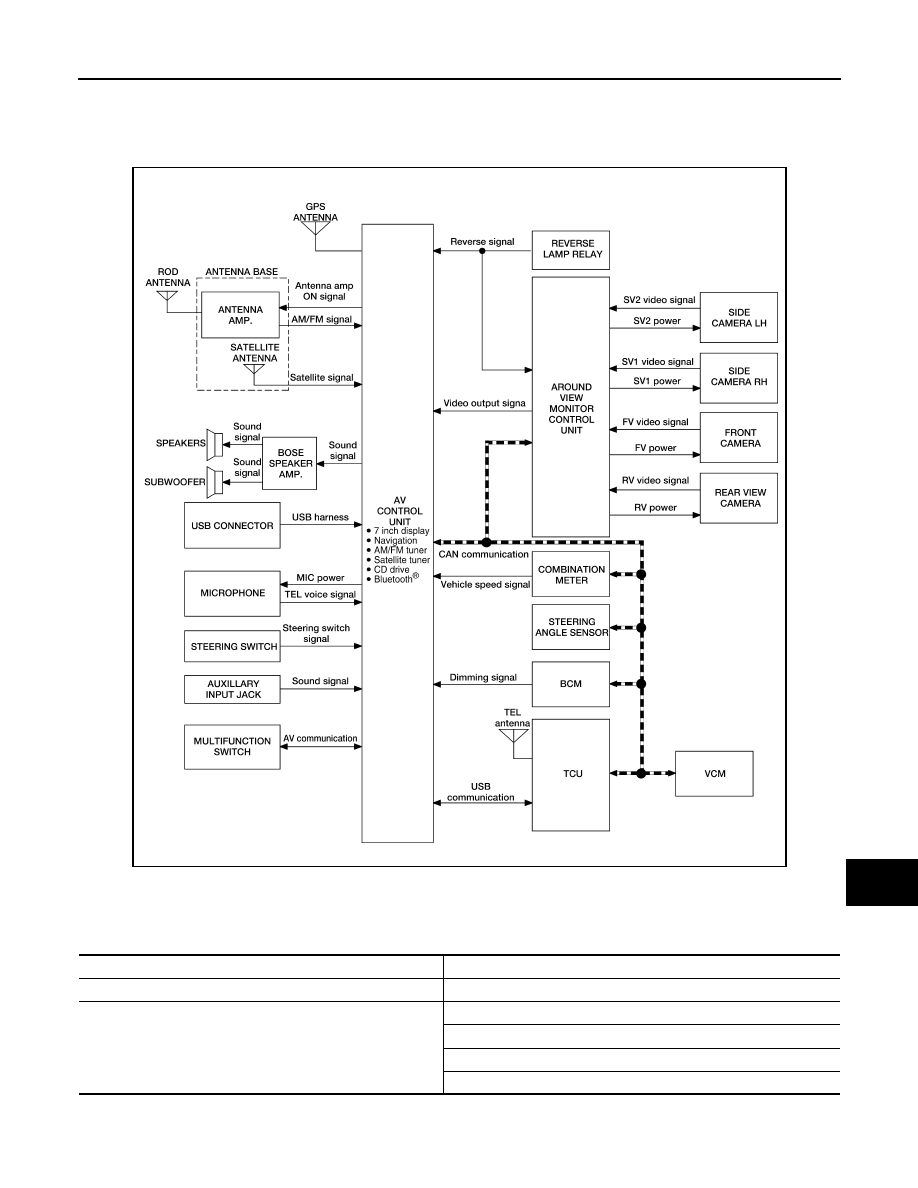

MULTI AV SYSTEM : System Diagram

INFOID:0000000010122612

CAN communication

AV control unit Input Signal

AWNIA3012GB

Transmit unit

Signal name

Steering angle sensor

Steering angle sensor signal

Combination meter

Odometer signal

A/C OFF average electricity consumption for driving range signal

A/C ON average electricity consumption for driving range signal

Driving range difference signal

AV-346

< SYSTEM DESCRIPTION >

[NAVIGATION WITH BOSE]

SYSTEM

TCU Input Signal

MULTI AV SYSTEM : System Description

INFOID:0000000010122613

• AV control unit is connected to the following parts. It performs power supply, signal input and communica-

tion, and it controls the multi-AV system.

- GPS antenna

- Radio antenna (radio antenna amplifier)

- Around view monitor control unit

- Front camera

- Side cameras (LH and RH)

- Rear view camera

- USB connector

- Auxiliary input jack

- BCM

- VCM

- Combination meter

- Steering switch

- Multifunction switch

- Microphone

- TCU

- Speakers

- Vehicle signals (reverse signal, vehicle speed signal and illumination signal)

• Data of external device connected to the USB connector is played and transferred.

VCM

A/C consumption power status display signal

A/C consumption signal

Current motor power signal

ECO tree signal

Li-ion battery charging data signal

Others consumption signal

Pre-A/C priority signal

Pre-A/C timer signal

Remaining time to charge completion (200 V) signal

Remaining time to charge completion (100 V) signal

Traction motor consumption signal

VCM activation/deactivation command signal

VCM status signal

Transmit unit

Signal name

Transmit unit

Signal name

VCM

A/C expected consumption signal

Charge status signal

Pre-A/C status signal

Remaining time to charge completion (200 V) signal

Remaining time to charge completion (100 V) signal

VCM activation/deactivation command signal

VCM status signal

Li-ion battery available charge signal

Li-ion battery capacity signal

Li-battery gradual capacity loss signal

On board charger

AC input type signal
