Nissan Leaf. Manual - part 84

AV

STEERING SWITCH

AV-327

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000010122582

Refer to

SR-20, "Exploded View"

.

Removal and Installation

INFOID:0000000010122583

REMOVAL

Refer to

SR-20, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV-328

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000010122584

REMOVAL

1. Remove the instrument lower center cover. Refer to

IP-17, "Removal and Installation"

.

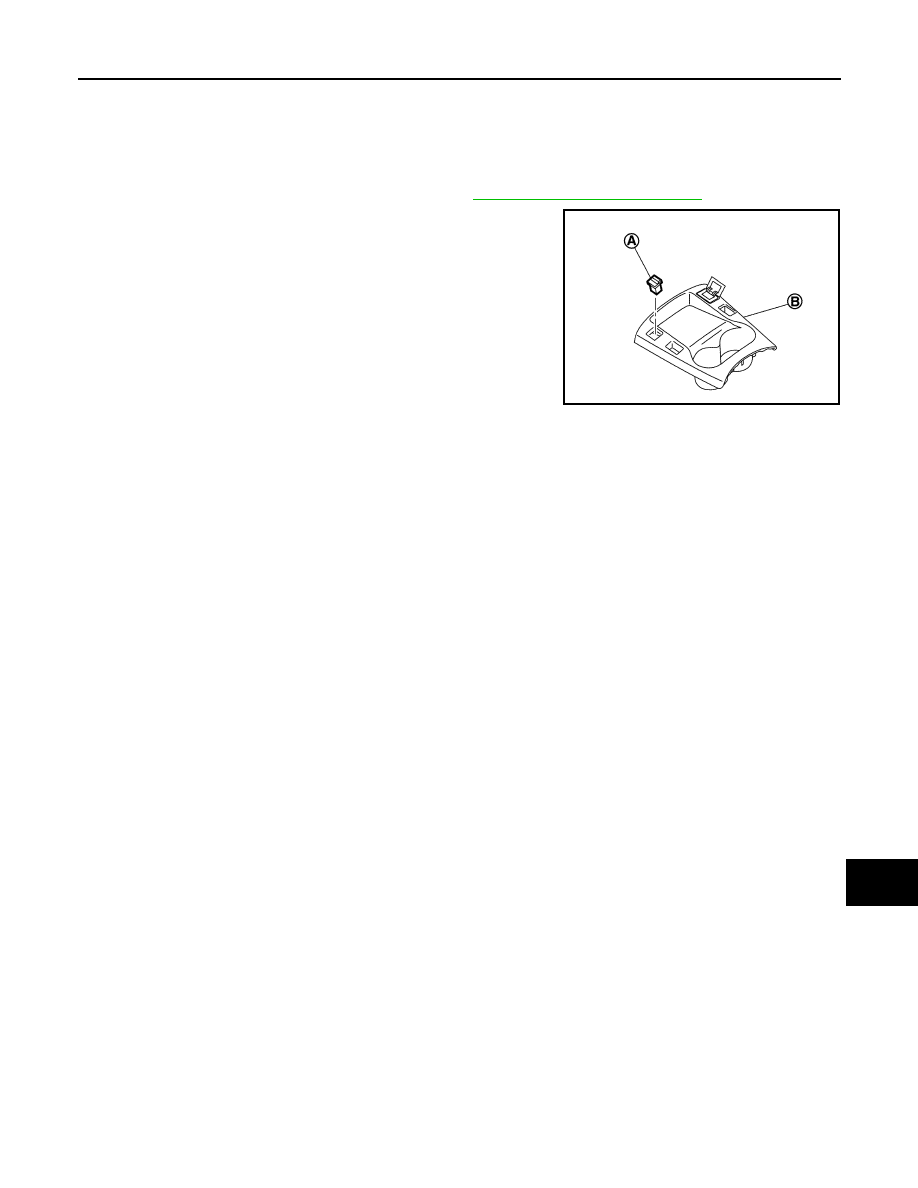

2. Press the tab from the rear of the instrument lower center cover

(B) and remove the auxiliary input jack (A).

INSTALLATION

Install in the reverse order of removal.

NOTE:

Align the notch of the instrument panel center lower cover and assemble it.

JSNIA3788ZZ

AV

USB CONNECTOR

AV-329

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

USB CONNECTOR

Removal and Installation

INFOID:0000000010122585

REMOVAL

1. Remove the instrument lower center cover. Refer to

IP-17, "Removal and Installation"

.

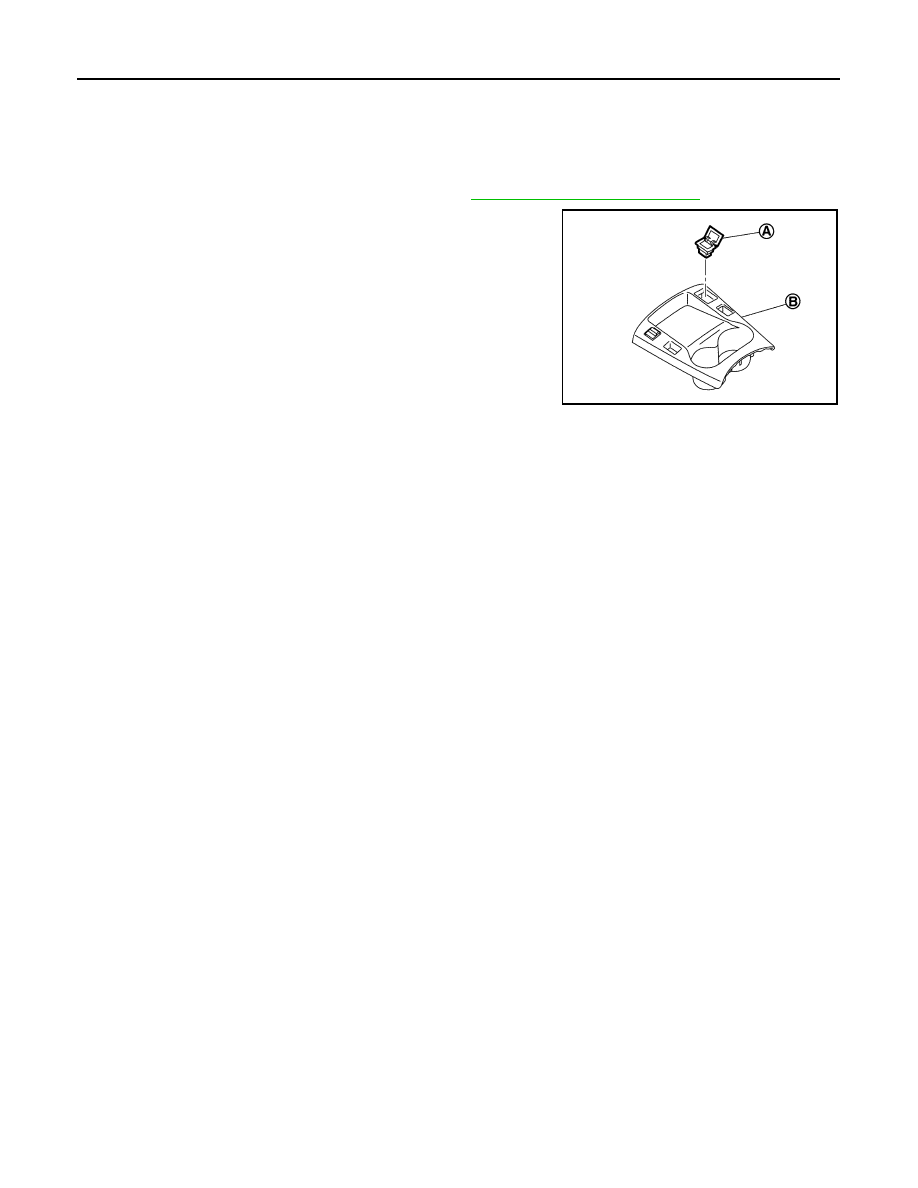

2. Press the tab from the rear of the instrument lower center cover

(B) and remove the USB connector (A).

INSTALLATION

Install in the reverse order of removal.

NOTE:

Align the notch of the instrument panel center lower cover and assemble it.

JSNIA3789ZZ

AV-330

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000010435587

REMOVAL

1. Remove the back door opener switch assembly. Refer to

INT-48, "BACK DOOR LOWER FINISHER :

Removal and Installation"

.

2. Remove the screws and the rear view camera from the switch finisher.

INSTALLATION

Install in the reverse order of removal.

NOTE:

If the side distance guiding lines are dislocated after installation of the rear view camera, refer to

AV-425,

"CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

 and correct the side dis-

tance guiding lines.
