Nissan Leaf. Manual - part 82

AV

MULTIFUNCTION SWITCH

AV-319

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

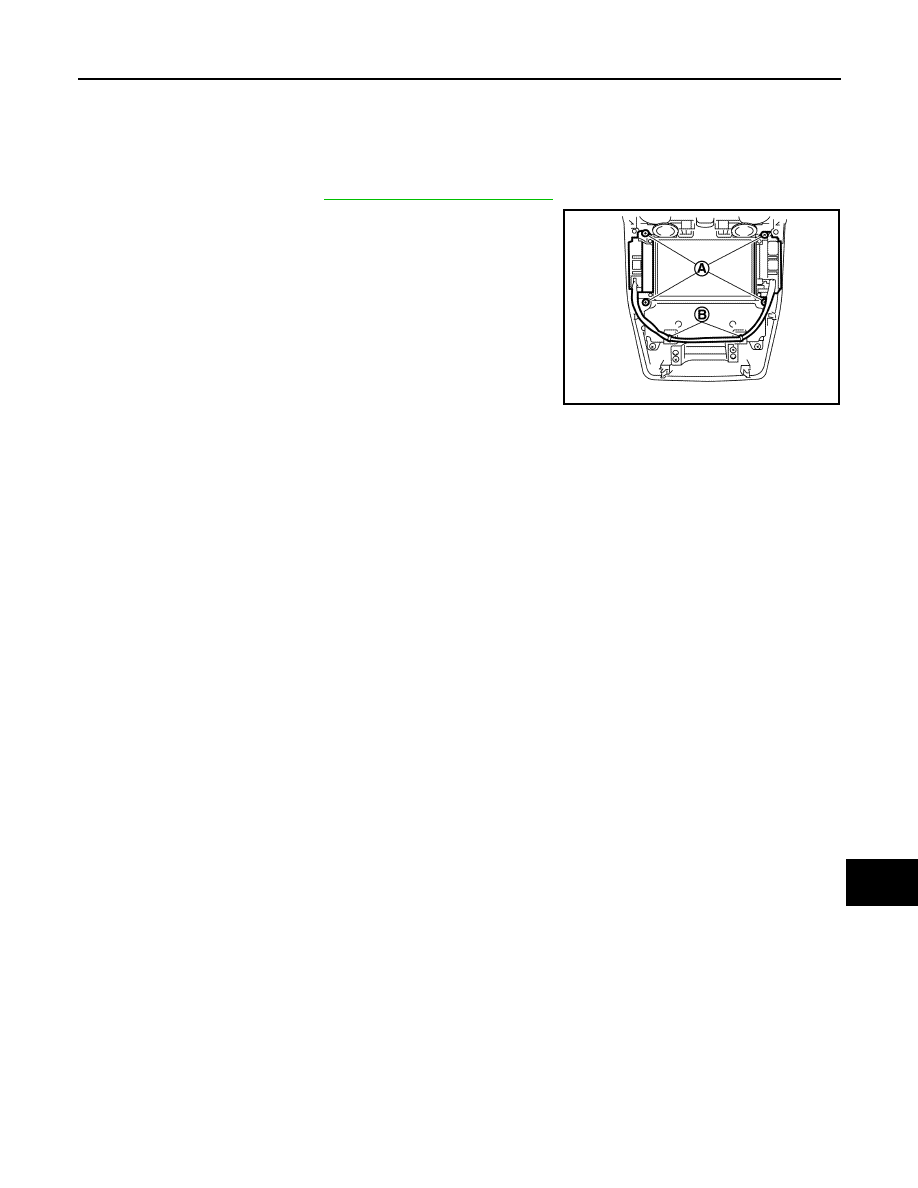

MULTIFUNCTION SWITCH

Removal and Installation

INFOID:0000000010122574

REMOVAL

1. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

2. Remove the screws (A), clips (B) and the multifunction switch

from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

JSNIA3785ZZ

AV-320

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000010122575

REMOVAL

1. Remove the front door finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the screws and disconnect the connector to remove the front door speaker.

INSTALLATION

Install in the reverse order of removal.

AV

TWEETER

AV-321

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

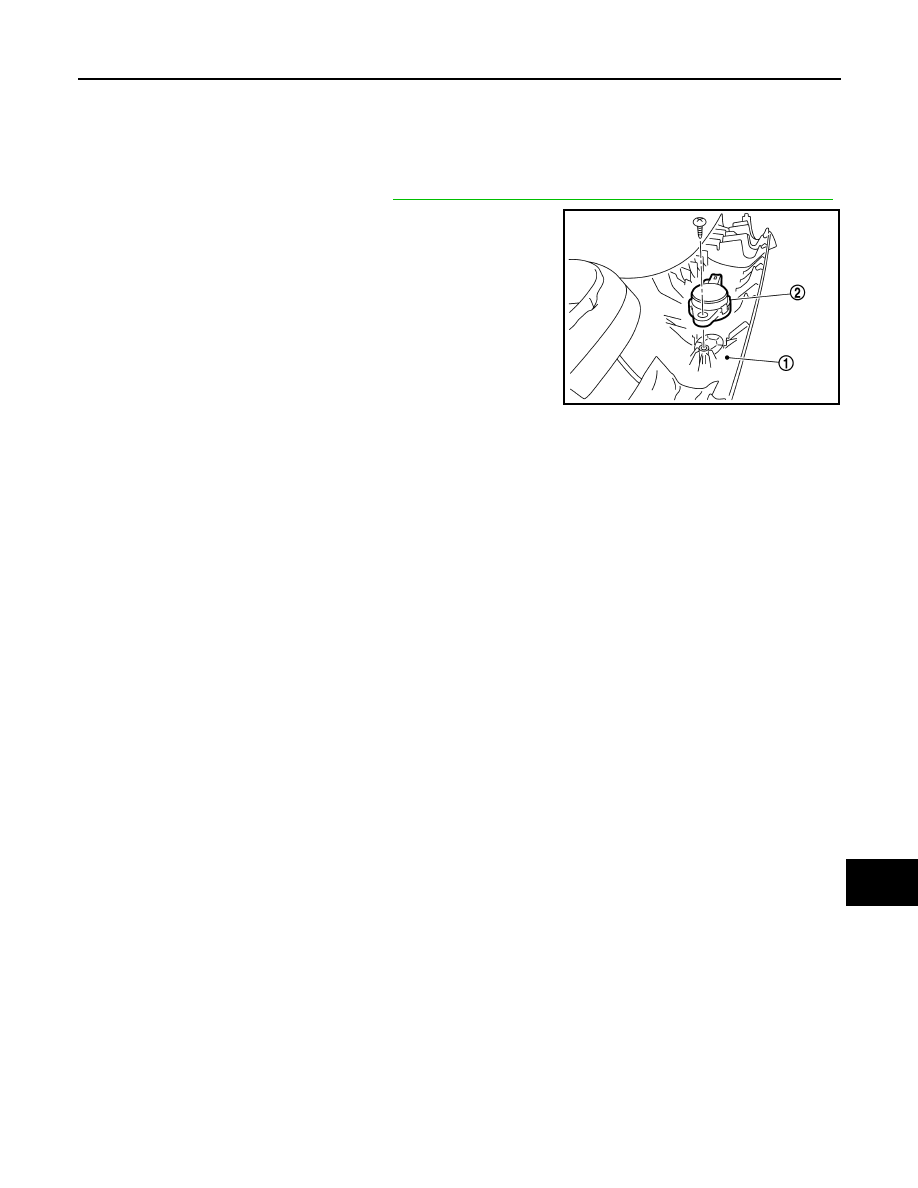

TWEETER

Removal and Installation

INFOID:0000000010122576

REMOVAL

1. Remove the front pillar garnish. Refer to

INT-26, "FRONT PILLAR GARNISH : Removal and Installation"

.

2. Remove the screws and the tweeter from the front pillar garnish.

INSTALLATION

Install in the reverse order of removal.

JSNIA3786ZZ

AV-322

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010122577

REMOVAL

1. Remove the rear door finisher. Refer to

INT-22, "Removal and Installation"

.

2. Remove the screws and disconnect the connector to remove the rear door speaker.

INSTALLATION

Install in the reverse order of removal.
