Nissan Leaf. Manual - part 81





AV

NORMAL OPERATING CONDITION

AV-315

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

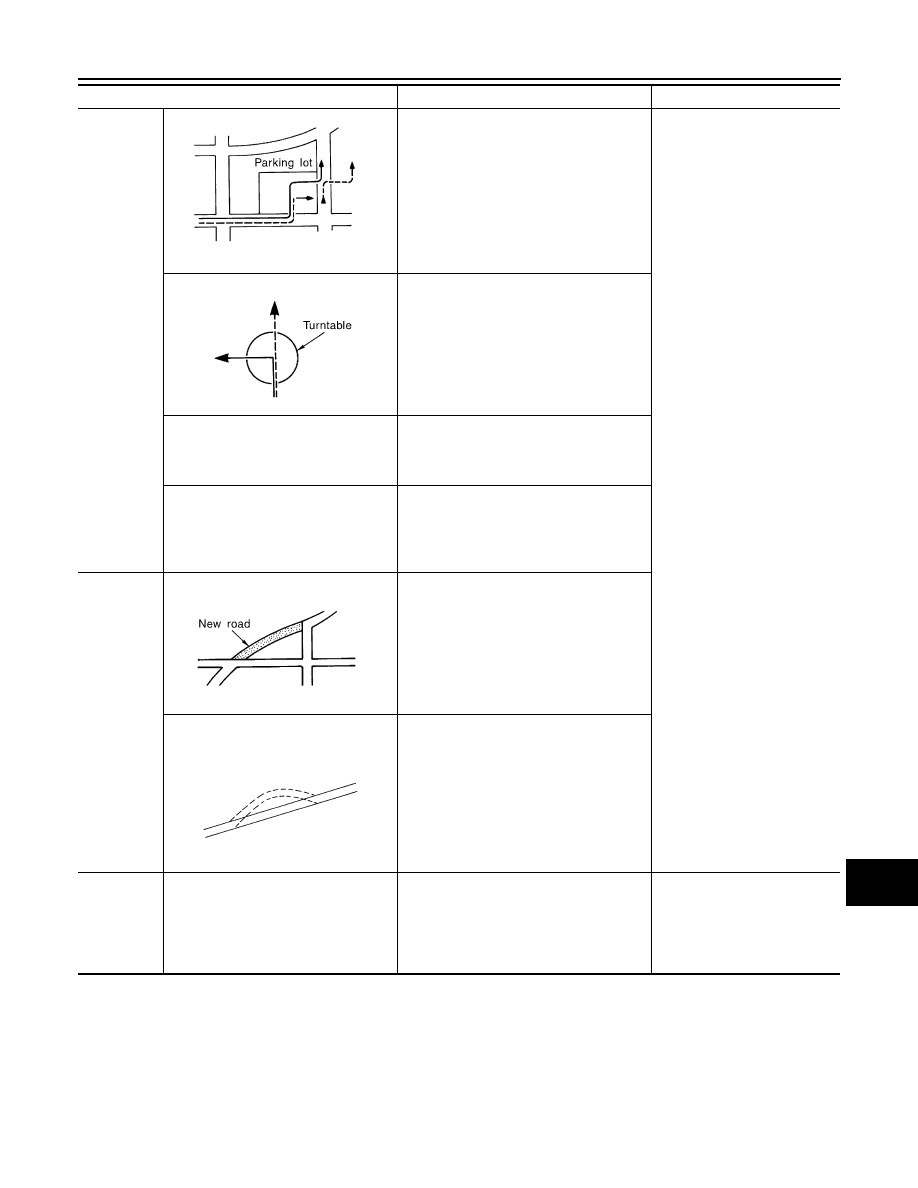

Place

In a parking lot

When driving in a parking lot, or other loca-
tion where there are no roads on the map,
matching may place the vehicle mark on a
nearby road. When the vehicle returns to
the road, the vehicle mark may have devi-
ated from the correct location.
When driving in circle or turning the steer-
ing wheel repeatedly, direction errors accu-
mulate, and the vehicle mark may deviate
from the correct location.

If after travelling about 10 km (6
miles) the correct location has
not been restored, perform lo-
cation correction and, if neces-
sary, direction correction.

Turntable

When the power switch is OFF, the naviga-
tion system cannot get the signal from the
gyroscope (angular speed sensor). There-
fore, the displayed direction may be wrong
and the correct road may not be easily re-
turned to after rotating the vehicle on a turn-
table with the power OFF.

Slippery roads

On snow, wet roads, gravel, or other roads
where tires may slip easily, accumulated
mileage errors may cause the vehicle mark
to deviate from the correct road.

Slopes

When parking in sloped garages, when
travelling on banked roads, or in other cas-
es where the vehicle turns when tilted, an
error in the turning angle will occur, and the
vehicle mark may deviate from the road.

Map data

Road not displayed on the map screen

When driving on new roads or other roads
not displayed on the map screen, map
matching does not function correctly and
matches the location to a nearby road.
When the vehicle returns to a road which is
on the map, the vehicle mark may deviate
from the correct road.

Different road pattern
(Changed due to repair)

If the road pattern stored in the map data
and the actual road pattern are different,
map matching does not function correctly
and matches the location to a nearby road.
The vehicle mark may deviate from the cor-
rect road.

Vehicle

Use of tire chains

When tire chains are used, the mileage is
not correctly detected, and the vehicle mark
may deviate from the correct road.

Drive the vehicle for a while. If
the distance still deviates, ad-
just it by using the distance ad-
justment function. (If the tire
chain is removed, recover the
original value.)

Cause (condition) –: While driving ooo: Display

Driving condition

Remarks (correction, etc.)

SEL709V

SEL710V

SEL699V

ELK0201D

AV-316

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

NORMAL OPERATING CONDITION

Location Correction by Map-Matching is Slow

• The map-matching function needs to refer to the data of the surrounding area. It is necessary to drive some

distance for the function to work.

• Because map-matching operates on this principle, when there are many roads running in similar directions

in the surrounding area, no matching determination may be made. The location may not be corrected until

some special feature is found.

Name of Road is Not Displayed

The current road name may not be displayed if there are no road names displayed on the map screen.

Contents of Display Differ for Birdview™ and the (Flat) Map Screen

Difference of the BIRDVIEW™ screen from the flat map screen are as follows.

• The current place name displays names which are primarily in the direction of vehicle travel.

• The amount of time before the vehicle travel or turn angle is updated on the screen is longer than for the

(flat) map display.

• The conditions for display of place names, roads, and other data are different for nearby areas and for more

distant areas.

• Some thinning of the character data is done to prevent the display becoming too complex. In some cases

and in some locations, the display contents may differ.

• The same place name, street name, etc. may be displayed multiple times.

Vehicle Mark Shows a Position Which is Completely Wrong

In the following cases, the vehicle mark may appear on completely different position in the map depending on

the GPS satellite signal receiving conditions. In this case, perform location correction and direction correction.

• When location correction has not been done

- If the receiving conditions of the GPS satellite signal is poor, if the vehicle mark becomes out of place, it may

move to a completely different location and not come back if location correction is not done. The position will

be corrected if the GPS signal can be received.

• When the vehicle has traveled by ferry, or when the vehicle has been being towed

Precautions
for driving

Just after the engine is started

If the vehicle is driven just after the engine
is started when the gyroscope (angular
speed sensor) correction is not completed,
the vehicle can lose its direction and may
have deviated from the correct location.

Wait for a short while before
driving after starting the engine.

Continuous driving without stopping

When driving long distances without stop-
ping, direction errors may accumulate, and
the current-location mark may deviate from
the correct road.

Stop and adjust the orientation.

Abusive driving

Spinning the wheels or engaging in other
kinds of abusive driving may result in the
system being unable perform correct detec-
tion, and may cause the vehicle mark to de-
viate from the correct road.

If after travelling about 10 km (6
miles) the correct location has
not been restored, perform lo-
cation correction and, if neces-
sary, direction correction.

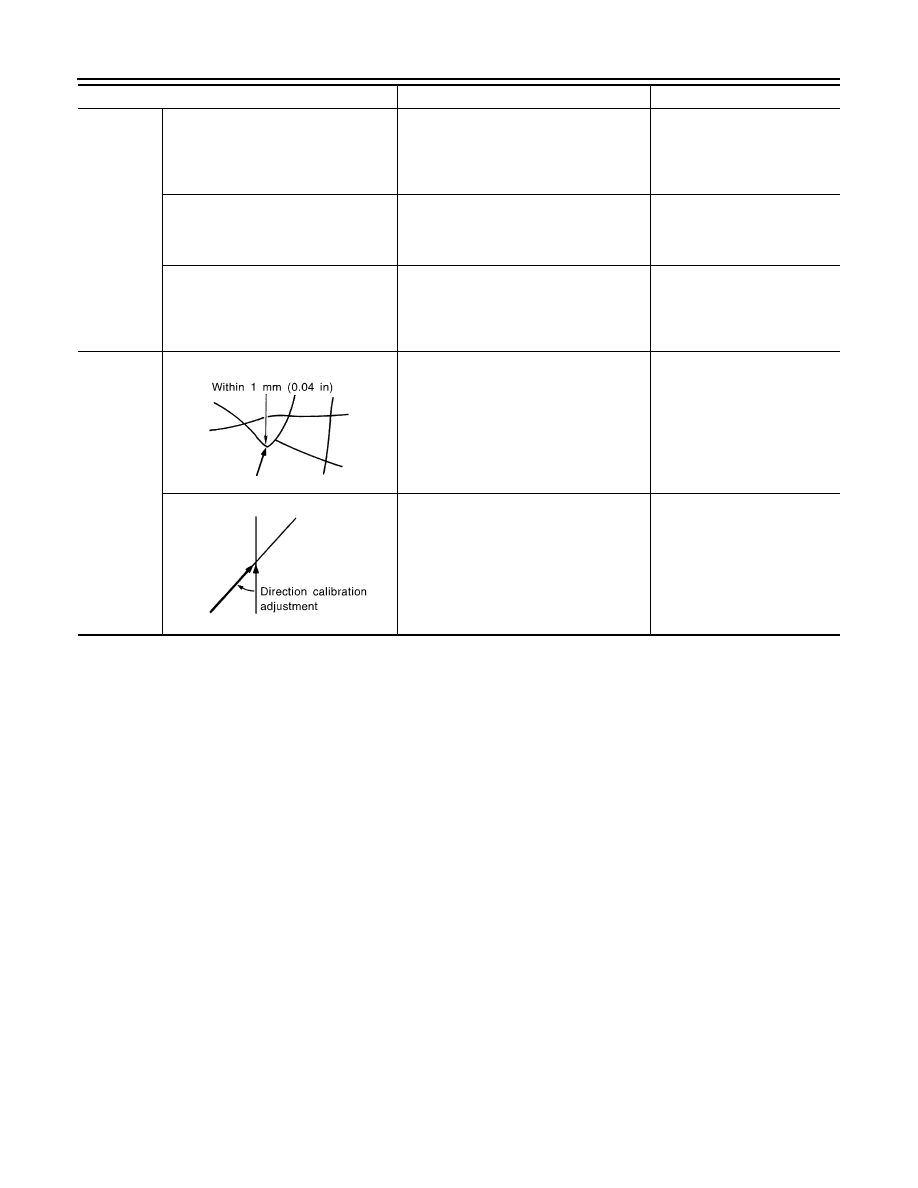

How to cor-
rect location

Position correction accuracy

If the accuracy of location settings is poor,
accuracy may be reduced when the correct
road cannot be found, particularly in places
where there are many roads.

Enter in the road displayed on
the screen with an accuracy of
approx. 1mm.
Caution: Whenever possible,
use detailed map for the correc-
tion.

Direction when location is corrected

If the accuracy of location settings during
correction is poor, accuracy may be re-
duced afterwards.

Perform direction correction.

Cause (condition) –: While driving ooo: Display

Driving condition

Remarks (correction, etc.)

SEL701V

SEL702V

AV

NORMAL OPERATING CONDITION

AV-317

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

- Because calculation of the current location cannot be done when traveling with the power off, for example

when traveling by ferry or when being towed, the location before travel is displayed. If the precise location

can be detected with GPS, the location will be corrected.

Vehicle Mark Jumps

In the following cases, the vehicle mark may appear to jump as a result of automatic correction of the current

location.

• When map matching has been done

- If the current location and the vehicle mark are different when map matching is done, the vehicle mark may

seem to jump. At this time, the location may be “corrected” to the wrong road or to a location which is not on

a road.

• When GPS location correction has been done

- If the current location and the vehicle mark are different when the location is corrected using GPS measure-

ments, the vehicle mark may seem to jump. At this time, the location may be “corrected” to a location which

is not on a road.

Vehicle Mark is in a River or Sea

The navigation system moves the vehicle mark with no distinction between land and rivers or sea. If the vehi-

cle mark is somehow out of place, it may appear that the vehicle is driving in a river or the sea.

Vehicle Mark Automatically Rotates

The system wrongly memorizes the rotating status as stopping when the power switch is turned ON with the

turntable rotating. That causes the vehicle mark to rotate when the vehicle is stopped.

When Driving on Same Road, Sometimes Vehicle Mark is in Right Place and Sometimes it is in Wrong Place

The conditions of the GPS antenna (GPS data) and gyroscope (angular speed sensor) change gradually.

Depending on the road traveled and the operation of the steering wheel, the location detection results will be

different. Therefore, even on a road on which the location has never been wrong, conditions may cause the

vehicle mark to deviate.

AV-318

< REMOVAL AND INSTALLATION >

[NAVIGATION WITHOUT BOSE]

AV CONTROL UNIT

REMOVAL AND INSTALLATION

AV CONTROL UNIT

Removal and Installation

INFOID:0000000010122573

REMOVAL

CAUTION:

Remove AV control unit after a lapse of 30 seconds or more after turning the power switch OFF.

NOTE:

After the power switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if 12V battery voltage is cut off within 30 seconds.
1. Disconnect the 12V negative battery terminal. Refer to

PG-89, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

.

3. Remove the AV control unit screws, disconnect the harness connectors from the AV control unit and

remove with the brackets attached.

4. Remove the bracket screws and the brackets from AV control unit (if necessary).

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• If the AV control unit is replaced, input of the user ID and password and time adjustment with VCM

are required.

• If the AV control unit is not replaced, time adjustment with VCM is required.

Input Method of User ID and Password·

1. Turn power switch ON.

2. Select “Sign in” from the CARWINGS screen.

3. Enter the user ID and password.

NOTE:

Since the user ID and password are determined by the user in advance, they are input by the user.

Time Adjustment and Check Method with VCM

Refer to

AV-277, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Work Pro-

cedure"

.
