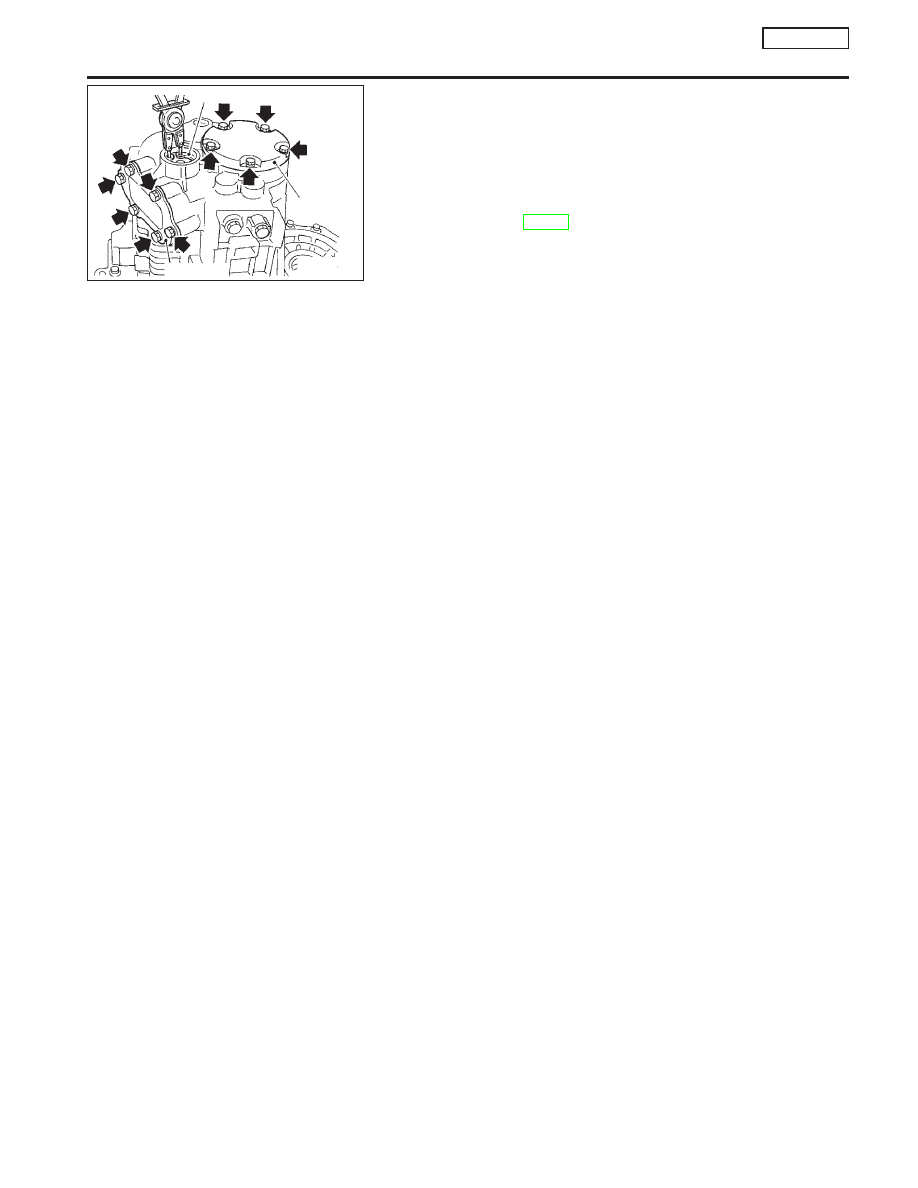

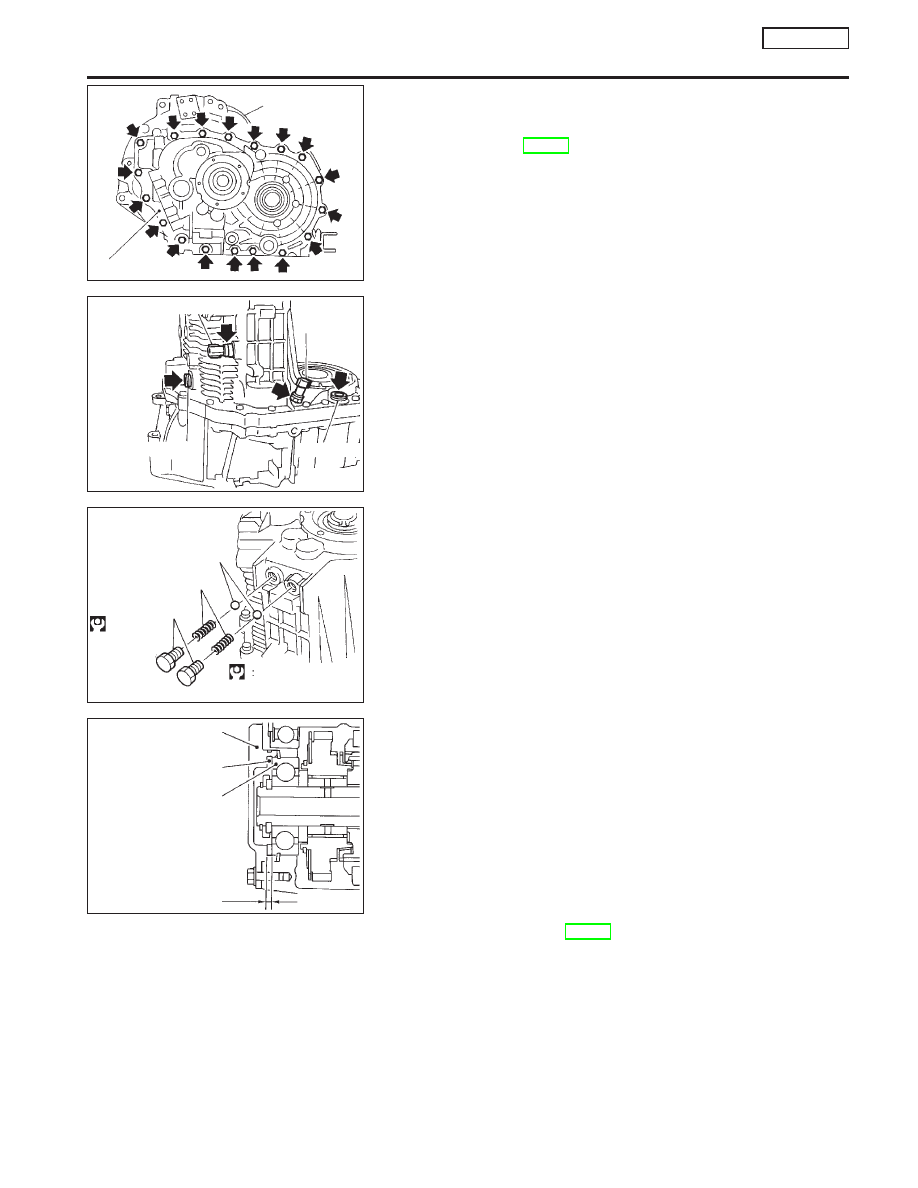

11. Install transaxle case onto clutch housing, and tighten mount-
ing bolts with specified torque.
Tightening torque:
Refer to MT-48.
12. Apply Three Bond TB1215, Loctite Part No. 51813 or equiva-
lent to threads of reverse switch, PNP switch, and drain plug,
and install them. (Fill the case with oil before installation of filler
plug.)
13. Install speedometer pinion assembly.
CAUTION:
Do not reuse O-ring.
14. Install check springs and check balls. Apply sealant to the
thread on the check plug, and install it.

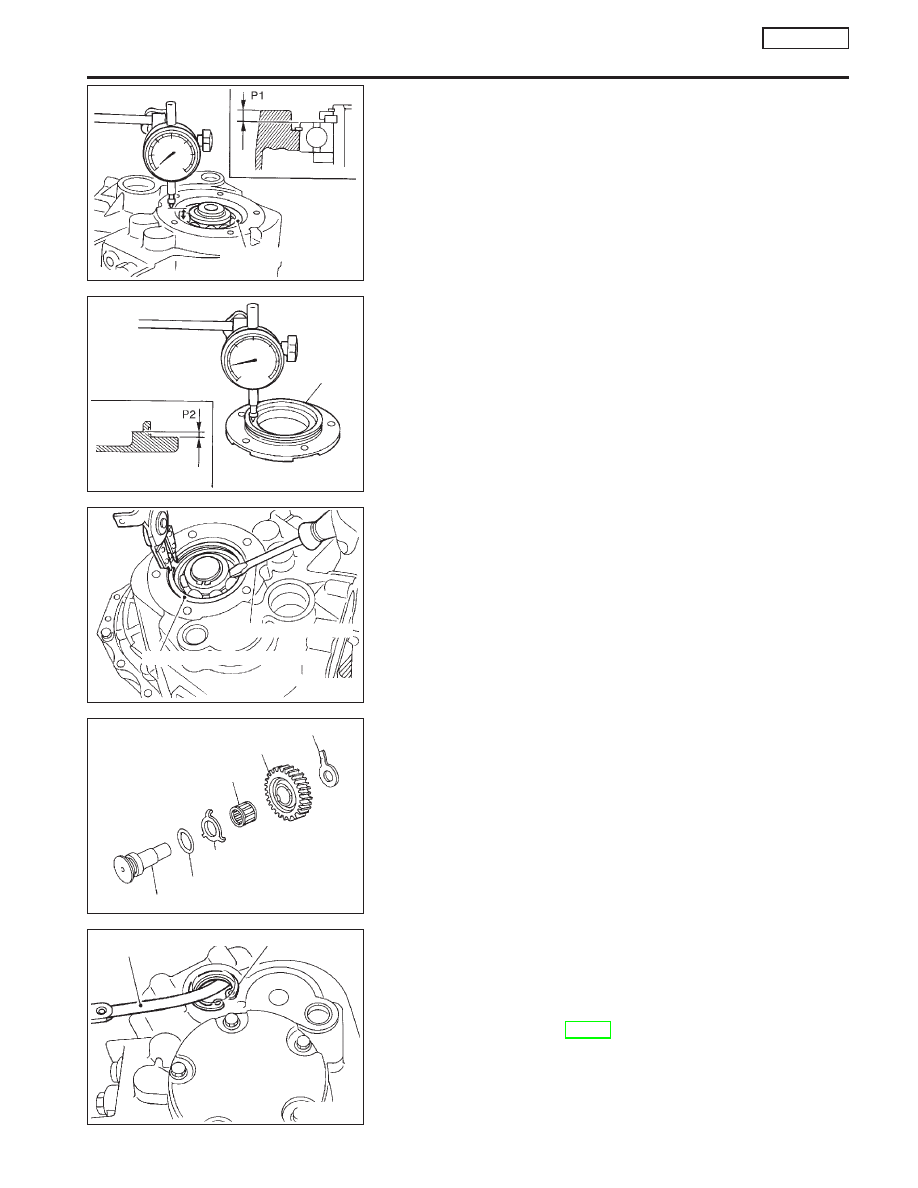

15. Calculate thickness of adjusting shim using the following pro-
cedure to satisfy specification of end play for mainshaft rear
bearing.
End play: 0 - 0.06 mm (0 - 0.0024 in)
Dimension “P” = (P1 − P2) + End play
P : Thickness of adjusting shim
P1: Distance between transaxle case end face
and mainshaft rear bearing
P2: Distance between adjusting shim end face of
rear cover and transaxle mounting face
Available mainshaft rear bearing adjusting shims:
Refer to SDS, MT-92.
SMT649D
Clutch housing
Transaxle case
SMT648D
Reverse switch
PNP switch
Filler plug
Drain plug
SMT749D
Check balls
Check springs
Check plugs
16 - 22
(1.6 -2.2,
12 -16)
N·m (kg-m, ft-lb)
SMT746D
Rear cover
Mainshaft rear bearing
adjusting shim
Mainshaft rear
bearing
Dimension “P”
ASSEMBLY
RS5F70A
Transaxle Case (Cont’d)
MT-83
