Nissan Primera P11. Manual - part 462





HEATER &

AIR CONDITIONER

SECTION

HA

CONTENTS

PRECAUTIONS AND PREPARATION

.......................... 3

Supplemental Restraint System (SRS)

AIR

BAG

and

SEAT BELT PRE-TENSIONER

............. 3

Precautions for Working with HFC-134a (R-134a) ... 3
General Refrigerant Precautions ............................... 4
Precautions for Refrigerant Connection .................... 4
Precautions for Servicing Compressor...................... 7
Special Service Tools ................................................ 7
HFC-134a (R-134a) Service Tools and
Equipment
.................................................................. 8
Precautions for Service Equipment ......................... 10

DESCRIPTION

............................................................. 12

Refrigeration Cycle .................................................. 12
CSV613 Variable Displacement Compressor.......... 14
Component Layout .................................................. 18

HEATER

DESCRIPTION

............................................................. 19

Control Operation .................................................... 19
Air Flow.................................................................... 19

AUTO

DESCRIPTION

............................................................. 20

Introduction .............................................................. 20
Features................................................................... 20
Control Operation .................................................... 21
Discharge Air Flow................................................... 23

HEATER

TROUBLE DIAGNOSES

............................................. 24

Operational Check ................................................... 24

AUTO

TROUBLE DIAGNOSES

............................................. 26

How to Perform Trouble Diagnoses for Quick
and Accurate Repair
................................................ 26
Symptom Chart........................................................ 28
Checking Resistor.................................................... 30
Preliminary Check.................................................... 30
Performance Test Diagnoses .................................. 33
A/C Performance Chart ........................................... 35
Trouble Diagnoses for Abnormal Pressure ............. 36
Component Location................................................ 39
Wiring Diagram - HEATER -.................................... 40
Circuit Diagram - Air Conditioner............................. 41
Wiring Diagram - A/C - ............................................ 42
Main Power Supply and Ground Circuit Check ...... 51
Diagnostic Procedure 1 ........................................... 52
Diagnostic Procedure 2: Models with relay type 1.. 54
Diagnostic Procedure 2: Models with relay type 2.. 56
Diagnostic Procedure 3: Models with relay type 1.. 57
Diagnostic Procedure 3: Models with relay type 2.. 59
Diagnostic Procedure 4: Models with relay type 1.. 61
Diagnostic Procedure 4: Models with relay type 2.. 63
Diagnostic Procedure 5 ........................................... 65
Diagnostic Procedure 6 ........................................... 66
Diagnostic Procedure 7 ........................................... 68
Diagnostic Procedure 9 ........................................... 69
Diagnostic Procedure 10 ......................................... 70
Diagnostic Procedure 11 ......................................... 74
Diagnostic Procedure 12 ......................................... 75
Diagnostic Procedure 13 ......................................... 76
Diagnostic Procedure 14 ......................................... 77
Electrical Components Inspection ........................... 78
Control Panel System.............................................. 80

HA

Removal and Installation ......................................... 81
Control Linkage Adjustment..................................... 82

SYSTEM DESCRIPTION

............................................. 84

Overview of Control System.................................... 84
Control System Input Components ......................... 84
Control System Auto Amplifier (Auto amp.)............. 87
Control System Output Components....................... 90

SERVICE PROCEDURES

......................................... 100

HFC-134a (R-134a) Service Procedure ................ 100
Maintenance of Lubricant Quantity in
Compressor
........................................................... 102
Refrigerant Lines ................................................... 104

Checking Refrigerant Leaks .................................. 106
Compressor Mounting ........................................... 109
Compressor - Model CR-14 (Calsonic make) ........ 111
Compressor Clutch ................................................. 111
Thermal Protector ...................................................113
CSV613 Compressor..............................................114
Compressor Clutch .................................................114
Ventilation Air Filter.................................................117

SERVICE DATA AND SPECIFICATIONS (SDS)

.......118

General Specifications............................................118
Inspection and Adjustment .....................................118

HA-2

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along
with a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. The SRS system composition which is available to NISSAN MODEL P11 is as follows (The
composition varies according to optional equipment):

For a frontal collision
The Supplemental Restraint System consists of driver’s air bag module (located in the center of the
steering wheel), front passenger’s air bag module (located on the instrument panel on passenger’s side),
seat belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of
front seat), satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision),
wiring harness, warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and
Air Bag Module, see the RS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation or tape either
just before the harness connectors or for the complete harness are related to the SRS.

Precautions for Working with HFC-134a
(R-134a)

WARNING:

CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. These refriger-
ants must never be mixed, even in the smallest amounts. If the refrigerants are mixed, compres-
sor failure is likely to occur.

Use only specified lubricant for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a)
components. If lubricant other than that specified is used, compressor failure is likely to occur.

The specified HFC-134a (R-134a) lubricant rapidly absorbs moisture from the atmosphere. The
following handling precautions must be observed:
a: When removing refrigerant components from a vehicle, immediately cap (seal) the compo-

nent to minimize the entry of moisture from the atmosphere.

b: When installing refrigerant components to a vehicle, do not remove the caps (unseal) until

just before connecting the components. Connect all refrigerant loop components as quickly
as possible to minimize the entry of moisture into system.

c: Only use the specified lubricant from a sealed container. Immediately reseal containers of

lubricant. Without proper sealing, lubricant will become moisture saturated and should not
be used.

d: Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose

and throat. Remove R-134a from the A/C system, using certified service equipment meeting
requirements of SAE J2210 (R-134a recycling equipment), or J2209 (R-134a recovery equip-
ment). If accidental system discharge occurs, ventilate work area before resuming service.
Additional health and safety information may be obtained from refrigerant and lubricant
manufacturers.

e: Do not allow lubricant (Nissan A/C System Oil Type S or type R) to come in contact with sty-

rofoam parts. Damage may result.

PRECAUTIONS AND PREPARATION

HA-3

General Refrigerant Precautions

WARNING:

Do not release refrigerant into the air. Use approved recovery/recycling equipment to capture the
refrigerant every time an air conditioning system is discharged.

Always wear eye and hand protection (goggles and gloves) when working with any refrigerant or
air conditioning system.

Do not store or heat refrigerant containers above 52°C (126°F).

Do not heat a refrigerant container with an open flame; if container warming is required, place
the bottom of the container in a warm pail of water.

Do not intentionally drop, puncture, or incinerate refrigerant containers.

Keep refrigerant away from open flames: poisonous gas will be produced if refrigerant burns.

Refrigerant will displace oxygen, therefore be certain to work in well ventilated areas to prevent
suffocation.

Do not introduce compressed air to any refrigerant container or refrigerant component.

Precautions for Refrigerant Connection

A new type refrigerant connection has been introduced to all refrigerant lines except the following location.

Expansion valve to cooling unit.

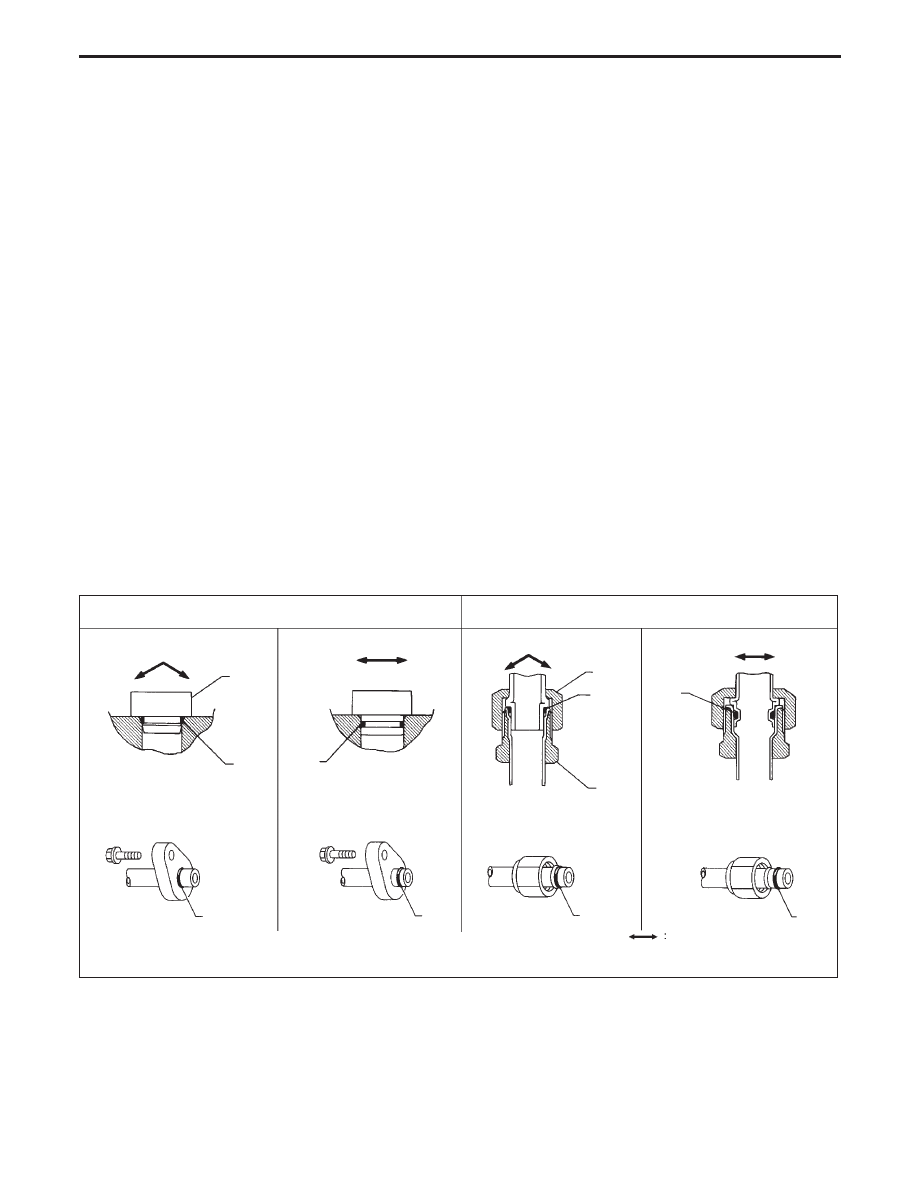

FEATURES OF NEW TYPE REFRIGERANT CONNECTION

The O-ring is relocated in a groove for proper installation. This eliminates the change of the O-ring being
caught in, or damaged by, the mating part. The sealing direction of the O-ring is now set vertically in
relation to the connecting surface of the mating part to improve sealing characteristics.

The reaction force of the O-ring will not occur in the direction that causes the joint to pull out, thereby
facilitating piping connections.

SHA815E

Flange portion

Union-nut portion

Former

Flange

O-ring

O-ring

New

O-ring

O-ring

Former

Nut

O-ring

O-ring

O-ring

New

Sealed direction

O-ring

Union

PRECAUTIONS AND PREPARATION

HA-4
