Nissan Primera P11. Manual - part 458

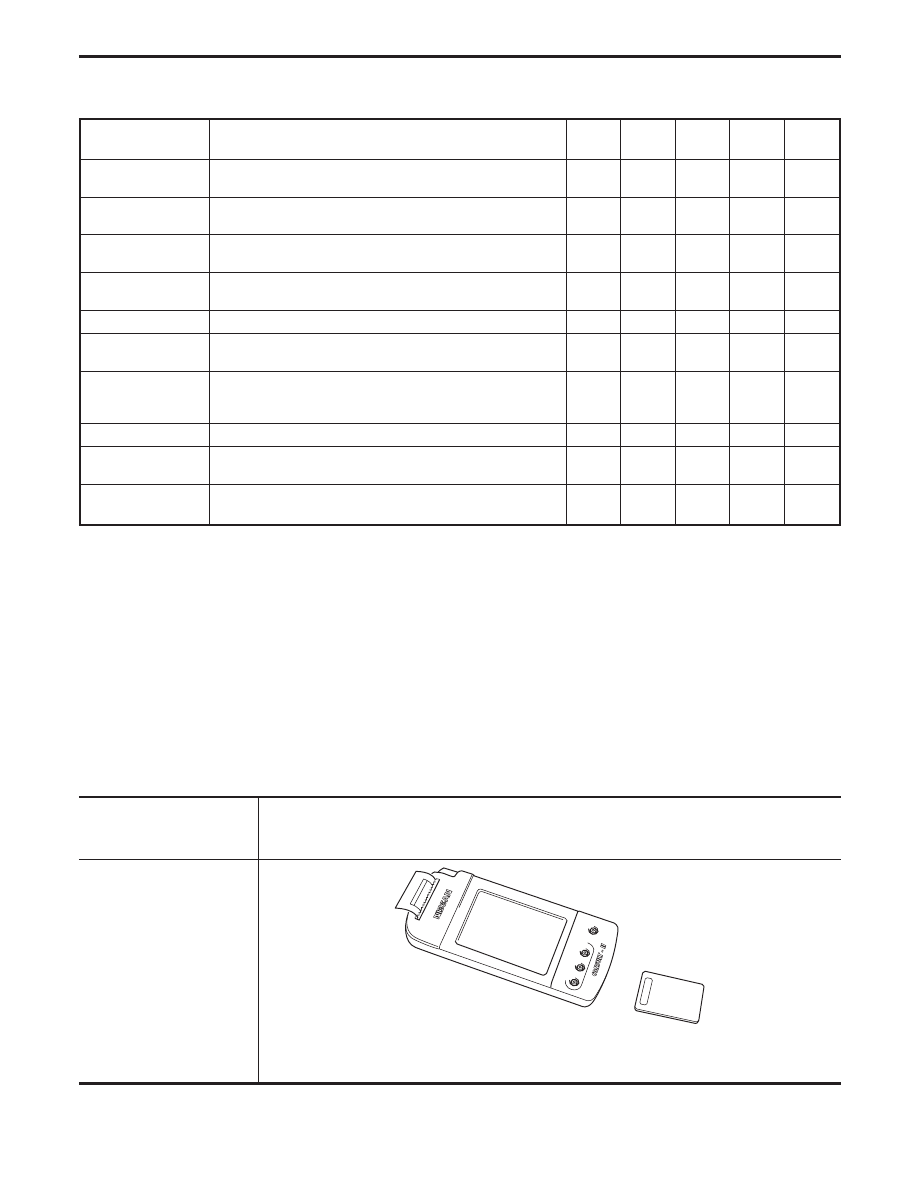

Function and System Application
Diagnostic
test mode
Function
ENGINE
H
⋅
CVT
ABS
AIR
BAG
NATS
Work support
This mode enables a technician to adjust some devices faster
and more accurate by following the indications on CONSULT-II.
×
—
—
—
—
Self-diagnostic
results
Self-diagnostic results can be read and erased quickly.
×
x
x
×
×
Trouble diagnostic
record
Current self-diagnostic results and all trouble diagnostic records
previously stored can be read.
—
—
—
x
—
ECU discriminated
No.
Classification number of a replacement ECU can be read to pre-
vent an incorrect ECU from being installed.
—
—
—
×
—
Data monitor
Input/Output data in the ECM can be read.
×
x
x
—
—
DTC work support
This mode enables a technician to set operating conditions to
confirm self-diagnosis status/results.
x
x
—
—
—
Active test
Diagnostic Test Mode in which CONSULT-II drives some actua-
tors apart from the ECMs and also shifts some parameters in a
specified range.
×
—
x
—
—
ECM part number
ECM part number can be read.
×
x
x
—
—
Control unit initialisa-
tion
All registered ignition key IDs in NATS components can be initia-
lised and new IDs can be registered.
—
—
—
—
x
DTC & SRT confirma-
tion
The results of SRT (System Readiness Test) and the self-diag-
nosis status/results can be confirmed.
x
—
—
—
—
×
: Applicable
*1: NATS: Nissan Anti-Theft System
Nickel Metal Hydride Battery Replacement
CONSULT-II contains a nickel metal hydride battery. When replacing the battery obey the following:
WARNING:
Replace the nickel metal hydride battery with genuine CONSULT-II battery only. Use of another bat-
tery may present a risk of fire or explosion. The battery may present a fire or chemical burn hazard
if mistreated. Do not recharge, disassemble of dispose of in fire.
Keep the battery out of reach of children and discard used battery conforming to the local regula-
tions.
Checking Equipment
When ordering the equipment below, contact your NISSAN distributor.
Tool name
Description
NISSAN CONSULT-II
p
1
CONSULT-II unit
and accessories
p
2
Program card
AED00B-1 and
AEN00A (for NATS)
Refer to the CONSULT-II
operation manual to confirm
the best combination of the
tester internal software and
the software mentioned
above.
NGI045
p
1
p
2
CONSULT-II CHECKING SYSTEM
GI-39
