Nissan Primera P11. Manual - part 451

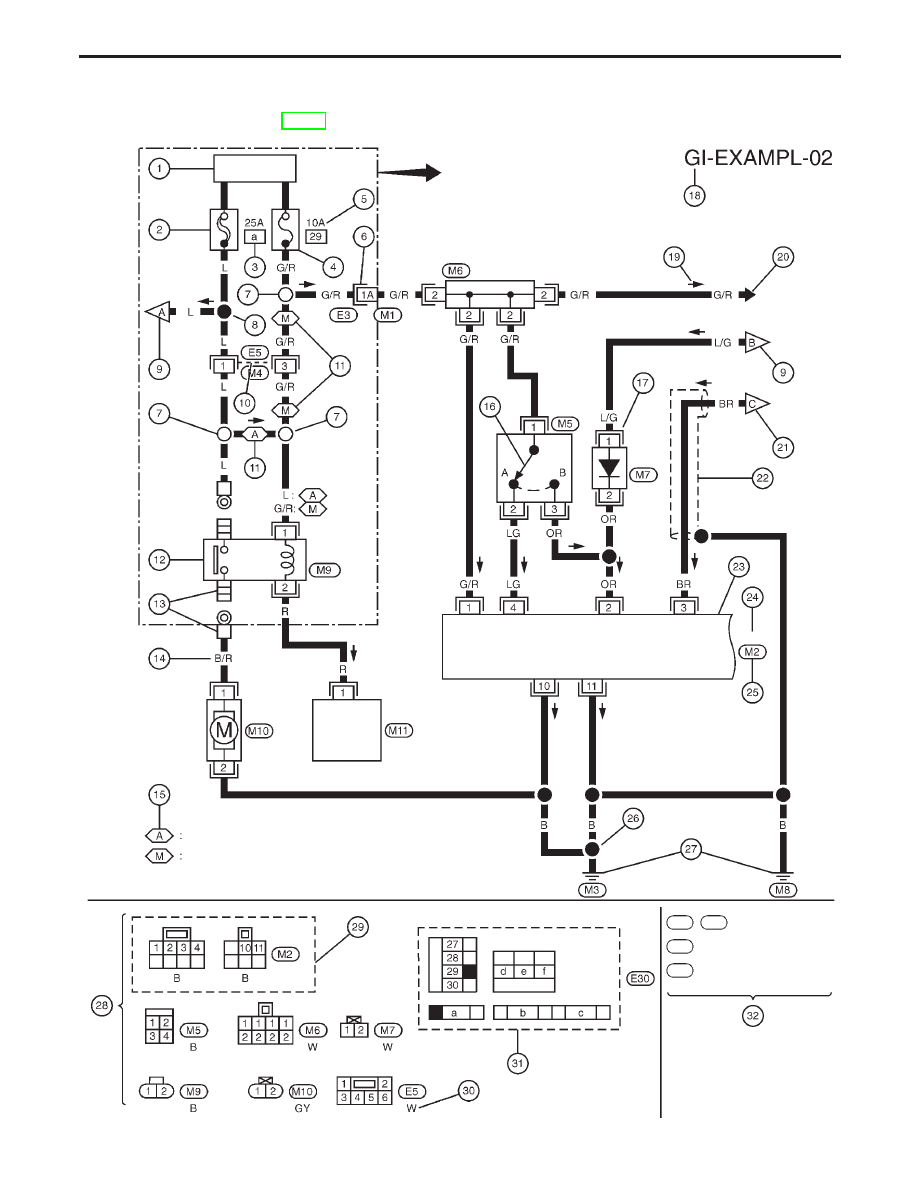

Sample/Wiring Diagram — EXAMPL —

For Description, refer to GI-13.

YGI001

Refer to optional splice.

BATTERY

Preceding
page

RELAY

MOTOR

MOTOR

CONTROL

MODULE

A/T models

M/T models

.

REFER TO THE FOLLOWING

M1

E103 FUSE BLOCK -

Junction Box (J/B)

M2

FUSE BLOCK -

Junction Box (J/B)

E127 FUSE BLOCK -

Junction Box (J/B)

POWER

JOINT
CONNECTOR-1

SWITCH

To EL-
EXAMPL

Next page

To GI-
EXAMPL-04

DIODE

POSITION

A

POSITION

B

SIGNAL

GND

GND

UNIT

HOW TO READ WIRING DIAGRAMS

GI-11

OPTIONAL SPLICE

SGI858

BATTERY

BATTERY

Optional splice

M/T models

A/T models

RELAY

RELAY

HOW TO READ WIRING DIAGRAMS

Sample/Wiring Diagram — EXAMPL —

(Cont’d)

GI-12

Description

Number

Item

Description

p

1

Power condition

This shows the condition when the system receives battery positive voltage
(can be operated).

p

2

Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current
flow out.

p

3

Fusible link/fuse location

This shows the location of the fusible link or fuse in the fusible link or fuse
box. For arrangement, refer to EL section (“POWER SUPPLY ROUTING”).

p

4

Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current
flow out.

p

5

Current rating

This shows the current rating of the fusible link or fuse.

p

6

Connectors

This shows that connector

E3

is female and connector

M1

is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphanumeric reference (1A, 5B, etc.) indicates that
the connector is an SMJ connector.

p

7

Optional splice

The open circle shows that the splice is optional depending on vehicle appli-
cation.

p

8

Splice

The shaded circle shows that the splice is always on the vehicle.

p

9

Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.

p

10

Common connector

The dotted lines between terminals show that these terminals are part of the
same connector.

p

11

Option abbreviation

This shows that the circuit is optional depending on vehicle application.

p

12

Relay

This shows an internal representation of the relay. For details, refer to EL sec-
tion (“STANDARDIZED RELAY”).

p

13

Connectors

This shows that the connector is connected to the body or a terminal with bolt
or nut.

p

14

Wire color

This shows a code for the color of the wire.
B = Black

BR = Brown

W = White

OR = Orange

R = Red

P = Pink

G = Green

PU = Purple

L = Blue

GY = Gray

Y = Yellow

SB = Sky Blue

LG = Light Green

CH = Dark Brown
DG = Dark Green

When the wire color is striped, the base color is given first, followed by the
stripe color as shown below:
Example: L/W = Blue with White Stripe

p

15

Option description

This shows a description of the option abbreviation used on the page.

p

16

Switch

This shows that continuity exists between terminals 1 and 2 when the switch
is in the A position. Continuity exists between terminals 1 and 3 when the
switch is in the B position.

p

17

Assembly parts

Connector terminal in component shows that it is a harness incorporated
assembly.

p

18

Cell code

This identifies each page of the wiring diagram by section, system and wiring
diagram page number.

HOW TO READ WIRING DIAGRAMS

GI-13

Number

Item

Description

p

19

Current flow arrow

Arrow indicates electric current flow, especially where the direction of stan-
dard flow (vertically downward or horizontally from left to right) is difficult to
follow.

A double arrow “

F

E

” shows that current can flow in either direction depend-

ing on circuit operation.

p

20

System branch

This shows that the system branches to another system identified by cell
code (section and system).

p

21

Page crossing

This arrow shows that the circuit continues to another page identified by cell
code.

The C will match with the C on another page within the system other than the
next or preceding pages.

p

22

Shielded line

The line enclosed by broken line circle shows shield wire.

p

23

Component box in wave
line

This shows that another part of the component is also shown on another
page (indicated by wave line) within the system.

p

24

Component name

This shows the name of a component.

p

25

Connector number

This shows the connector number.

The letter shows which harness the connector is located in.
Example: M: main harness. For details and to locate the connector, refer to
EL section (“Main Harness”, “HARNESS LAYOUT”). A coordinate grid is
included for complex harnesses to aid in locating connectors.

p

26

Ground (GND)

The line spliced and grounded under wire color shows that ground line is
spliced at the grounded connector.

p

27

Ground (GND)

This shows the ground connection.

p

28

Connector views

This area shows the connector faces of the components in the wiring diagram
on the page.

p

29

Common component

Connectors enclosed in broken line show that these connectors belong to the
same component.

p

30

Connector color

This shows a code for the color of the connector. For code meaning, refer to
wire color codes, Number

p

14

of this chart.

p

31

Fusible link and fuse box

This shows the arrangement of fusible link(s) and fuse(s), used for connector
views of “POWER SUPPLY ROUTING” in EL section.
The open square shows current flow in, and the shaded square shows cur-
rent flow out.

p

32

Reference area

This shows that more information on the Super Multiple Junction (SMJ) and
Joint Connectors (J/C) exists on the foldout page.

HOW TO READ WIRING DIAGRAMS

Description (Cont’d)

GI-14
